How to integrate OpenSSL with MetaDefender Core for decrypting files

Applies to

• Archive Extraction engine enabled.
• CLI Extraction feature is available in your build.

What you will achieve

• Automatically decrypt OpenSSL password-protected files during scans so that child files are inspected by all enabled engines and modules (e.g., Multiscanning, CDR, DLP).
• Map the correct Core file type to OpenSSL via a CLI rule.

Background and key concepts

MetaDefender Core supports an external CLI Extraction capability. You provide a JSON list of tools to run for specific file types. For OpenSSL-encrypted content, Core identifies files by internal file type. For legacy “.des” payloads created via OpenSSL enc, Core’s internal file type is OPENSSL-SALT. Therefore, your CLI JSON must target file_type_id: OPENSSL-SALT instead of a generic or extension-based value like “des.”

Prerequisites

• MetaDefender Core v5 is installed and licensed with the Archive Extraction engine active.
• Administrative access to Core UI to upload/assign the CLI JSON and to toggle the Archive Extraction engine.
• OpenSSL installed on the Core host (Windows example path below; Linux path may be /usr/bin/openssl).

Step-by-step configuration

1) Create or update the CLI Extraction JSON

Prepare a JSON file (root is an array) defining OpenSSL as the decryptor for OPENSSL-SALT. Ensure that both $input and $output placeholders exist; $password is optional but required for password-based decryption.

xxxxxxxxxx

[

  {

    "file_type_id": "OPENSSL-SALT",

    "executable_path": "C:\\OpenSSL\\bin\\openssl.exe",

    "arguments": [

      "enc",

      "-d",

      "-aes-256-cbc",

      "-pbkdf2",

      "-iter",

      "10000",

      "-in",

      "$input",

      "-out",

      "$output",

      "-k",

      "$password"

    ],

    "patterns_indicating_encrypted": [

      "bad decrypt",

      "incorrect password",

      "error while reading"

    ]

  }

]

Notes:

• file_type_id must match Core’s internal file type detection. For OpenSSL enc (salted), use OPENSSL-SALT.
• executable_path must be absolute. On Windows JSON, escape backslashes.
• Arguments order mirrors a working OpenSSL decrypt command. Adjust cypher/iterations to your environment if files were encrypted differently.

2) Upload JSON and enable CLI Extraction in Core

1. Open Core UI and navigate to Inventory → Modules → Utilities → Archive Extraction.
2. Enable Enable CLI Processing >>Edit Definition File Path >> and provide the fully qualified path to the CLI definition JSON file
3. Save changes. Then disable and re-enable the Archive Extraction engine to load the new rules.

3) Test the integration

1. Encrypt a known benign file with OpenSSL on the Core server using the same parameters as your JSON (cipher, pbkdf2, iter).
2. Submit the encrypted file to Core. In Processing History, verify that:
   • The parent file type shows as an archive-like container with internal type OPENSSL-SALT.
   • Archive Extraction runs the CLI and produces decrypted child files under the parent, which then get scanned by engines/CDR/DLP as configured.

Operational guidance and best practices

• Iter count and cipher must match the way files were encrypted. If encryption used a different cipher (e.g., -des3 or -aes-128-cbc) or a different iteration count, mirror those values in the JSON arguments.
• Always re-enable the Archive Extraction engine after editing the CLI JSON so Core loads the new mapping.
• Store known passwords securely in Core’s password mechanisms when possible. Avoid embedding secrets directly in JSON.

Troubleshooting

Validation checklist

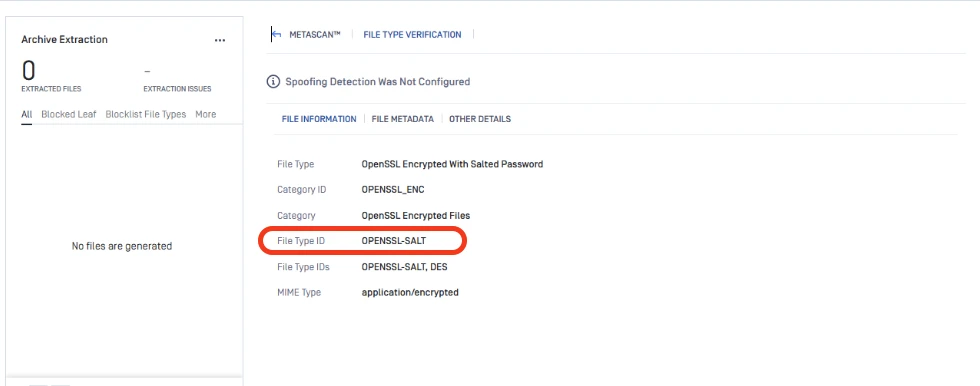

• Scan shows FileTypeID for the scanned file as OPENSSL-SALT

• AV engines, CDR, and DLP process the child files as per the active workflow post its successful decryption

FAQ

• Do I need to restart the whole Core service after updating the JSON?

  • No. Disabling and re-enabling the Archive Extraction engine is sufficient to reload the CLI mapping.

• How do I pass the password to the CLI rule?

  • Include the $password placeholder in arguments and configure a password source (e.g., Password Storage or submission metadata). Core will substitute the runtime value.

• Can I use other ciphers or parameters?

  • Yes. Adjust the arguments to match your actual encryption method (e.g., -des3, -aes-128-cbc, custom -iter). Ensure your test encrypt/decrypt commands succeed manually before updating the JSON.
