How do I set up and use the Media Manifest feature in MetaDefender Kiosk?

This article covers the entire course of Media Manifest setup and usage in MetaDefender Kiosk, including:

1. Setting up the certificate for digital signing (via MetaDefender Core)
2. Enabling the Media Manifest feature (via MetaDefender Kiosk)
3. Utilizing Media Manifest (via the OPSWAT Media Validation Agent)
4. Media validation flow.

Setting up the certificate for digital signing (via MetaDefender Core)

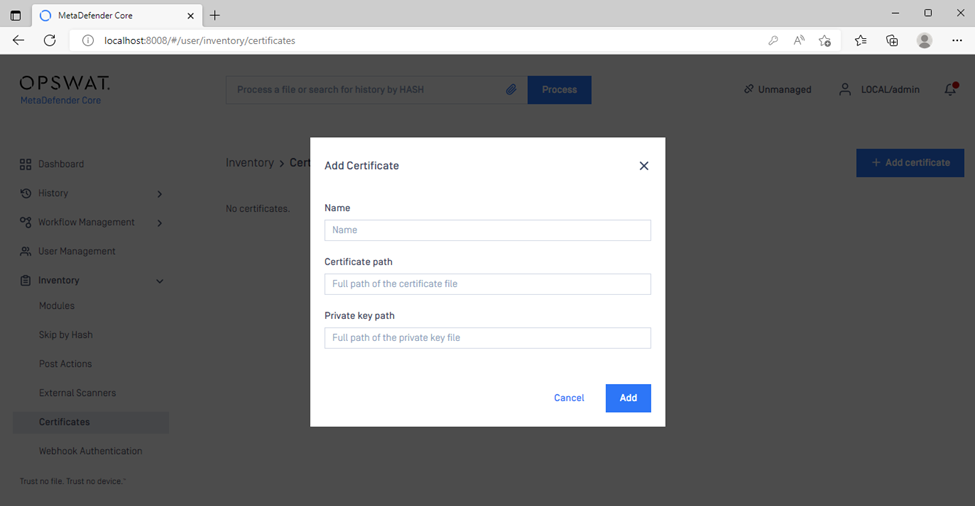

1. Go to your MetaDefender Core Management Console>Inventory>Certificates to add a certificate that will be used for digital signing.

2. For more information on adding certificates, please Read This and This.

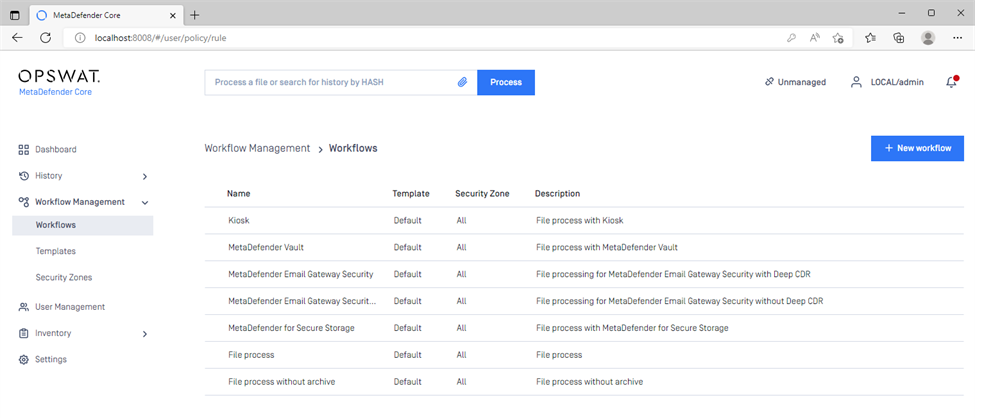

3. Now, go to Core Management Console>Workflow Management>Workflows to open the appropriate workflow.

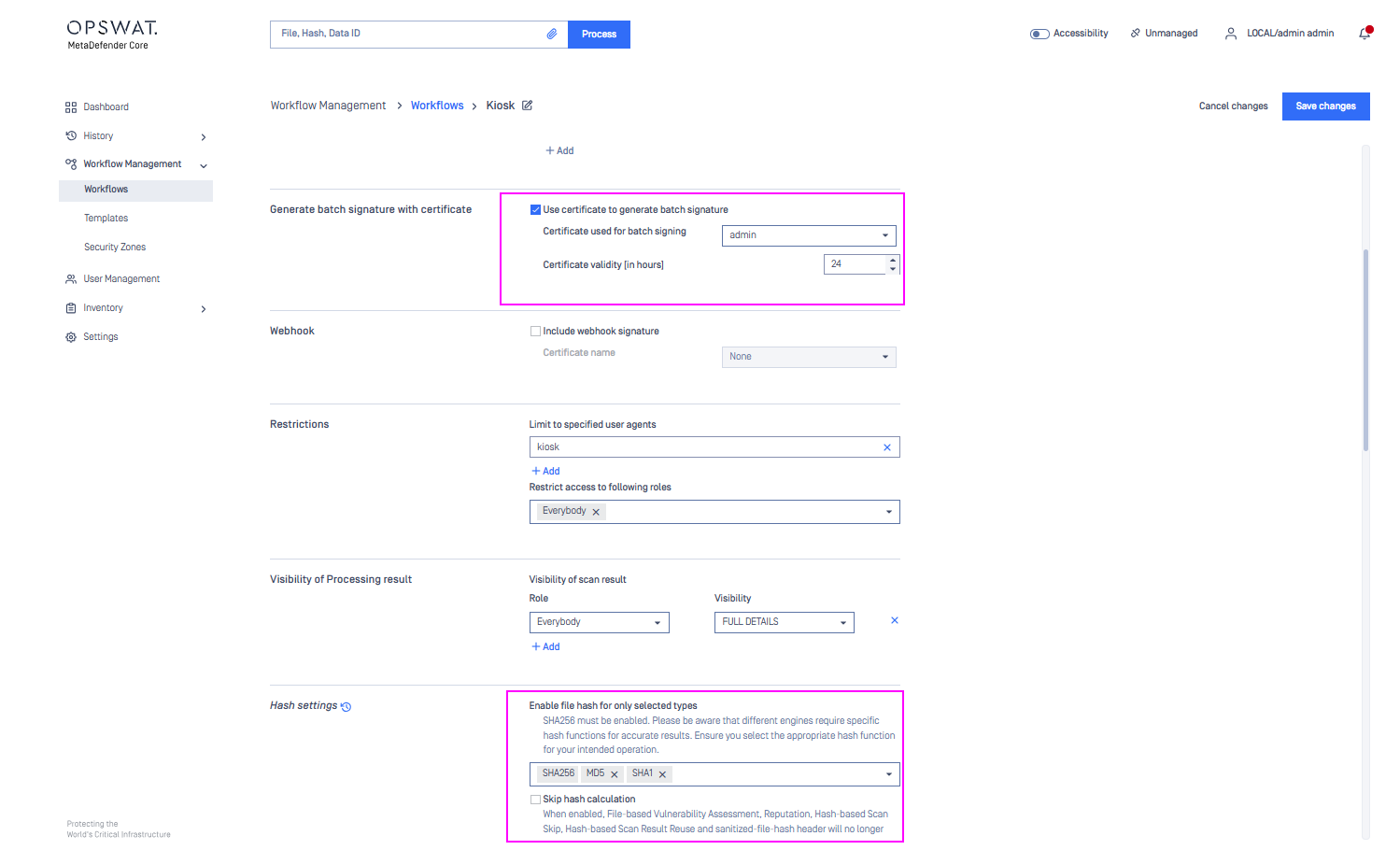

4. Assign the certificate you created to the Workflows > Generate batch signature with certificate, as illustrated in the screenshot below.

Enabling the Media Manifest feature (via MetaDefender Kiosk)

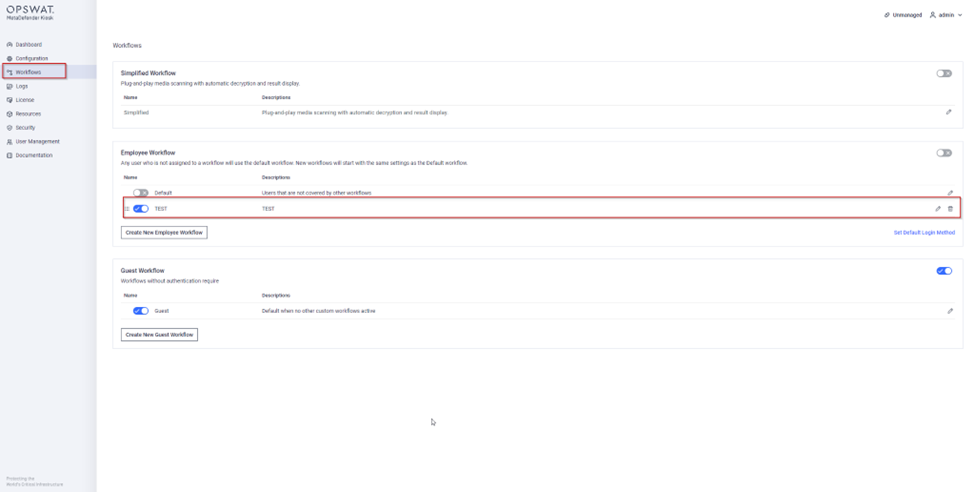

1. Enable Media Manifest in Kiosk by going to the MetaDefender Kiosk Management Console>Workflows, then clicking the edit icon on the appropriate workflow, as highlighted in the screenshot below.

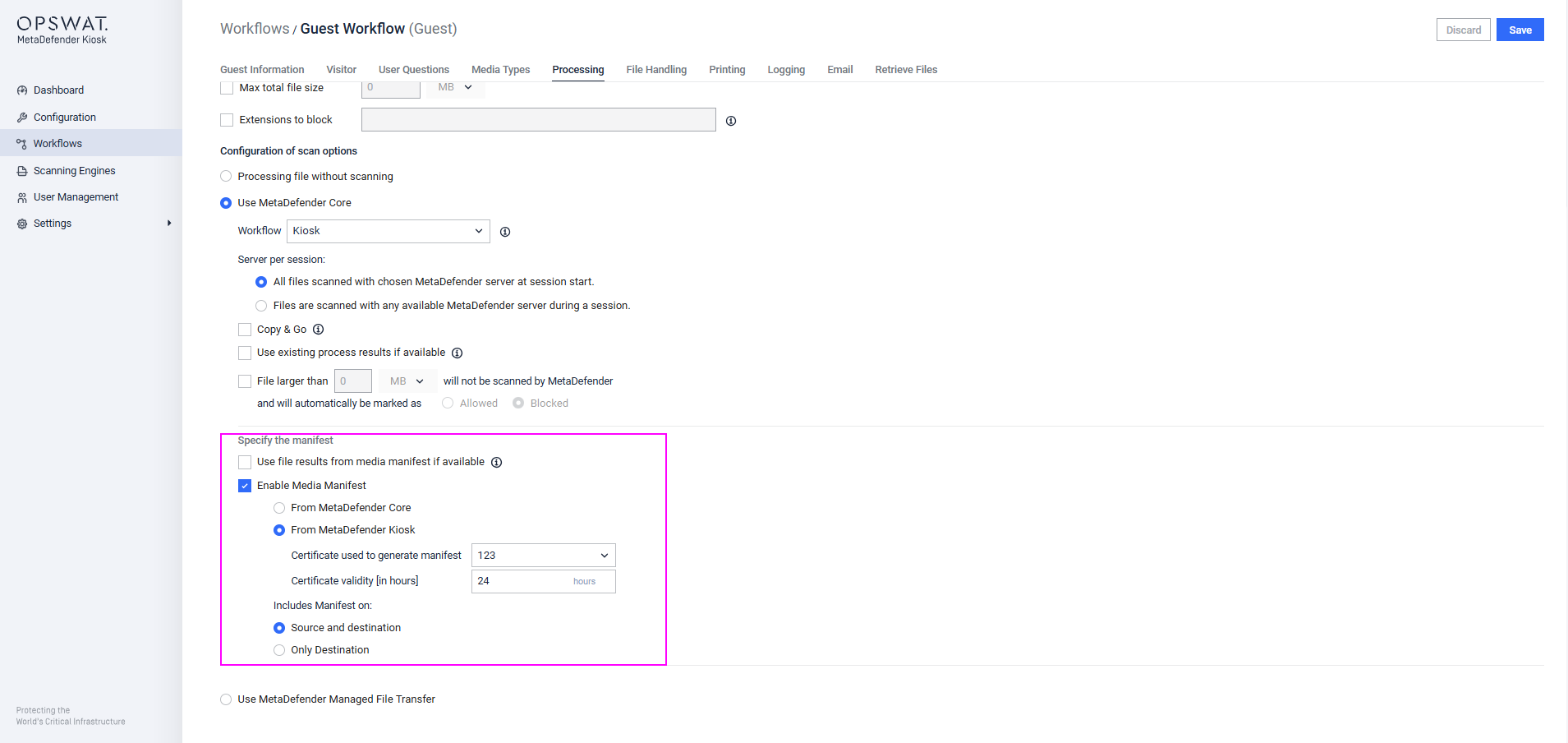

2. Now, go to the Processing section to assign the appropriate workflow rule (i.e. the workflow configured in the Core Management Console) and select the Include Media Manifest option, as illustrated below.

3. You can choose to use a manifest file generated by either MD Core or Kiosk. The manifest from Kiosk will be signed using the certificate configured under Settings > Security > Certificates
4. Finally, click Apply to activate your selections.

Utilizing Media Manifest (via the OPSWAT Media Validation

Agent)

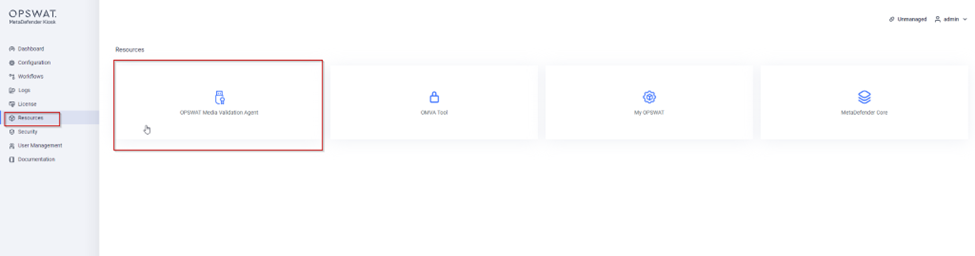

1. Go to MetaDefender Kiosk Management Console>Resources to download the OMVA, as illustrated in the screenshot below.

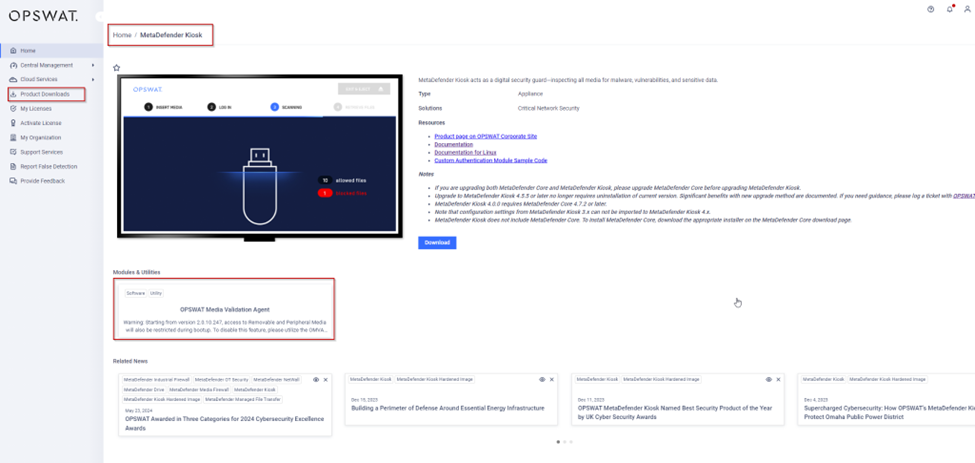

2. Alternatively, go to the Opswat Portal>Products>Endpoint Clients section to download the OMVA, as shown below.

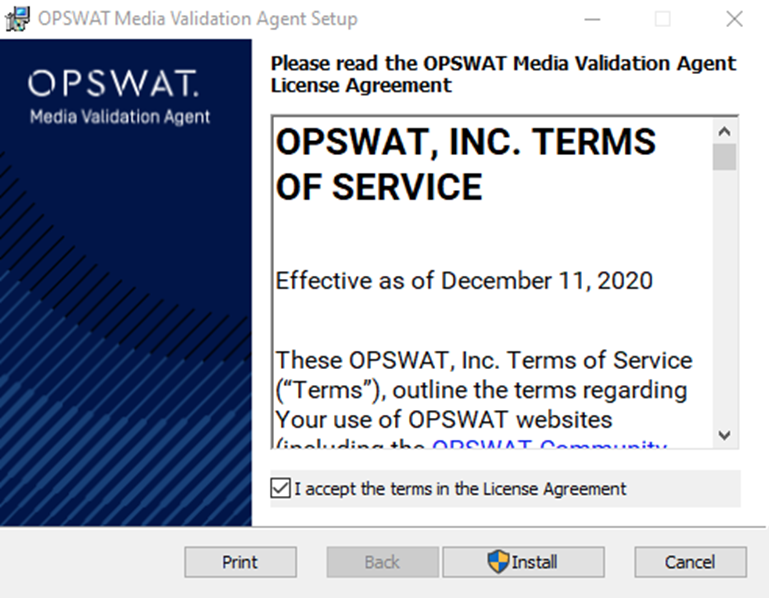

3. Follow the Setup Wizard to install the agent on the appropriate endpoint. Please Read This for more information.

4. Finally, install the Public Key of your certificate to the endpoint.

Media validation flow

1. In order to process files from external media, Kiosk sends them to the associated MetaDefender Core instance.
2. MetaDefender Core then generates a manifest listing all the files that it processed during the Kiosk session, signed with a digital certificate.
3. The Kiosk then downloads this manifest to the processed media, along with the processed files.
4. This media can now be inserted into any endpoint that has the OPSWAT Media Validation Agent installed.
5. The OMVA will then check the hashes of the files in the media manifest against the files physically located on the media.
6. All Media devices will be blocked if any discrepancies are noticed.
