How to setup auto deactivate license for MD Core container in AWS ECS with Lambda function?

This article apply for MD Core container in AWS ECS

Background

There are situations in ECS deployment that the deployment-ids within a license key get zombie as the container is terminated but it could not properly deactivate that deployment-id.

Goal:

When an MD Core task starts, record its deployment ID; when the task stops (scale-in, crash, OOM, deploy), deactivate that deployment reliably—even if the container can’t run its own shutdown hook.

1 - Architecture (at a glance)

  • Trigger: EventBridge rule on ECS Task State Change (we filter by desiredStatus for speed).

  • Lambda (single function):

    • On desiredStatus=RUNNING → wait until lastStatus=RUNNING, call MD Core Admin APIGET http://<task-private-ip>:8008/admin/license (header apikey: <MDCORE_APIKEY>) → read deployment.
    • Store mapping { task_arn → deployment } in DynamoDB (TTL’d).
    • On desiredStatus=STOPPED → wait until lastStatus=STOPPED, read activation key + deployment → call GET https://activation.dl.opswat.com/deactivation?key=<activation-key>&deployment=<deployment>.
  • Secrets: Activation key and Admin API key live in AWS Secrets Manager; they are injected into the Task Definition as environment secrets (not plain env).

  • Networking: Lambda is placed in the same VPC as ECS and allowed to reach the task’s private IP on TCP/8008.

2 - Prerequisites

  • ECS Fargate service for MD Core (container name recommended: mdcore).
  • VPC with private subnets and either a NAT gateway (or VPC endpoints for Secrets Manager & DynamoDB).
  • Basic AWS permissions to create Lambda, EventBridge rules, DynamoDB table, and Secrets.

3 - Store secrets in AWS Secrets Manager

Create two secrets (names are examples; choose your own):

HTML
Copy

4 - Update the Task Definition (container mdcore)

Add environment secrets:

  • MDCORE_LICENSE_KEY → value from Secrets Manager mdcore/license-key
  • MDCORE_APIKEY → value from Secrets Manager mdcore/admin-apikey

Tip: You do not need to expose port 8008 externally. Lambda will call the task’s private IP on port 8008.

5 - Create the DynamoDB table (idempotency & mapping)

HTML
Copy

Then enable TTL on attribute ttl (Console → DynamoDB → Table → TTL).

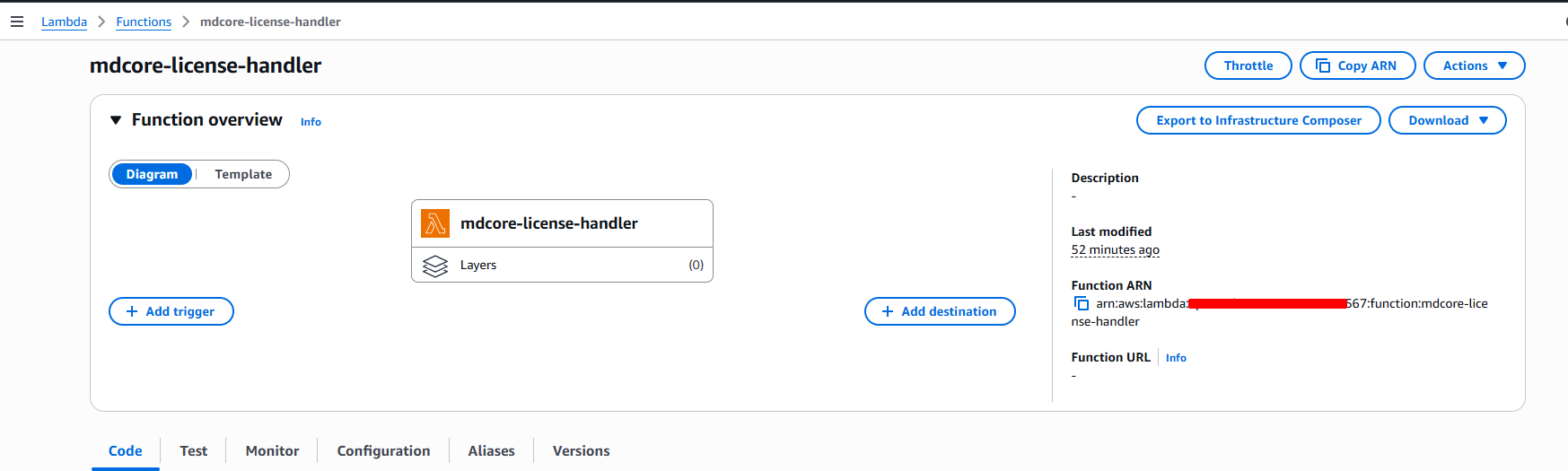

6 - Create the Lambda function

A. Basics

  • Author from scratch → Name: mdcore-license-handler
  • Runtime: Python 3.11, Architecture: x86_64
  • Create.

B. VPC

  • Configuration → VPC → Edit

    • Select the same VPC and private subnets as ECS.
    • Security group for Lambda: allow egress to the ECS task SG.
  • ECS task SG: allow inbound TCP 8008 from the Lambda SG.

C. Environment variables

HTML
Copy

D. Permissions (IAM)

From Lambda → Configuration → Permissions → click the Role nameAdd permissions → Create inline policy → JSON:

HTML
Copy

Later, tighten Resource to specific ARNs (table + secrets). If secrets use a CMK, also grant kms:Decrypt.

E. Code (paste into lambda_function.py, handler = lambda_function.handler)

HTML
Copy

7 - Create the EventBridge rule

Console → EventBridge → Rules → Create rule → Rule with an event patternAWS services → Service: Elastic Container Service (ECS) → Event type: ECS Task State ChangeSwitch to JSON editor and paste:

HTML
Copy

Target: Lambda function → select mdcore-license-handler. In Additional settings: enable a DLQ (SQS) and keep default retries.

8 - Test & validate

  1. Scale service to 0 and back to 1:
  • On scale-up, CloudWatch Logs should show: status=mapped ... deployment=<id>. Verify DynamoDB row { task_arn, deployment, status=ACTIVE }.
  • On scale-in/stop, Logs should show: status=deactivated. Row updated to status=DEACTIVATED.
  1. Manual curl (optional)
  • Get deployment from inside the task:
HTML
Copy
  • Expected JSON contains "deployment": "<MSCL...>".
  1. Security Group check
  • If mapping fails, ensure Lambda SG - ECS task SG allows TCP/8008

9 - Troubleshooting quick list

  • EventBridge rule not firing: wrong region/bus; pattern mismatch (check clusterArn/group); use CloudWatch “Metrics for matched events”.
  • Mapping fails (RUNNING): Lambda not in VPC / no IP on task yet / SG not allowing 8008 / wrong MDCORE_APIKEY_NAME.
  • Deactivation fails (STOPPED): No DDB mapping (task died before RUNNING), wrong MDCORE_LICENSE_KEY secret, outbound internet blocked (need NAT for the activation URL) or corporate proxy.
  • Timeouts: Increase WAIT_RUNNING_SEC / WAIT_STOPPED_SEC; keep EventBridge target retry window ≥ 1h.

10 - Hardening & Ops

  • Least privilege: restrict IAM to specific ARNs; add kms:Decrypt if secrets use a CMK.
  • Observability: add CloudWatch metric filters for "Deactivate failed" and alarm.
  • Idempotency: deactivation endpoint should be safe to call multiple times; DDB state prevents repeats.
  • Cost: all serverless; negligible under normal loads.

11 - Alternative "sidecar register" (if opening 8008 to Lambda is hard)

Add a tiny sidecar container that waits for MD Core to be ready, calls /admin/license, and writes the mapping directly to DynamoDB (using the task role). Then the Lambda only needs to handle STOPPED events to deactivate. This avoids Lambda→8008 traffic.

If Further Assistance is required, please proceed to log a support case or chatting with our support engineer.
