How can I enable HTTPS on MetaDefender ICAP Server via the API?

Check Your Version:

This article applies to all MetaDefender ICAP releases deployed on Windows and Linux systems within our supported chart: https://www.opswat.com/docs/mdicap/knowledge-base/how-long-is-the-support-life-cycle-for-a-specific-version-releas

Overview

This article outlines the steps to add a certificate to the MetaDefender ICAP Server inventory and enable HTTPS via API. It also covers the API call used to configure the minimum TLS version.

Step 1. Setup authentication via api key or session ID

Choose one the two options below.

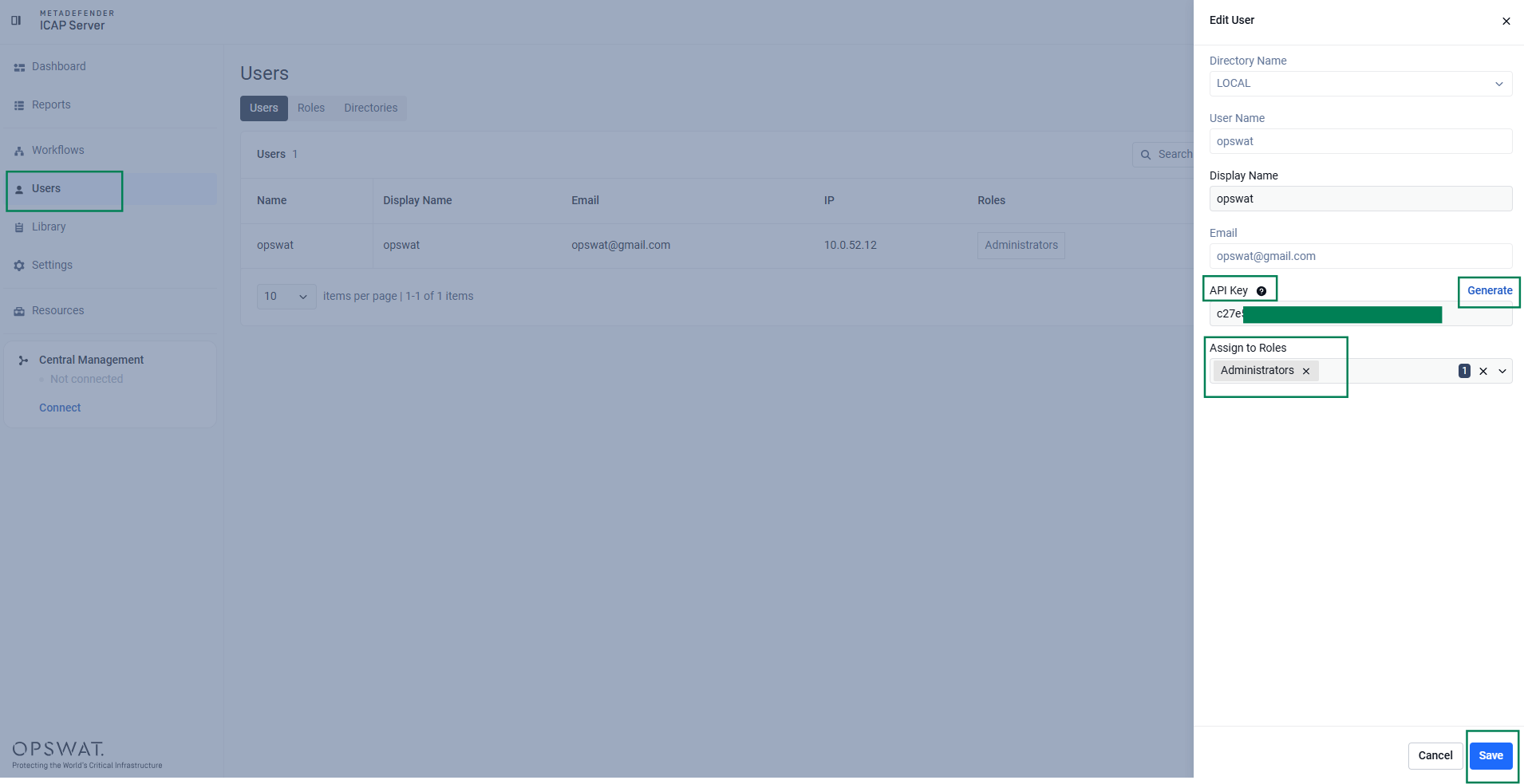

Option 1. How to obtain an API key for a local admin user:

Option 2. How to get a session ID:

API: POST /login
Headers:

Content-Type: application/json

Request body:

{ "user": <username>, "password": <password> }

Response:

{ "session_id": "<session_token_string>" }

Important

Include this session_id as the apikey HTTP header value for all protected requests (e.g., apikey: <session_token_string>)

Step 2. Upload a certificate to the MetaDefender ICAP Inventory

Upload a new certificate and private key using form data

API: POST /admin/config/uploadcert

Headers:

Content-Type: multipart/form-data apikey: <session_token_string> or api from the UI

Form Data params:

Param	Type	Description
name	string	Descriptive identifier for the certificate (e.g., `"SSL"`)
cert	file (binary)	Certificate file (e.g., `.crt` or `.pem`)
key	file (binary)	Corresponding private key file (e.g., `.key`)

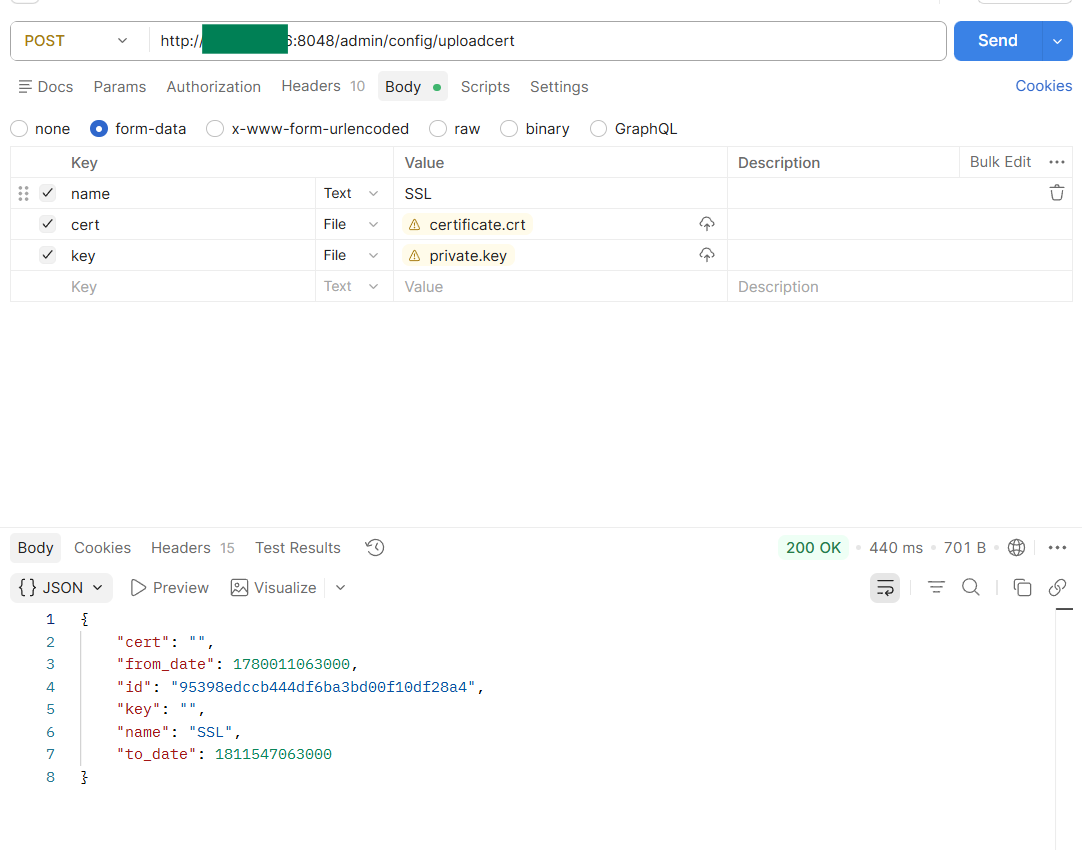

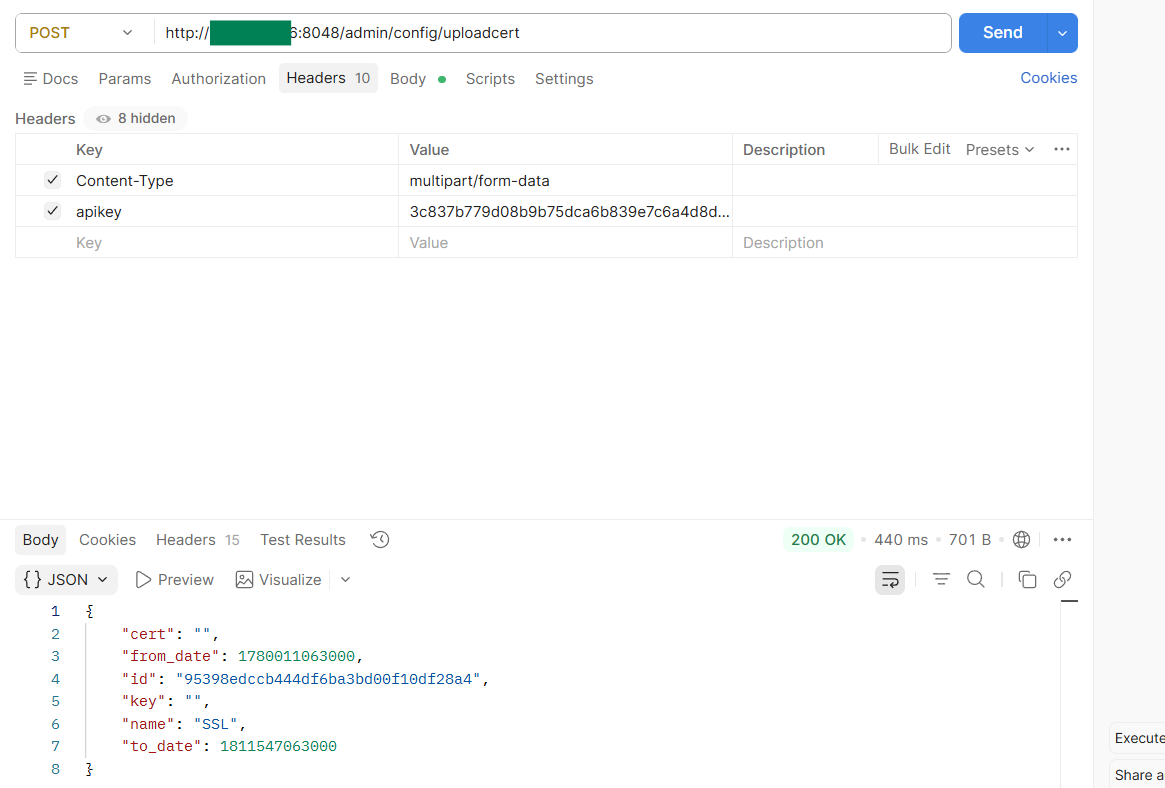

Request example (cURL)

curl -X POST "https://<host>/admin/config/uploadcert" \ -H "apikey: <session_token_string> or <apikey>" \ -F "name=SSL" \ -F "cert=@/path/to/certificate.crt" \ -F "key=@/path/to/private.key"

Response (200 OK)

{ "message": "Certificate uploaded successfully" }

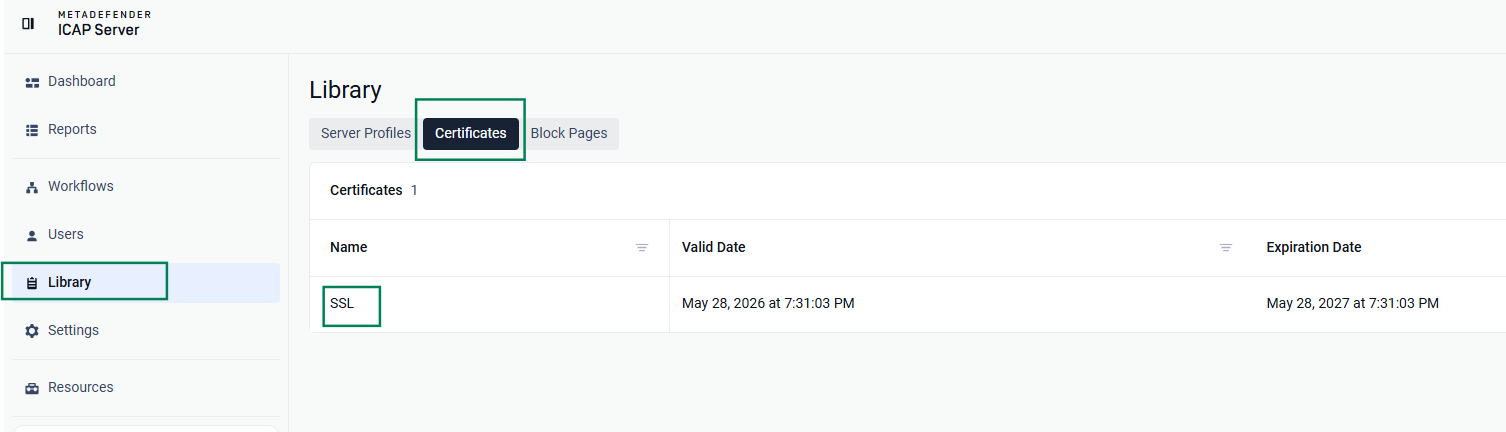

UI result, certificate is added to Library:

Additional APIs: Certificate Verification & TLS Configuration

1. Verify the certificate was successfully added

Fetches all SSL/TLS certificates currently configured on the system.

API: GET /admin/config/certs

Headers:

apikey: <session_token_string>

Response (200 OK)

{ "certs": [ { "id": "cert_01", "name": "<cert_name>", "cert": "", "key": "", "from_date": "<from_date>", "to_date": "<to_date>" } ] }

2. API to configure TLS protocol

Updates the system's SSL/TLS protocol settings and assigns an active certificate.

API: PUT /admin/config/ssl

Headers:

Content-Type: application/json apikey: <session_token_string>

Request body:

{ "cert": "<cert_name>", "enabled": true, "ssl_protocols": [ "TLSv1.3", "TLSv1.2" ] }

List of enabled protocols:

"TLSv1.3"
"TLSv1.2"
"TLSv1.1"
"TLSv1"
"SSLv3"

Error return codes:

Status code	Common causes / notes
500 server error	Server/application-level: Unhandled exception in the API code processing the request Malformed or unexpected request body — even if syntactically valid JSON, a field with an unexpected type/value can crash server-side parsing Backend dependency failure — database unreachable, downstream service timeout, disk/resource exhaustion Configuration/environment: Certificate/TLS issue on the server side that surfaces as a generic 500 rather than a specific TLS error Request-specific: Content-Type header mismatch (e.g., sending `application/x-www-form-urlencoded` when the API expects `application/json`) Payload too large or a field exceeding an unstated length limit Special characters or encoding issues in the request body not being escaped properly
502 Bad Gateway	A proxy/load balancer (like an F5 or NLB — relevant given your past cases) received an invalid response from the upstream ICAP service
503 Service Unavailable	Server is temporarily overloaded or down for maintenance/restart (relevant if the service needs to restart after a TLS config change)
504 Gateway Timeout	Upstream server took too long to respond — this ties directly to the ICAP/NLB idle timeout
403 Forbidden	API key or session ID incorrect. The session ID may have expired.
400 Bad Request	Malformed JSON, missing required field, or invalid value (e.g., invalid TLS version string, cert in wrong format)
401 Unauthorized	Missing or invalid authentication (API key/token missing, expired, or incorrect)
404 Not Found	Endpoint URL is incorrect, or a referenced resource (e.g., certificate ID) doesn't exist
405 Method Not Allowed	Wrong HTTP verb used (e.g., sending GET when the endpoint only accepts POST)
409 Conflict	Request conflicts with current server state (e.g., trying to add a certificate that already exists, or setting TLS version while another config change is in progress)
415 Unsupported Media Type	Content-Type header doesn't match what the server expects (e.g., sending form-data when JSON is required)
422 Unprocessable Entity	Request is well-formed but semantically invalid (e.g., certificate file is valid but doesn't match the private key)
429 Too Many Requests	Rate limit exceeded

Additional MetaDefender ICAP API endpoints beyond those documented in this article are not currently supported or publicly exposed. OPSWAT reserves the right to introduce or document additional APIs in future releases.

Support:

If Further Assistance is required, please proceed to log a support case or chatting with our support engineer.
