How an ICAP Request looks like?

ICAP requests (defined in RFC 3507) are HTTP-like messages used to send content to the ICAP Server for processing.

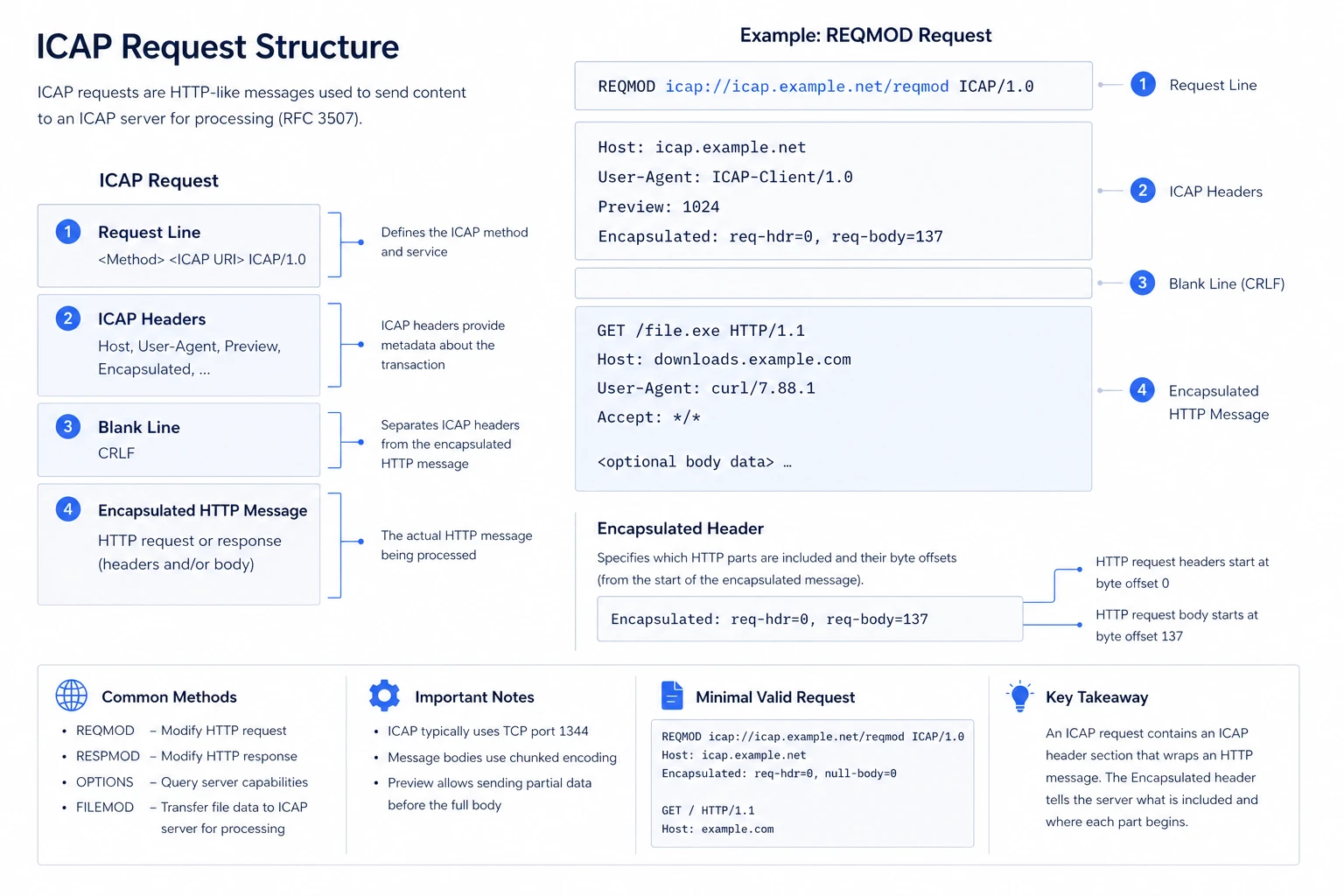

Basic format:

EXAMPLE: REQMOD Request:

Key Elements:

• Request line:

  • Defines the method and service:

  • REQMOD - modify HTTP request

  • RESPMOD - modify HTTP response

  • OPTIONS - query capabilities

  • FILEMOD - Transfer file data to ICAP server for processing

• ICAP Headers

  • Provide metadata (e.g., Host, User-Agent, Preview)

• Encapsulated header (required)

  • Specifies which HTTP parts are included and their offsets

  • Example:

• Embedded HTTP message

  • The actual HTTP request or response being processed

Invalid ICAP requests — such as those with malformed structure, unsupported methods, or missing mandatory headers — are rejected by the ICAP server and result in a 400 (Bad Request) response. Ensuring that requests follow the correct format, including a valid request line and properly defined Encapsulated header, is essential for successful processing.

OPTIONS

Sent by the client to discover what methods and capabilities the ICAP server supports.

Example request:

Example response:

REQMOD

Used to intercept and scan or modify an outgoing HTTP request, such as a file upload.

Example request:

Example response:

RESPMOD

Used to intercept and scan or modify an HTTP response being returned to the client, such as a file download.

Example request:

Example response (threat detected):

FILEMOD

A non-standard extension that passes a local file path to the ICAP server for in-place scanning, without streaming the file over the network.

Example request:

Example response (threat detected):

Example response (clean file):
