How to add Cross IP sessions in Core settings if timeouts are being experienced and if a Load Balancer is used

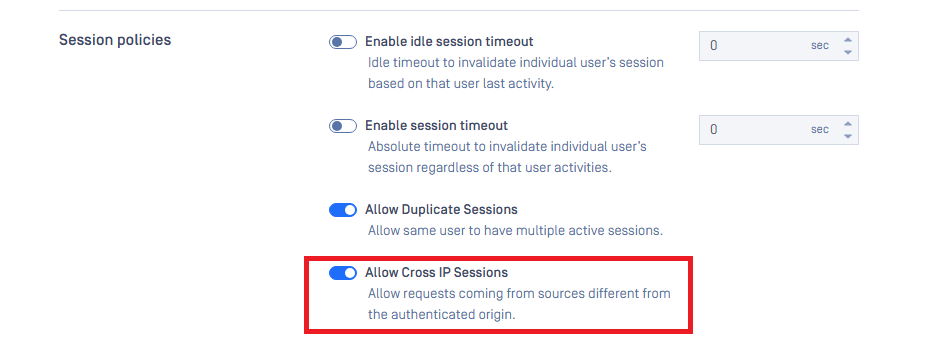

For Core deployments with Load Balancers. It is required to have the following option enabled under Session policies

Why

If this option is not enabled, there will be timeouts being experienced when using the Core Management Console, these timeouts will be experienced every 5 minutes.

From the Core logs , entries like the following will be found with no log-out detected.
