Avi Vantage (VMware)

This documentation is based on Avi Vantage version 20.1.6 and is the minimum configuration required to integrate Avi Vantage and MetaDefender ICAP Server.

Prerequisities

• Avi Vantage is installed and licensed

• MetaDefender ICAP Server is installed and license is activated

  • For installation and configuration quick guidelines see: Installation Quick Steps. For detailed instructions see:Installing or Upgrading MetaDefender ICAP Server and: MetaDefender ICAP Server configuration.
  • MetaDefender ICAP Server must have a valid license to function correctly. For license configuration details see MetaDefender ICAP Server Licensing.

• MetaDefender Core is installed and license is activated

• Web browser access to the Avi Vantage web GUI. (Please refer to the VMware documentation for details on how to access the Avi Vantage web GUI. This guide was written with a presumption that you have already completed the device management configuration on the Avi Vantage device and it is currently functioning as a proxy.)

Integration Steps

Configuring an ICAP Pool and Pool Group

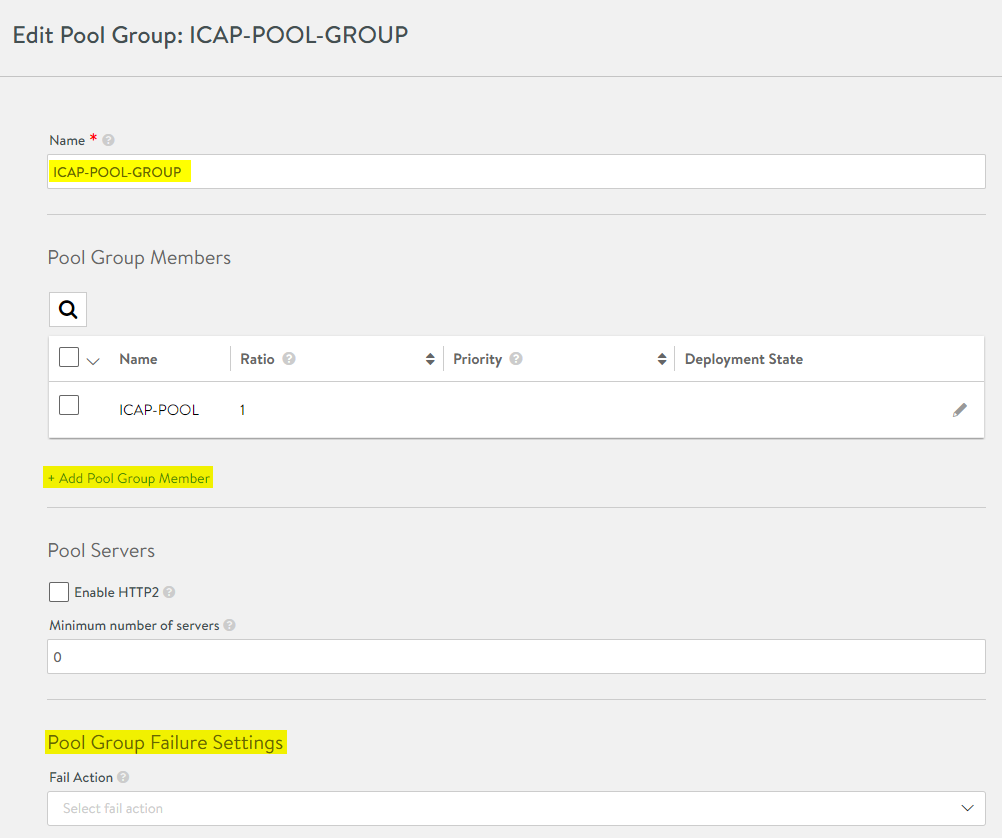

Navigate to Application > Pool Group to create a pool group. Provide a name for the group. You will create the necessary Pool Group Members in the next step. The field for the Fail Action under the Pool Group Failure Settings needs to have no selection (empty).

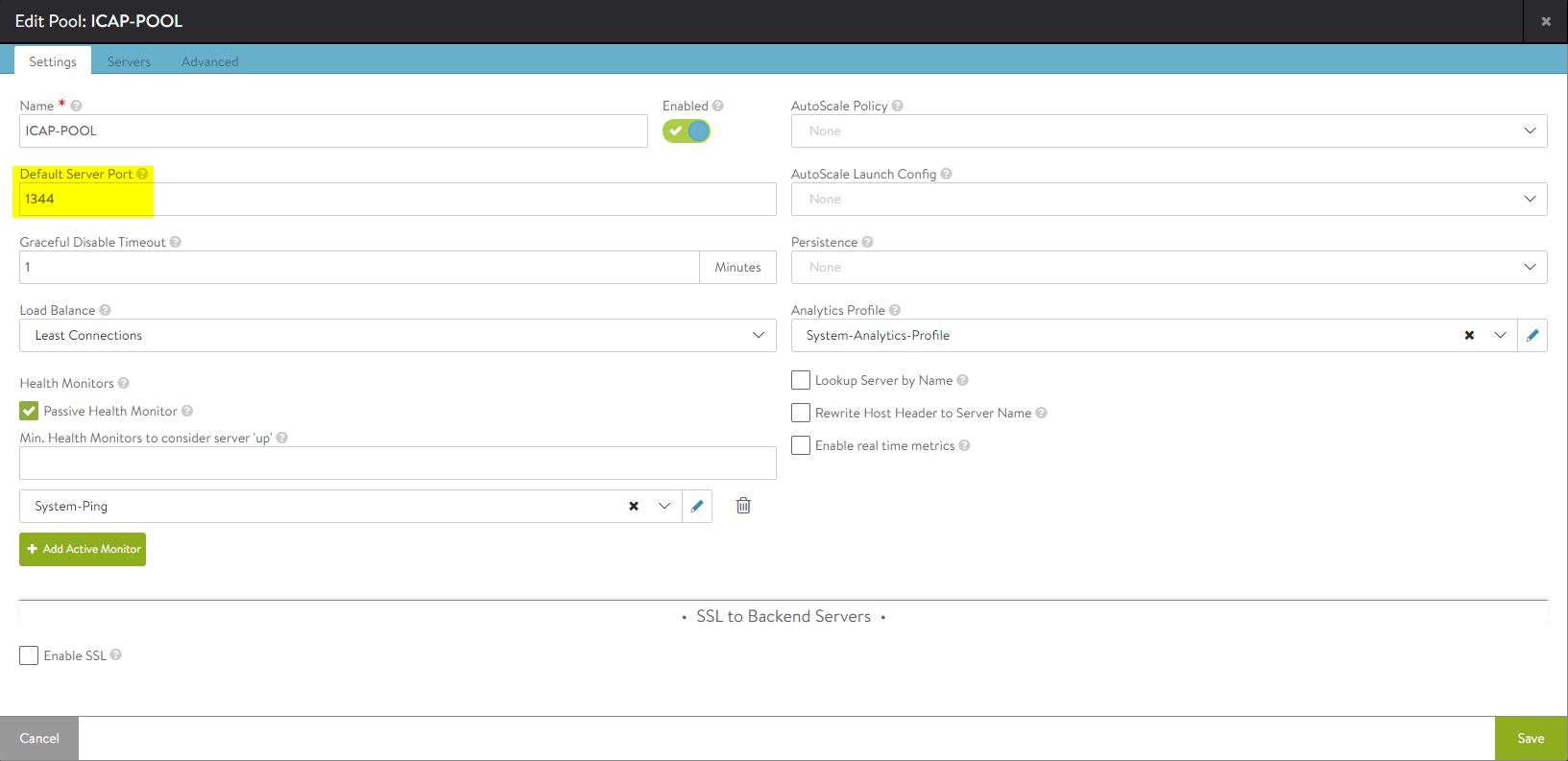

Click +Add Pool Group Member on the Pool Group page. This is where you will specify the ICAP server port (default = 1344) and the OPSWAT ICAP Server IP.

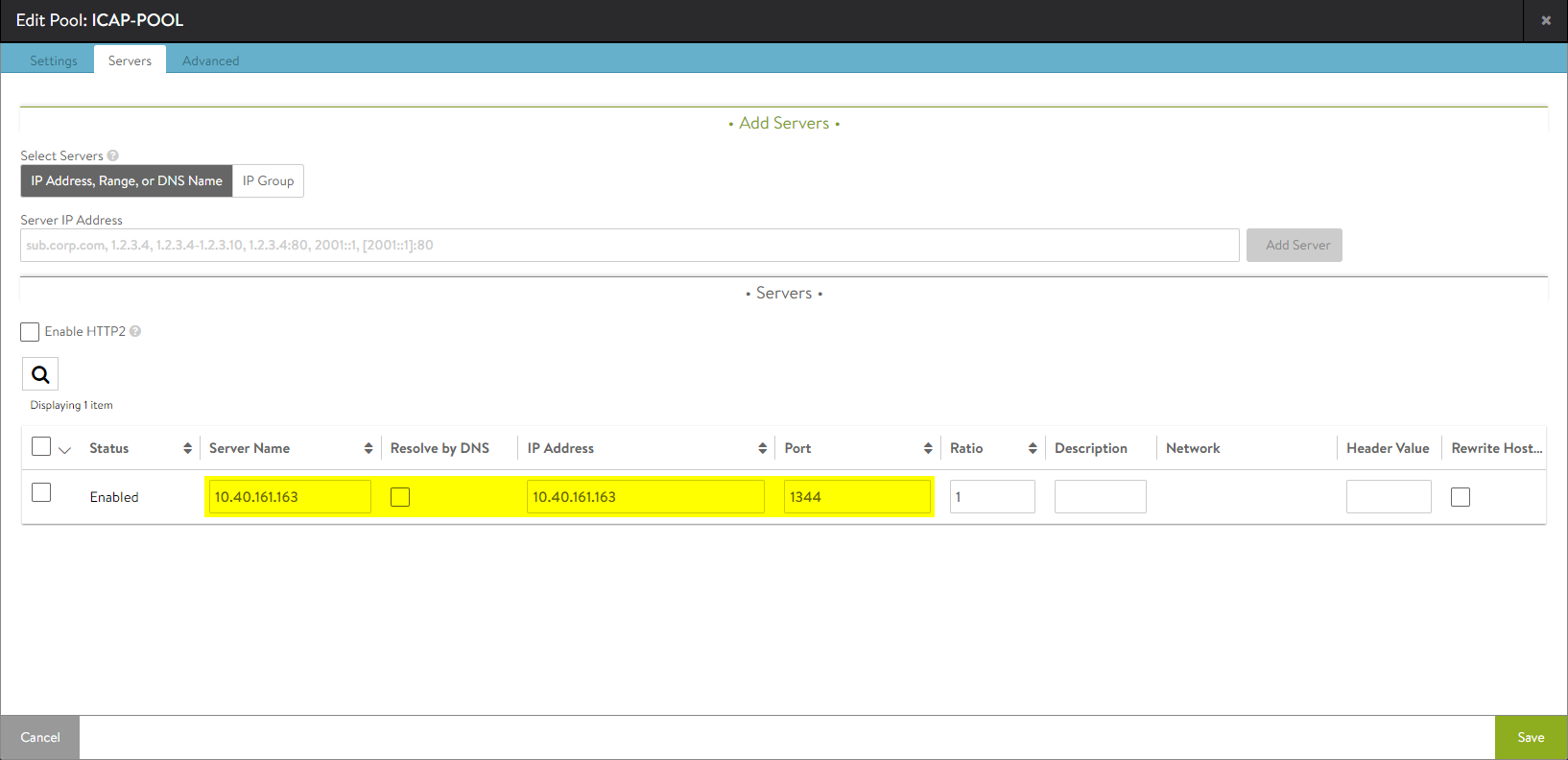

In the Servers tab, enter the information for the OPSWAT ICAP Server. All other settings are default. When done, click Save.

Configuring an ICAP Profile

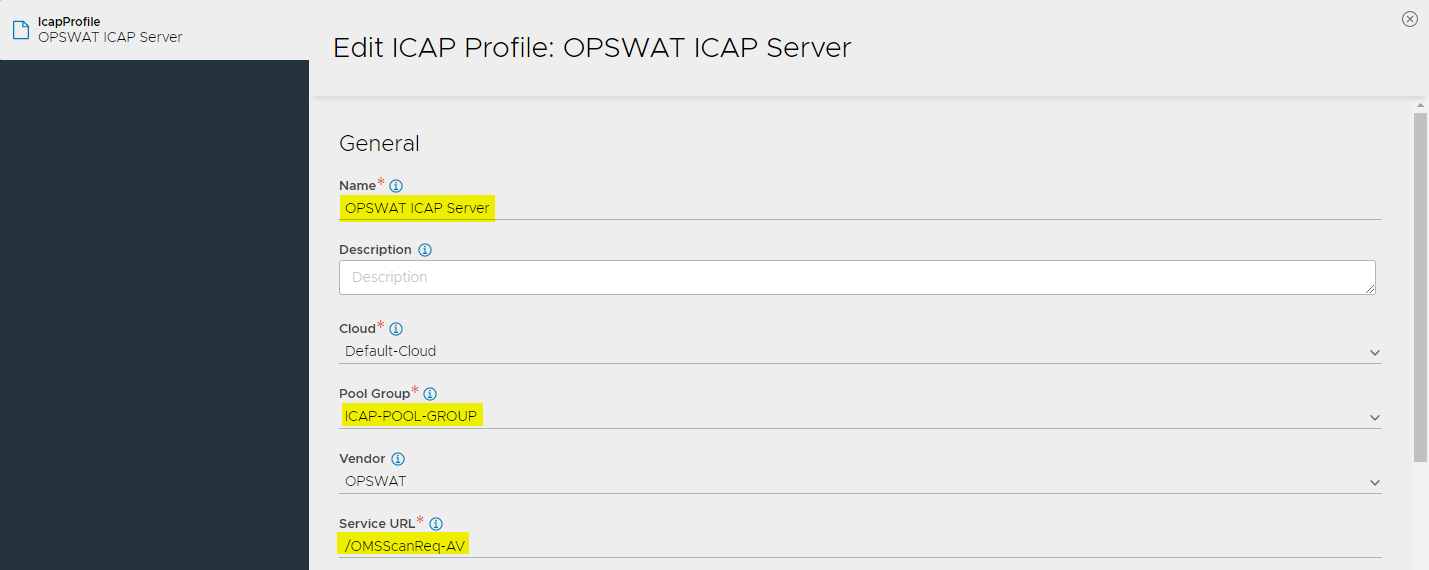

Navigate to Templates > Profiles > ICAP Profile to create an ICAP Profile. In this section you will need to provide a name for the profile and assign it the Pool Group you created earlier.

Service URL: /OMSScanReq-AV

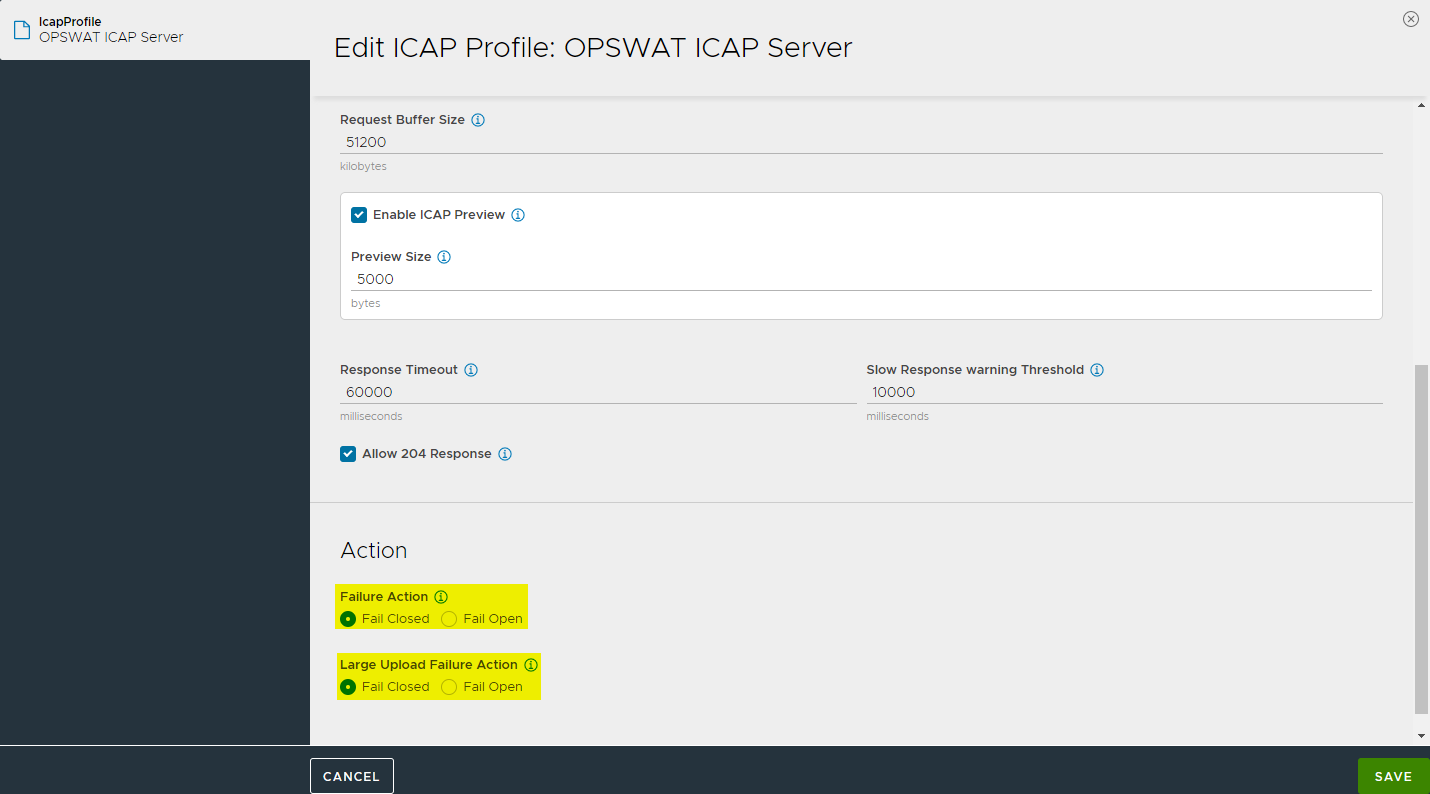

On the bottom section, make note of the Action setting. The values for these settings are dependent upon your organization's security policies. When finished, click Save.

Assign ICAP Profile to the Virtual Service

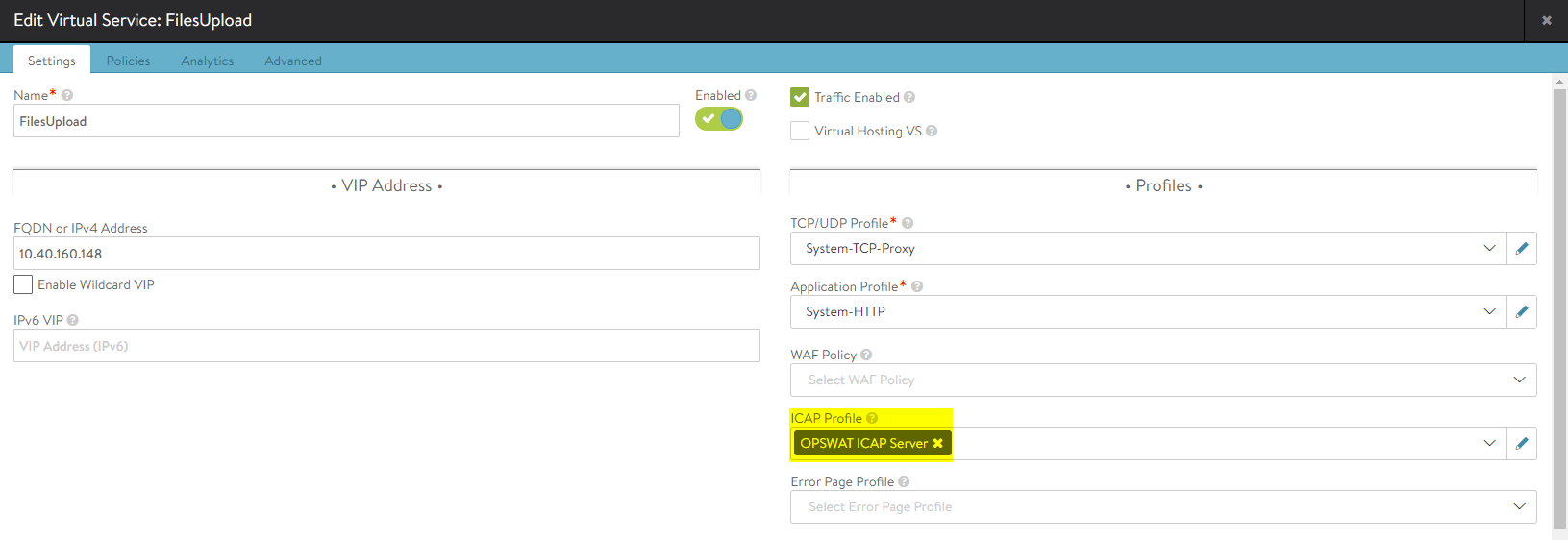

Navigate to Application > Virtual Service, select the desired virtual service, click Edit. In the ICAP Profile, select the ICAP profile you created in the previous step. Click Save.

Create an HTTP Security Policy

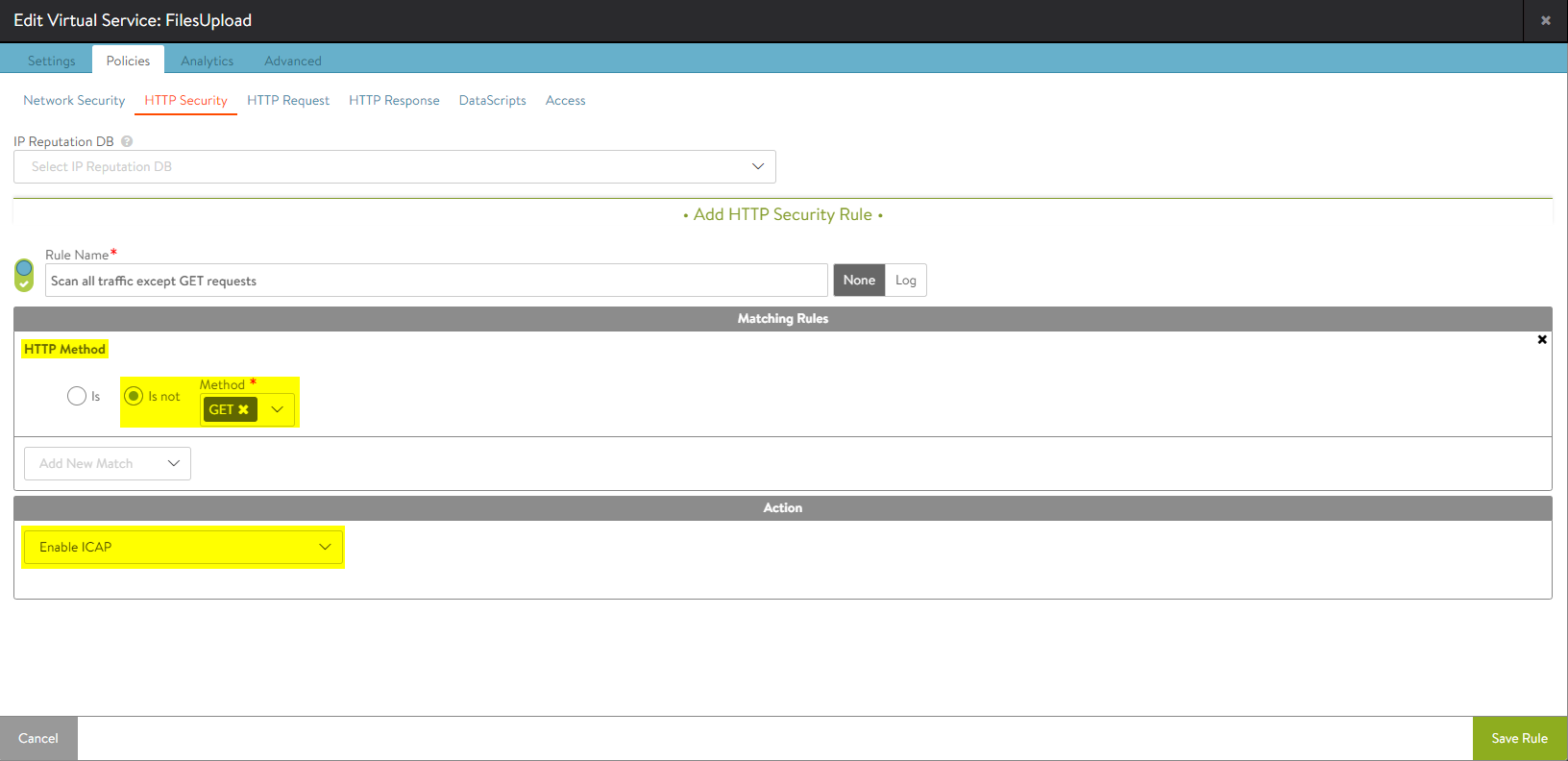

Create a security policy to define the rules which determine when ICAP scanning should be performed. Navigate to Application > Virtual Service, select the desired virtual service, and click on Edit. Select Policies > HTTP Security, and create a new rule with the following options:

• Rule Name: the rule name specified here will appear in the Avi Vantage logs. We recommend that you use a descriptive name to to allow easier troubleshooting.
• Select match criteria for the ICAP requests: HTTP Methodis not in(GET). This instructs Avi Vantage to forward all requests to the ICAP Server for scanning, except for GET requests.
• Select Enable ICAP as the action
• When finished, click Save.
