Account Settings

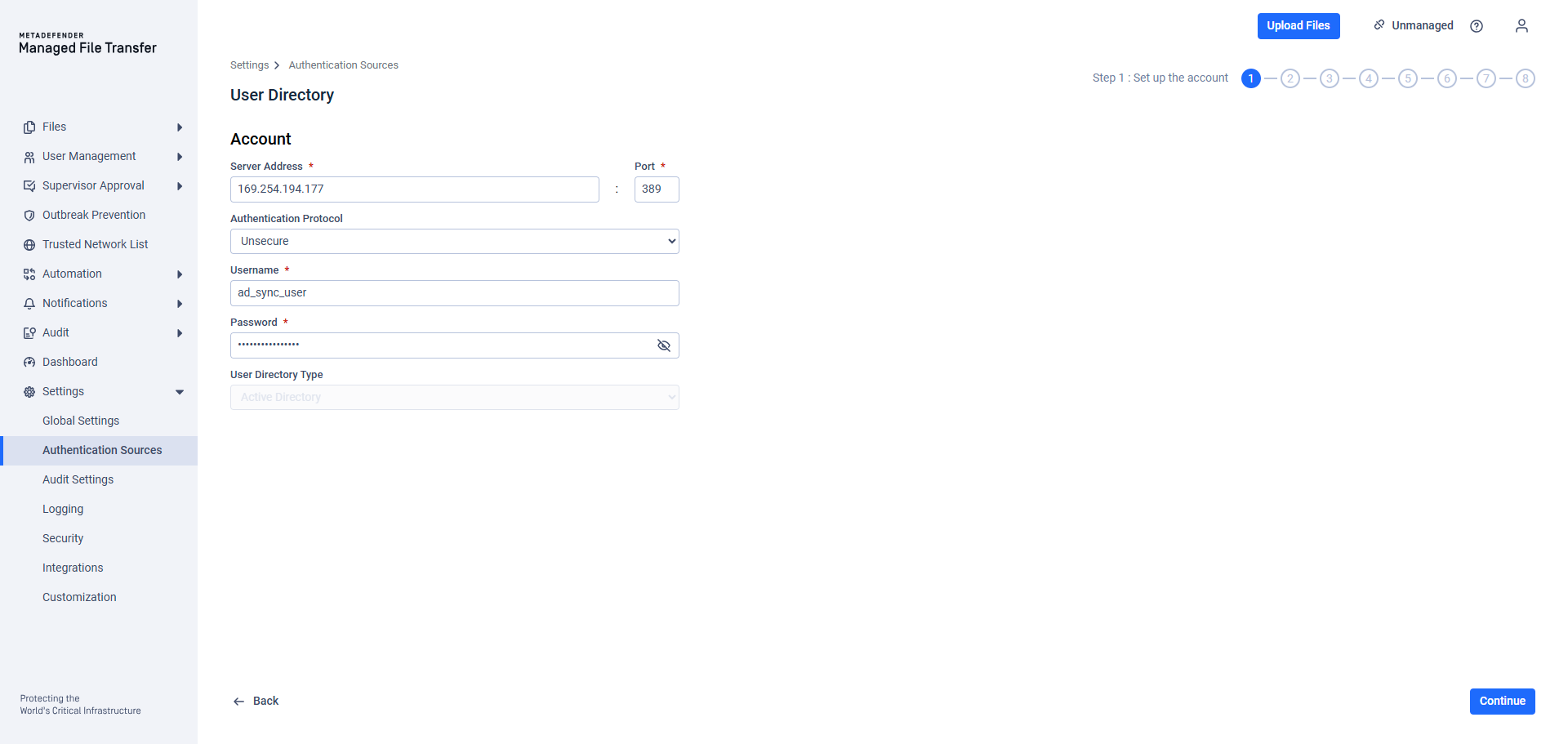

When adding a new user directory, the first step is to configure the "User Directory Account Settings."

Required Fields:

SettingDescription
Server AddressAddress of the user directory server from where the users will be synchronized.
PortThe port used to connect to the user directory default port for LDAP is 389; for LDAPS, 636.
Authentication Protocol

Unsecure: Use basic authentication (simple bind).

Less unsecure: Request secure authentication. Note: AD DS uses Kerberos and possibly NTLM.

Secure communication: Uses cryptographic signatures to ensure that the senders of messages are identified and content remains intact during transit.

Note: AD DS requires Certificate Server for Secure Sockets Layer (SSL)/TLS encryption.

UsernameUsername of a user in the user directory with read permissions.
PasswordPassword for the specified user.
User Directory Type

Active Directory: Integrate with active directory.

LDAP Directory: Integrate with any custom user directory that supports LDAP protocol.

Note: Integration with LDAP directory requires additional fields.

Click "Continue" to Synchronization and Login Configuration after filling out the required information.

Required Directory Account Permissions

The user used for integration must be able to read all information from the active directory in order to populate MetaDefender Managed File Transfer™ with the desired groups and users.

The account must be able to read the following objects:

  • Users
  • Groups
  • Organizational Units (OUs) (to enumerate structure)
  • Group Memberships

These permissions are typically covered by default read access for “Authenticated Users” or “Domain Users” in AD, meaning: Most products can use a standard domain user account (non-admin) for integration.

However, if permissions were restricted in your AD (e.g., via custom ACLs), ensure the following explicit read rights exist:

ObjectPermissions NeededApplies To
User objectsRead all user propertiesThis object and all descendant objects
Group objectsRead all group propertiesThis object and all descendant objects
Organizational UnitsList contents, read all propertiesThis object and all descendant objects

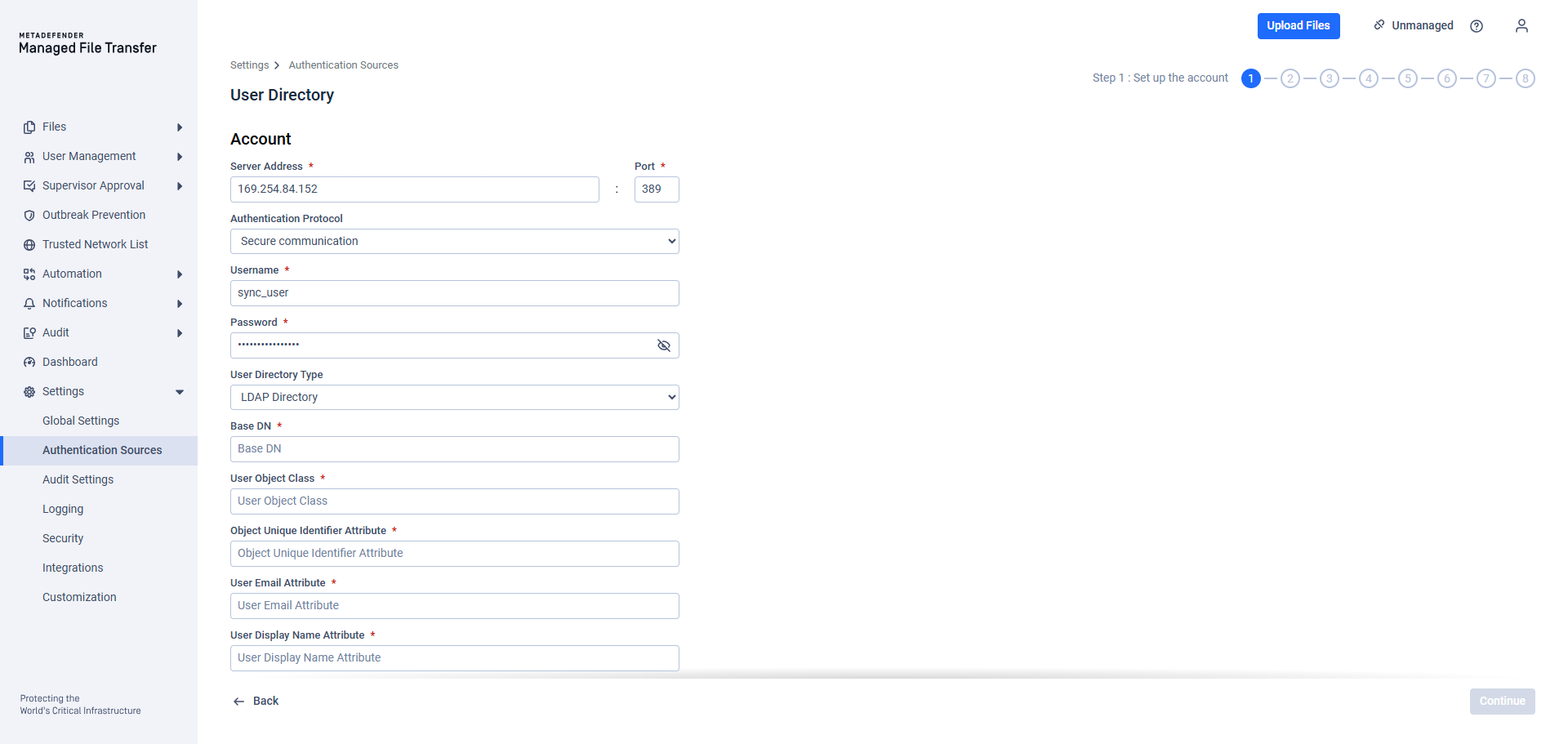

LDAP Directory Configuration

If LDAP Directory is selected, additional configuration fields are required in "Account Configuration" to connect and synchronize an LDAP directory.

If the administrator user for LDAP connection is not a part of the base DN, specify the full distinguished name in the "Username" field.

(eg. cn=Administrator,cn=Users,dc=example,dc=com)

Configuring an LDAP user directory:

AttributeDescription
Base DNThe DN from where all users can be reached (e.g. dc=CompanyName,dc=com)
User Object ClassThe name of the object class (objectClass) for user objects. (e.g. posixAccount or person)
Object Unique Identifier AttributeThe name of the LDAP attribute that uniquely identifies an entry (e.g. entryUUID or objectGUID)
User Email AttributeThe name of the LDAP attribute containing user emails (e.g. mail or email)
User Display Name AttributeThe name of the LDAP attribute for the display name of users. (e.g. cn, uid or sAMAccountName)
Group Object ClassThe name of the object class (objectClass) that is for group objects (e.g. posixGroup or group)
Organizational Unit Object ClassThe name of the object class (objectClass) for organizational unit objects (e.g. organizationalUnit or ou)

Only LDAP attributes should be provided in this configuration step. Aliases are not recognized.

Click "Continue" to Synchronization and Login Configuration after filling out the required information.
