Connection List

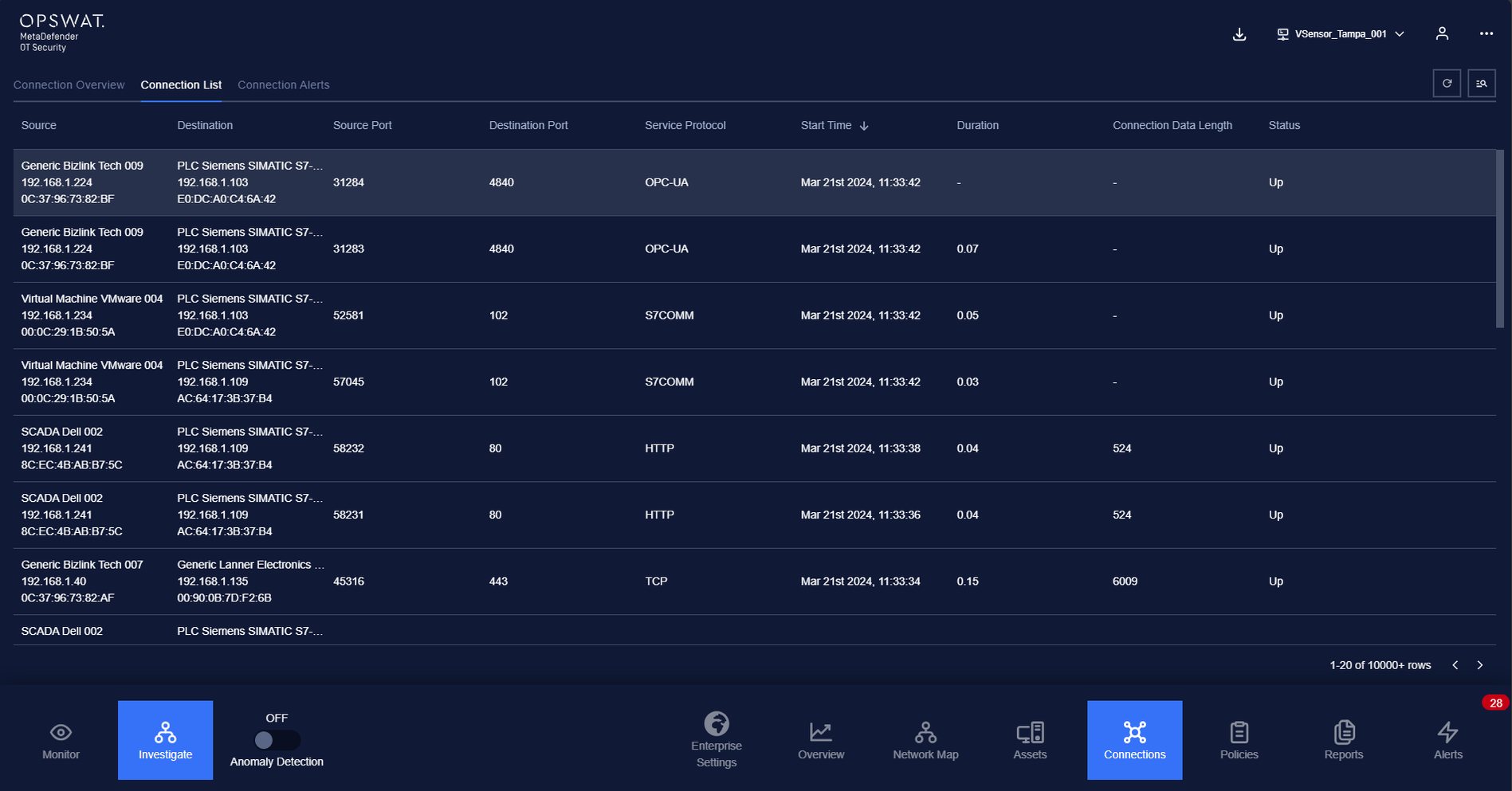

The connection list is accessible under Investigate → Connections → Connection List.
The connection list contains all connections of devices in the system. (Up and down)
Each record contains these following fields:
- Source device (device from internal network), destination device (device from internal network)/ destination host (remote host).
- Source port, destination port.
- Protocol.
- Started time.
- Duration, Data length.
- Connection status (up/down).
Since the number of connection may be huge after a day, you can choose the period time to load connection at the Load connections (Today/Last 24hours/From-to).

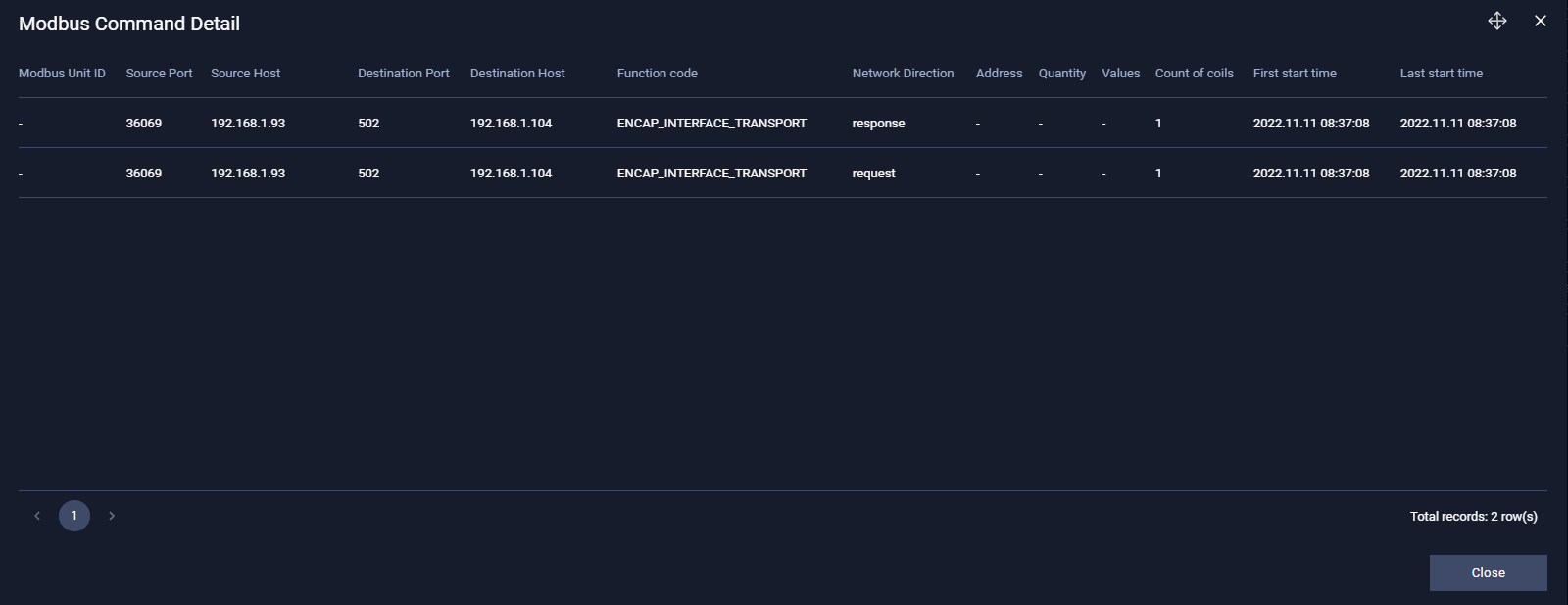

For the Modbus detail protocol, there is a button at the end of row to distinguish it from other protocols.
Filter
We support searching and filtering on the list of connections:
- You can enter value for 1 or more fields, and the result list and number of total records will be updated according to the value you entered.
| Index | Field | Data type | Type of input | Support multi-select | Support multiple input value | Comment |
|---|---|---|---|---|---|---|
| 1 | Source (device) | Text | Input text | No | No | |
| 2 | Destination (device/host) | Text/Number | Input text or IP address | No | No | |
| 3 | Source Port | Number | Input Number | No | No | |
| 4 | Destination Port | Number | Input Number | No | No | |
| 5 | Protocol | Text | Input Text | No | No | |
| 6 | Started Time | Date time | Select from pop-up calendar and clock | No | No | |
| 7 | Duration | Decimal number | Input Number | No | No | |
| 8 | Data length | Decimal number | Input Number | No | No | |
| 9 | Status | Text | Select from pop-up calendar and clock | No | No |
- You can change the order of the fields displaying on the list by clicking "..." -> “Filter preference” then drag and drop the fields and arrange them in the desired order.
- You can choose to show/hide the fields in the list by clicking "..." -> “Filter preference” and tick/untick the box on the left of field name
- You can save a custom filter for your convenience when you need to reuse them in the future. Enter values into the fields to filter then select "..." -> "Create filter", give a name for your filter. Every time you come back, click on "..." → Your saved filter to apply it.
- You can update your saved custom filters by editing/adding values to the fields and selecting "..." then "Save filter”
- You can delete a saved custom filter by selecting “…” → “X” button on saved filter
