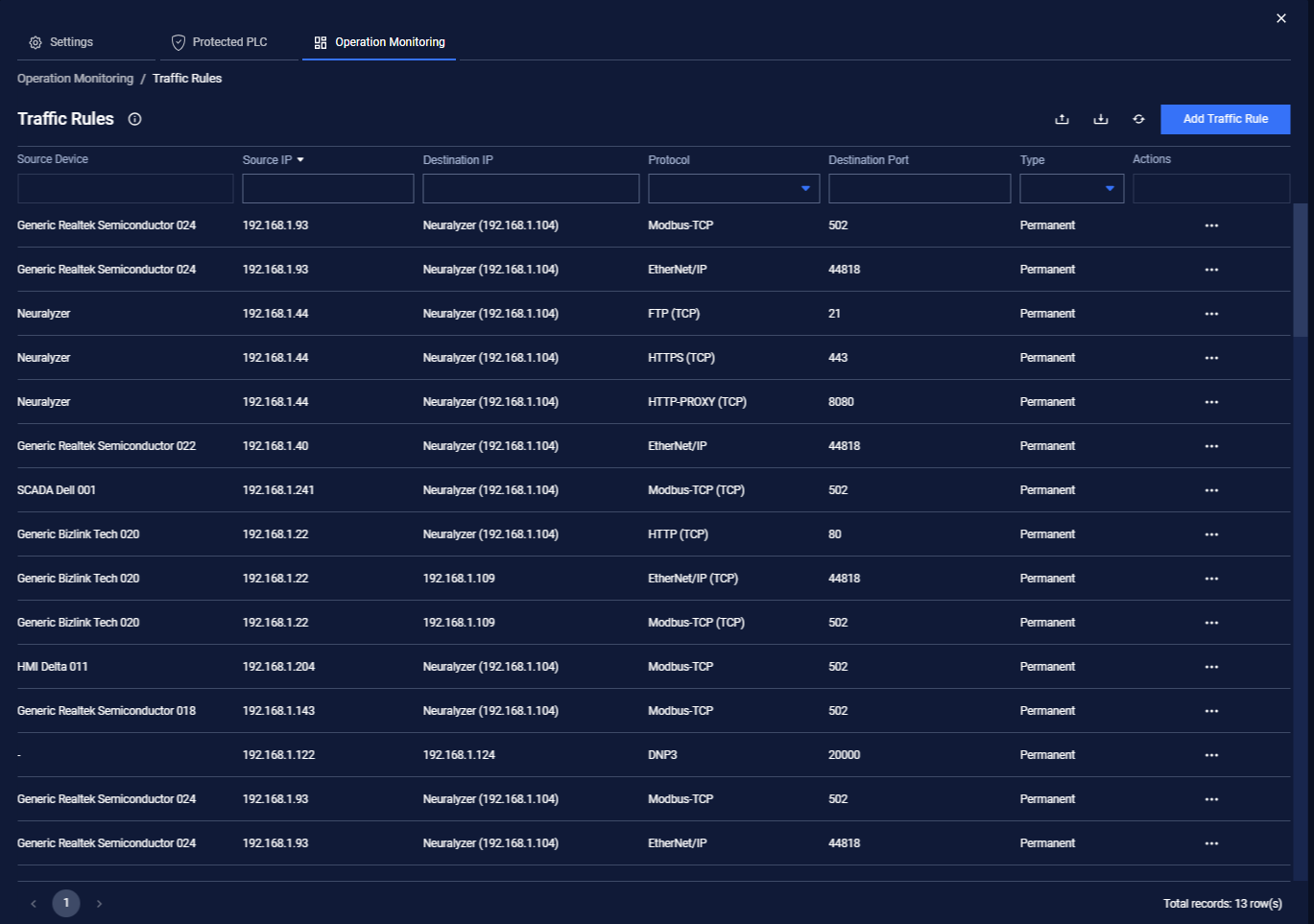

Traffic Rules

The Traffic Rules is accessible under Operation Monitoring → Traffic Rules

This page shows the traffic being monitored by the OTfuse and information of each traffic.

When OTfuse in Learn Mode, the OTfuse create a set of learned traffic connections between devices.

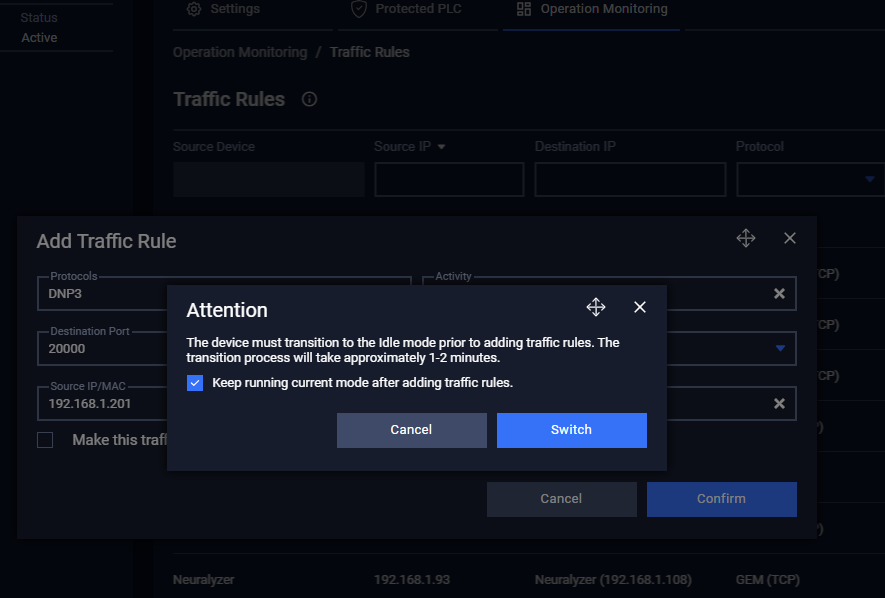

Add Traffic Rule

User can add traffic rule by manually by clicking Traffic Rule button.

If the OTfuse is in Learn Mode/Monitor Mode or Protect Mode, the confirm message will be displayed to ask user to keep the current mode after adding Traffic Rule or not by checking/unchecking checkbox.

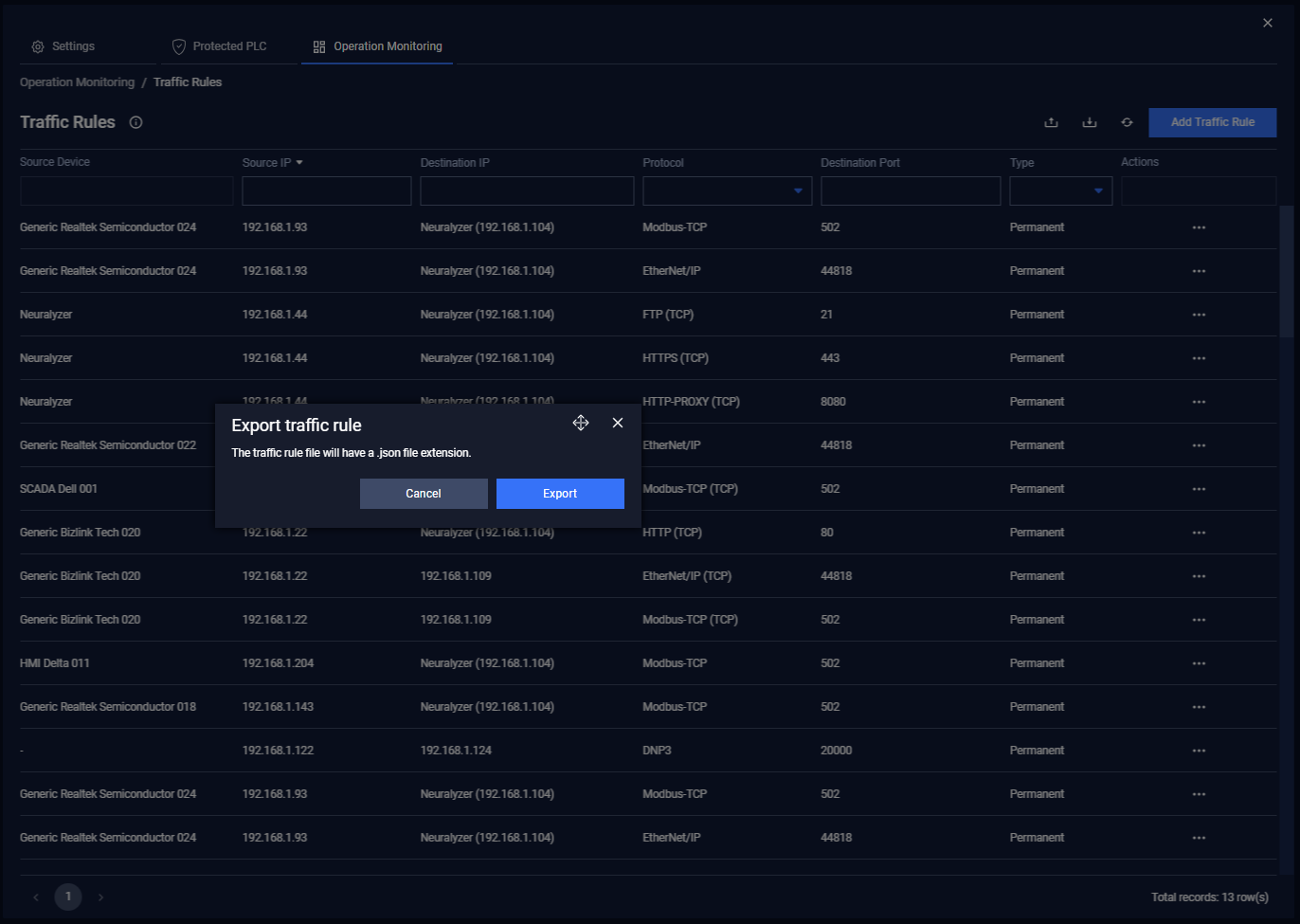

Export Traffic Rule

The export includes all learned data on connections and traffic in a JSON file format. You can export data in any mode.

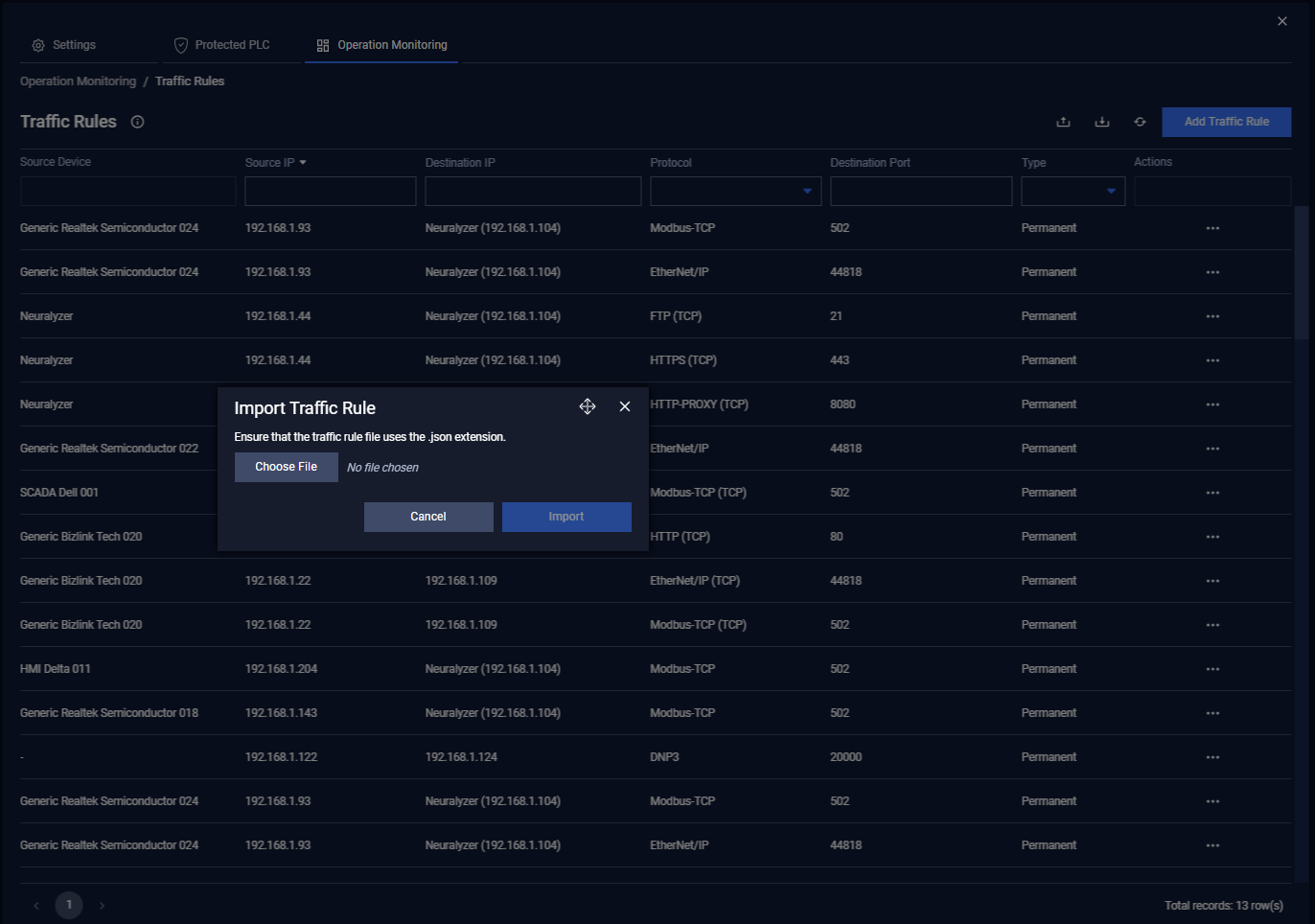

Import Traffic Rule

User can import the updated export file with your connections and communication to speed up the learning process. User have to change to Idle Mode to import Traffic Rule.
