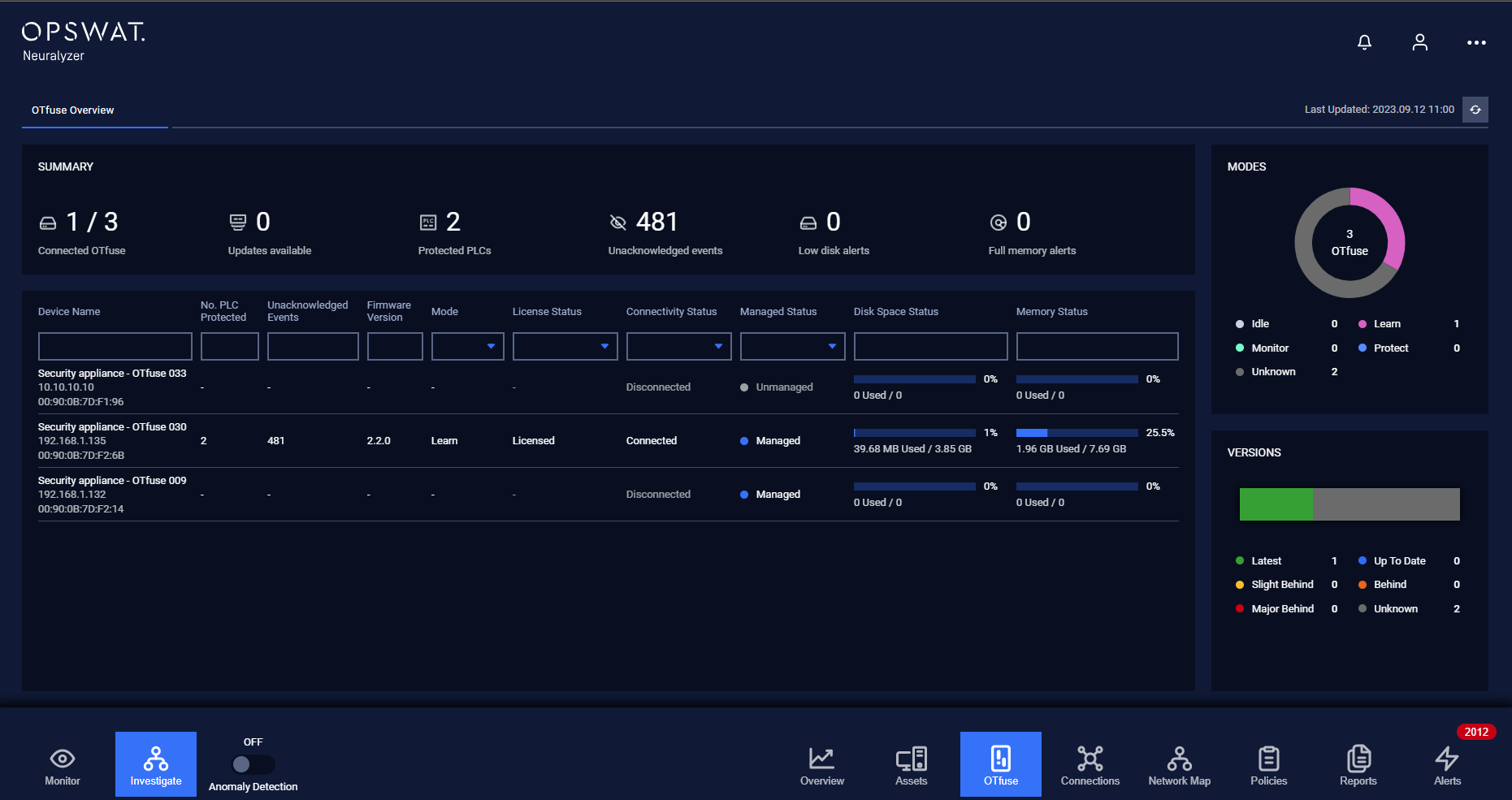

OTfuse Overview
The list of OTfuses is accessible under OTfuse menu
The list of OTfuses contains all the information about OTfuses in the system.

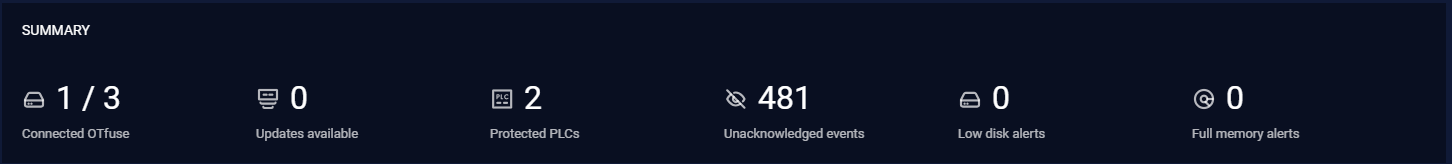

The part Summary displays statistics about:
- Total connected Otfuse: Total number of connected OTfuses.
- Updates available: Total number of OTfuses having new versions need to be updated.
- Protected PLCs: Total number of PLCs that are protected in the system.
- Unacknowledged events: Total number of unacknowledged events.
- Low disk alerts: Total number of alerts related to the free space of the disk.
- Full memory alerts: Total number of alerts related to full memory.

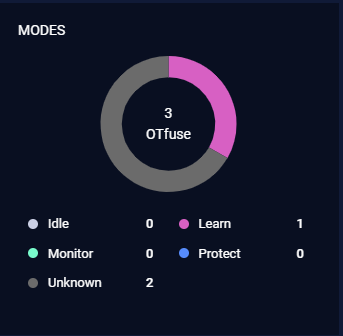

Modes
This field displays a summary of the connected OTfuse mode.

Versions
This field displays a summary of the connected OTfuse version.
For versions of connected OTfuses bar, there are 5 colors can be displayed:
- Green: display the number of OTfuses having Latest version.
- Blue: display the number of OTfuses having Up To Date version.
- Yellow: display the number of OTfuses having Slight Behind version.
- Orange: display the number of OTfuses having Behind version.
- Red: display the number of OTfuses having Major Behind version.
- Grown: display the number of OTfuses having Unknown version.

OTfuse List

Each row contains the following fields:
- Device Name
- No. of protected PLC
- Unacknowledged Events
- Firmware Version
- Mode
- License Status: No License/Licensed
- Connectivity Status: Disconnected/Connected (whether Neuralyzer can connect the OTFuse device or not)
- Managed Status: Managed/Unmanaged (whether Neuralyzer can manage the OTFuse device or not)
- Disk Space Status
- Memory Status
Filter
We support filtering on the list of OTfuses:

- User can enter a value for one or more fields, and the result list and the number of total records will be updated according to the value(s) you entered.
