Generate a Support Package

OPSWAT Customer Success team is here to help whenever you face persistent issues that can't be solved using any of the troubleshooting instructions. Support Packages, log files, and Drive images are different methods to help OPSWAT's support specialists identify the root cause of MetaDefender Drive's issues and malfunctions, and provide support to solve them. This section of the documentation covers 5 different ways to generate Support Packages, log files, and clone Drive images.

Solution

The following are 5 different ways to get logs from a malfunctioning drive, starting by the easiest to the hardest:

1. Generate a Support Package using MetaDefender Drive Toolkit

If you haven't installed MetaDefender Drive Toolkit, you can download it from this link.

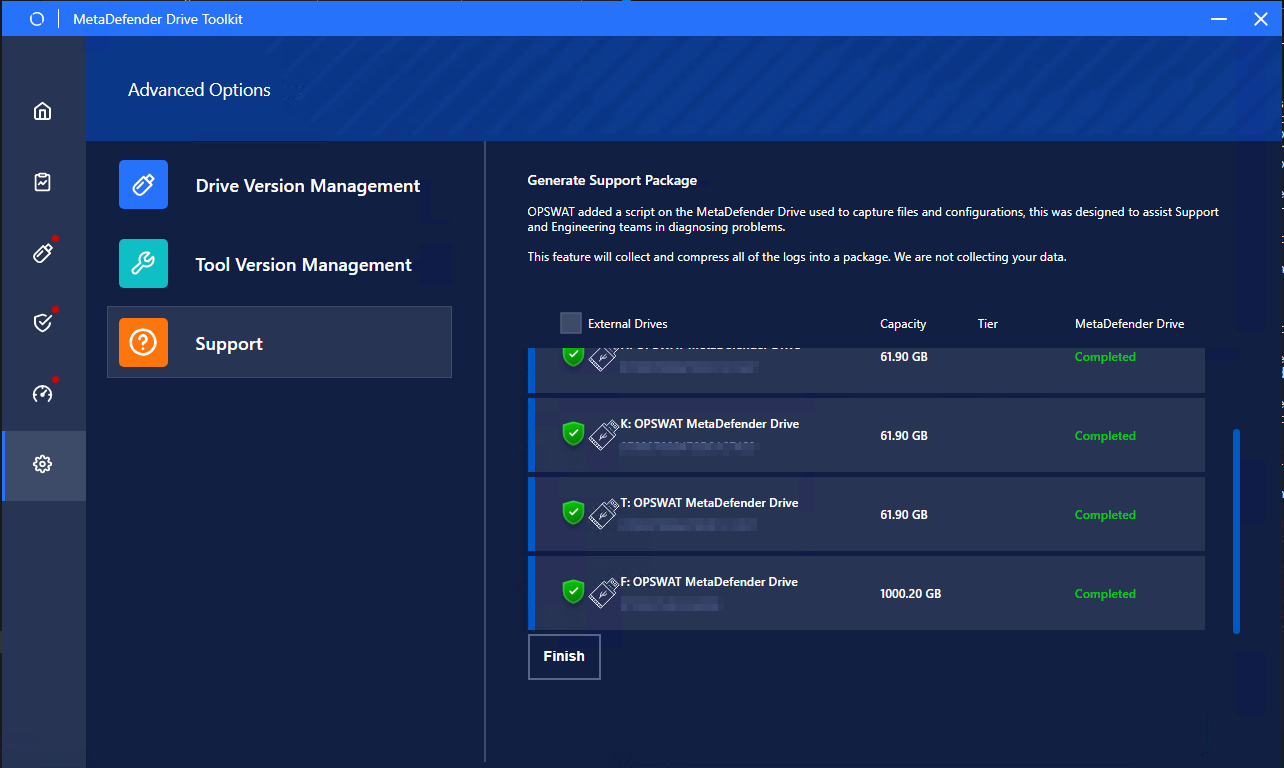

1. Launch Toolkit and navigate to Advanced Options → Support menu (Follow the on-screen instruction to install the missing packages and restart your Windows devices if needed
2. Now choose the Drive you want to get the log, identified by its serial number, click Generate Support Package and wait for some minutes until it's done. The needed time will depend on how much reports and logs being located on the Drive's storages.

2. Generate Support Package when MetaDefender Drive is running

If you face an issue while using MetaDefender Drive

1. Press and hold the keyboard keys alt + ⇧ + F3 for 5 seconds.

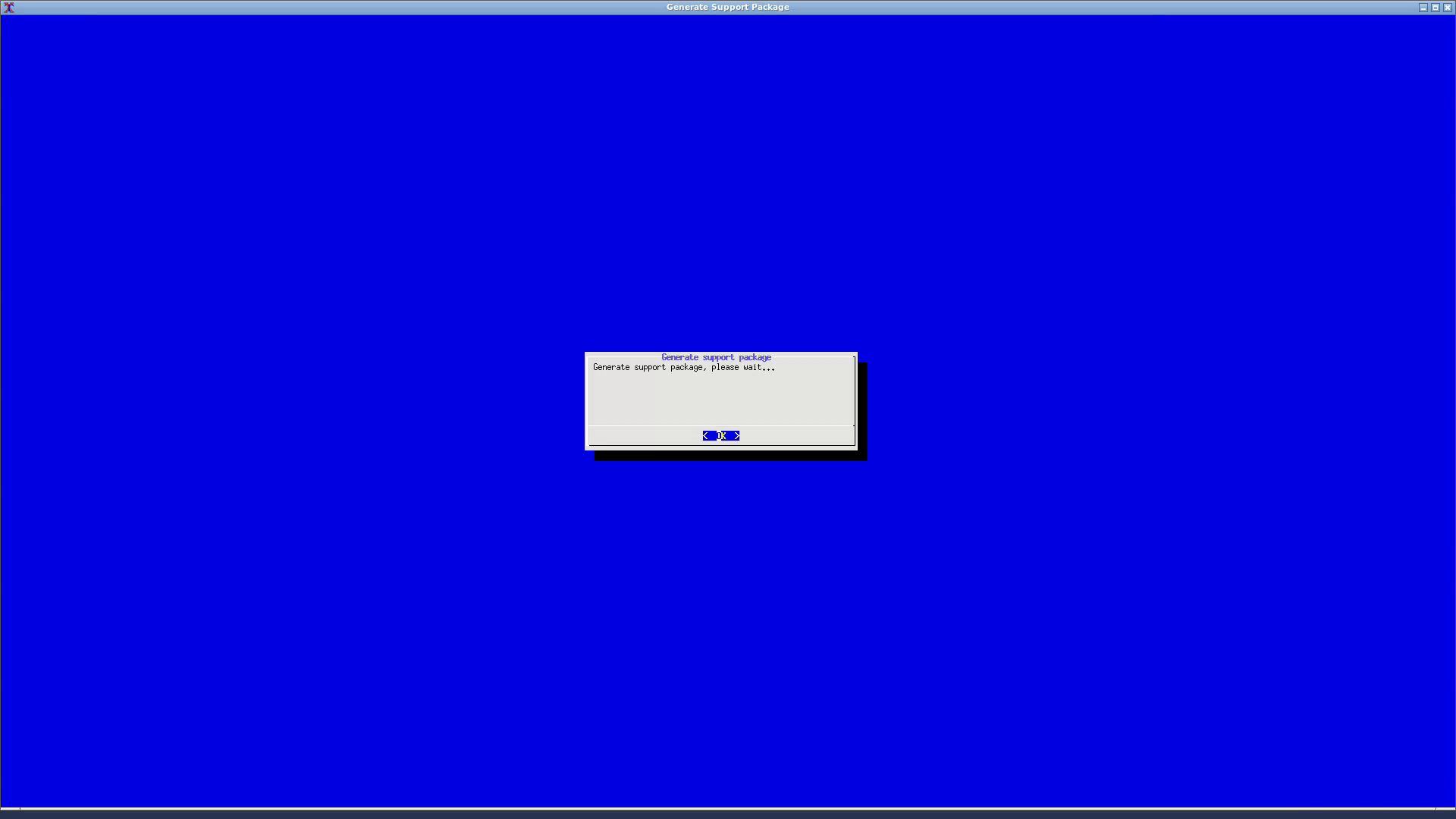

2. A blue screen will appear saying that the Support Package is being generated and will disappear when the task is finished after a moment.

Generate a Support Package while MetaDefender Drive is running

3. Generate Support Package with the built-in GUI function, when MetaDefender Drive is running

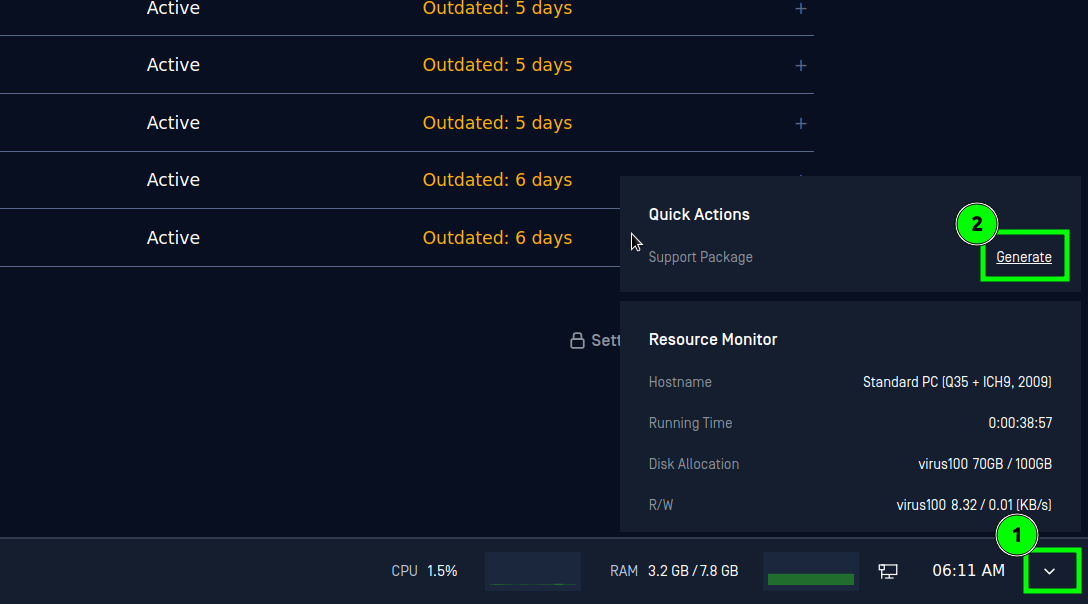

You can also generate a Support Package by clicking Generate from the Quick Actions menu at the bottom right corner:

Generate a Support Package while MetaDefender Drive is running

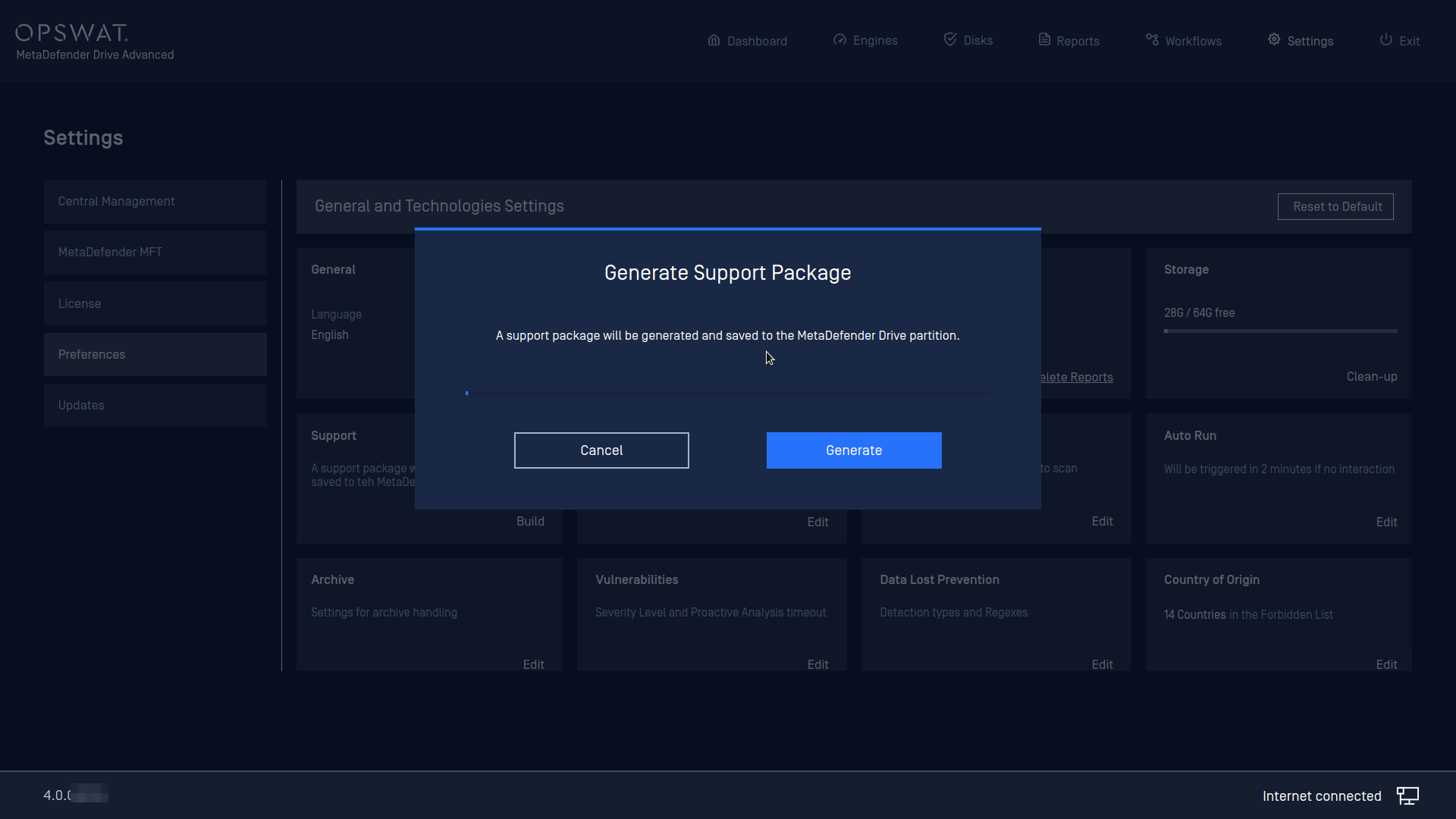

Confirmation prompt of generating a Support Package while MetaDefender Drive is running

4. Generate a Selective Collection of Logs (for Linux)

1. While MetaDefender Drive is plugged in, run a file browser as an admin using the sudo command

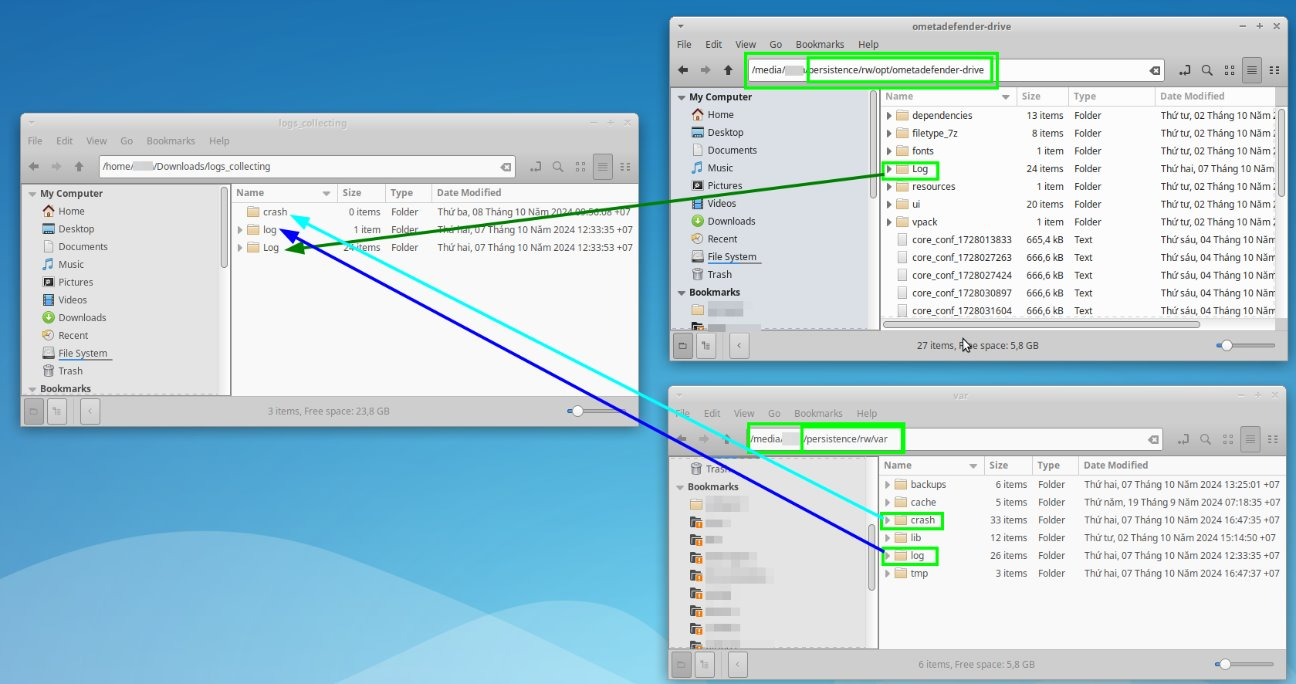

2. Navigate to the /persistent partition of MetaDefender Drive and copy the logs from the following folders:

/media/"your_user_account"/p__ersistent/rw/opt/ometadefender-drive then copy Log folder

/media/"your_user_account"/persistent/rw/var then copy crash _and _log __folders

5. Generate a MetaDefender Drive Image (for Linux)

1. Plug the MetaDefender Drive that you want to clone into a running Linux machine.
2. Launch the terminal, and run the following command:

lsblk -o name,serial,mountpoint

3. Identify the drive you want to clone by the serial value, then copy its name. In the image below, the drive that needs to be cloned is /dev/sdb.
4. Run the following command after replacing /dev/sdx with your Drive's name and /path/to/img/Drive.img.gz4 with the filesystem location and the file name where you want the image saved:

sudo dd if=/dev/sdx bs=1024 status=progress | gzip -c > /path/to/img/Drive.img.gz4. fd

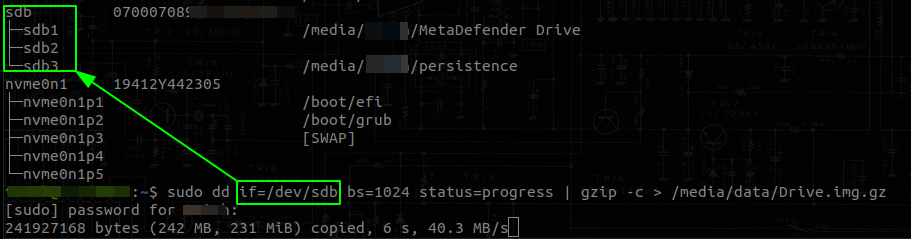

A Linux terminal window showing all the mounted Drives
