Enterprise – Components (Component Management)
This page describes Settings > Component on the Enterprise node in MetaDefender OT Security. It lists every managed component (Enterprise, Sites, Sensors, built-in sensor) with health and capacity metrics.

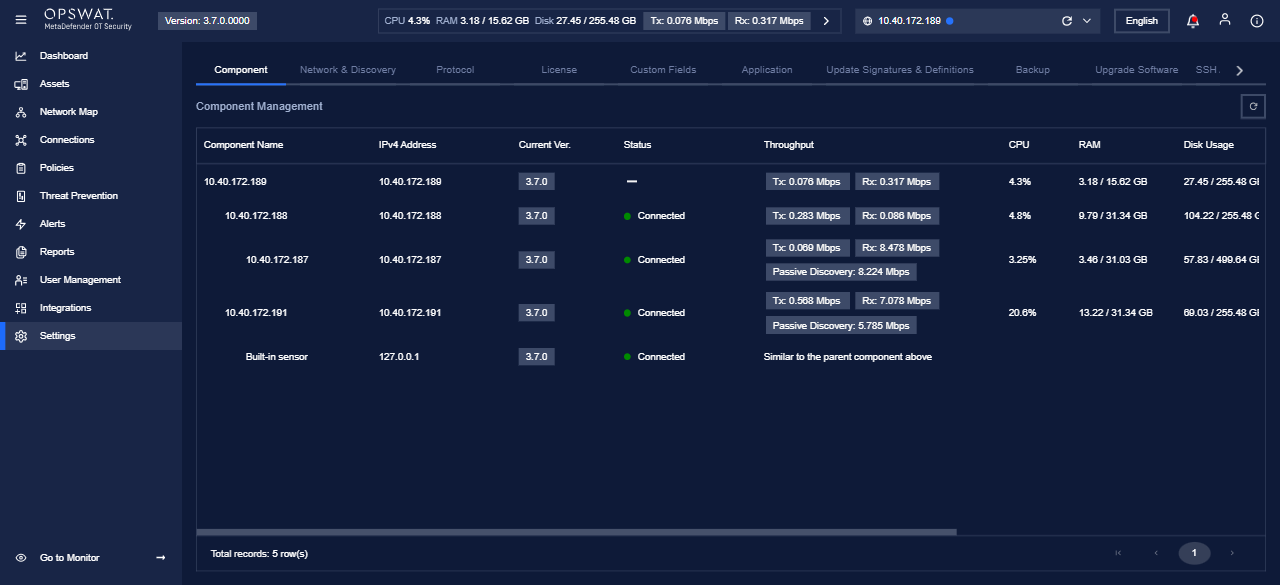

Settings → Component: component list with throughput, CPU, RAM, and disk metrics.
How to open
- Log in to the Enterprise web UI (HTTPS to the Enterprise IPv4).
- Choose Go to Management if you are in Monitor mode (floating alert strip).
- In the left navigation, click Settings (gear).
- Ensure the Component tab is selected (first tab in the Settings area).
Direct URL pattern (example): https://<enterprise-ip>/settings — The Component tab shows Component Management.
What you see
Settings tabs (Enterprise)
Along the top of Settings, tabs include (order may vary by version):
- Component (this page)
- Network & Discovery
- Protocol
- License
- Custom Fields
- Application
- Update Signatures & Definitions
- Backup
- Upgrade Software
- Support Package
- SSH Access Management
- Asset Type
- My Account
Component Management table
The main grid is titled Component Management. A refresh control shows the last updated timestamp (e.g. "Updated: …"). Columns typically include:
| Column | Description |
|---|---|
| Component Name | Display name (may match IPv4, site name, or Built-in sensor). |
| IPv4 Address | Management address (built-in sensor may show 127.0.0.1). |
| Current Ver. | Software version reported by the component. |
| Status | Connection state (e.g. Connected) or indicator for the Enterprise/root row. |
| Throughput | Tx/Rx Mbps; some sensors also show Passive Discovery throughput. |
| CPU | CPU utilization (%). |
| RAM | Used / total memory. |
| Disk Usage | Used / total disk. |
| Description | Optional text (often "-"). |
| Last Updated | Timestamp of the last metrics refresh. |
Built-in sensor row
The Built-in sensor entry (loopback 127.0.0.1) may show throughput as Similar to the parent component above instead of raw Tx/Rx numbers, because it shares the parent sensor's traffic context.
Pagination
When many components exist, use the pagination control at the bottom ("Total records: N row(s)", page buttons).
Typical use cases
- Verify all Sites and Sensors are Connected after deployment or network change.
- Compare Current Ver. across the fleet before or after an upgrade.
- Spot capacity pressure via CPU, RAM, or Disk Usage.
- Review Throughput and passive discovery load on sensor nodes.
Related documentation
- Developer Hub (v3.7.0): Settings → enterprise-components (synced from this Confluence page; image embedded via API as data URI).
- Source file in repo (CI/authors):
captures/enterprise-settings-component-management.png
