CloudNAC VM Deployment Guide

Step-by-step guide

Once the appliance is powered on, connect to the console and login with the username “admin” and the password “admin”.

After logging in, the console configuration utility will be launched. The resulting pages will prompt the user to update the admin password, configure the IP address settings and enter a license key.

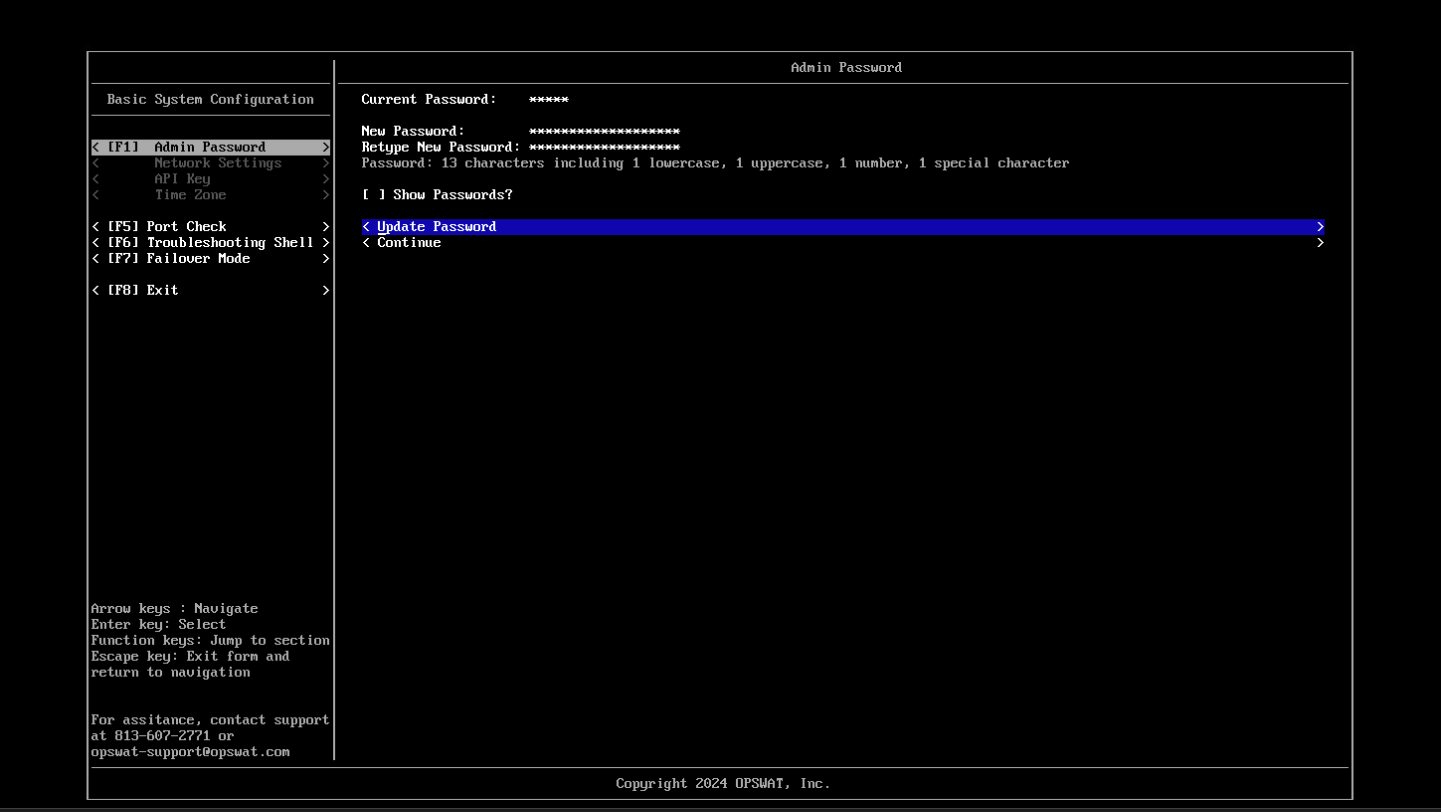

Reset Admin Password

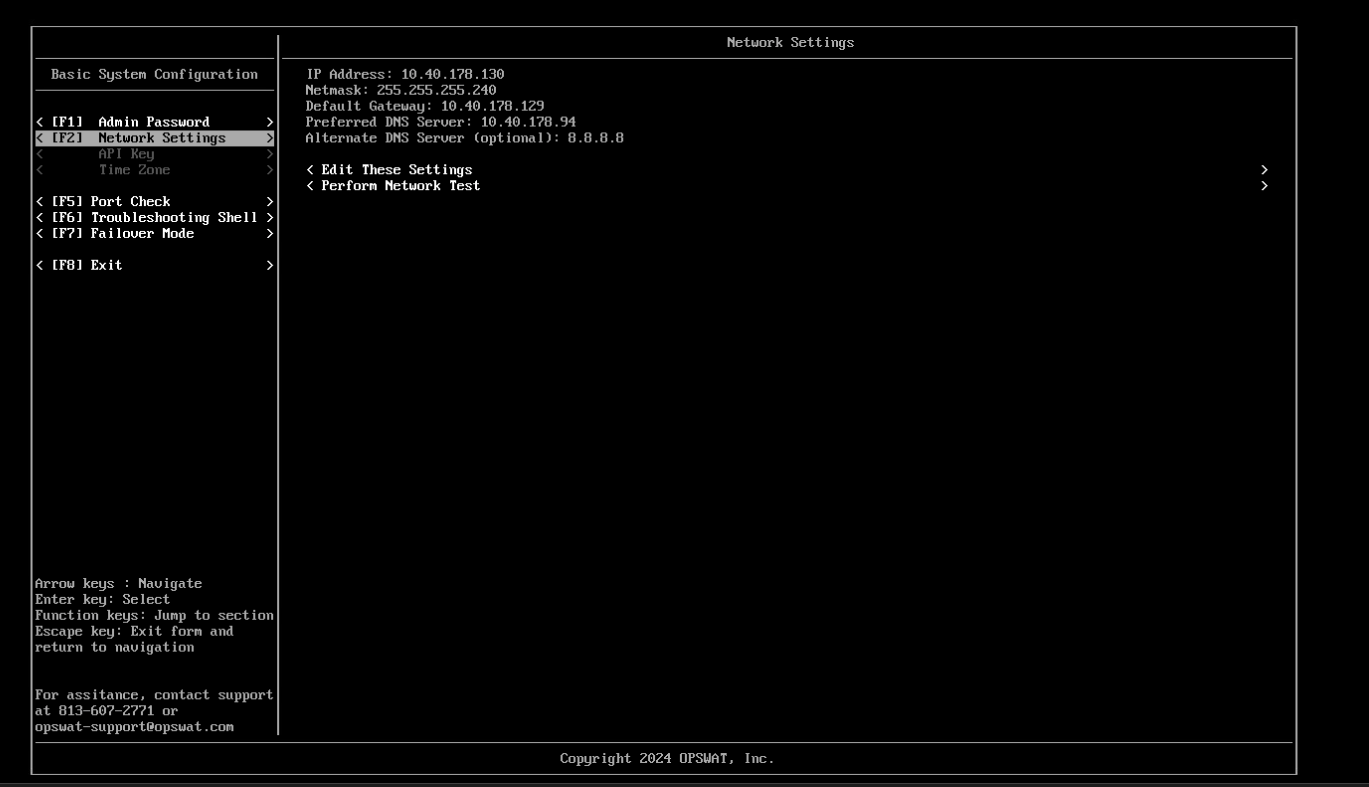

Configure Appliance Network Settings

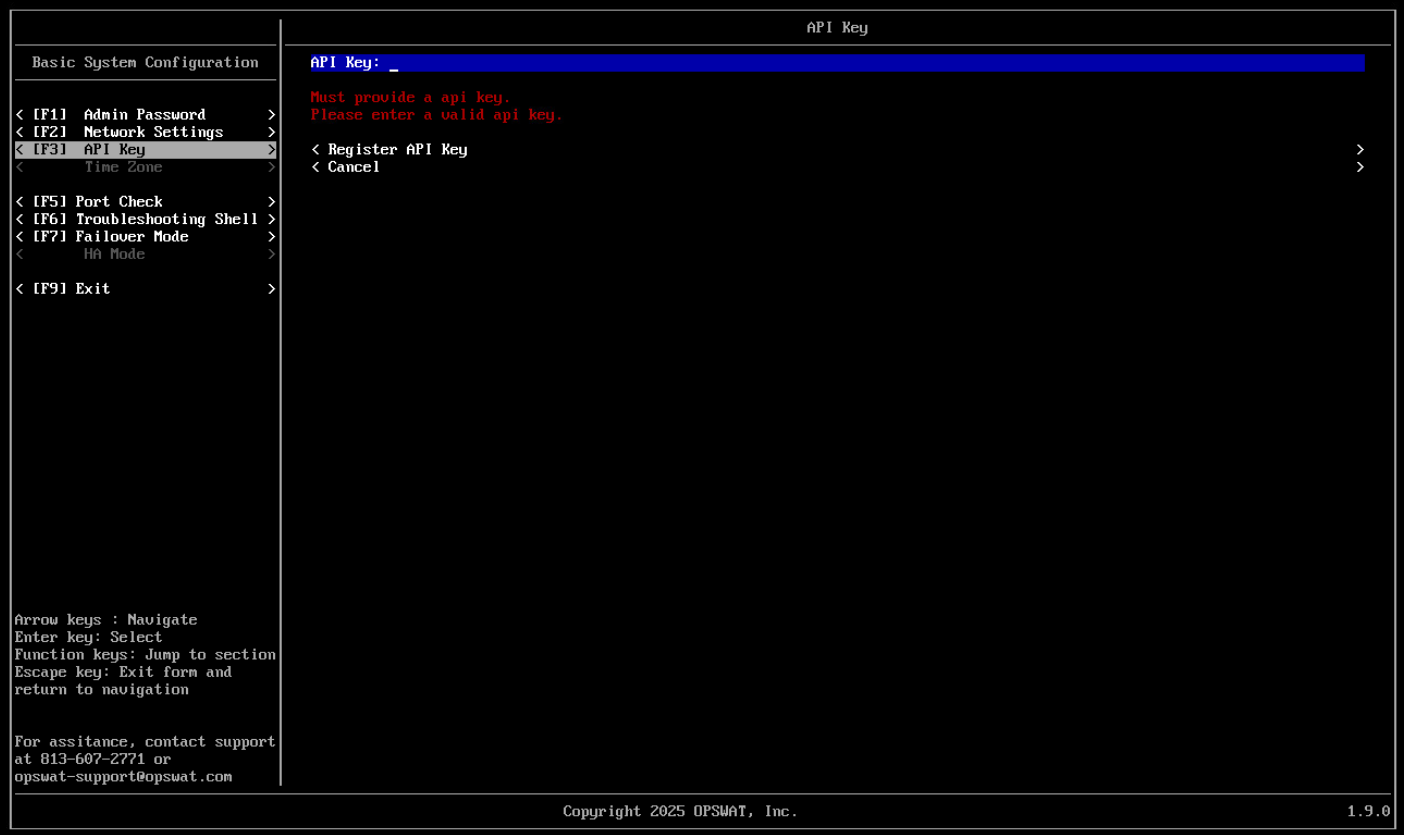

Activate API Key

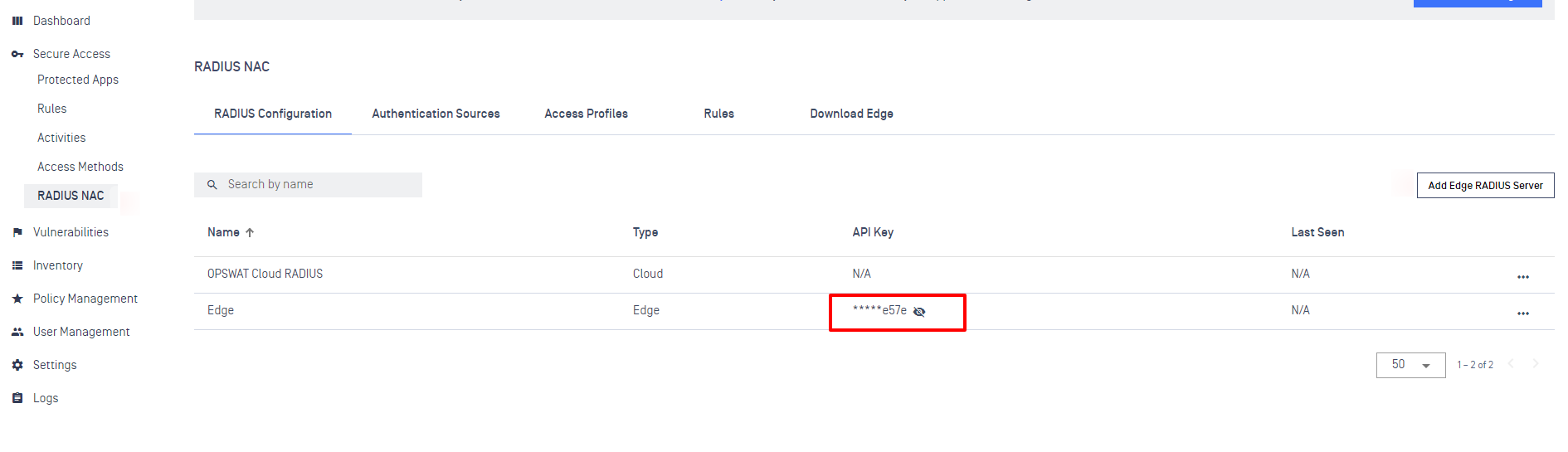

You can achieve an API Key when create an NAC Edge.

After activate successfully, you will able to move to the last setup step - Time Zone.

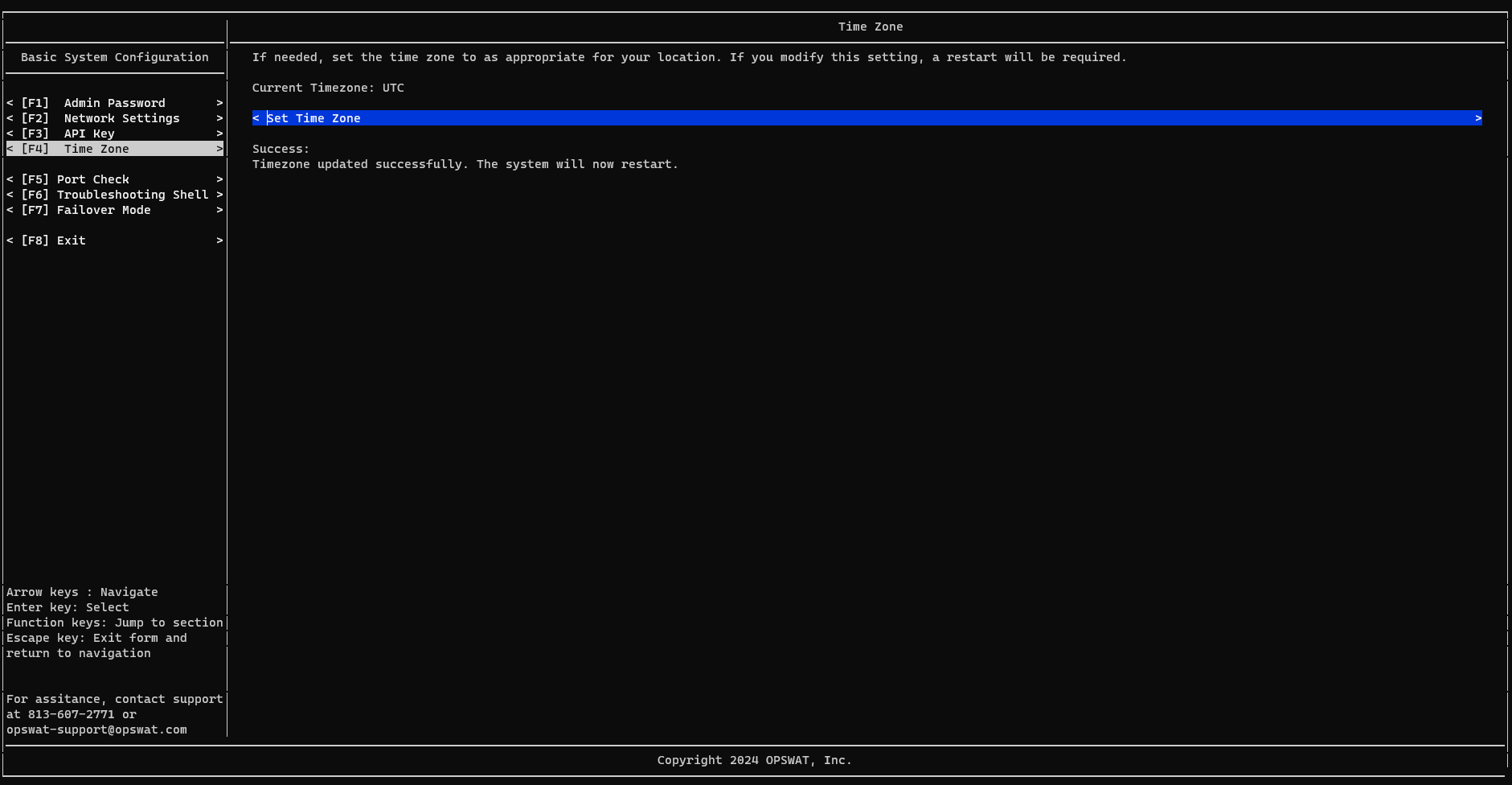

Setup Time Zone

Choose your best match Time Zone. After done setting, the system will restart
