TACACS+ Installation and Configuration

Summary

This document provides the steps necessary to complete the download and configuration of the TACACS+ CentOS 7 VM.

The TACACS+ configuration already contains configuration for the most common use cases including AD/LDAP integration, privilege levels and per-command authorization. The configuration can be customized to meet the specific requirements of the environment.

TACACS+ OVA Download

Navigate to the URL below and initiate the download of the TACACS+ CentOS 7 OVA. Import the OVA into your existing ESXi infrastructure. The OVA was built on ESXi6.5 and VM Hardware Version 13.

https://nac-downloads.opswat.com/IE/tacacs/OPSWAT-TACACS+-VM.ova

The VM image requires 4Gig of dedicated memory with 40Gig thin provisioned storage partition and 2 vCPUs.

TACACS+ VM Configuration

The default username and password are below:

user = root

password = P@55w0rD

It is highly recommended that you change the default password. To do this type passwd and hit enter. You will be prompted to type in the new password.

Configure networking:

# vi /etc/sysconfig/network-scripts/ifcfg-ens160

Change the following fields to the desired setting for your network

# systemctl restart network.service

Configure the desired hostname for the server:

# hostnamectl set-hostname hostname.your.domain

Reboot for the hostname change to take effect.

TACACS+ Configuration - AD/LDAP

# vi /usr/local/etc/tac_plus.cfg

Bash

​x

#!/usr/local/sbin/tac_plusid = spawnd {    listen = {        port = 49    }    spawn = {        instances min = 1        instances max = 10    }    background = yes}​id = tac_plus {    access log = /var/log/tac_plus/access/%Y%m%d.log    accounting log = /var/log/tac_plus/acct/%Y%m%d.log    authentication log = /var/log/tac_plus/authentication/%Y%m%d.log    authorization log = /var/log/tac_plus/authorization/%Y%m%d.log    #debug = ALL    mavis module = external {        script out = {            # Require group membership:            if (undef($TACMEMBER) && $RESULT == ACK) set $RESULT = NAK            # Don.t cache passwords:            if ($RESULT == ACK) set $PASSWORD_ONESHOT = 1        }        setenv LDAP_SERVER_TYPE = "microsoft"        ###################################################        # Comment/uncomment below to select LDAP or LDAPS #        ###################################################        #setenv LDAP_HOSTS = "ldap:// x.x.x.x:389"        setenv LDAP_HOSTS = "ldaps:// x.x.x.x:636"        setenv LDAP_BASE = "dc=your,dc=domain,dc=here"        setenv LDAP_USER = "user@your.domain.here"        setenv LDAP_PASSWD = "your_ldap_password"        setenv REQUIRE_TACACS_GROUP_PREFIX = 1        exec = /usr/local/lib/mavis/mavis_tacplus_ldap.pl    }        login backend = mavis    user backend = mavis    pap backend = mavis    host = world {        address = ::/0        #################################################        # Adjust prompt below to preferred login banner #        #################################################        prompt = "\nUnauthorized Access Is Prohibited\n\n"        enable 15 = clear your_enable_secret        key = “your_tacacs_key”    }
Copy

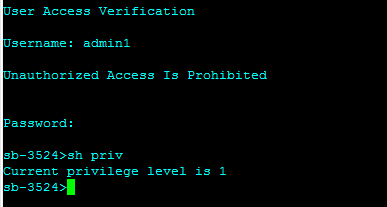

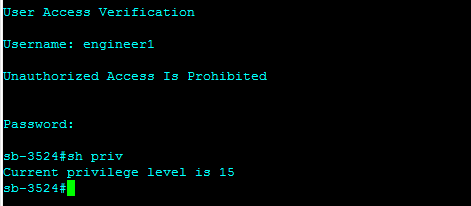

TACACS+ Configuration - Privilege Level Concept

Bash


################################################################################## The following can be used to assign a privilege level to users based on group ## Note: AD groups need to be prefaced with “TACACS” when created on the AD      ## server, e.g. TACACSNetEngPriv in AD, NetEngPriv in tac_plus.cfg.              ##################################################################################    group = NetEngPriv {        enable = login        default service = permit        service = shell {            default command = permit            default attribute = permit            set priv-lvl = 15        }    }        group = NetAdminPriv {        default service = permit        service = shell {            default command = permit            default attribute = permit            set priv-lvl = 1        }    }
Copy

TACACS+ Configuration - Per Command Authorization

Bash


################################################################################### As an alternative to privilege levels, the following configuration can be used ## to assign specific commands that a user is allowed to issue                    ##                 Note: Privilege level defaults to 1                            ###################################################################################    group = NetAdminCmd {        default service = deny        service = shell {            default command = deny            default attribute = deny            cmd = ping { permit .* }            cmd = show { permit .* }            cmd = traceroute { permit .* }            cmd = terminal { permit [length].* }            cmd = exit        }    }
Copy

TACACS+ Configuration - Validation

Once the desired changes have been made to the configuration, the tac_plus configuration will need to be verified and the service restarted in order for the changes to take effect.

Bash


################################################################################# If changes have been made to this file, the tac_plus service must be         ## restarted in order for them to take effect                                   ##                                                                              ## Pre-flight check - /usr/local/sbin/tac_plus -P /usr/local/etc/tac_plus.cfg   ## Make sure there are no errors returned                                       ##                                                                              ## Restart the service                                                          ## systemctl restart tac_plus.service                                           ##                                                                              ## Make sure that the service is running                                        ## systemctl status tac_plus.service –l                                         #################################################################################
Copy
