Using Media Firewall

Power on sequence

MetaDefender Media Firewall (MMF) will run through a power on sequence before it is ready for use:

1. Power indicator shows solid WHITE for ~45 seconds
2. WHITE will then cycle per each Media indicator
3. On completion, all Media indicators will flash WHITE and then GREEN
4. Power indicator will show a steady green to indicate the MMF is ready

Host system connection

Connecting the MMF to a host system requires connecting the COMP USB-C port on the back of the unit to a USB port on the host system.

A mounted drive is always seen on the Host when the MMF is connected.

If no media is inserted in the MMF or it is in the process of validating media, the mounted drive will show a No scan result.txt file.

Media scan

The MMF is ready for scanning media inserted to it when:

• The MMF is on
• The Power indicator is showing a solid GREEN light
• The Media indicator lights are all off

Insert a single piece of media to the MMF for it to start scanning the media.

The indicator light on the media port will begin to flash CYAN while it scans the entire media and validates the manifest from Kiosk.

Refer to the Media Indicator state guide to understand the meaning of the LED display.

Upon completion of a scan, when the MMF is connected to a Host, the mounted drive will show the allowed files and three separate report files at the root:

• session-activity-log.txt
• session-report.json
• session-report.txt

A file will fall into one of three categories:

• Allowed file was scanned & allowed by Kiosk - will be accessible on the host system
• Blocked file was scanned & blocked by Kiosk - will not be shown on the host system
• Concealed file was not scanned by Kiosk - will not be shown on the host system

Secure Data Write (Copy Files from Host to Media)

After MMF completes scanning, files can be written back to the original media by copying files to the mounted drive, Firewall.

When a user copies files to the Firewall mounted drive, the indicator light on the media port will flash CYAN while files are copied to the original media.

After files are copied, the file transfer is finalized by writing out the Additional Files Report to the media.

The media is safe to remove when there is no open file copy dialog on the Host and the media indicator light is not flashing CYAN and goes back to the original scan result.

Additional Files Report

To access the transfer report, plug your media into another device and open the directory OPSWAT Media Firewall Info. The report file is Media Firewall Additional Files Report.txt and will either contain a message that all files were copied successfully, or it will contain a list of files that failed to copy and a brief message why the copy failed.

Limitations

There are some limitations to copying files from host to media through Media Firewall:

• Cannot delete files from the original media
• Cannot format the original media
• Long filenames are not currently supported
• For Windows hosts, System Volume Information directory contents will not be synced

Port Alarm Protection

Port Alarm Protection enables the Media Firewall to monitor its connection to the Host - requiring it to always remain connected in order to be operational.

In the event that the cable between the Media Firewall and Host is disconnected, the Media Firewall will begin to alert of the issue and disregard any additional media input.

When Media Firewall is alerting, all indicators will show RED (Alert Mode) and, if configured, will send an alert syslog message to a configured server informing of the issue:

The Media Firewall has been disconnected. Restore the connection immediately to allow Media Firewall to be operational.

Media Firewall will become operational once the connection is restored:

All connections have been restored. Media Firewall is now operational.

Upgrade

Media Firewall can obtain regular upgrades in both network connected and air-gapped environments.

The Media Firewall must be past Setup Mode before upgrades can be applied.

Online

If Media Firewall is connected to a network, it can retrieve upgrades hosted by OPSWAT via My OPSWAT management.

Upgrades are downloaded silently in the background and are applied when the Media Firewall is not in use.

Offline

If Media Firewall is not connected to the internet, it can be upgraded manually using a USB stick after it has gone through Setup Mode and is now operational.

Preparing the USB

1. Obtain a USB (minimum size of 8GB)
2. Log into My OPSWAT, from the Product Downloads section, find the MetaDefender Media Firewall product and download the upgrade package and descriptor file
3. Copy the downloaded files to the root of the USB

To apply the upgrade, the Media Firewall must be on and ready for scanning, then insert the upgrade USB into the back USB-A port of the Media Firewall.

Applying an upgrade

While the Media Firewall is not in use and it detects an upgrade package to apply, it will follow this behavior during the application of the upgrade:

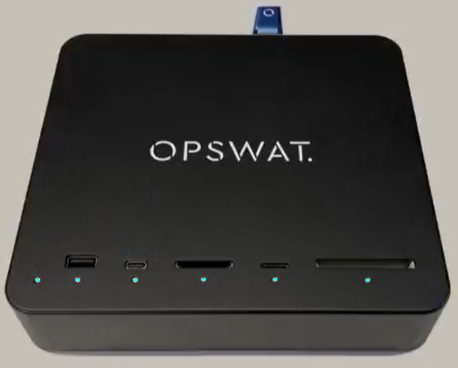

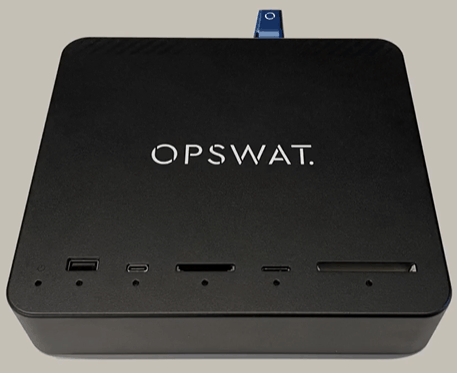

1 | All lights will briefly flash CYAN to indicate an upgrade package has been detected (either downloaded from online or the upgrade USB was inserted)

Upgrade detected

2 | During the upgrade, lights will begin to flash from left to right, alternating between BLUE & CYAN color display

Upgrade applying

3 | Upon successful completion, all lights will temporarily show BLUE and then the media can be removed once the lights turn off. The MMF will then show a solid CYAN light and then go through the Power on sequence to start up into the new version.

Upgrade complete
