Overview

OPSWAT’s MetaDefender Media Firewall works in conjunction with MetaDefender Kiosk acting as a simple, plug-and-play firewall appliance to secure host systems from the threats of removable media-borne cyberattacks. The Media Firewall ensures file contents of inserted portable media are inspected, audited, and approved prior to use.

Key Features

  • Plug and Play appliance that requires no software installation on SCADA/HMI host system
  • Automatically blocks unprocessed or compromised files
  • Locally managed using a Host system without Ethernet or remotely managed over Ethernet with My OPSWAT
  • Works with MetaDefender Kiosk to validate a manifest of audited files via a public key site certificate that can be programmed onto the appliance prior to operation
  • Compliance: NERC CIP, ISA 62443, NIST 800-53, NIST 800-82, and ISO 27001

Technical Specifications

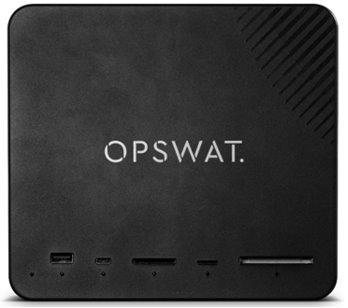

Front Panel

Ports from Left to Right of the unit:

  • Power LED indicator
  • USB 3.0 Type-A
  • USB 3.0 Type-C
  • SD card slot
  • Micro SD card slot
  • Compact Flash card slot

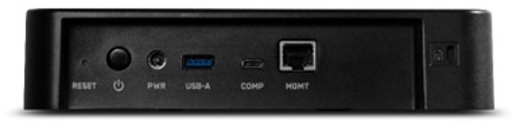

Back Panel

  • RESET - for factory resetting the unit or warm reboot

  • Power button

  • PWR - 12V DC or 24 VDC jack

  • USB-A - USB 3.0 Type-A (for management using a Wi-Fi Dongle)

  • COMP - USB 3.0 Type-C (connect to the Host system)

  • MGMT - RJ45 1GbE LAN (for management over a wired network)

    • Some models may come with two additional ethernet ports. These are reserved for future use. Network connection can only be utilized on the MGMT labeled port.
  • Kensington Security Slot - for securing the unit to a location with a Kensington lock

Host System Requirements

  • OS: Windows, Linux, Mac
  • USB Type-A (1.0 or greater)
  • Support exFAT file system

Supported File Systems

  • FAT
  • exFAT
  • NTFS
  • ext2/3/4

Additional Details

CategoryValue
Maximum file size104GB
Operating temperature-5 to 40 Celsius / 23 to 104 Fahrenheit
Accessories included
  • 12VDC 36W power supply
  • AC power cord (USA)
  • 6' USB cable Type-C to Type-A for host system connection
  • 6' RJ45 Cat 6 ethernet cable for remote management
