MetaDedender Kiosk Secured Image deployment

Follow the steps to create a bootable flash drive containing the hardened Kiosk image to facilitate the efficient deployment of MetaDefender Kiosk on various Kiosk hardware models

Step 1: Download Deployment Tool and Kiosk Secure Image

Download the following packages:

1. The Deployment Tool: WinPEBootable.vhd

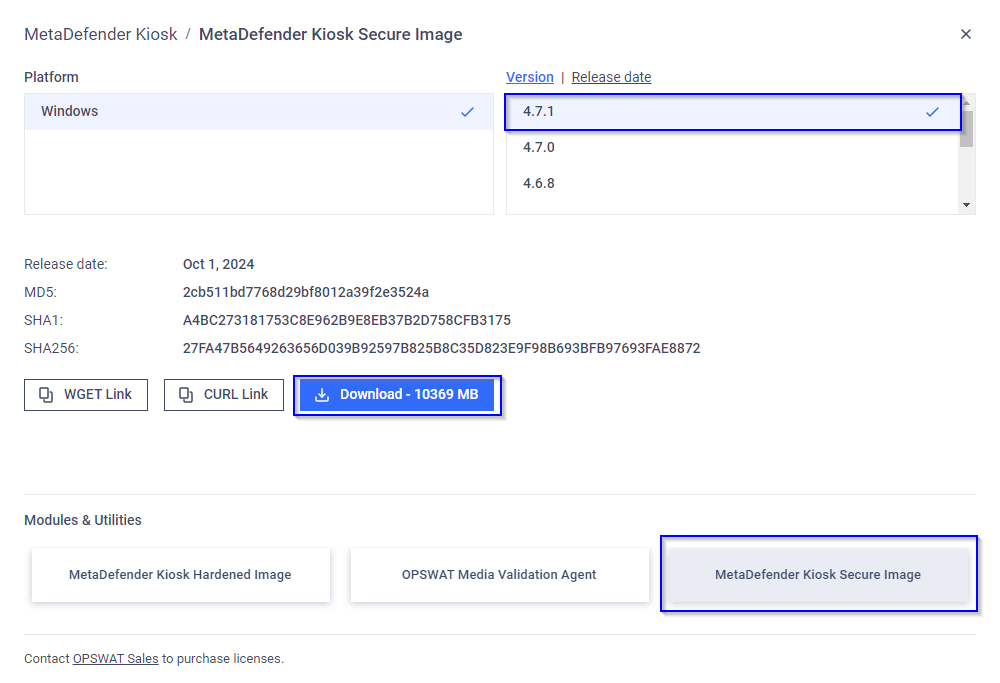

2. Kiosk Secure Image corresponding to the model of the device at My OPSWAT Portal. There are available images on Product Downloads page

Step 2: Creating the Kiosk deployment flash drive

1. Create bootable USB

Download Rufus tool (version 3.15.1812 is recommended) to format and create bootable USB flash drive by the following steps:

1. Open Rufus and insert the USB drive.
2. Select your USB drive under "Device".
3. Click SELECT and select the downloaded WINPEBootable.vhd.
4. Click START.

Image: Rufus 3.15 UI to create bootable USB

2. Copy MetaDefender Kiosk Secure Image

The USB now consists two partitions:

• WINPE: To store the WinPE files used for booting to winPE for deployment actions.
• KioskImage: To store the deployed image.

Copy the downloaded MetaDefender Kiosk Secure image file (install.wim) to the KioskImage partition to finish the flash USB creation.

Step 3: Flashing a device with the bootable Kiosk USB drive

To install MetaDefender Kiosk on a new device by using your newly created Kiosk deployment flash drive, do the following:

1. Boot Into WinPE Environment

1. Plug USB into Kiosk Hardware
2. Restart/Power on the device.
3. Keep pressing F12 during booting up to open Boot Menu
4. Select the created USB as boot up media (base on device name)
5. Press enter.

Image: UEFI boot Devices menu on BIOS

2. Deploy Secure Image

Following the boot into the WinPE environment, a command prompt window will appear.

Please respond to the prompts in the command window:

1. Select the drive where you want to install the image. Keep in mind that all data on that drive will be permanently erased.
2. Decide whether you want to perform a full-pass wipe. Note that a full-pass wipe will take significantly longer.
3. Choose whether you want to restart the device once the installation is complete.

Image: Command prompt window on WinPE environment

Step 4: Post Installation Actions

• Change default log-in information for the local windows account:

  • Username: KioskUser
  • Password: Contact the Customer Support to get the default password.

• To activate MetaDefender Core, you will need to run the Setup Wizard on MetaDefender Core, as follows:

  • Go to http://localhost:8008 and follow the Wizard in order to create an account and activate MetaDefender Core.

• Connect Kiosk to MetaDefender Core by following the instructions Here.

• To activate MetaDefenderKiosk, you will need to run the Setup Wizard on MetaDefender Kiosk, as follows:

  • Go to http://localhost:8009/ and follow the Wizard in order to create an account and activate MetaDefender Kiosk.

• Finally, accept any changes from baseline in the Kiosk UI.
