Validate XML files against an XSD schema

Deep CDR allows organizations to enforce schema validation on XML files. If a file does not conform to the specified schema, it will fail validation.

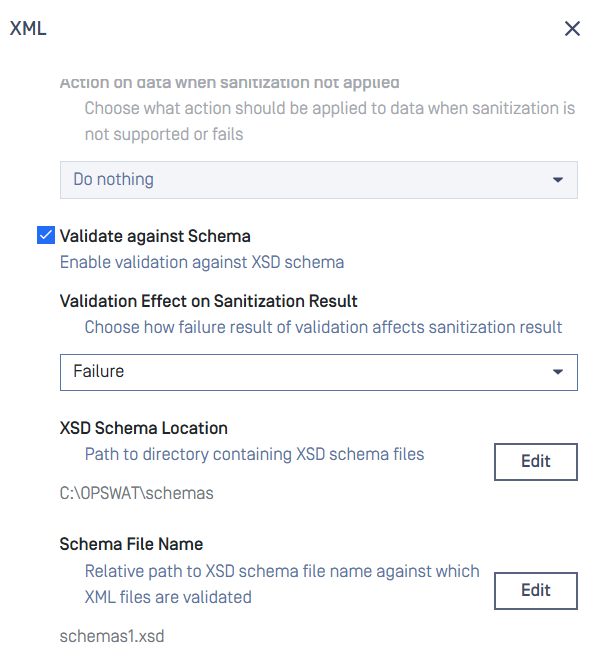

Configuration: Workflow > [Workflow Name] > Deep CDR > Advanced Configuration > Others > XML, then:

• Enable "Validate against Schema": Activates XML schema validation.
• Validation Effect on Sanitization Result: Choose how the system should behave when validation fails. Selecting "Success" will treat the failure as informational only, not as a processing error.
• XSD Schema Location: The folder where your schema files are stored. Multiple schema files can be placed in this location.
• Schema File Name: The default schema file to be applied for this workflow.

If you want to use different schema files for different input files, you can utilize the engines-metadata header when calling REST API

{

  "deep_cdr": {

    "xml2xml.validate_against_schema.schema_name": "person.xsd"

  }

}
