Microsoft 365 Transport Connectors

Hardening

Use TLS whenever it is supported by Office 365.

Cloud Email Security supports SMTP-over-TLS (SMTPS) or StartTLS for both inbound and outbound SMTP connections.

For details see the SMTP servers section in Configuration/Settings and Configuration/Server profiles.

Under certain conditions - especially when integrated to Office 365 as an outbound gateway - Cloud Email Security may be exploited as an open relay.

For details (risks and resolution) see Configuration/Hardening.

Overview

This document describes how Office 365 and MetaDefender Cloud Email Security can be interconnected.

This method does not require redirecting the MX record.

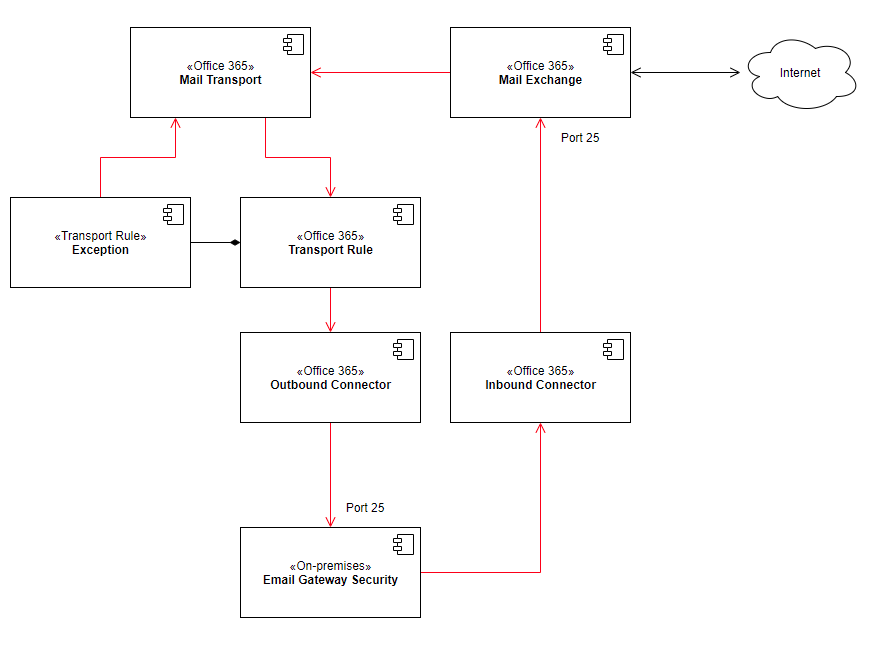

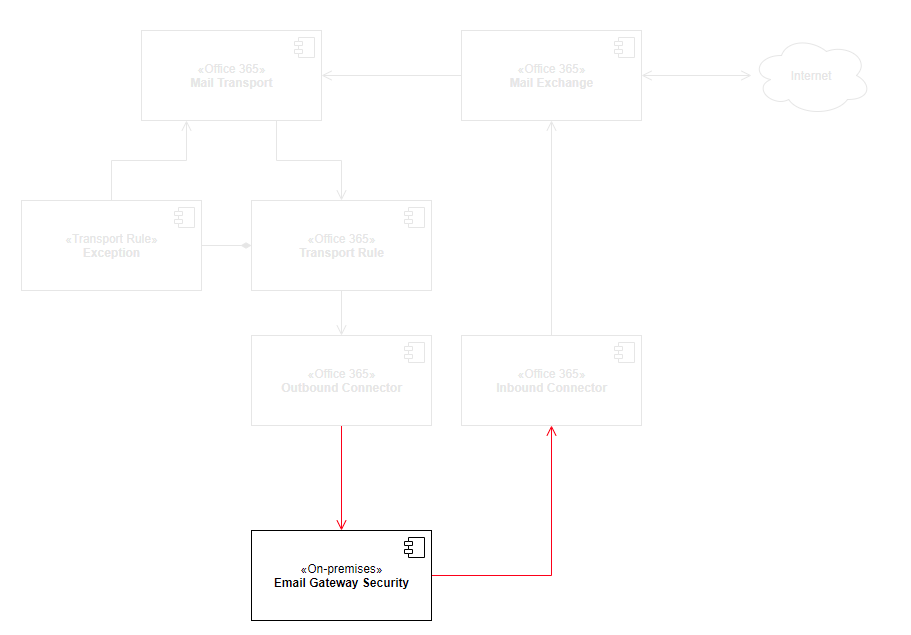

The high level architecture and components affected by this setup is as follows:

Process inbound, outbound and internal email

As the transport rule applies to all email, Cloud Email Security will process inbound, outbound and Exchange internal messages, too.

This behavior can be finetuned adjusting the appropriate parameters of the transport rule.

For details see step 4 in the section Transport rule to forward to Cloud Email Security and the sub-section Customizing what emails to send to Cloud Email Security below.

Known issues

HELO/EHLO name must be properly set

If the FQDN is not properly set in Cloud Email Security for the HELO/EHLO SMTP command on connecting to the Office 365 Mail Exchange, Cloud Email Security may get blocked by Office 365.

The blocked status of the sending SMTP client of Cloud Email Security may be queried from Spamhaus.

Visit the following URL to check: https://www.spamhaus.org/query/ip/<IP address of the sending interface>

For details see sender helo_domain under Configuration/Registry configuration.

Azure VMs blocked to connect to port 25

Outbound connections to port 25 are blocked for Microsoft Azure virtual machines (and most probably for other IaaS VMs and ISPs) by default.

For details see https://docs.microsoft.com/en-us/azure/virtual-network/troubleshoot-outbound-smtp-connectivity.

Exchange Online setup propagation delays

Changes in Office 365 Exchange may take time (several minutes) to apply.

Cloud Email Security setup

Overview

We will create a hook in Office 365 email flow to forward emails to Cloud Email Security for processing.

Cloud Email Security will receive the connections from Office 365 on SMTP port 25, and will forward the processed emails to Office 365 email exchange to SMTP port 25.

The following configuration must be performed:

  1. Inbound SMTP configuration to receive emails on port 25, and
  2. Security Rule configuration to relay to Office 365 mail exchange.

Inbound SMTP configuration

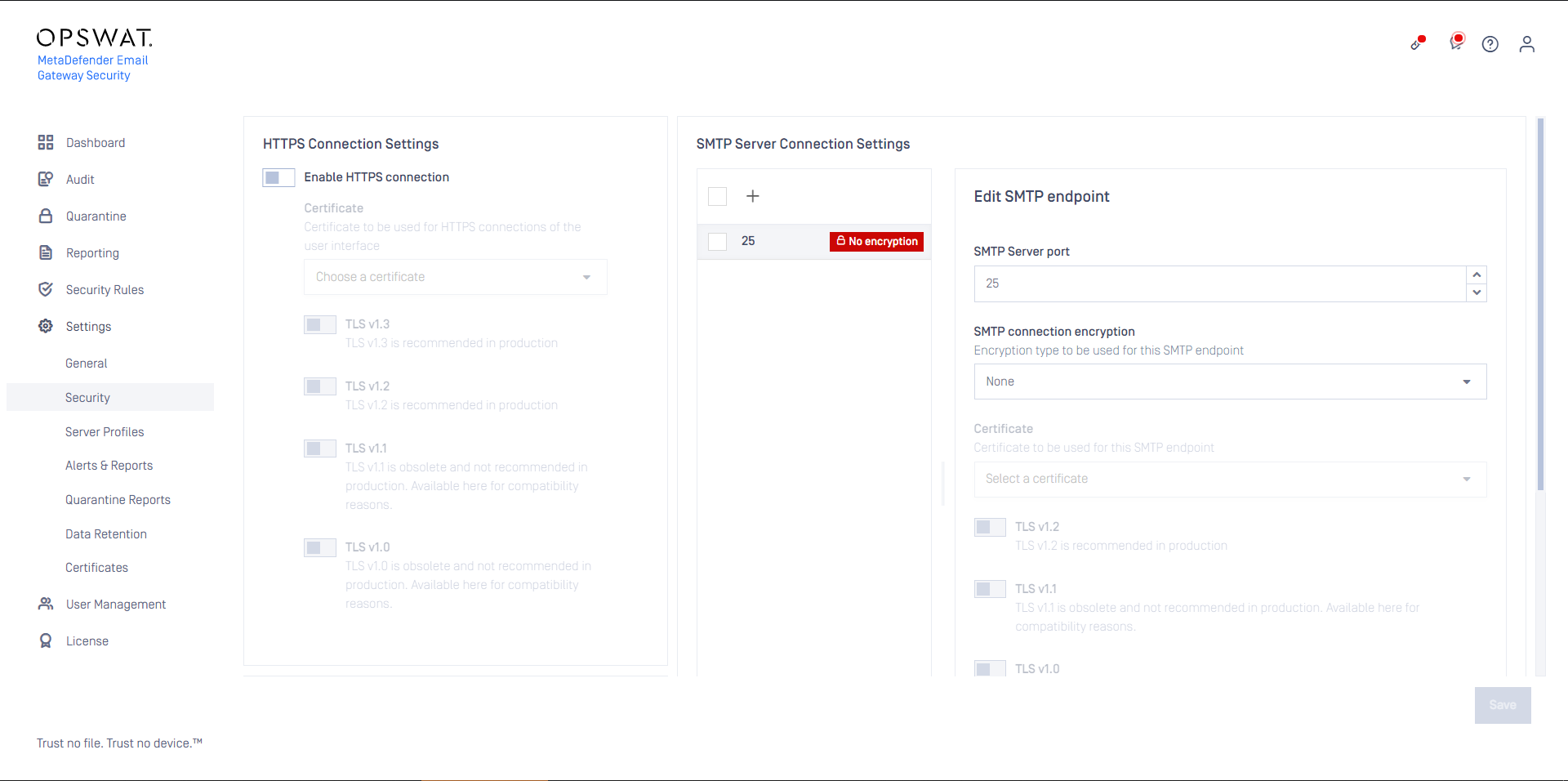

Configure Cloud Email Security’s SMTP server to listen on port 25 (by default Cloud Email Security listens on port 10025). For details see Configuration/Settings.

Security rule configuration

Cloud Email Security’s Security Rules must be configured to forward processed emails back to Office 365’s mail exchange.

Perform the following steps:

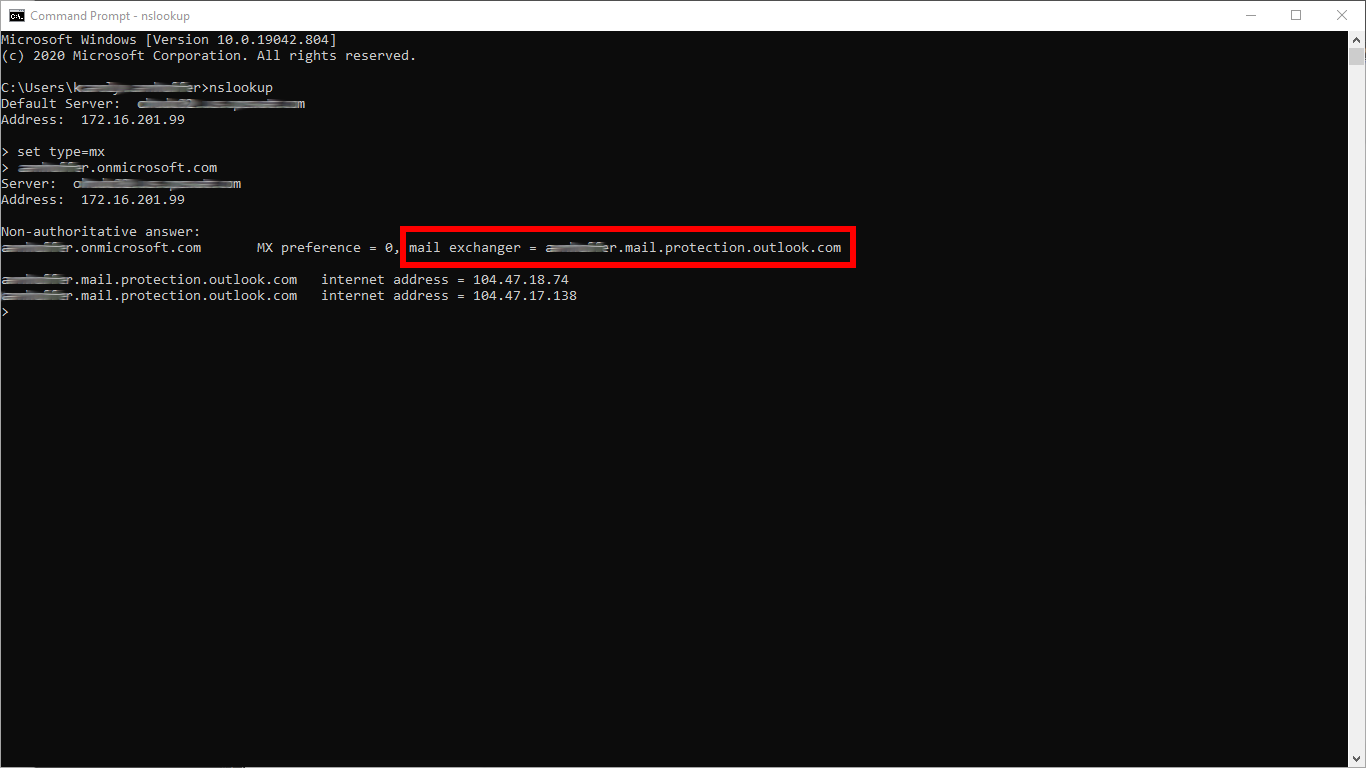

  1. Discover your Office 365 mail exchange FQDN Issue the following commands:
Copy

Example:

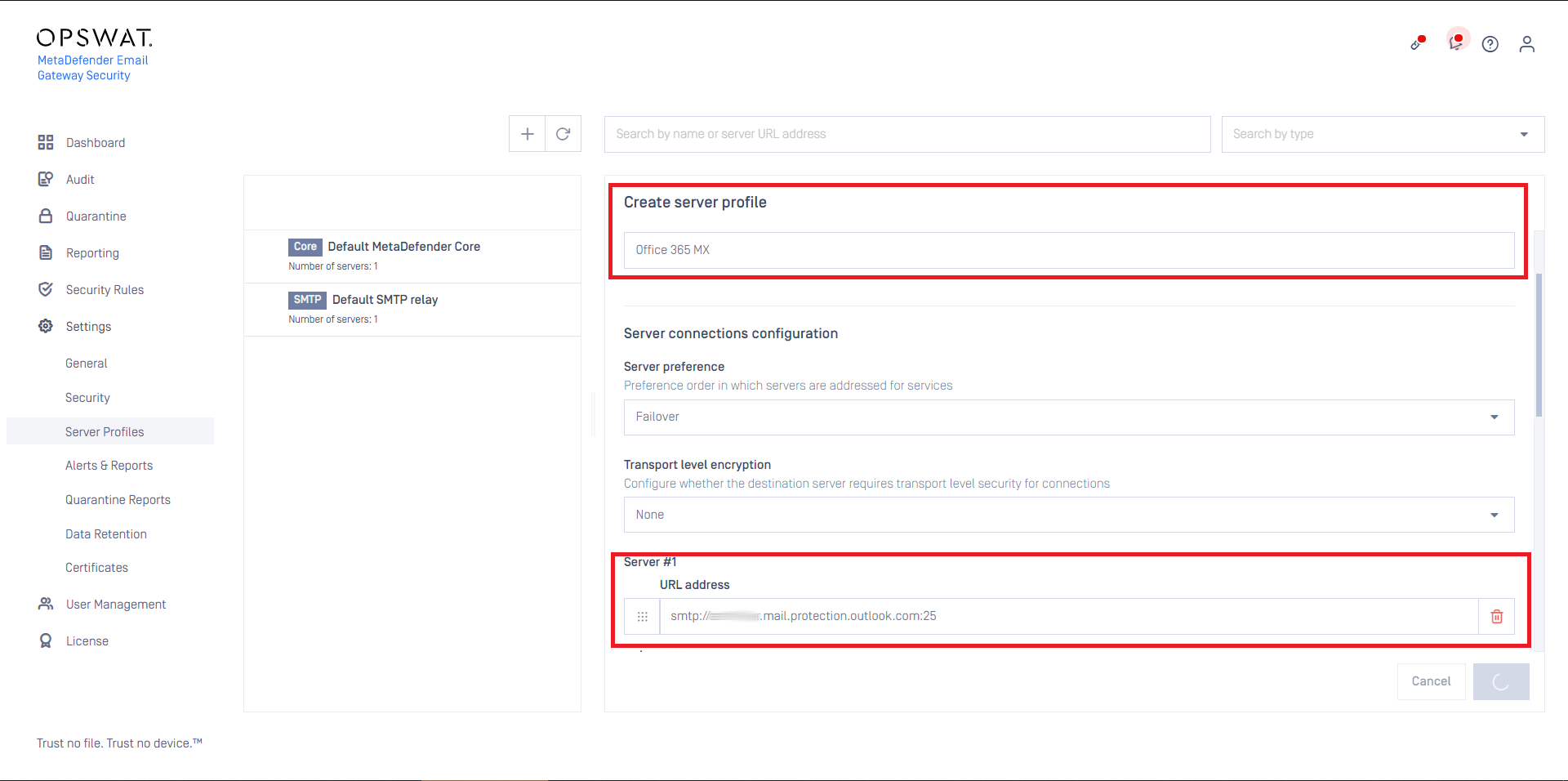

  1. Create an SMTP type server profile that points to the mail exchange discovered in the previous step. For details see Configuration/Server profiles.

For example if your mail exchange is your.domain.com then specify this as the SMTP server URL address:

Copy

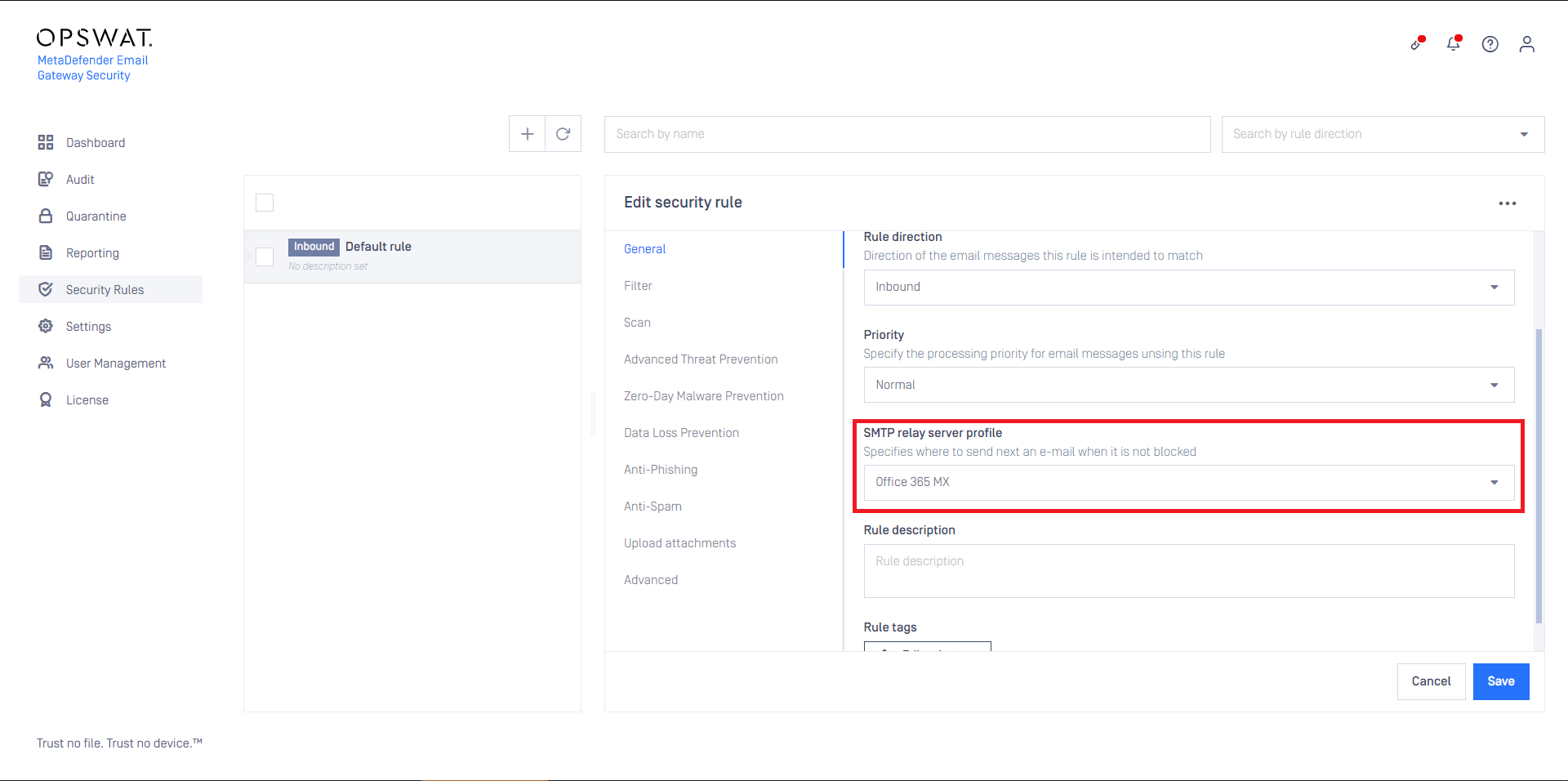

  1. Set this SMTP server profile as the SMTP relay server profile for security rules that are intended to process email from Office 365. For details see Configuration/Policy.

Cloud Email Security is now ready to receive emails from Office 365, and then return them there after processing.

Customizing how to process emails in Cloud Email Security

Depending on what emails are sent to Cloud Email Security by Office 365 for processing (for details see sub-section Customizing what emails to send to Cloud Email Security), different processing rules may be required. These rules can be created normally just like for any other use-case.

For details see Configuration/Policy.

In certain cases not all email is desired to be processed by Cloud Email Security. In these cases the range of emails to be forwarded can be configured setting *Apply this rule if… accordingly.

Example

Let us assume, that at an organization all email needs to be processed by Cloud Email Security (assuming that the Office 365 side transport rule is set properly, for details see section Transport rule to forward to Cloud Email Security):

  • For inbound email: regular processing,
  • For outbound email: Proactive DLP only.

We can easily achieve this by Cloud Email Security side security rules properly.

Inbound security rule

For regular inbound processing follow these steps:

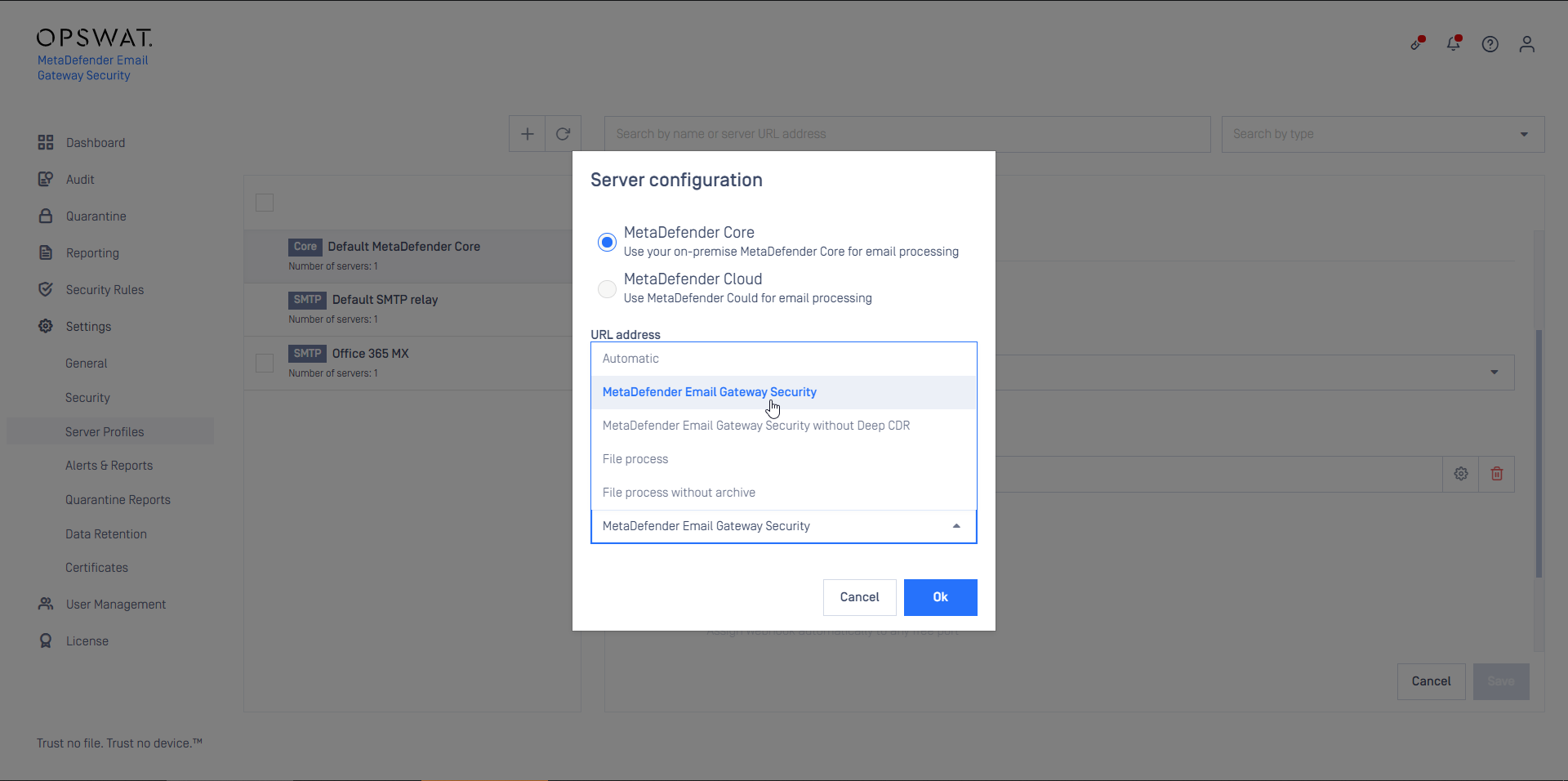

  1. Create a MetaDefender Core type server profile that is connected to the MetaDefender Cloud Email Security rule on MetaDefender Core (or reuse the Default MetaDefender Core profile)

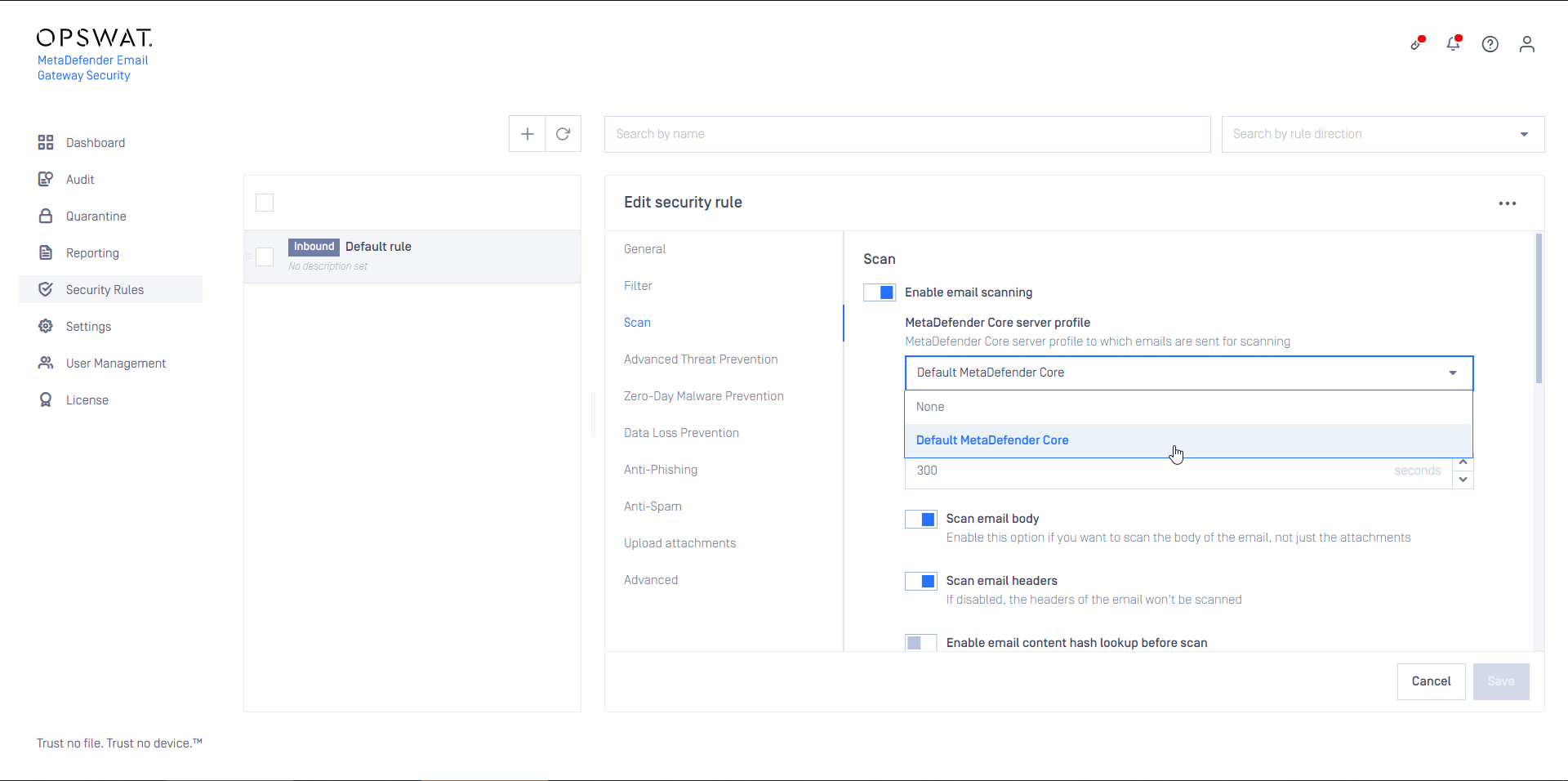

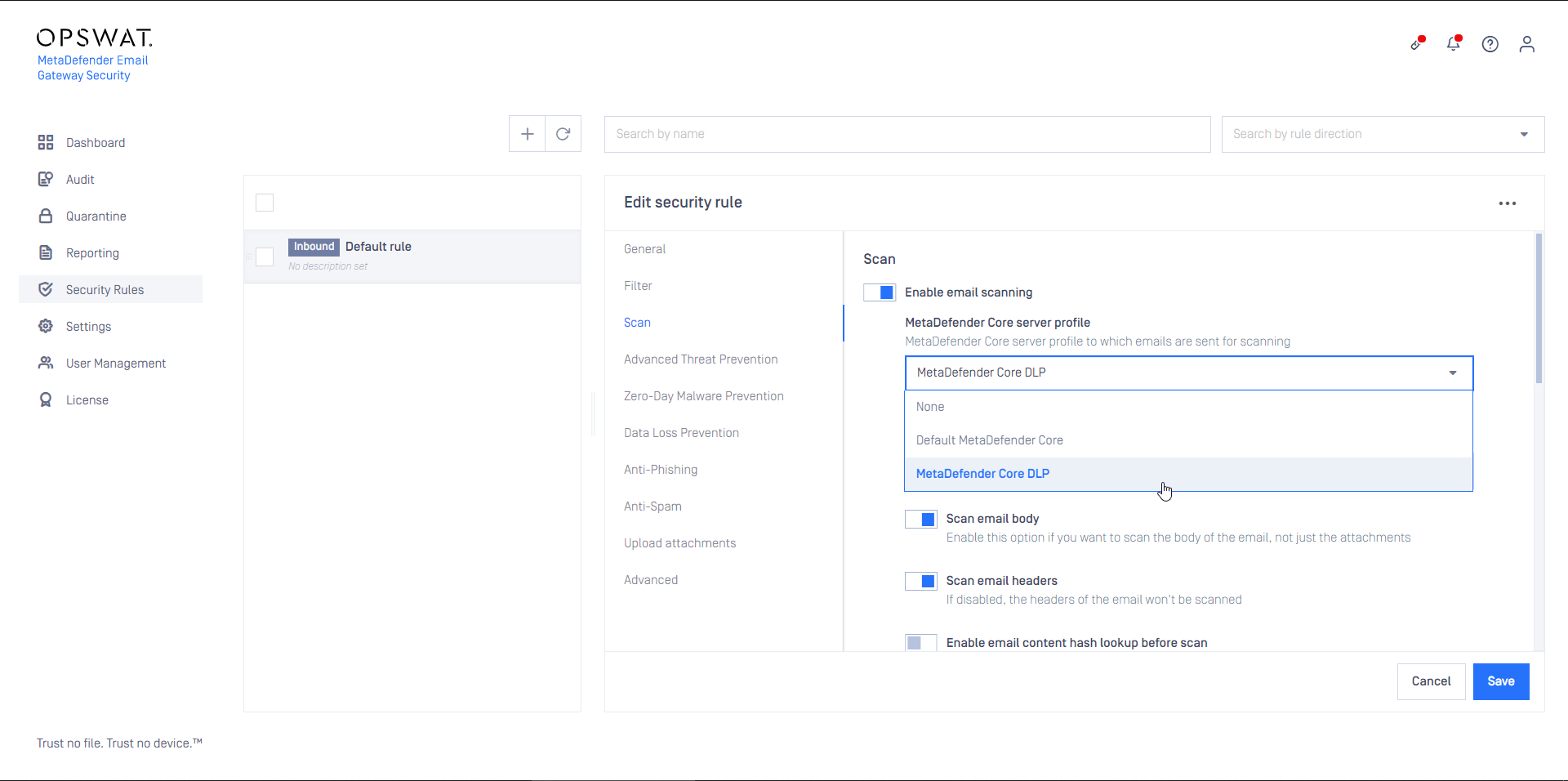

  1. Create a Security Rule (or reuse the Default rule) that will use the server profile created in the previous step

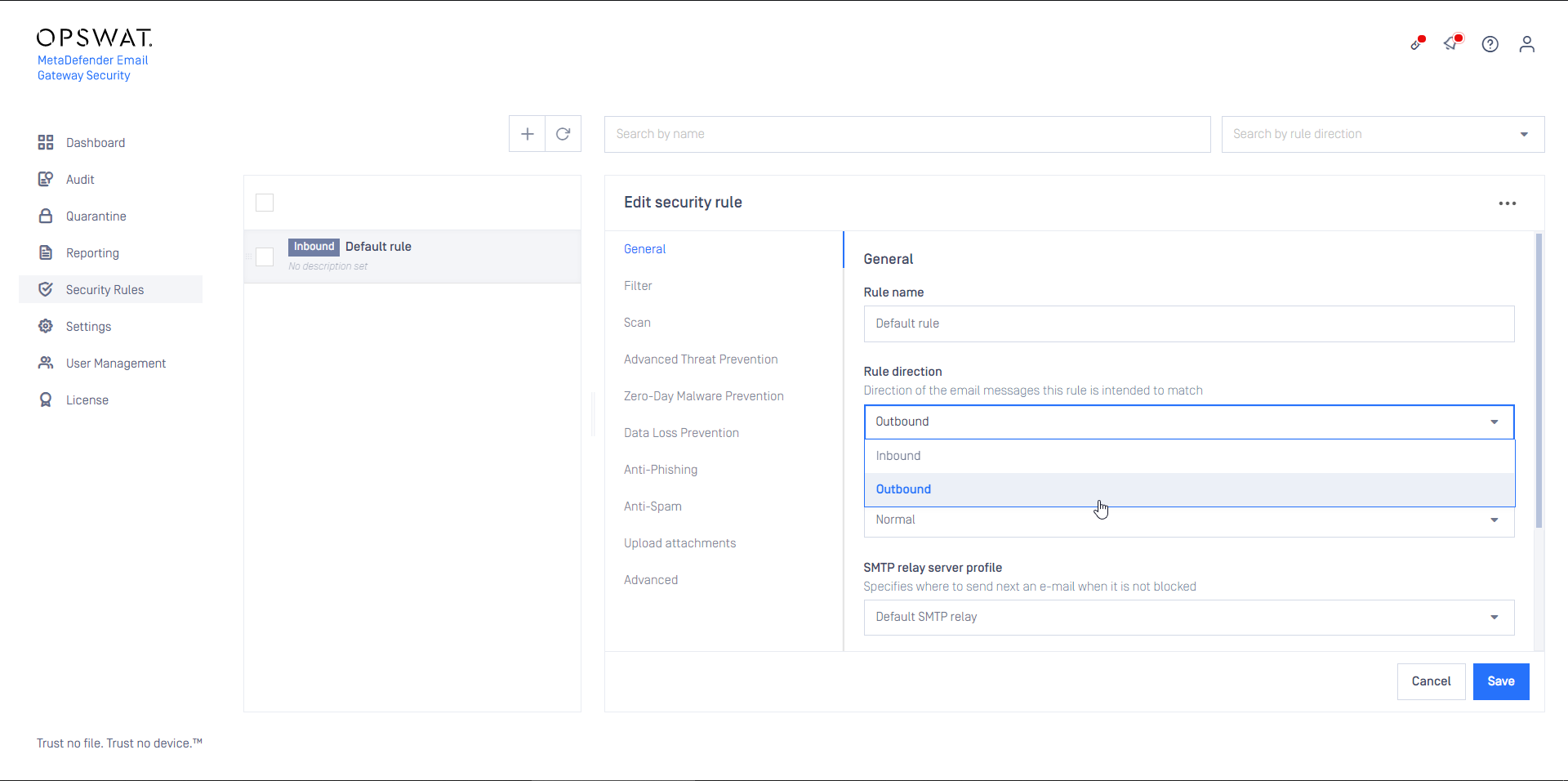

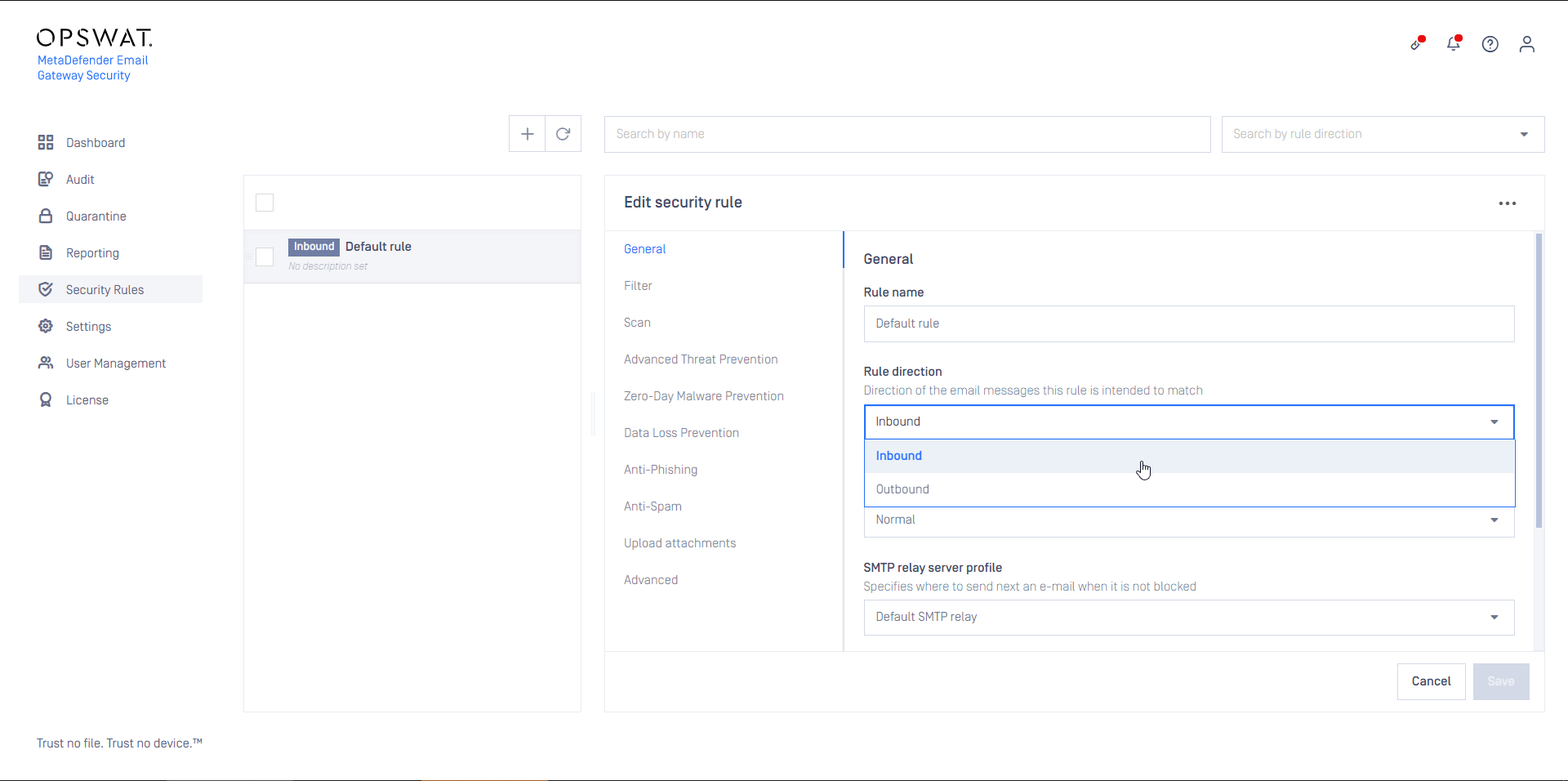

  1. Configure this rule as Inbound

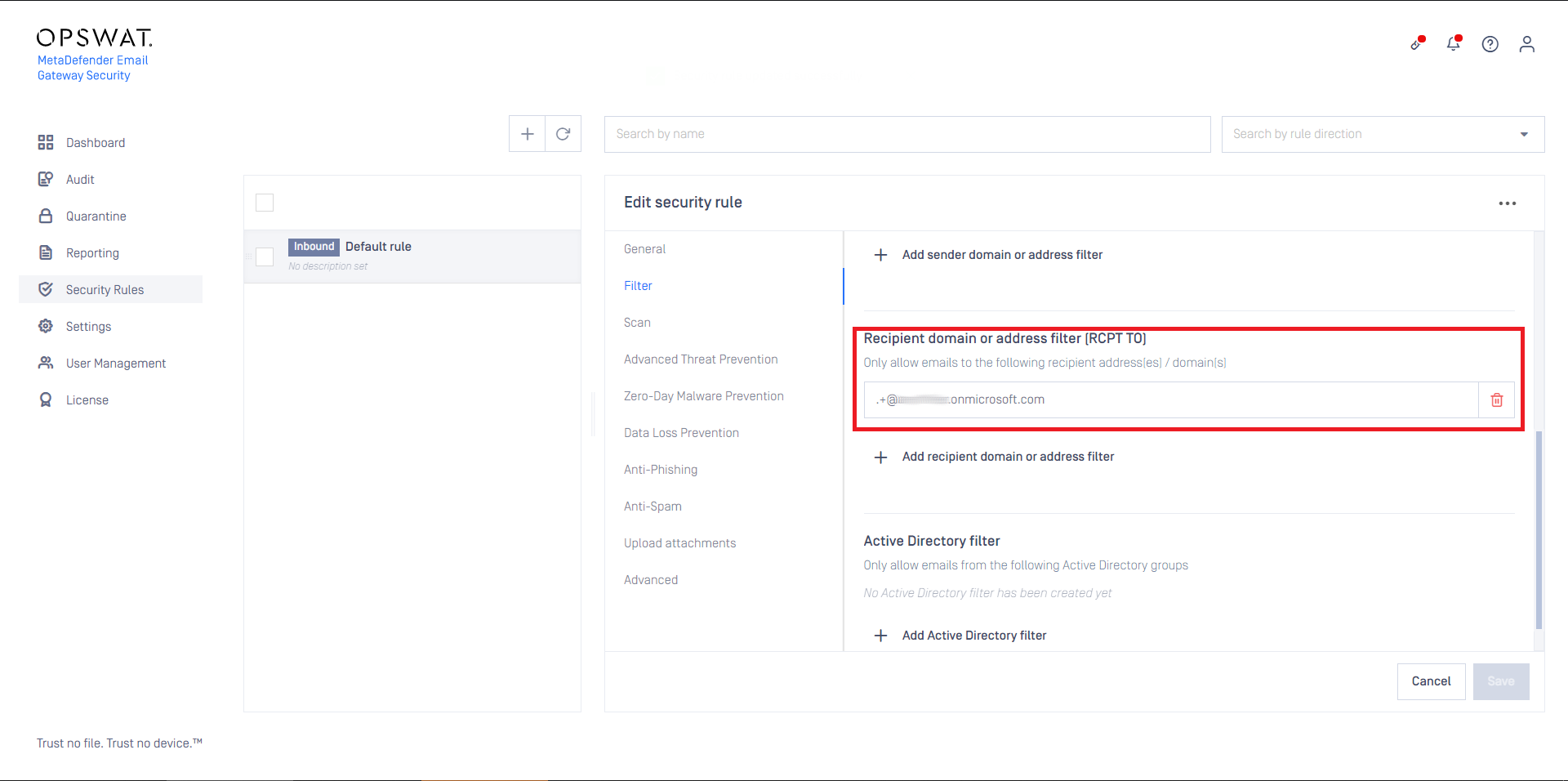

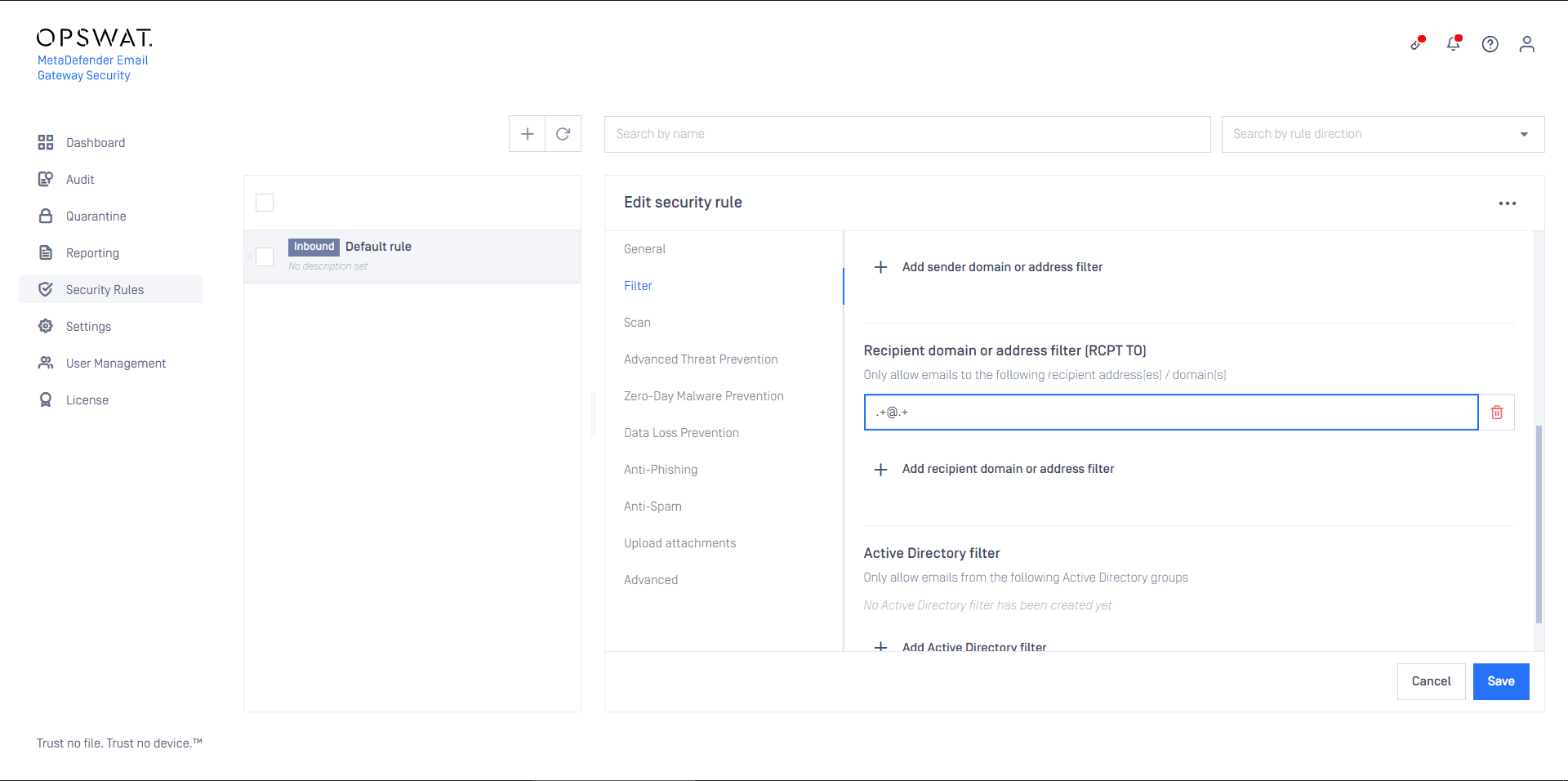

  1. Set the rule filters to match inbound email in your organization and save the rule

Outbound security rule

For DLP only outbound processing follow these steps:

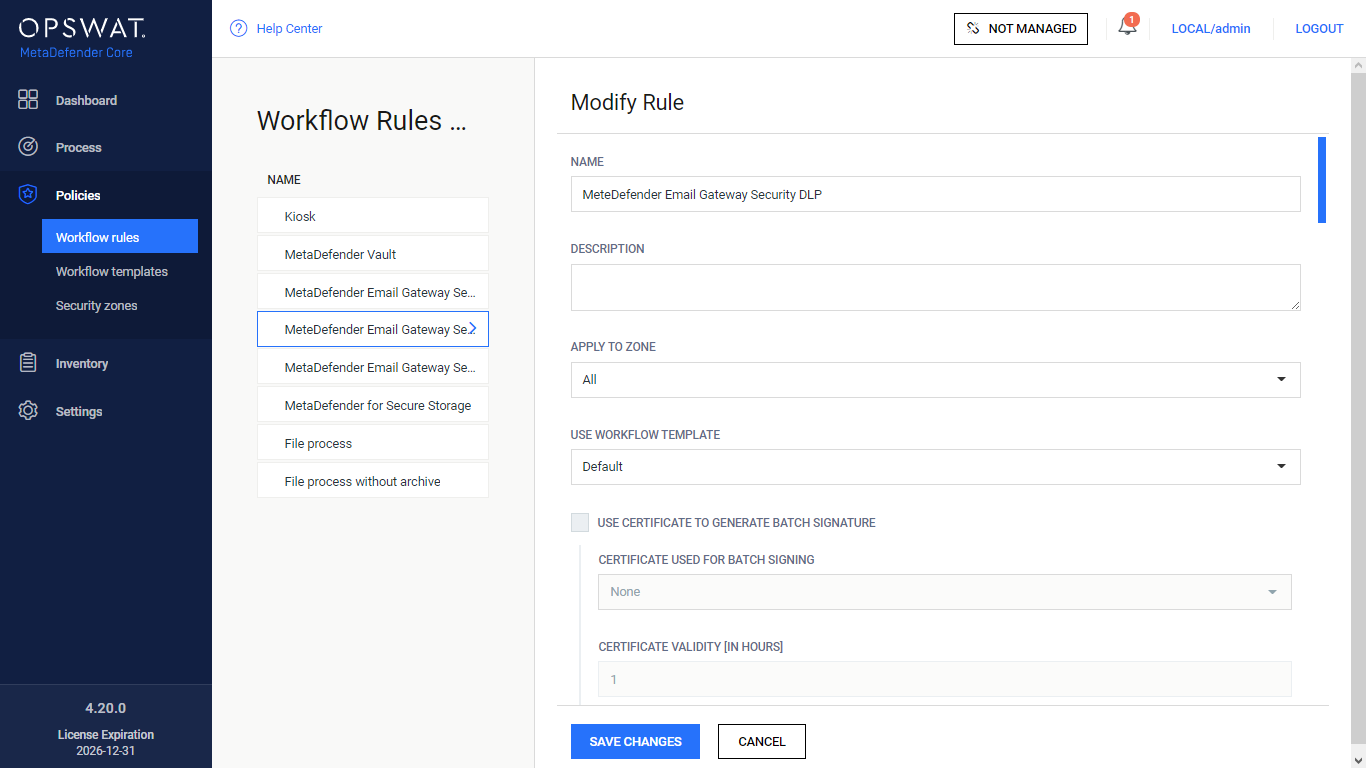

  1. Create a MetaDefender Core side Workflow:
    1. NAME: MetaDefender Cloud Email Security DLP
    2. LIMIT TO SPECIFIED USER AGENTS: mdemailsecurity
    3. SCAN / ENABLE MALWARE SCAN: disabled
    4. DEEP CDR: all disabled
    5. PROACTIVE DLP / ENABLE PROACTIVE DLP: enabled (and configured appropriately)

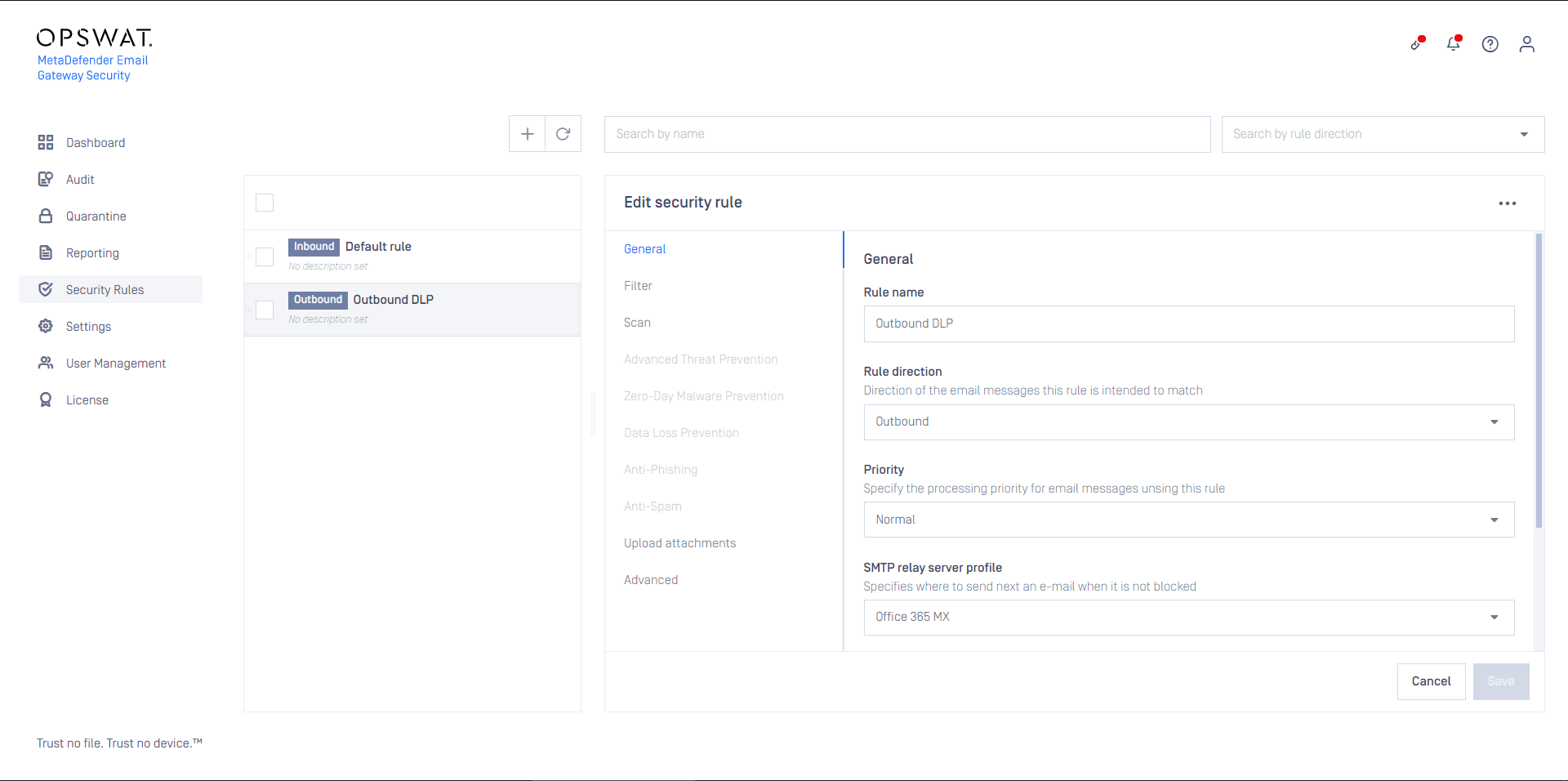

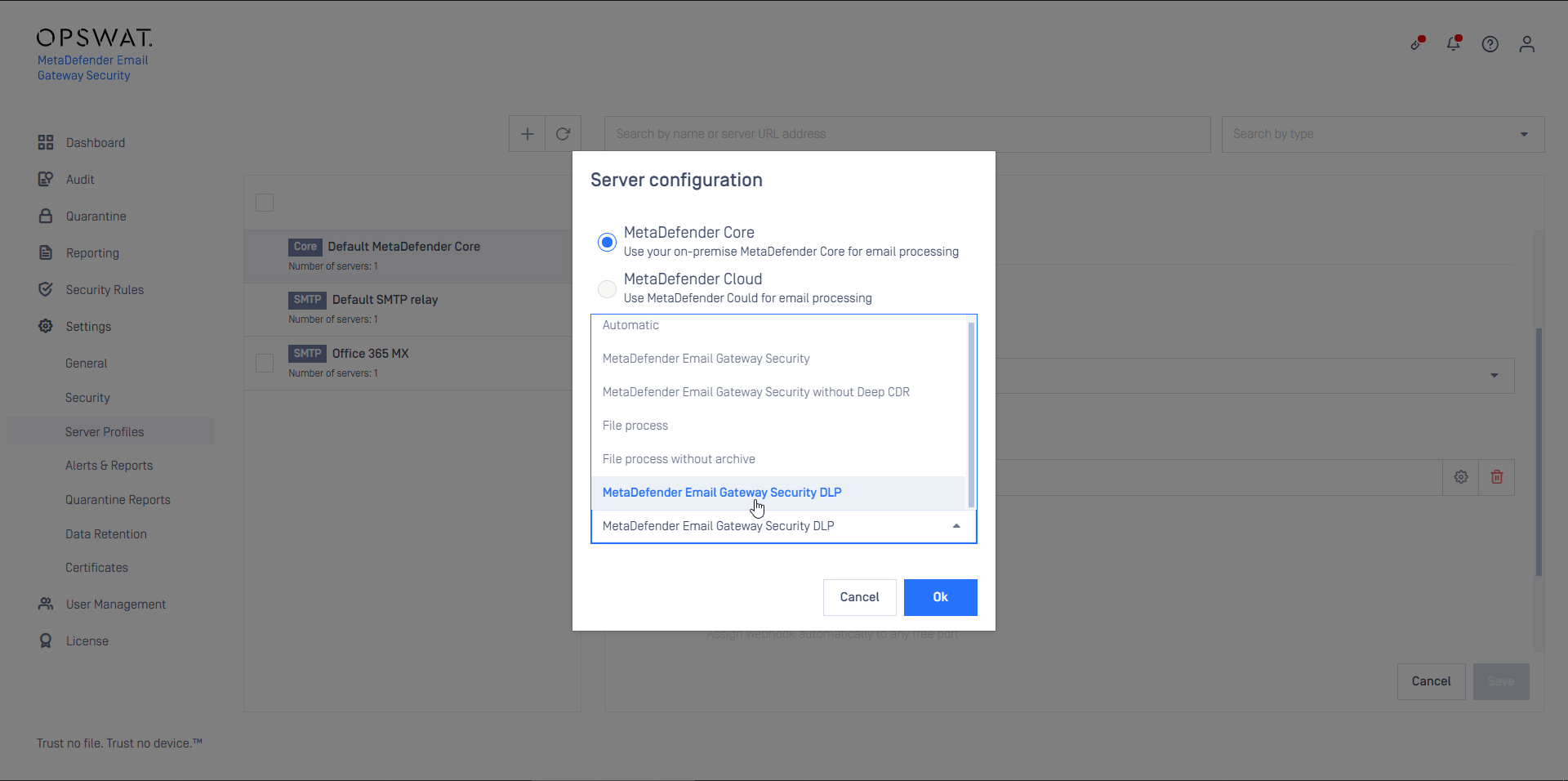

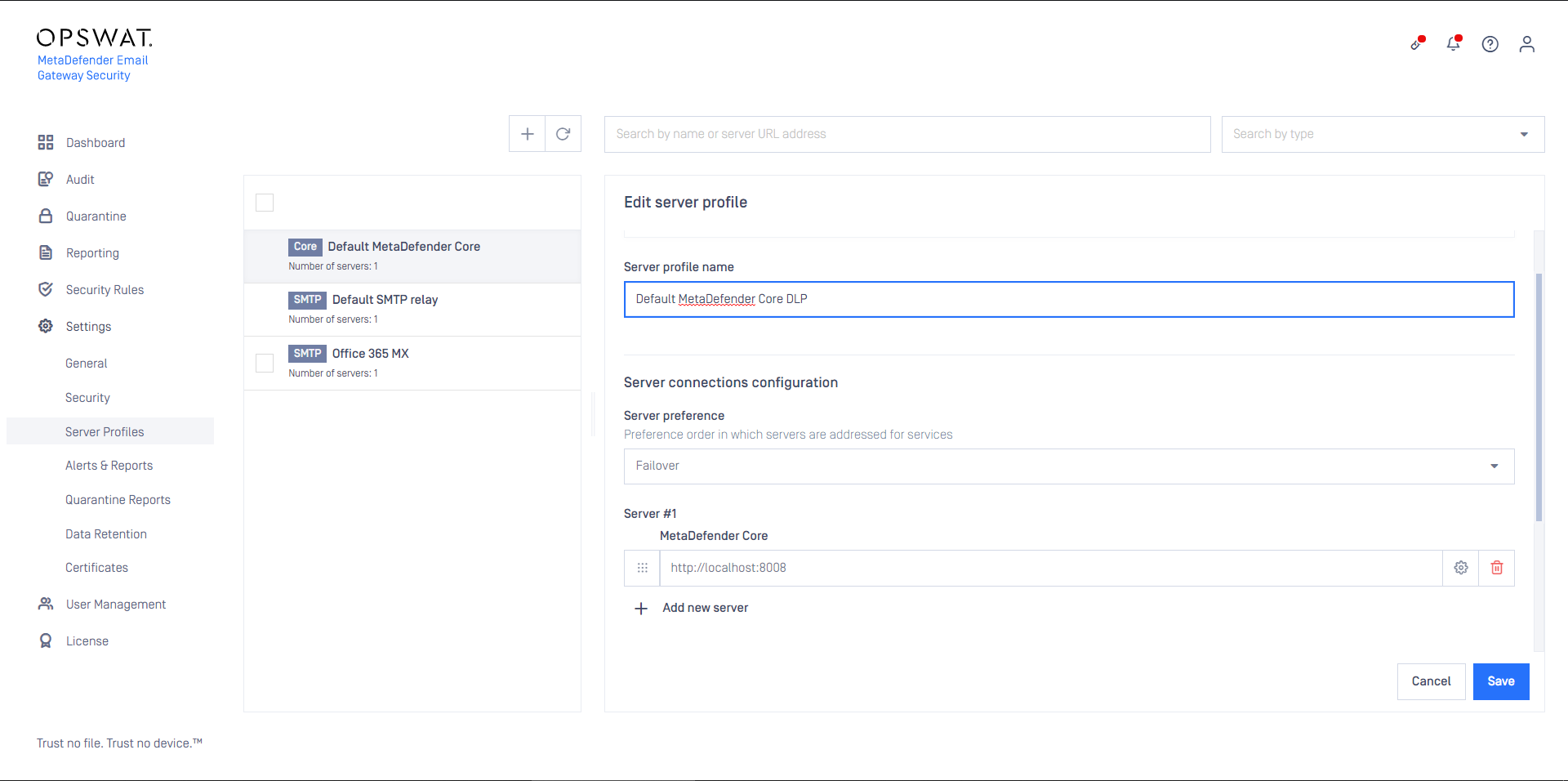

  1. Create a MetaDefender Core type server profile in Cloud Email Security that is connected to the MetaDefender Cloud Email Security DLP rule created in the previous step on MetaDefender Core
  1. Create a Security Rule that will use the server profile created in the previous step
  1. Configure this rule as Outbound
  1. Set the rule filters to match outbound email in your organization and save the rule

With proper order of the rules we only need to define filters for the inbound email only.

All email that does not match the filters of the inbound rule will fall back to the outbound rule.

Office 365 setup

Overview

We will create a hook in Office 365 email flow to forward emails to Cloud Email Security for processing.

We will create a transport rule to forward emails to Cloud Email Security through an outbound connector.

Then we will create an inbound rule to configure Office 365 to receive emails back from Email gateway Security.

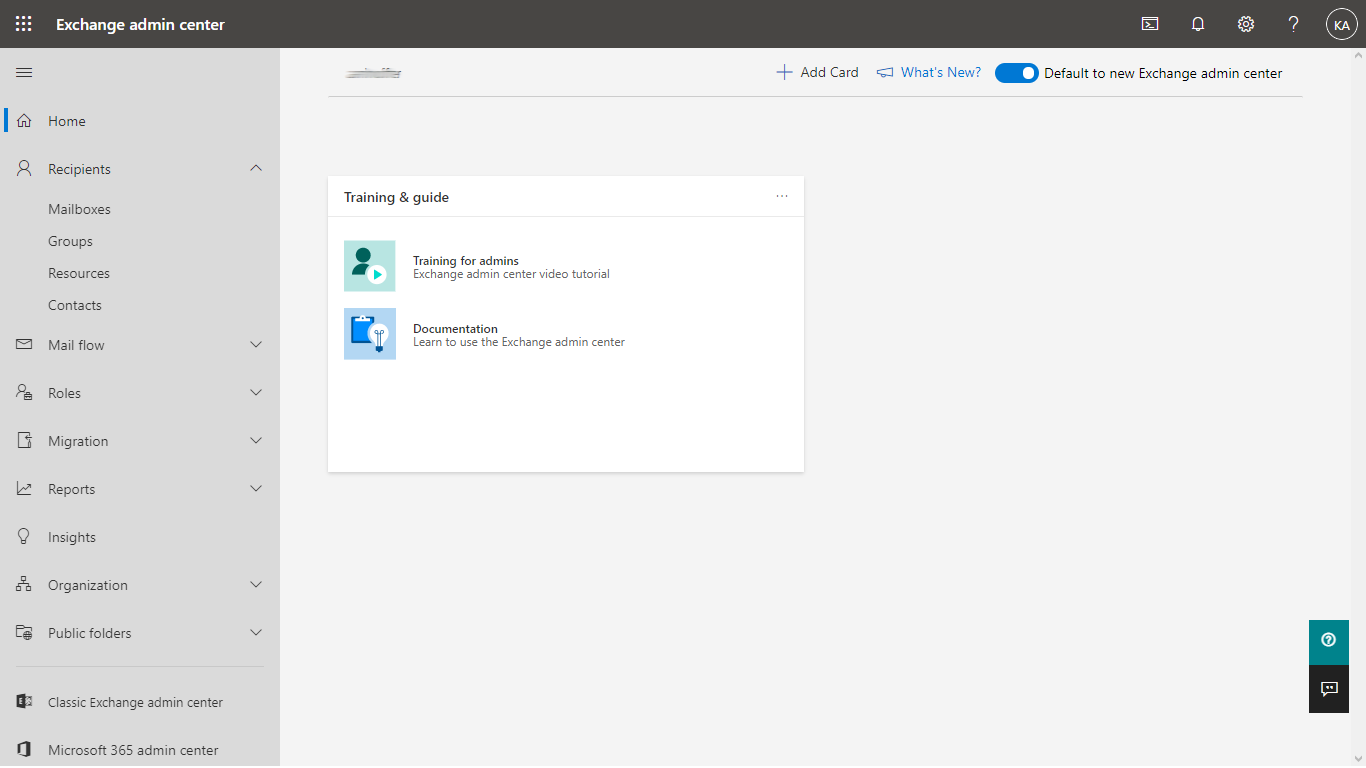

The configuration is done in Exchange admin center available at https://admin.exchange.microsoft.com/.

Connector to Cloud Email Security

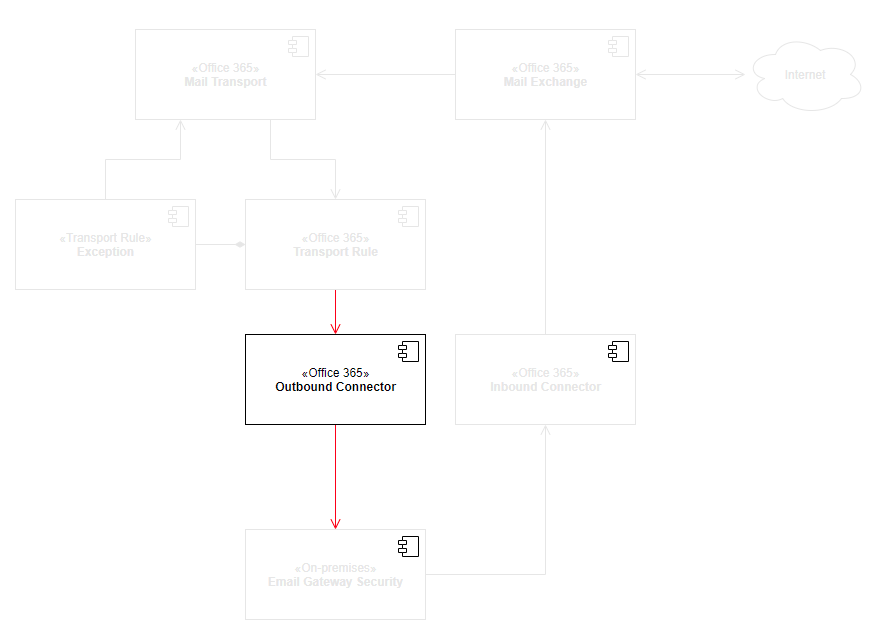

The connector to Cloud Email Security is required so that Office 365 can forward emails to Cloud Email Security for processing.

Perform the following steps:

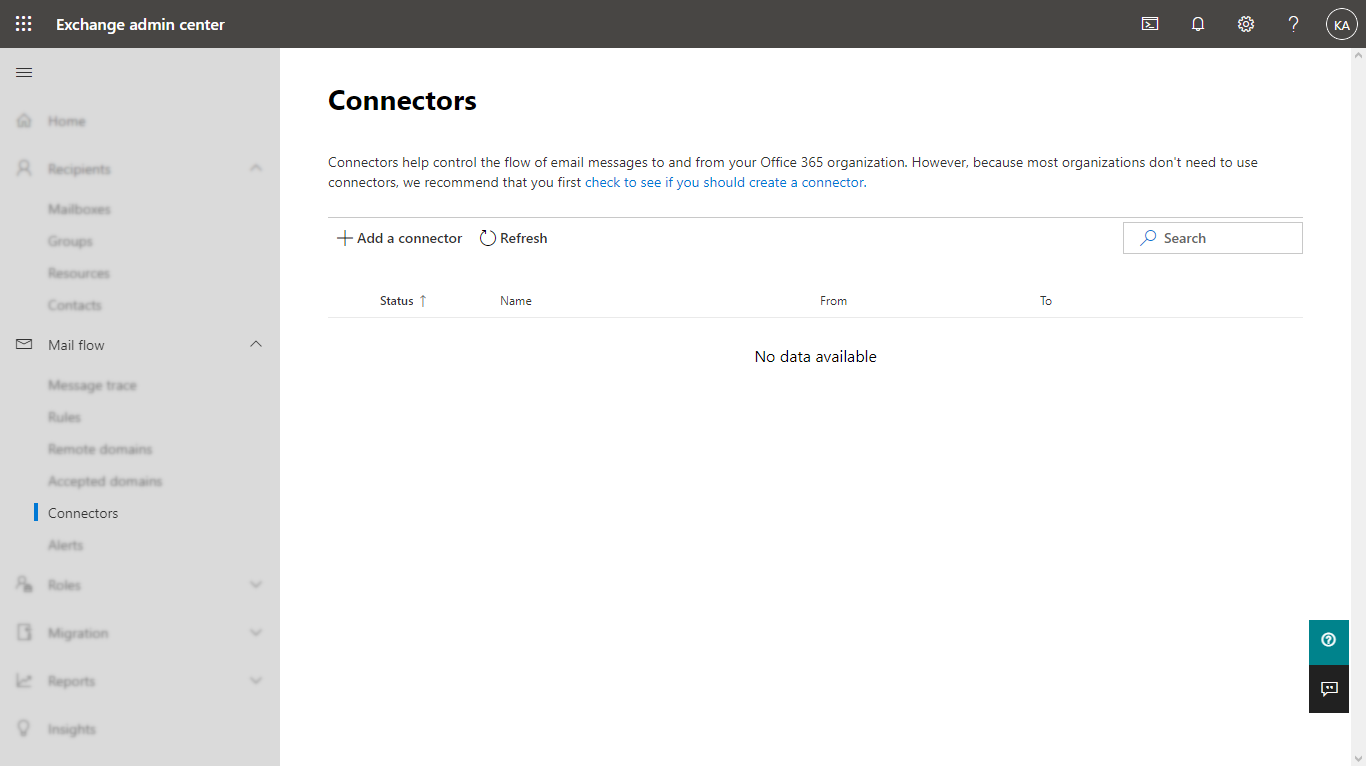

  1. In Exchange admin center go to Mail flow > Connectors
  1. Click Add a connector

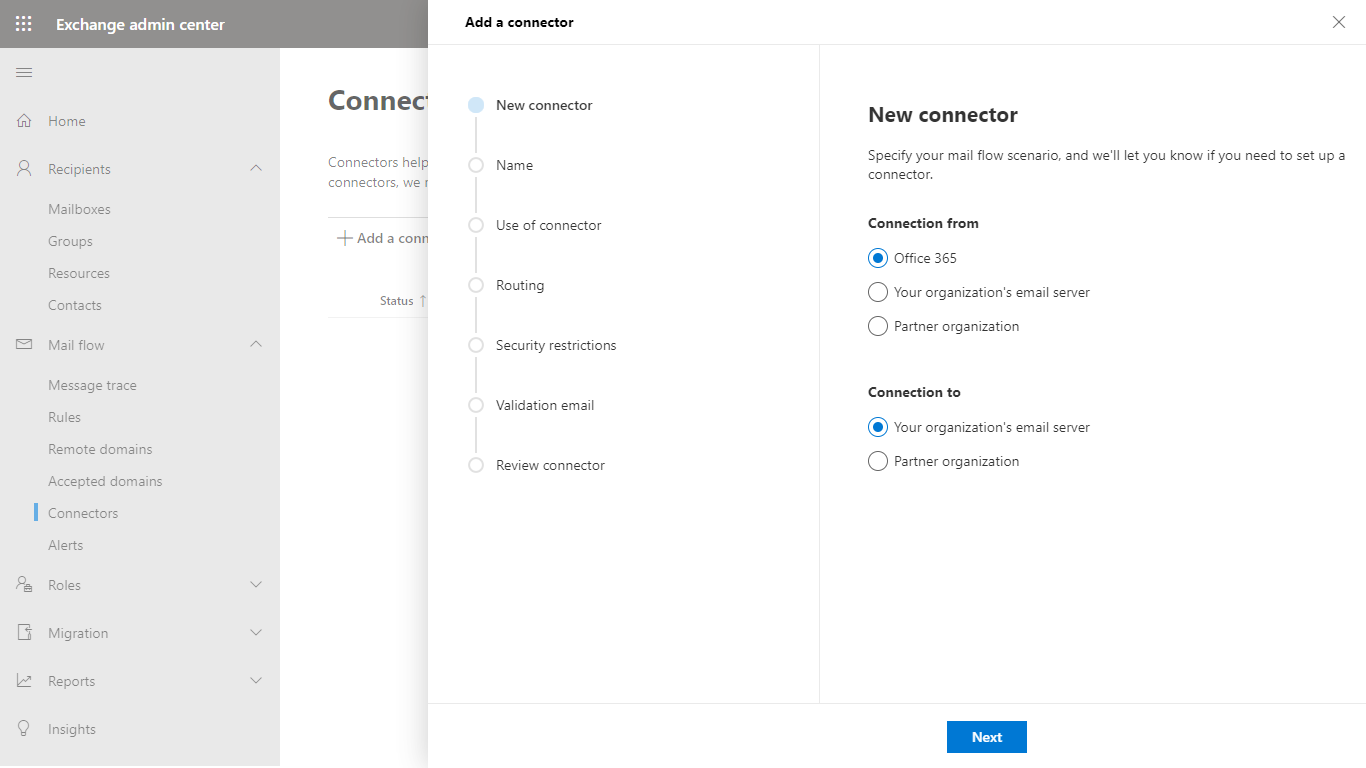

  1. This connector will route email from Office 365 to Cloud Email Security, so in the New connector dialog select:
    1. Connection from: Office 365
    2. Connection to: Your organization’s email server

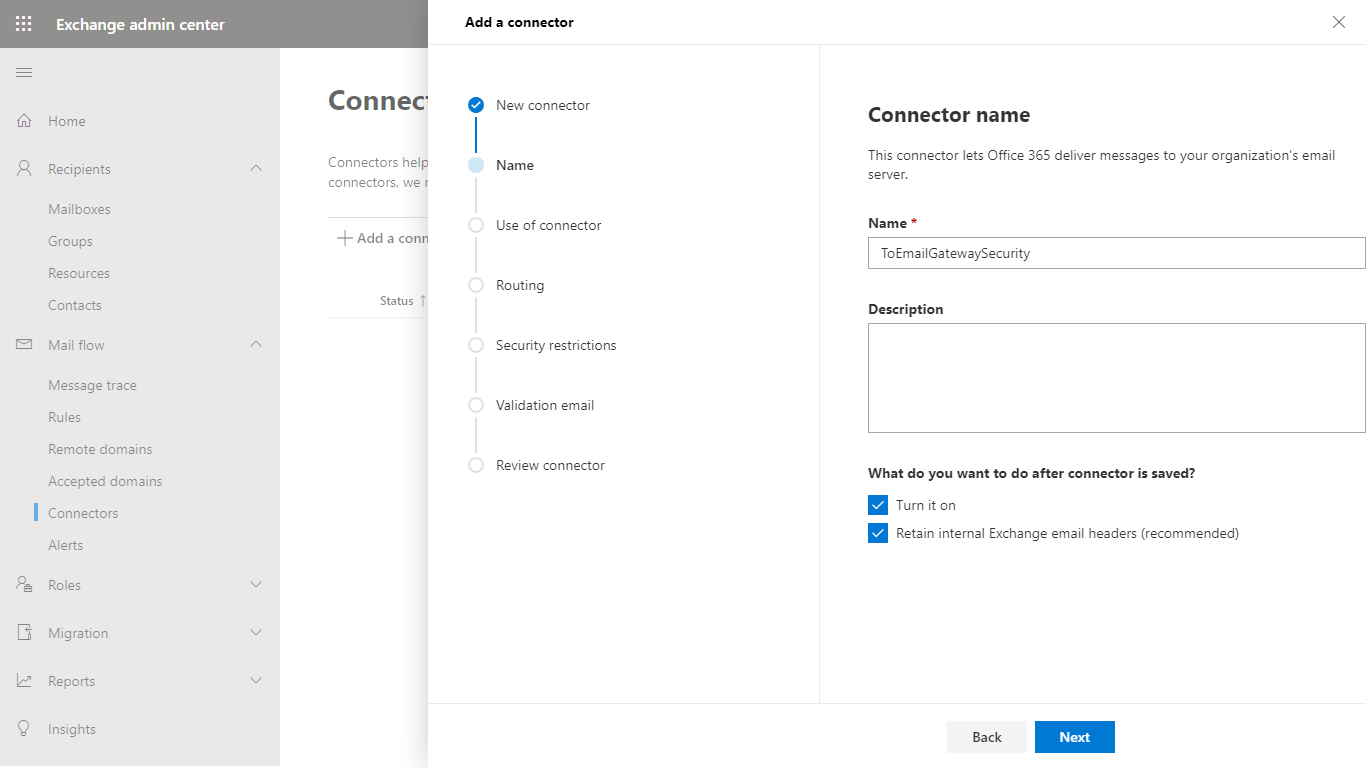

  1. In the Connector name dialog give a descriptive name to the connector and enable Turn it on

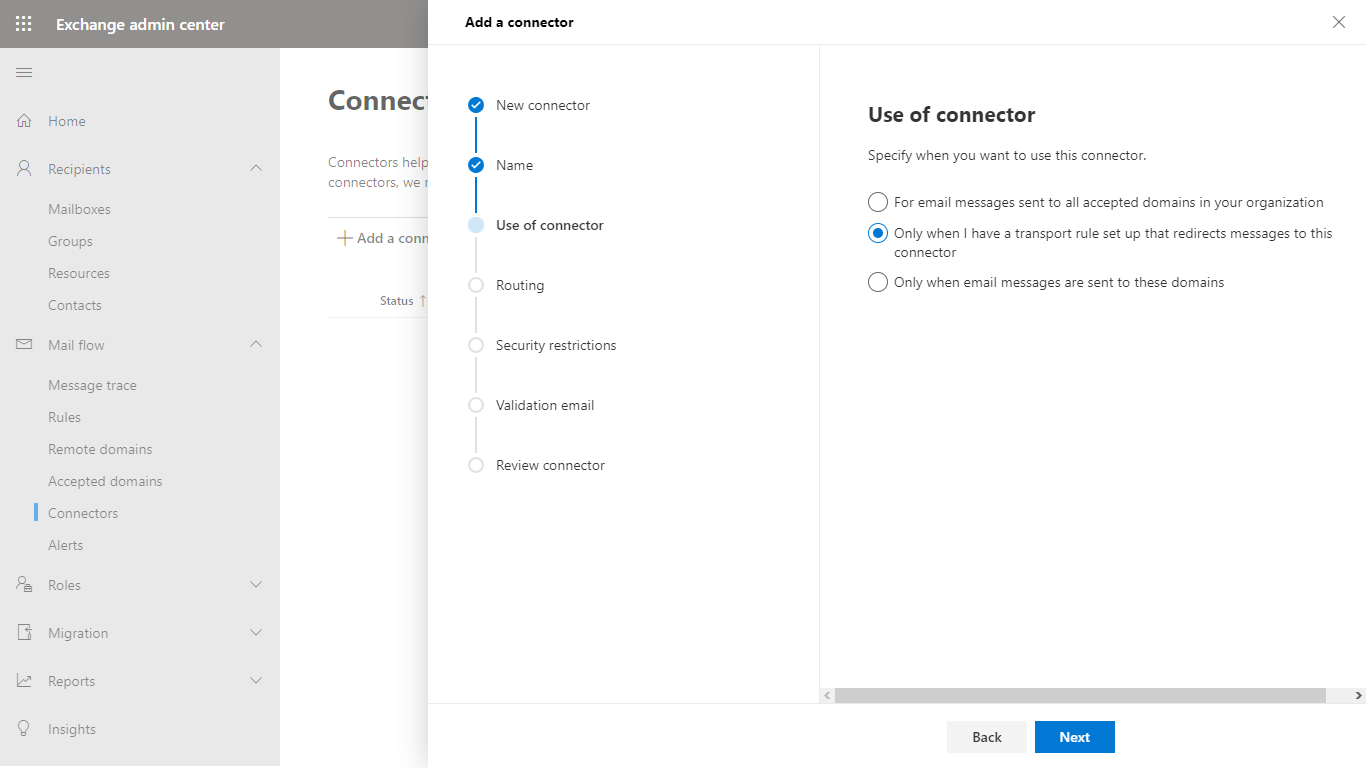

  1. Later we will create a transport rule to redirect messages in certain cases only to Cloud Email Security, so in the Use of connector dialog select Only when I have a transport rule set up that redirects messages to this connector.

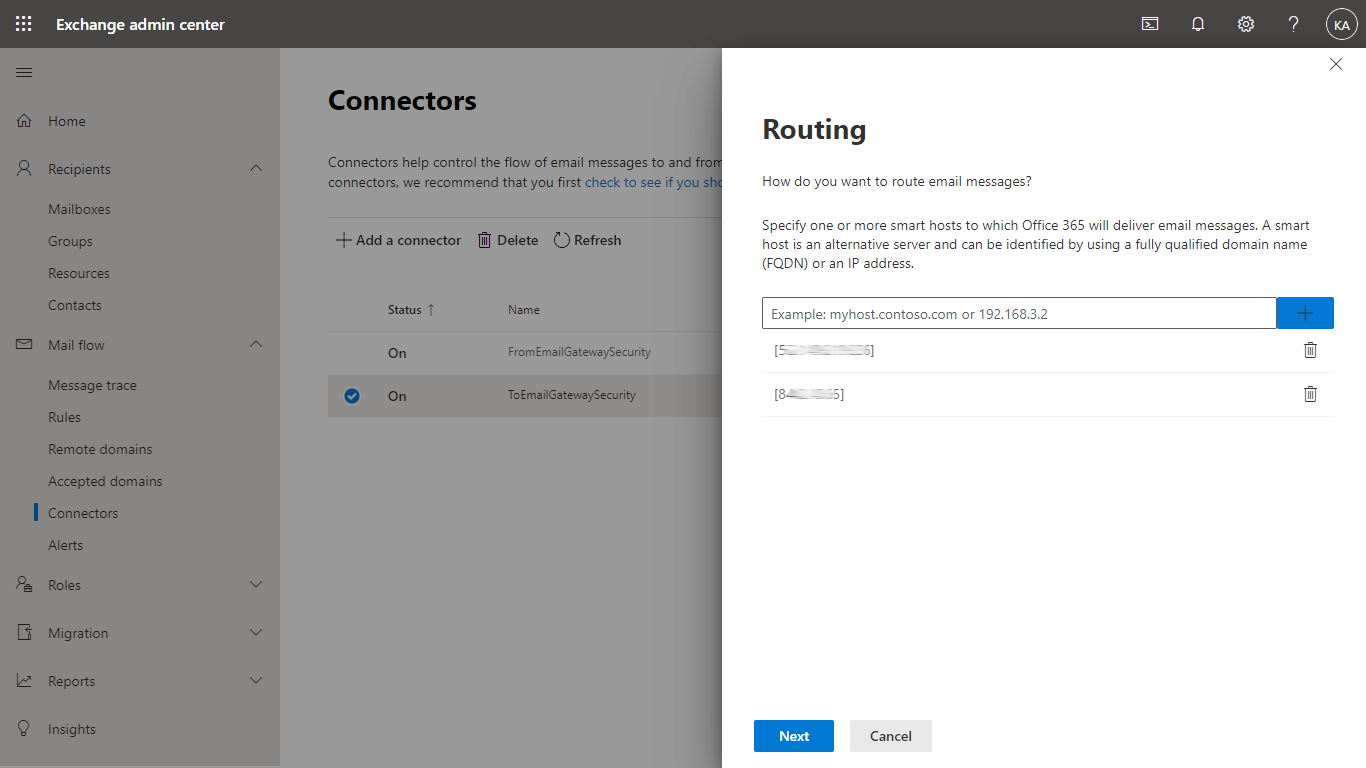

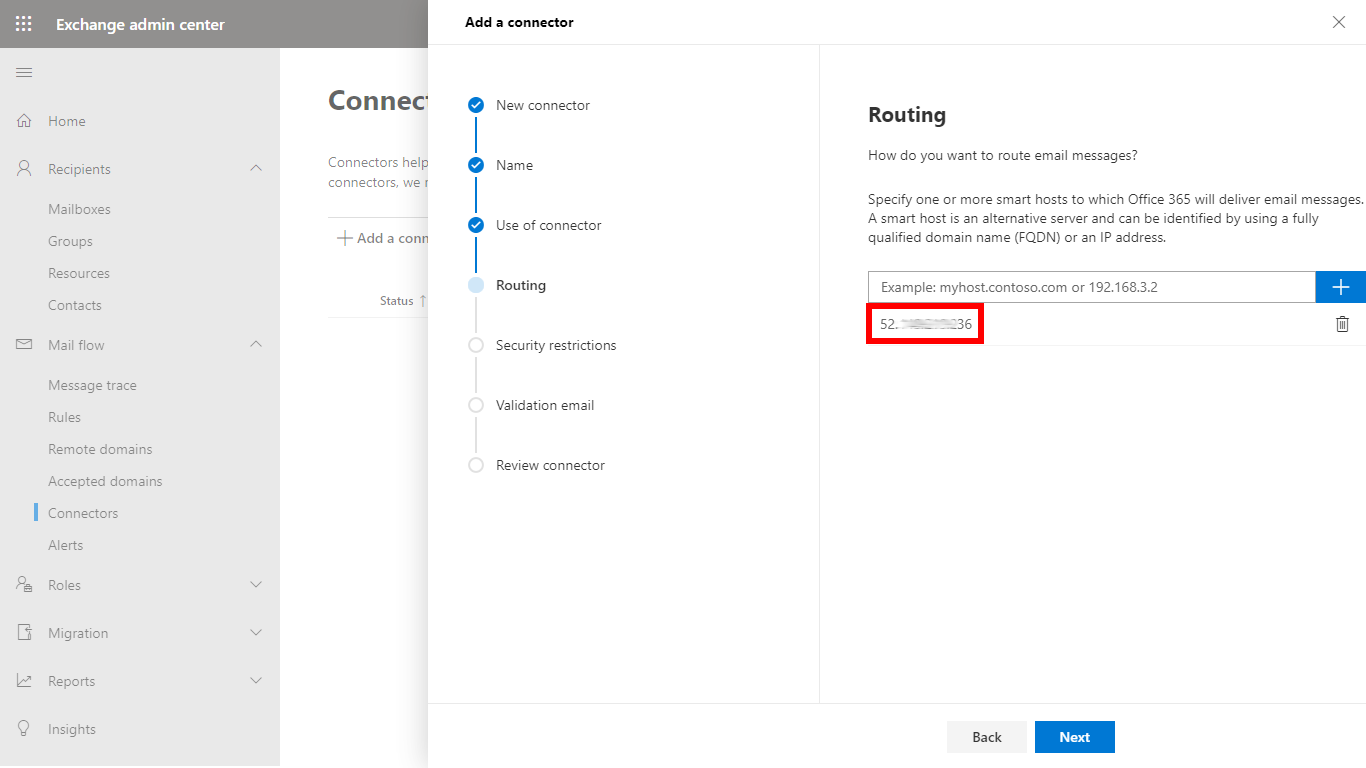

  1. In the Routing dialog specify the address of the Cloud Email Security instance
  1. In the Security restrictions dialog apply TLS settings according to your standards

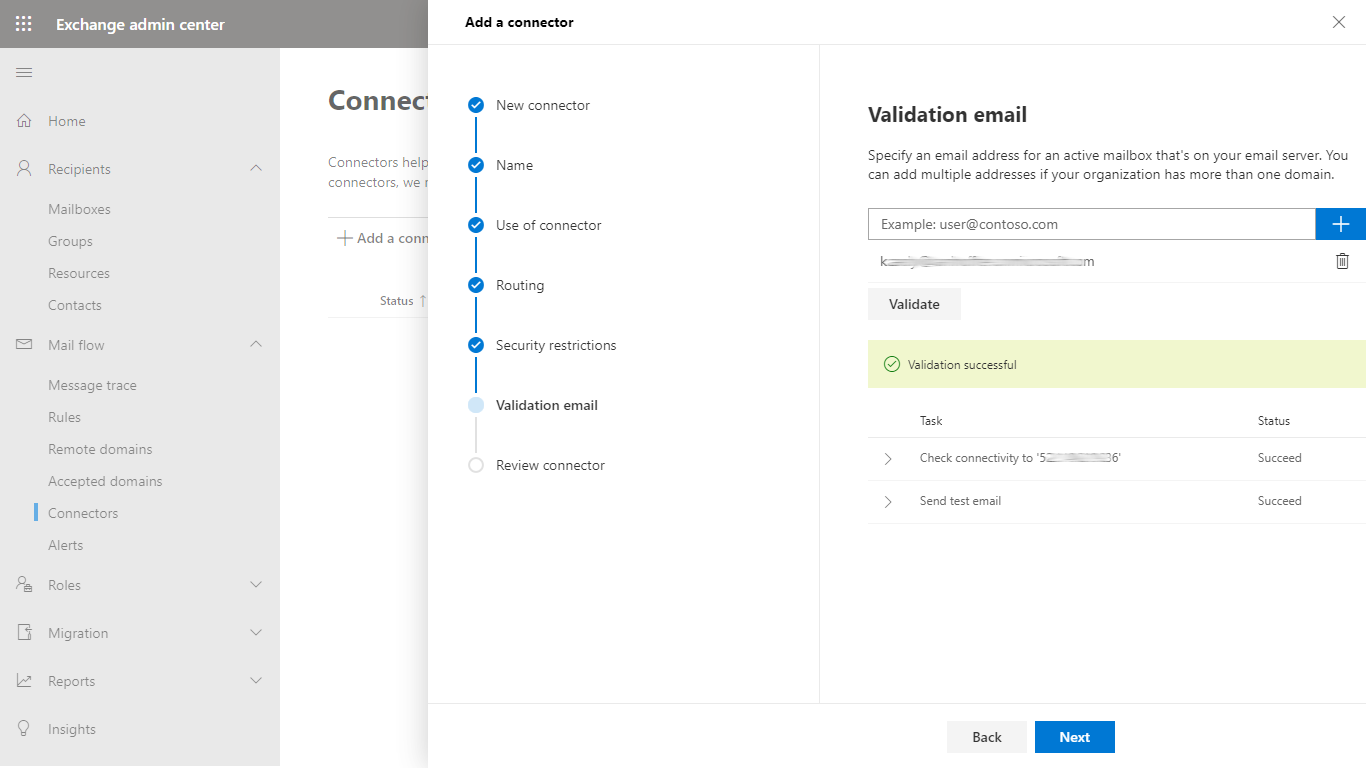

  2. In the Validation email dialog validate the connector

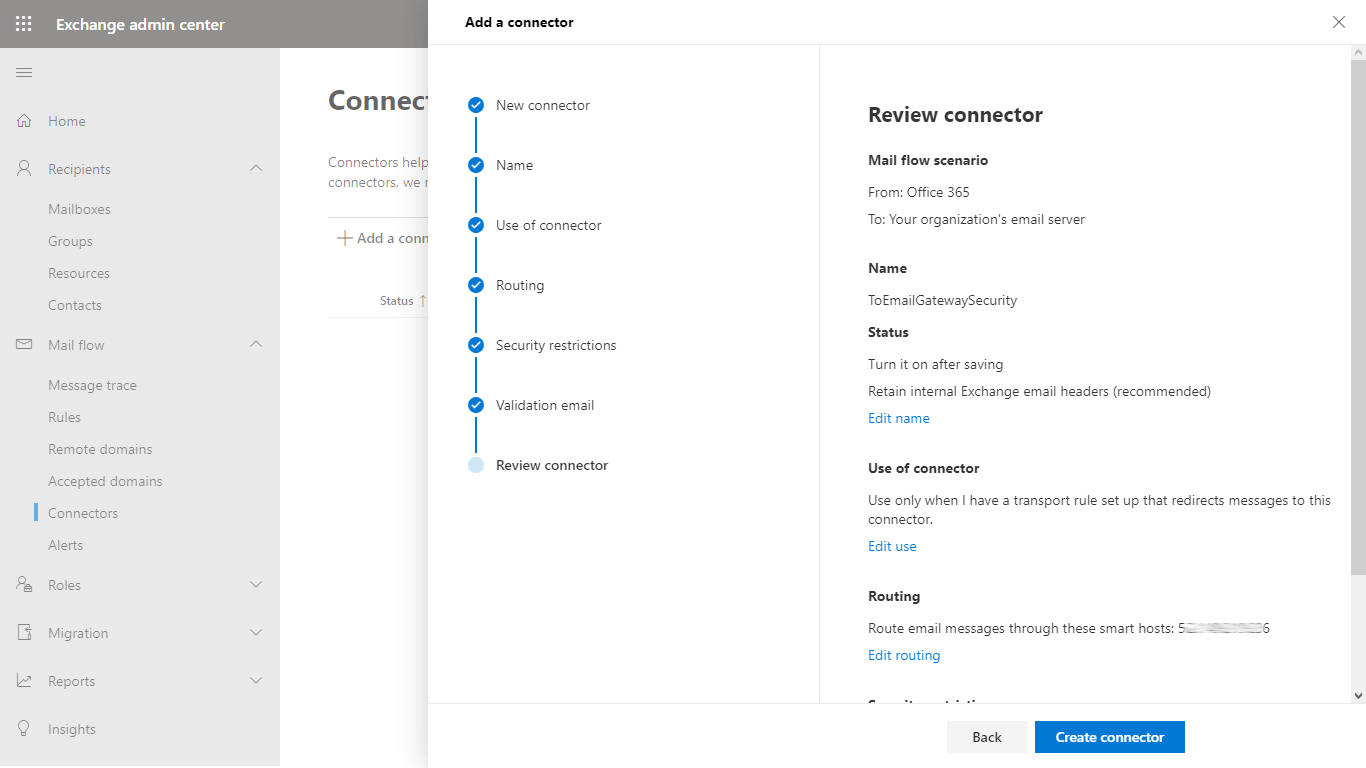

  1. In the Review connector dialog click Create connector to save the configuration

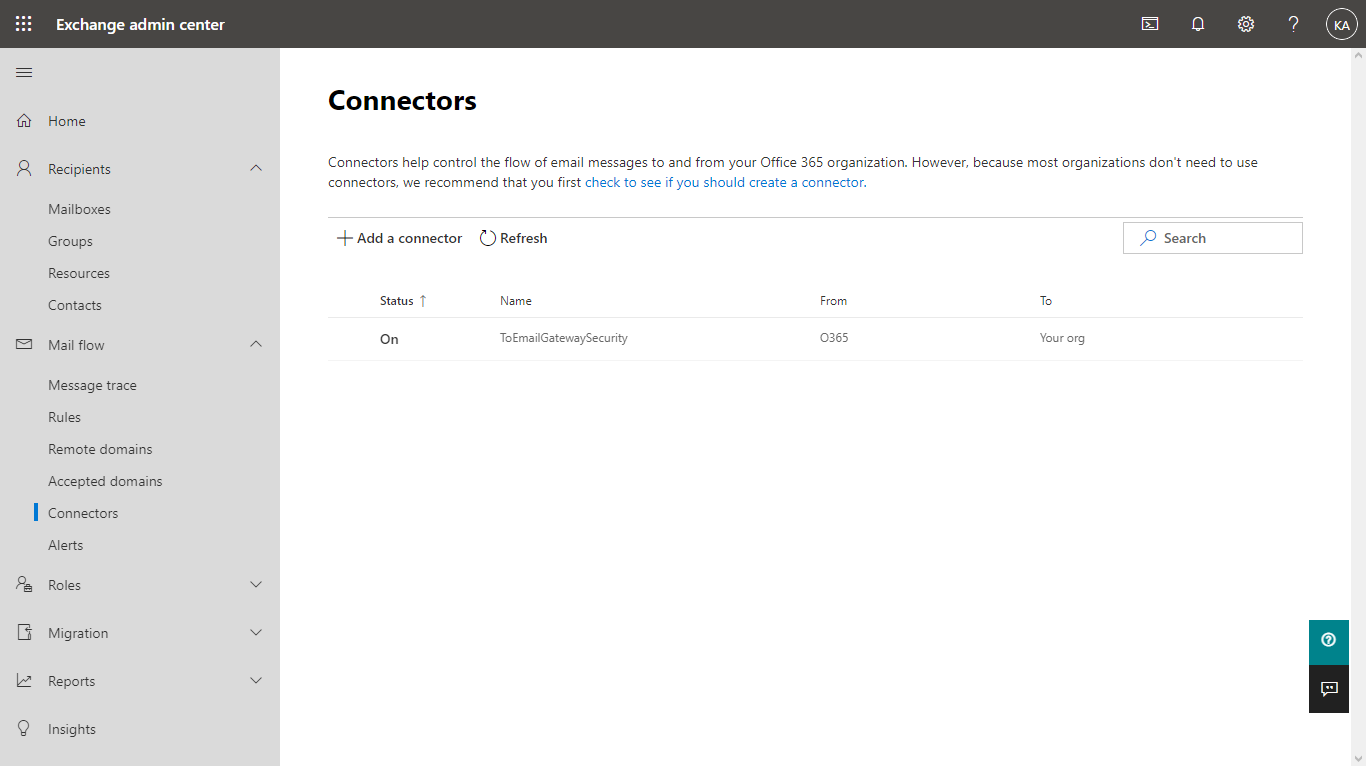

  1. The new connector must appear in the list of connectors. The outbound connector is now ready to route emails.

High availability and load balancing of multiple Cloud Email Security instances

When multiple Cloud Email Security instances are available to process emails in Office 365, then all these Cloud Email Security instances can be specified in the Routing dialog, as a list.

In this case, Office 365 - based on its own algorithm - will send the email to only one of these instances.

Office 365 will be able select an Cloud Email Security instance that is functional.

Transport rule to forward to Cloud Email Security

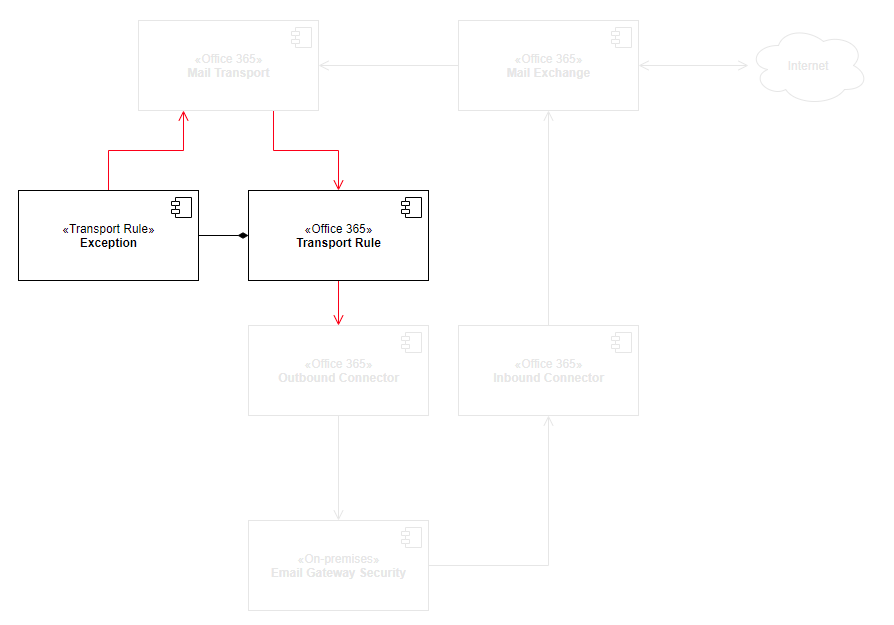

The transport rule to forward to Cloud Email Security is required so that Office 365 can forward emails to Cloud Email Security for processing.

Perform the following steps:

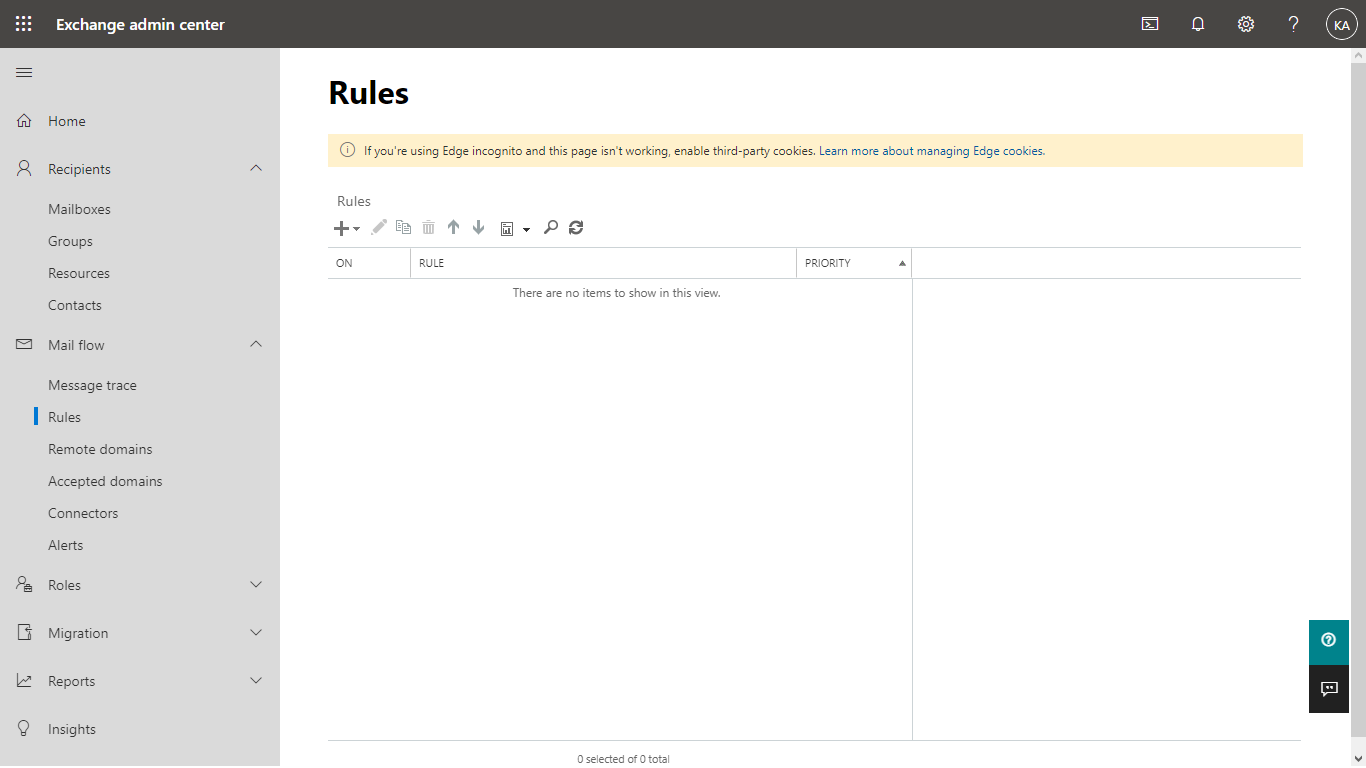

  1. In Exchange admin center go to Mail flow > Rules

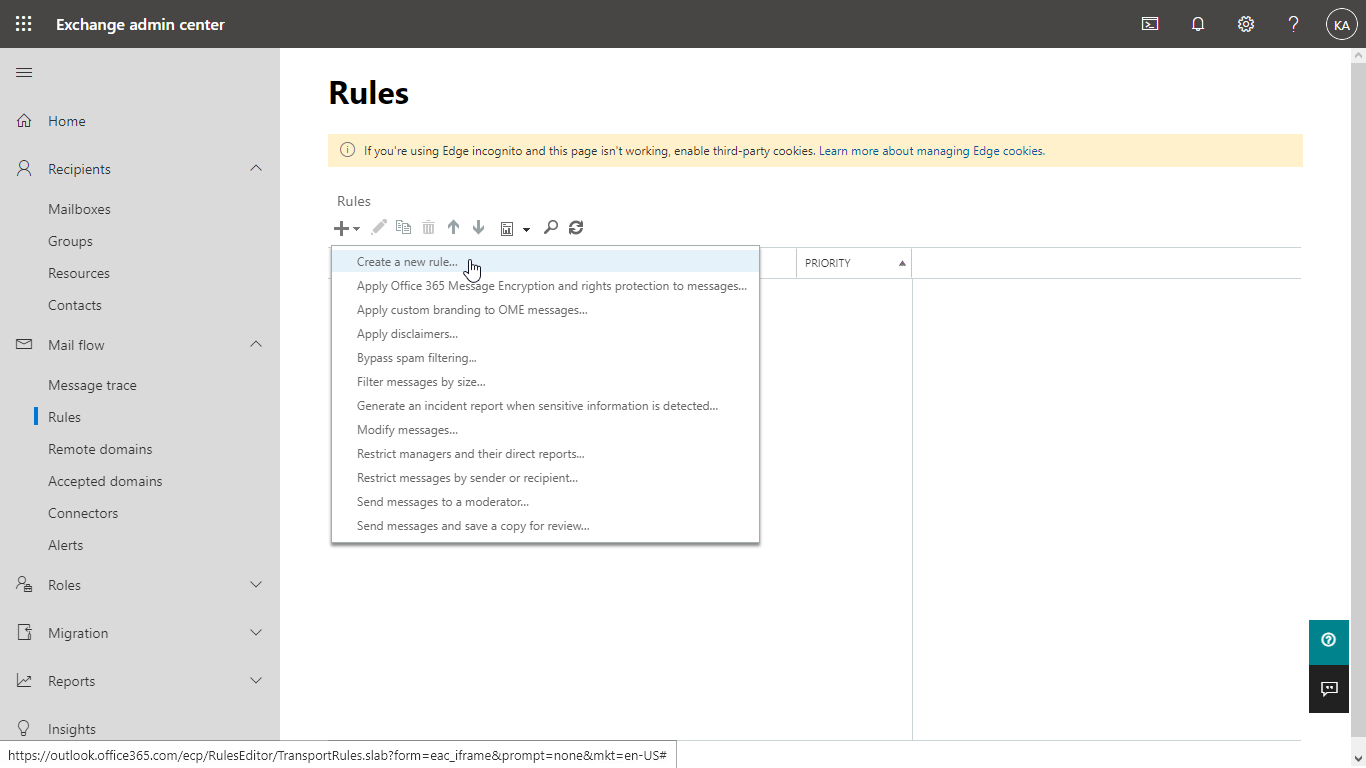

  1. Click + and select Create a new rule to add a new transport rule

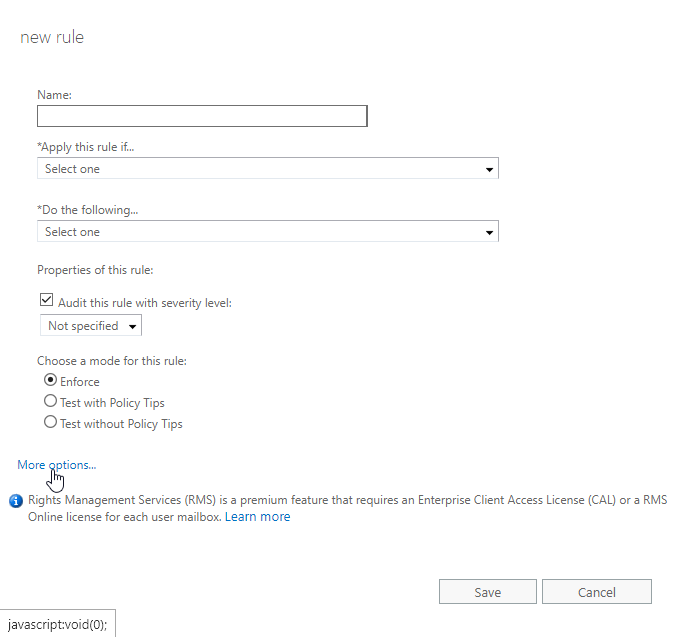

  1. In the new rule dialog click More options…
  1. Configure the rule in the following way:
    1. Name: give a reasonable name
    2. *Apply this rule if…: [Apply to all messages]

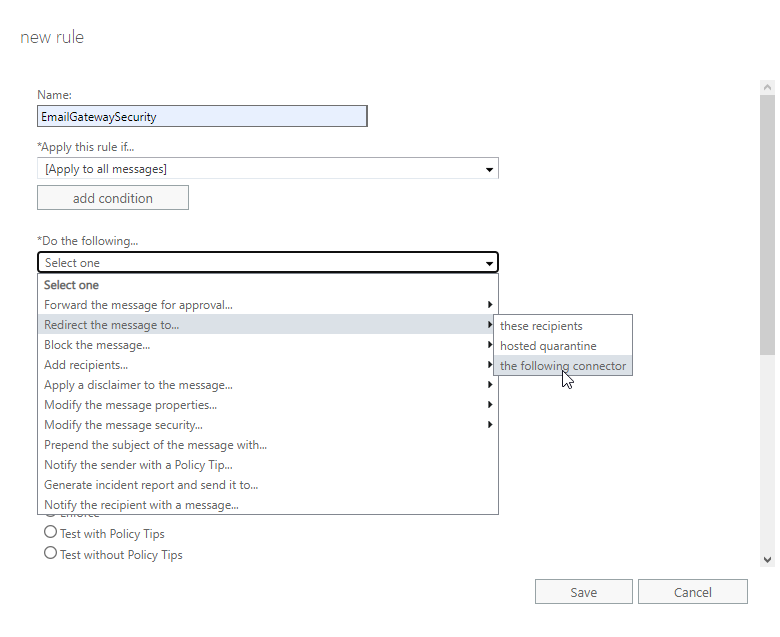

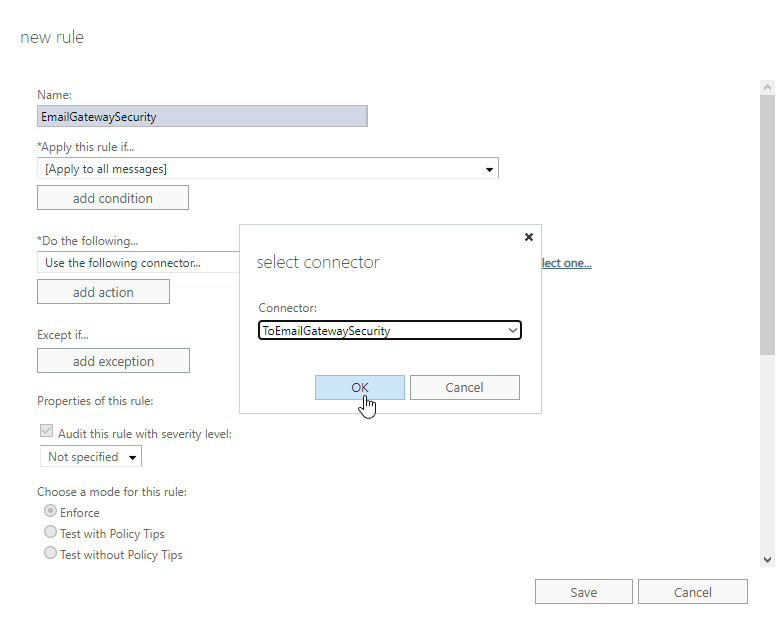

    3. *Do the following…: Use the following connector…: the connector to Cloud Email Security
    4. Choose a mode for this rule: Enforce

5. Stay in the new rule dialog and continue with the transport rule exception.

As the transport rule applies to all email, Cloud Email Security will process inbound, outbound and Exchange internal messages, too.

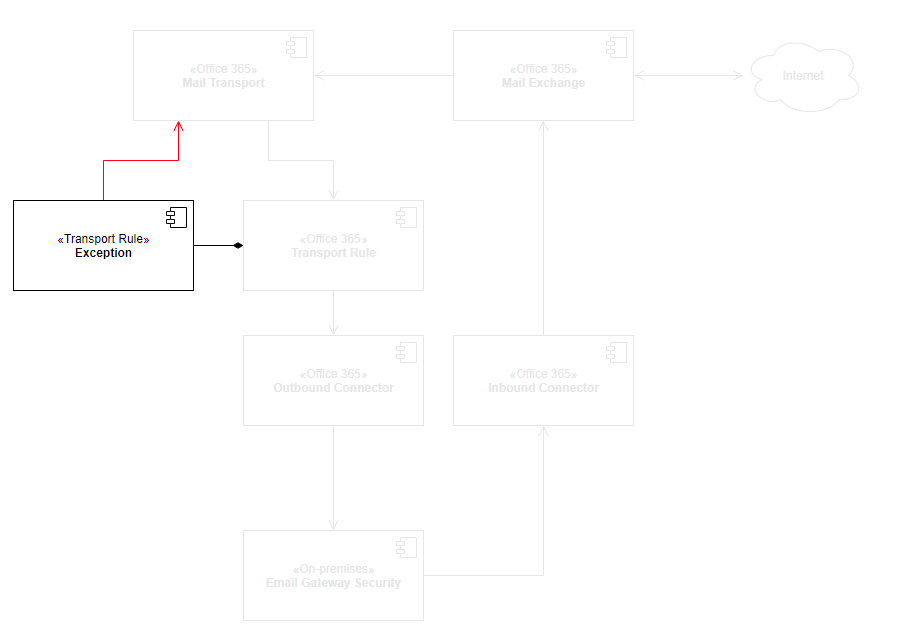

Transport rule exception

The transport rule exception is part of the transport rule. Using this exception we will avoid recursive loops of emails being sent back and forth between Office 365 and Cloud Email Security. Emails that are coming from and that have already been processed by Cloud Email Security won’t be sent to Cloud Email Security again.

Perform the following steps:

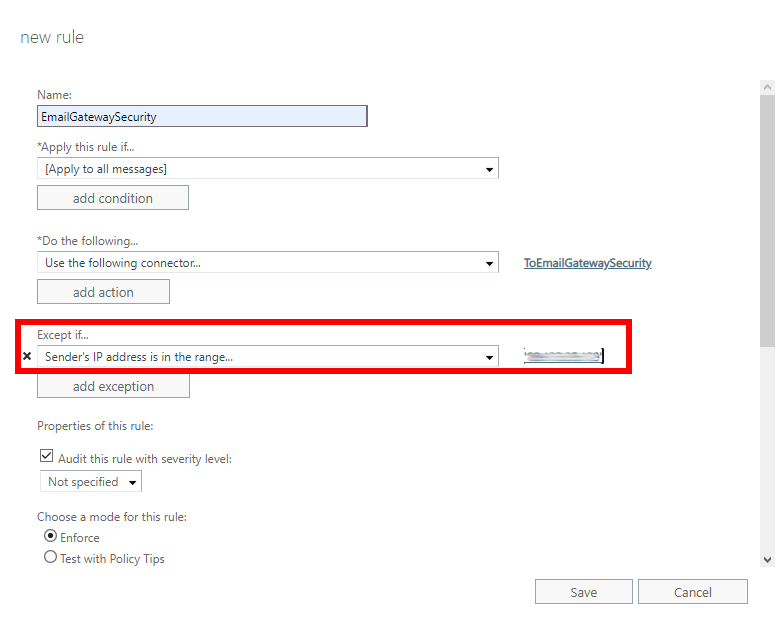

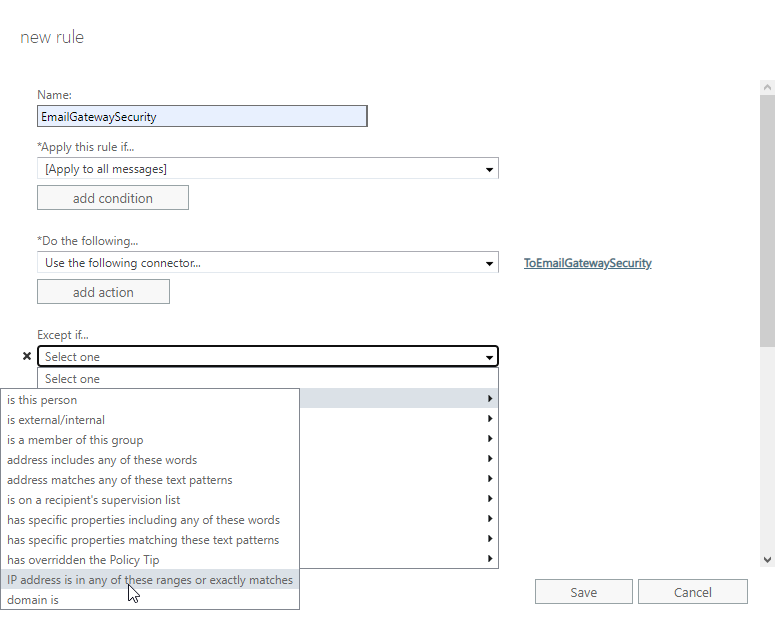

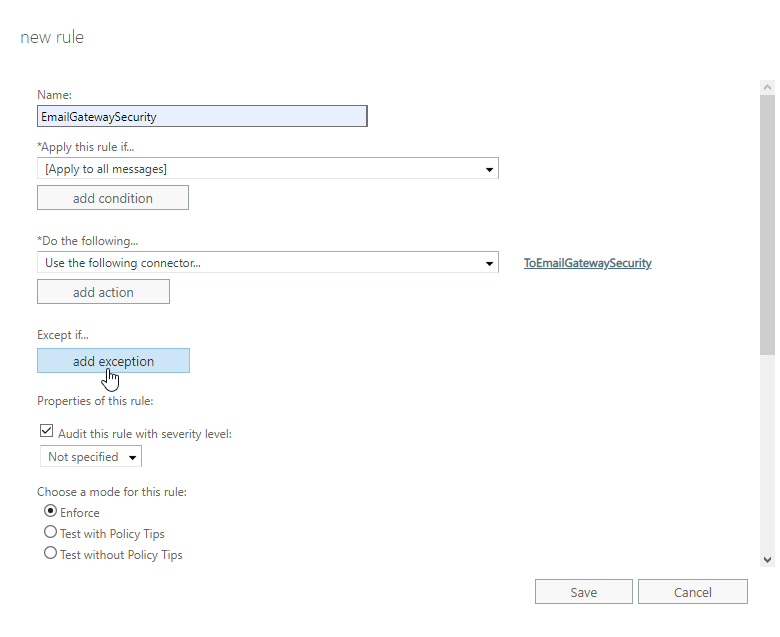

  1. In the new rule dialog click add exception
  1. Select The sender… > IP address is in any of these ranges or exactly matches

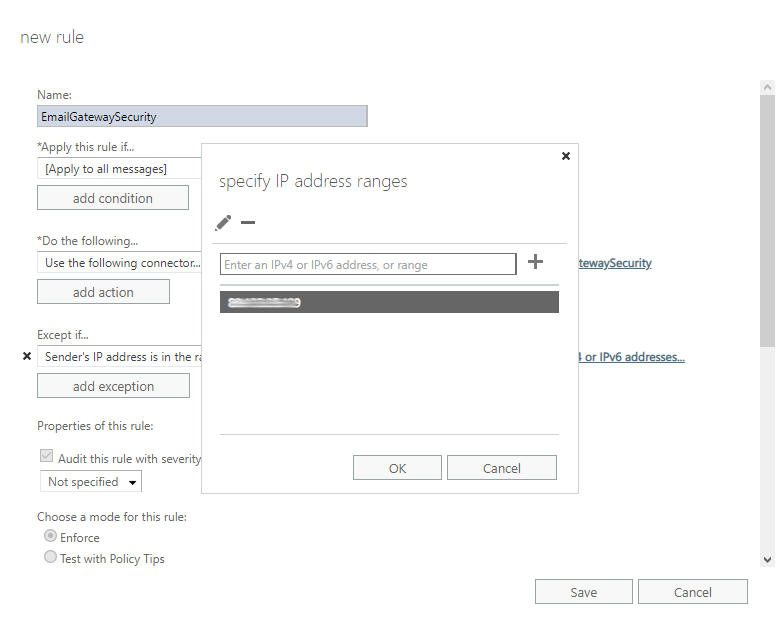

  1. Specify the IP address of Cloud Email Security. This way emails coming from Cloud Email Security won’t be sent there back again and again.

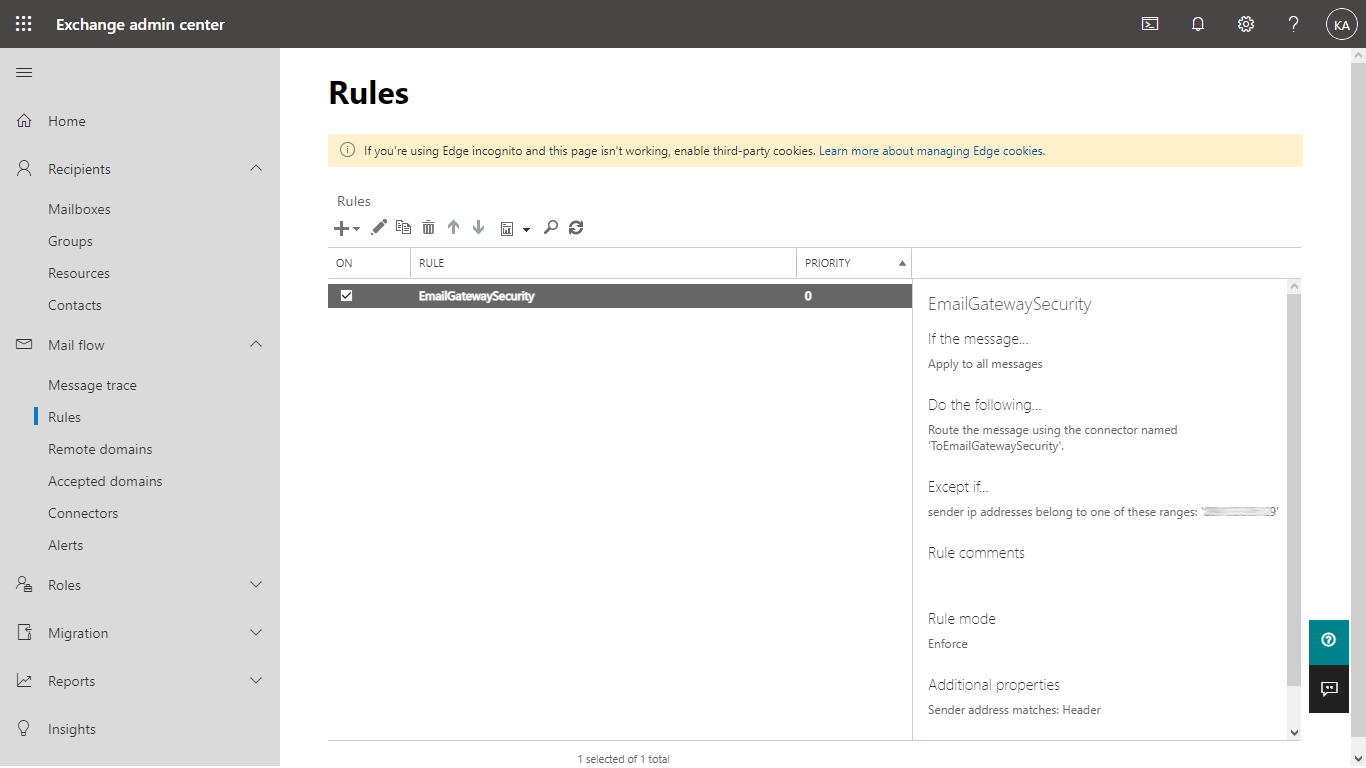

  1. Save the rule. It will show up in the list of rules.

Customizing what emails to send to Cloud Email Security

As the transport rule was configured to apply to all email, using this rule all email will be sent to Cloud Email Security for processing.

In certain cases not all email is desired to be processed by Cloud Email Security. In these cases the range of emails to be forwarded can be configured setting *Apply this rule if… accordingly.

Example

Let us assume, that at an organization only inbound email needs to be processed by Cloud Email Security.

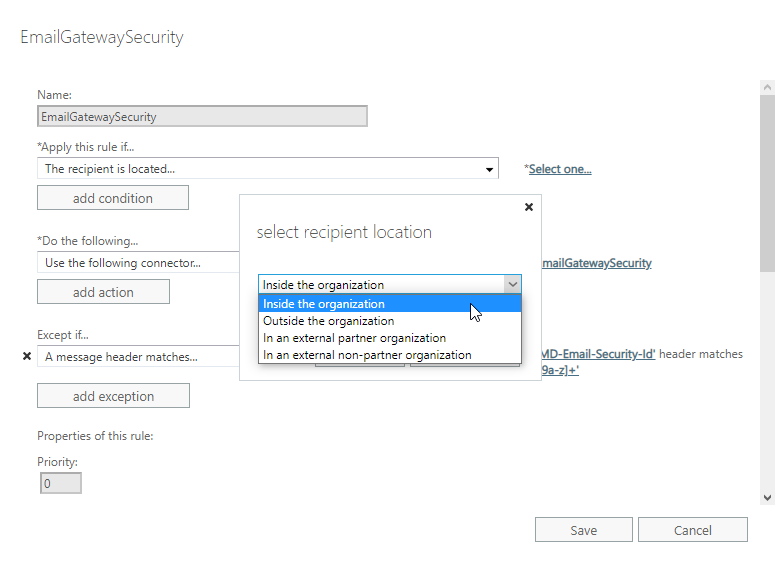

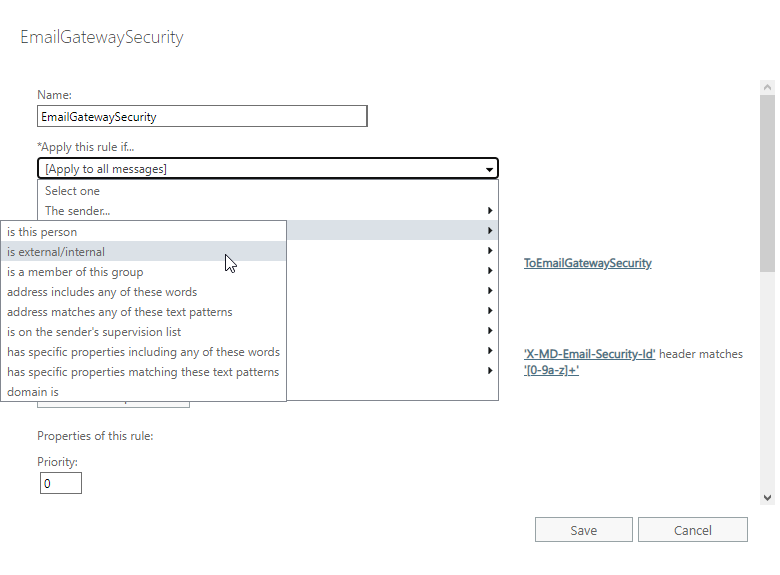

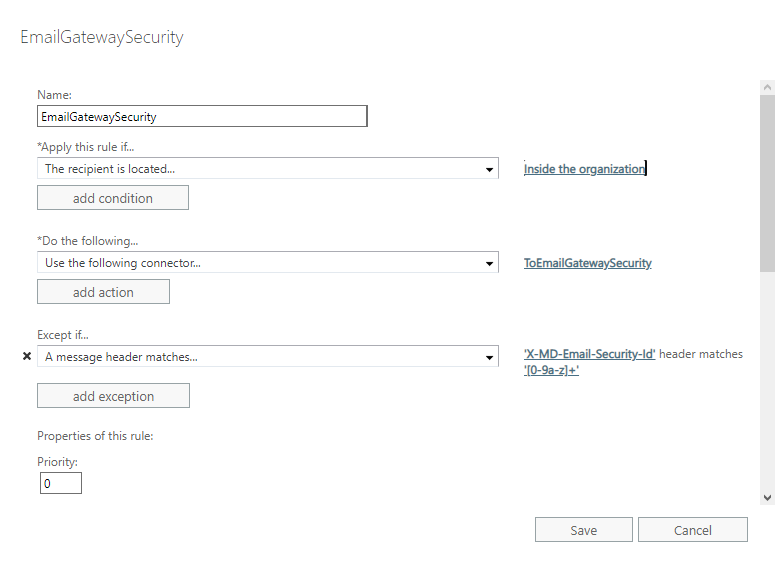

We can easily achieve this by setting *Apply this rule if… to The recipient is located… Inside the organization.

Connector from Cloud Email Security

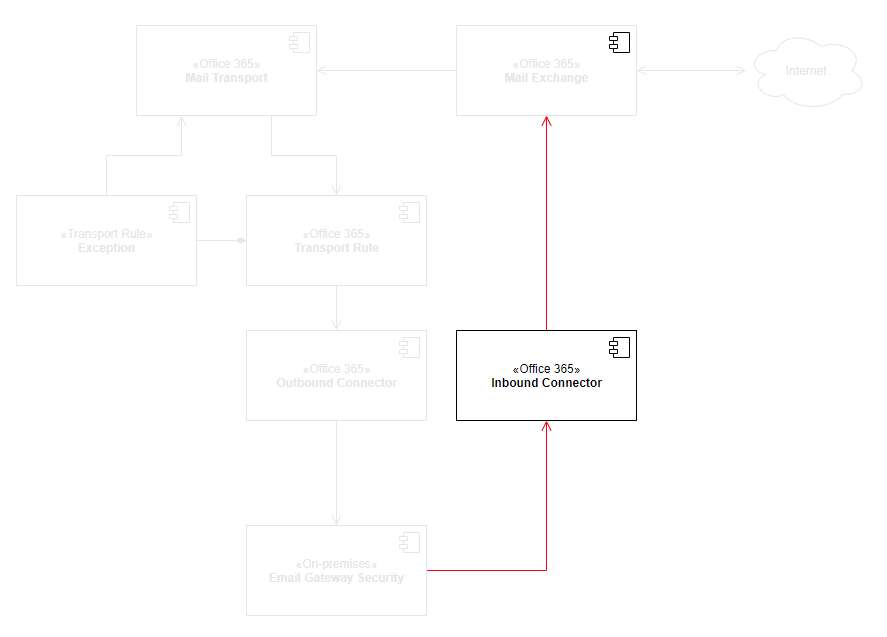

The connector from Cloud Email Security is required so that Office 365 can receive emails from Cloud Email Security in a normal way.

Without this inbound connector Office 365 may reject emails or put them to the Junk email folder.

Perform the following steps:

  1. In Exchange admin center go to Mail flow > Connectors (note that the outbound connector previously created is already in the list)
  1. Click Add a connector

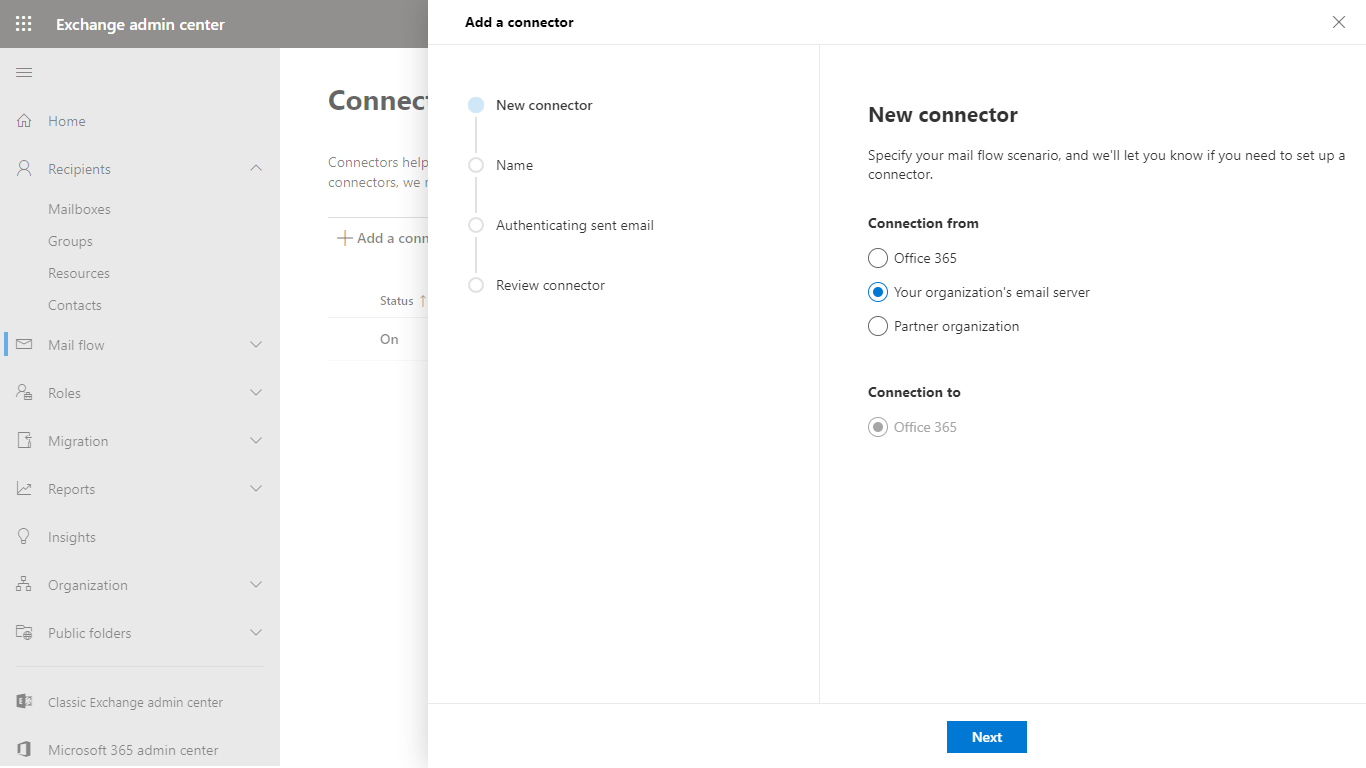

  1. This connector will route email from Cloud Email Security to Office 365, so in the New connector dialog select:
    1. Connection from: Your organization’s email server
    2. Connection to: Office 365

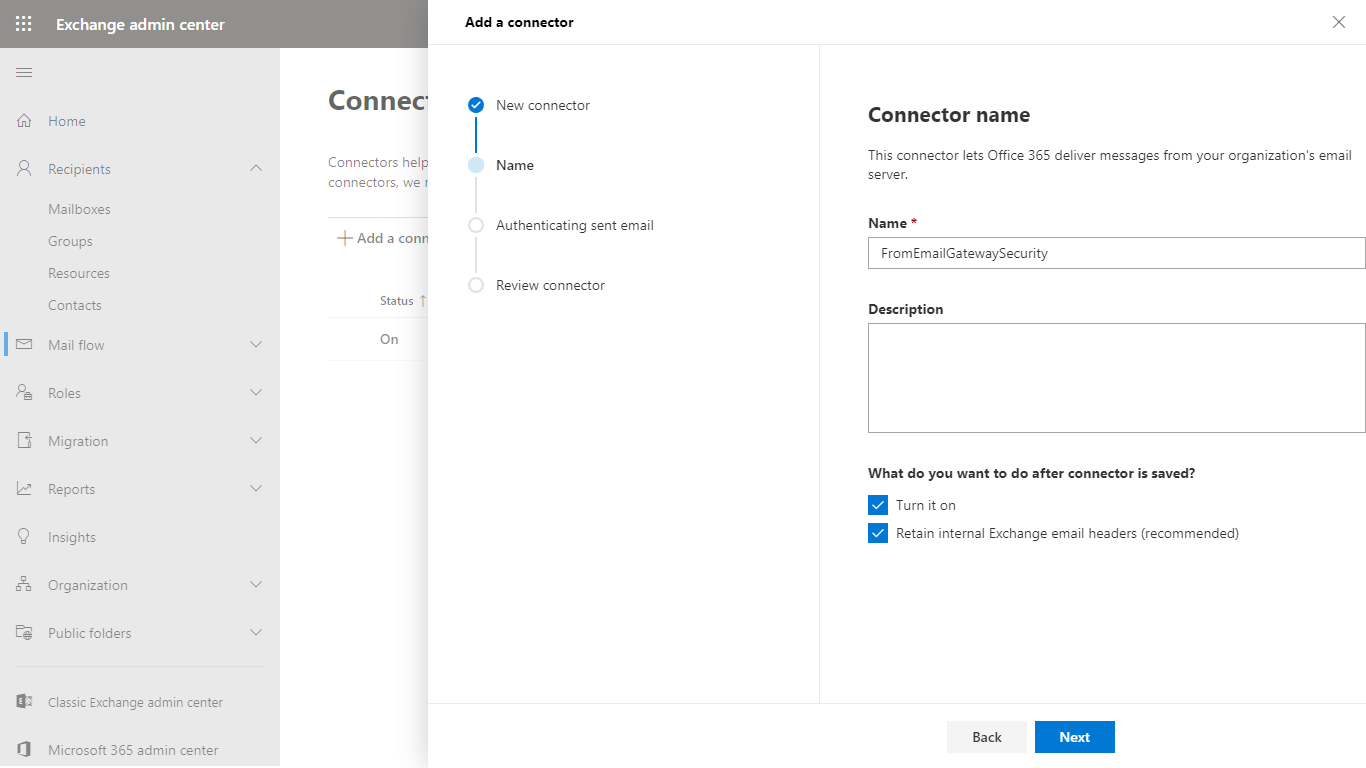

  1. In the Connector name dialog give a descriptive name to the connector and enable Turn it on

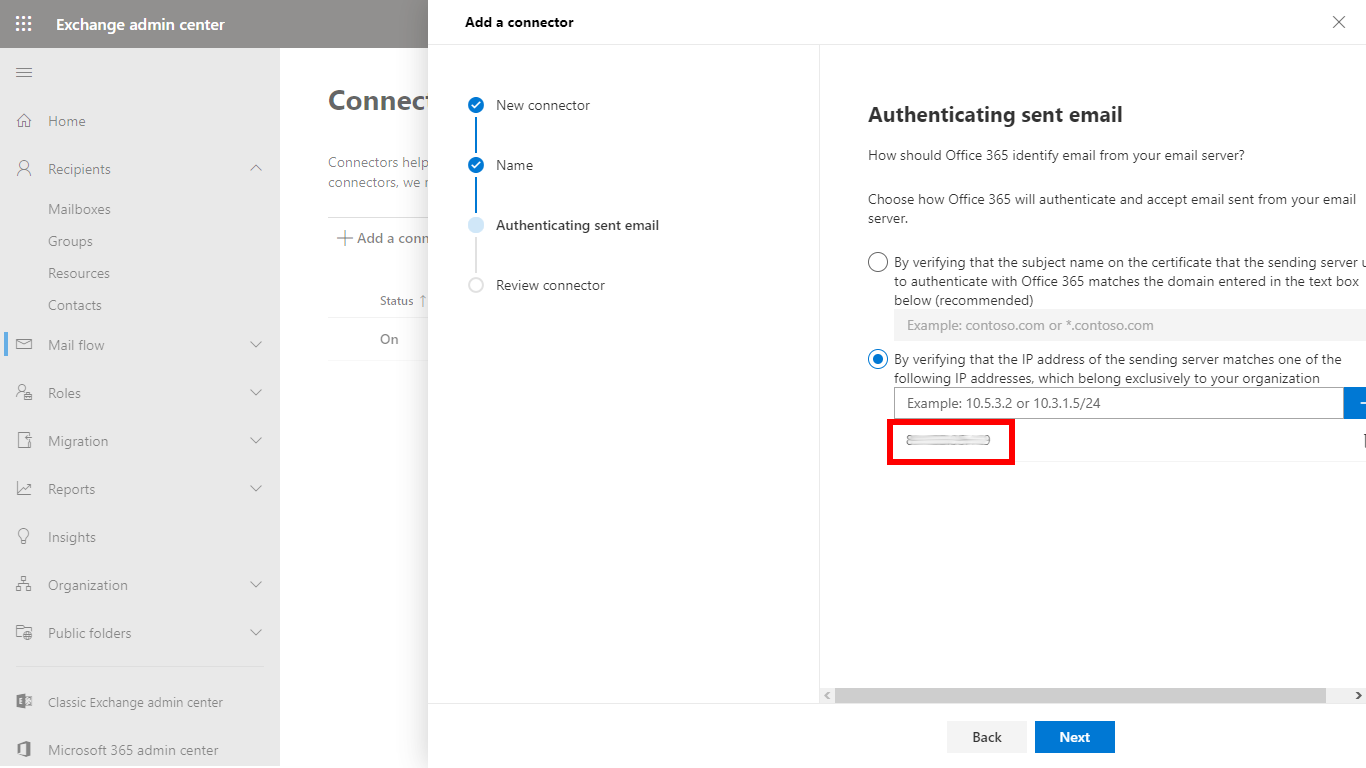

  1. In the Authenticating sent email dialog select By verifying that the IP address of the sending server matches one of the following IP addresses, which belong exclusively to your organization and specify Cloud Email Security’s IP address

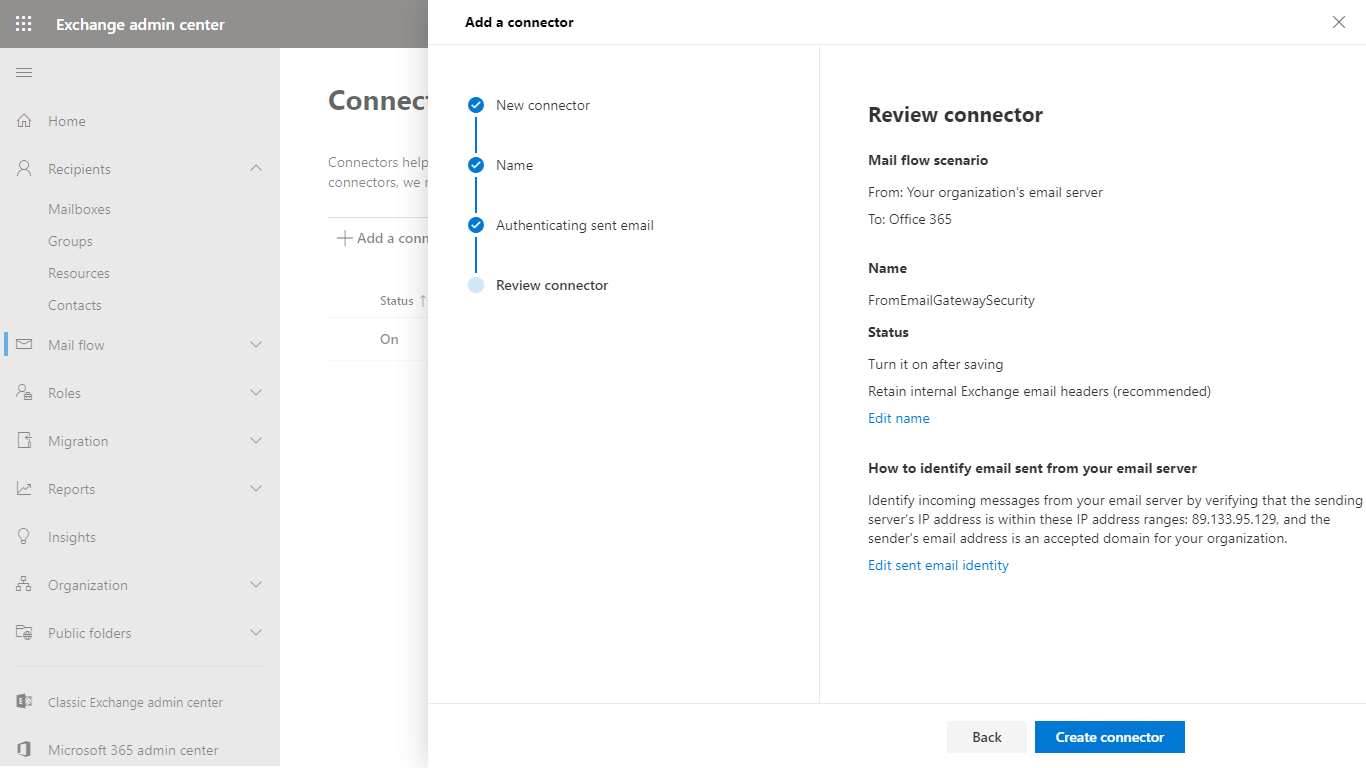

  1. In the Review connector dialog click Create connector to save the configuration

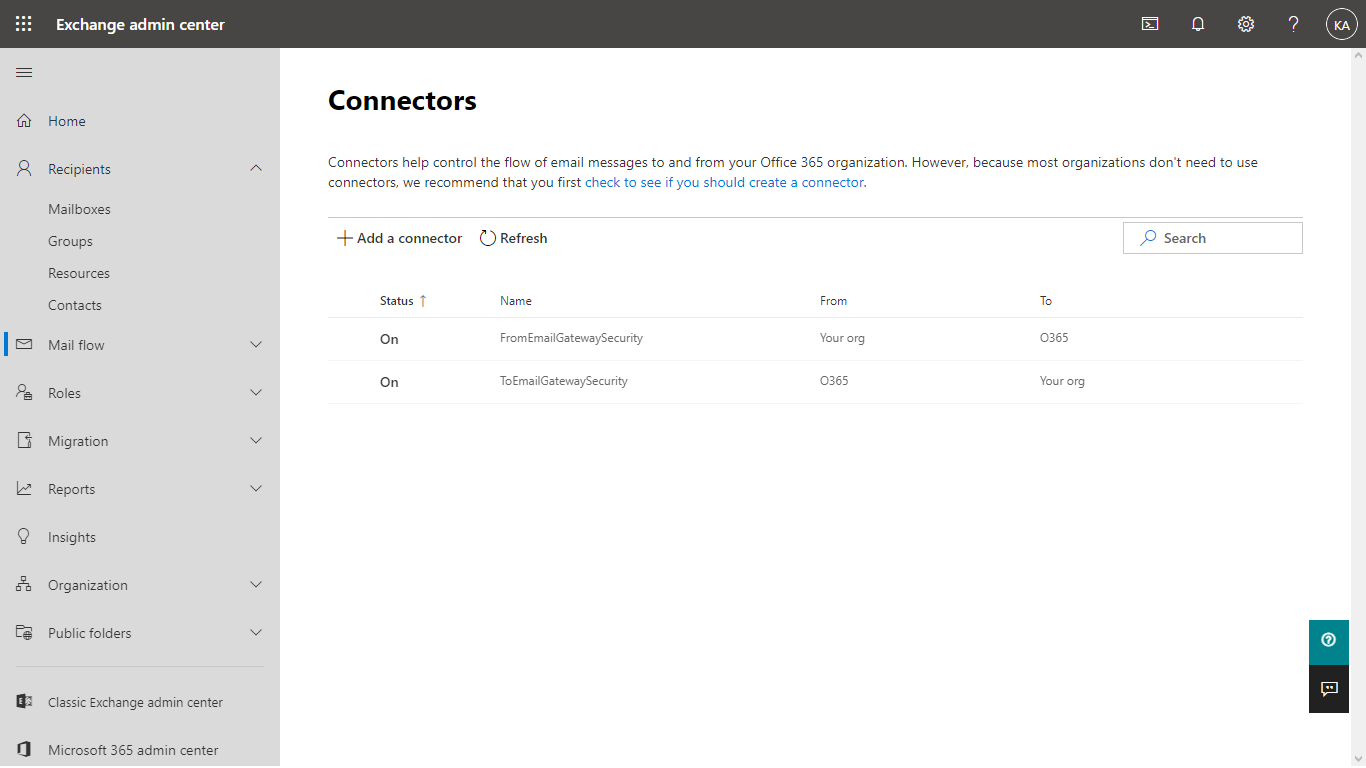

  1. The new connector must appear in the list of connectors. The inbound connector is now ready to route emails.

Connection filtering

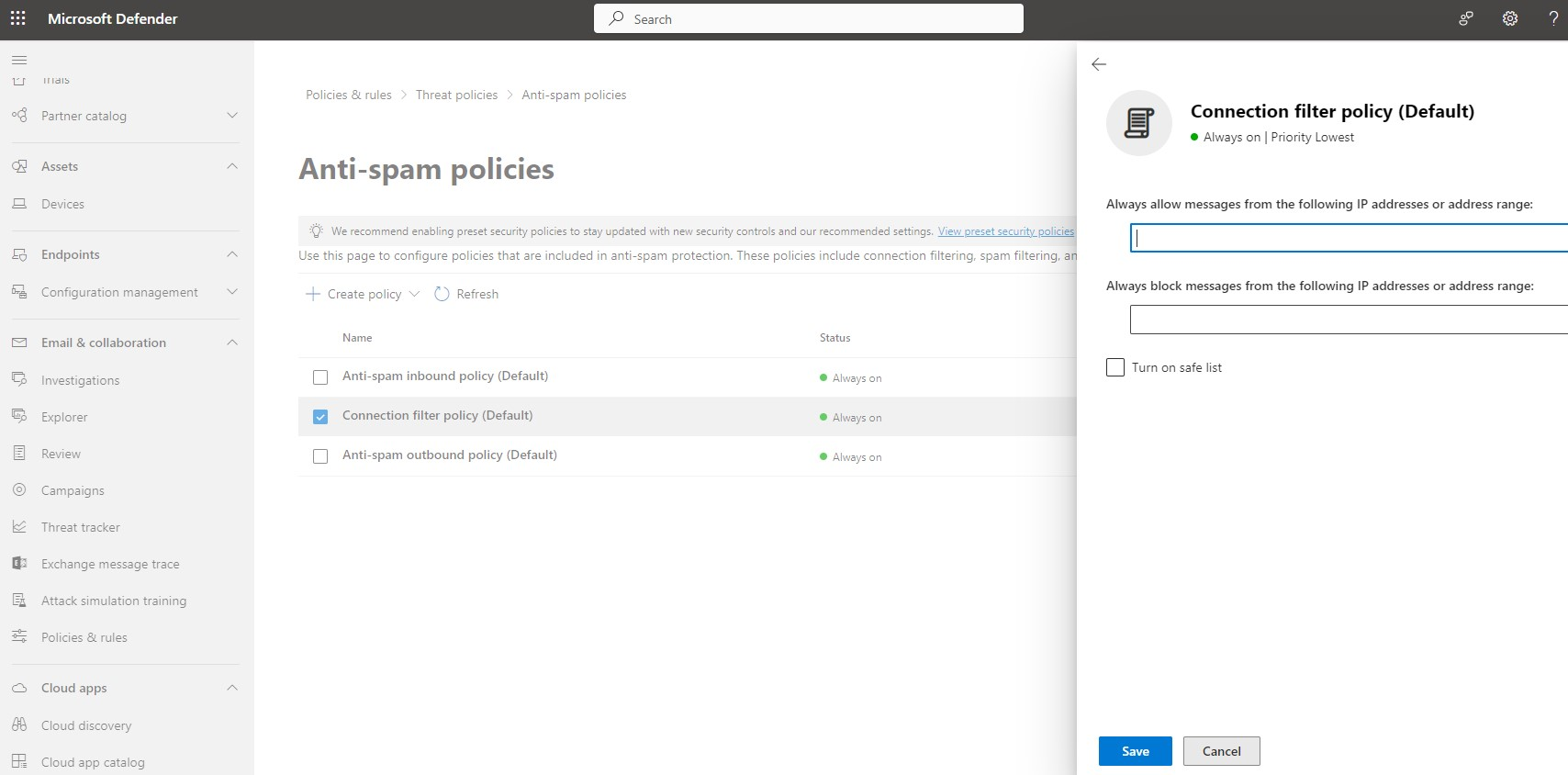

In Microsoft 365 organizations connection filtering and the default connection filter policy identify good or bad source email servers by IP addresses. The key components of the default connection filter policy are:

  • IP Allow List: Skip spam filtering for all incoming messages from the specified source IP addresses or IP address ranges.
  • IP Block List: Block all incoming messages from the specified source IP addresses or IP address ranges.
  • Safe list: The safe list in the connection filter policy is a dynamic allow list that requires no customer configuration. Microsoft identifies these trusted email sources from subscriptions to various third-party lists. You enable or disable the use of the safe list; you can't configure the servers in the list. Spam filtering is skipped on incoming messages from the email servers on the safe list.

For details see https://learn.microsoft.com/en-us/microsoft-365/security/office-365-security/connection-filter-policies-configure.

Sometimes Microsoft 365 classifies emails delivered by OPSWAT as spam and puts these emails into its quarantine or Junk Email folder.

To avoid this, OPSWAT server email addresses must be added to the IP allow list.
