Dashboard Customization

Users can now customize a dashboard based on their need. This feature is available on

• MetaDefender Kiosk Dashboard
• MetaDefender Media Firewall Dashboard

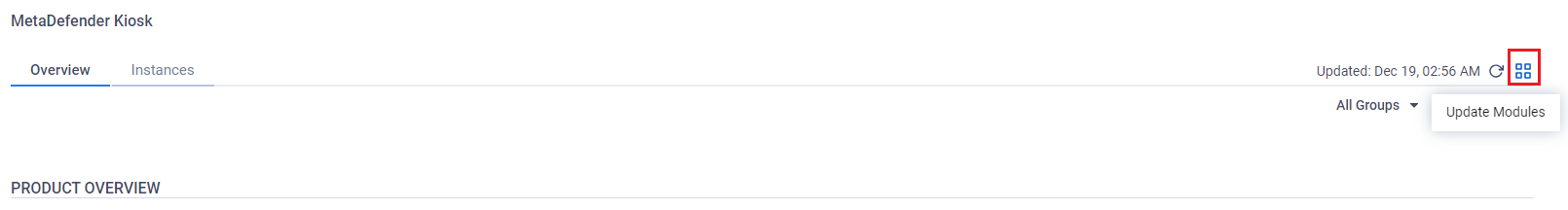

To customize a dashboard, click the four-square icon at the top right corner of a dashboard, select Update Modules. An Add Modules dialog should be popped up.

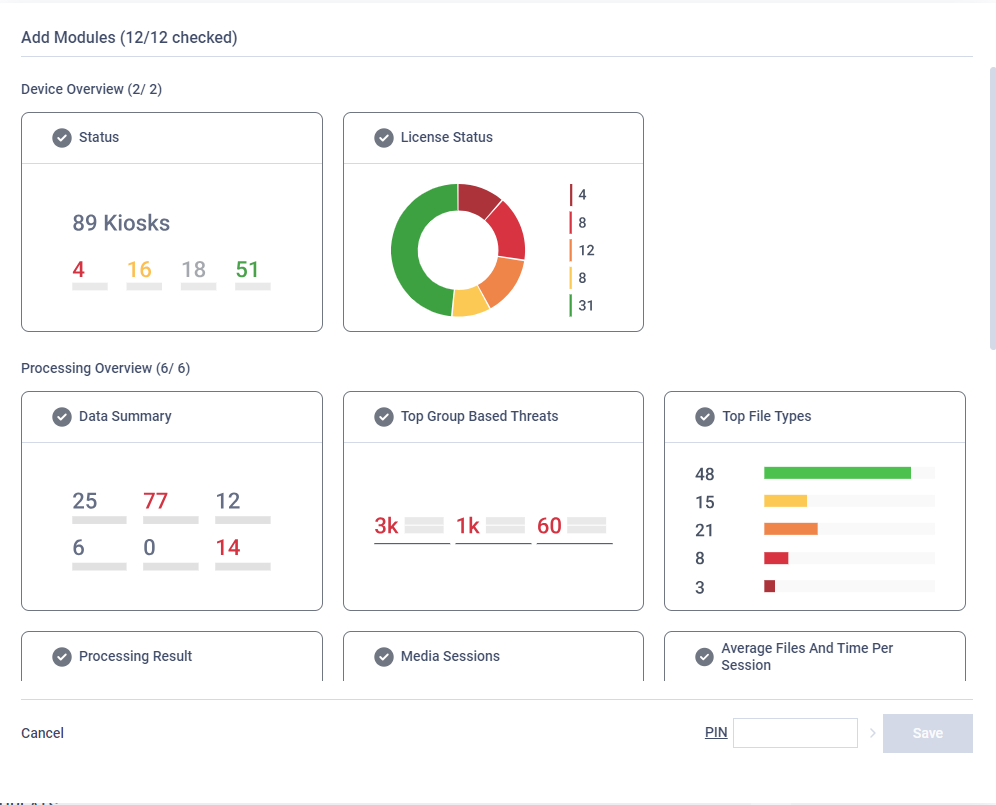

In the Add Modules dialog, all available modules (dashboard widgets) of the dashboard are displayed and group by sections. It also tells users how many modules are selected.

• If a module is selected, it has a checked icon in front of the module name.
• If a module has not been selected, it should have grey background and no checked icon.

Click an module to add or remove it. Click on Save to save your changes.

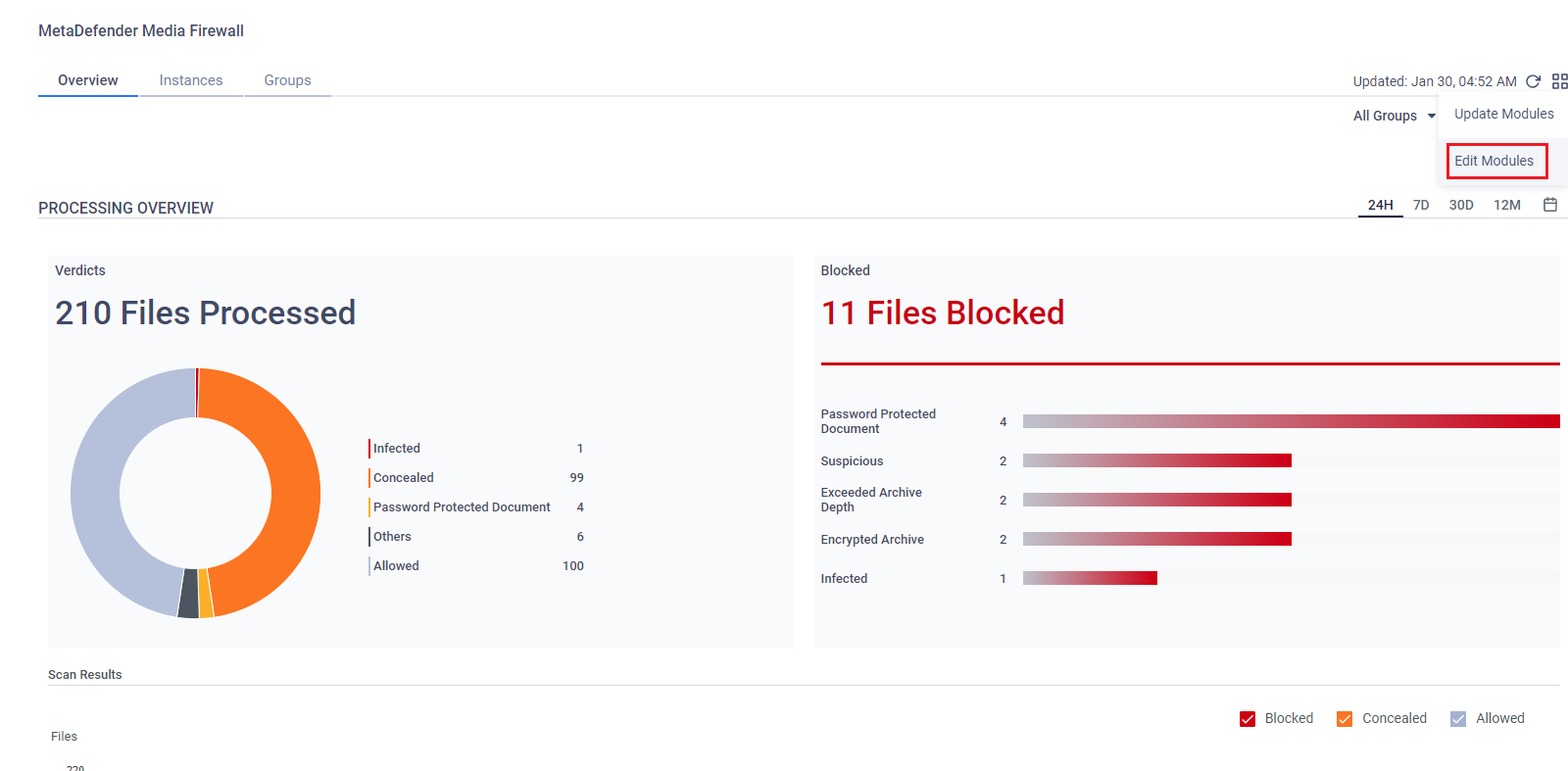

For MetaDefender Media Firewall only, an Edit Modules function is available to rearrange the module layout in the dashboard. Click the four-square icon at the top right corner of a dashboard and select Edit Modules to enter Edit mode.

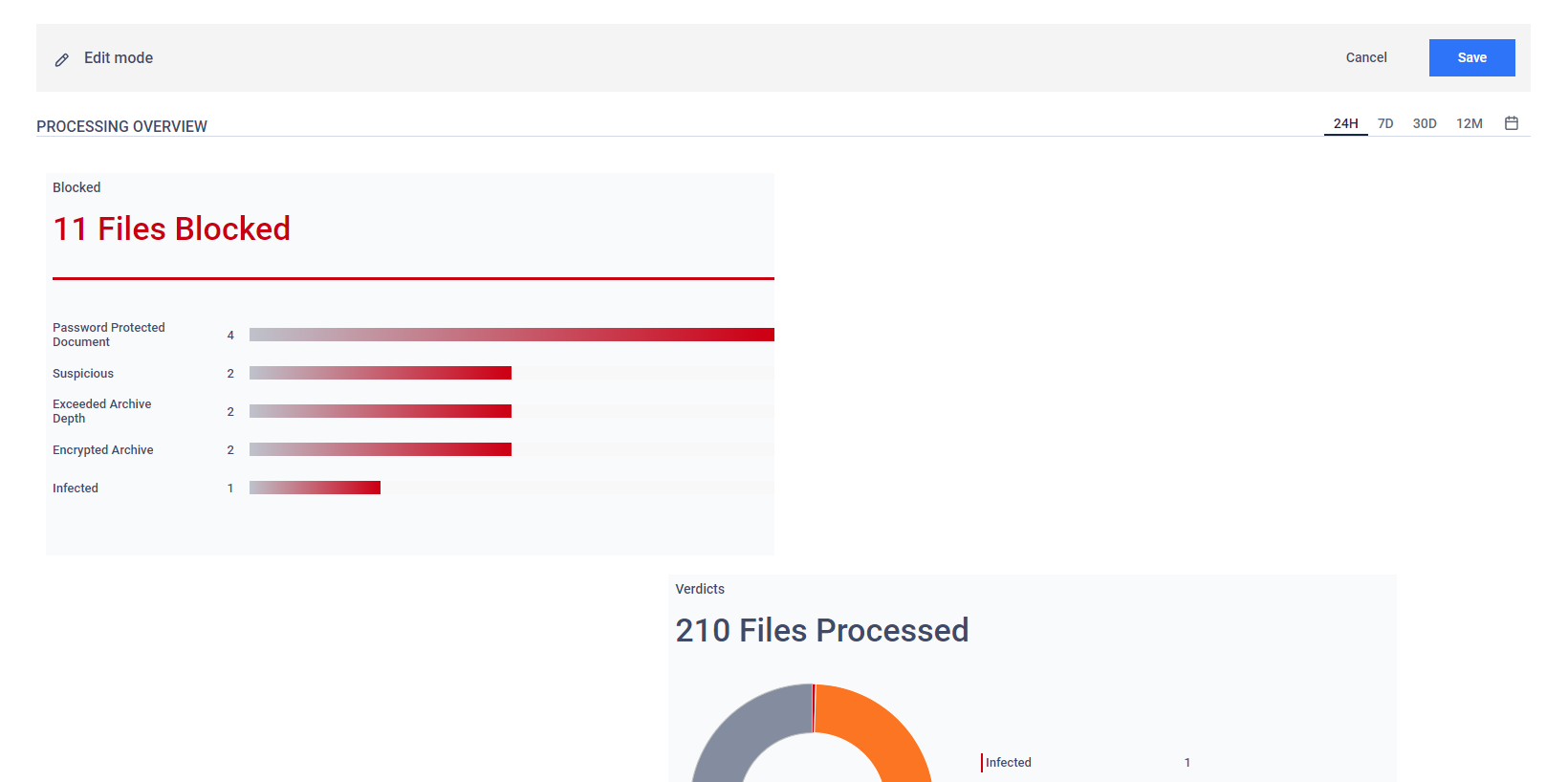

In Edit mode, drag-and-drop each module to change the dashboard layout.Click Save to confirm your new layout or click Cancel to discard any changes and exit Edit mode.

The dashboard's appearance should be updated immediately.
