Enable HTTPS via auxiliary tool
Quick Overview
- Prepare self-signed or 3rd party certificate.
- Use ChangeProtocol tool in order to switch to HTTPS protocol.
Step by step guide
- Open ChangeProtocol.exe tool by navigating to the Tools folder in the installation directory Note:by default is located at C:\Program Files\OPSWAT\MetaDefender Vault\Tools
- Run the tool on the machine where MetaDefender Vault is installed
- Provide login details for the local administrator account and click Login

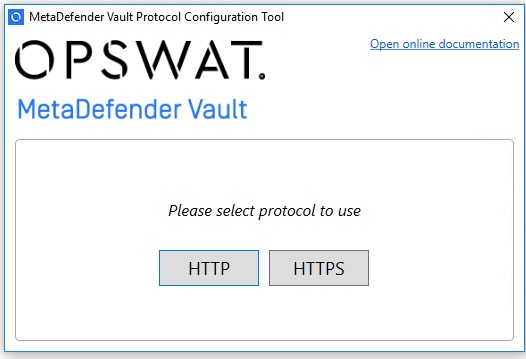

- Select HTTPS protocol
- Refer to Information regarding certificates in order to obtain the certificate and the certificate key

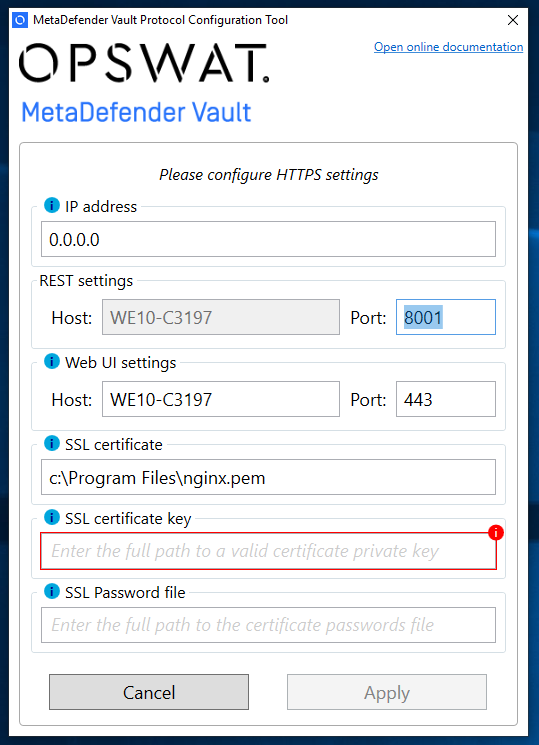

- Fill the desired settings in the configuration window. Note that you can find more information about each field below.
- The table below describes in detail each setting
| Name | Description | Example |
|---|---|---|
| IP address | Allows the user to limit the IP addresses that can access the Web UI Leave 0.0.0.0 in order to set the binding to all IP addresses. | 0.0.0.0 → allow unrestricted access 192.168.16.16 → only allow clients from this IP address |
| REST settings: Port | The port used for internal communication between MetaDefender Vault Services The default value is 8000. | Please note that the REST service will no longer be shared with the Web UI port. All calls to the REST endpoints should be made through the Web UI port. Please also note that the port remains exposed to configuration for backwards compatibility reasons but it should not be changed. |
| Web UI settings: Host | The host name that will be used to reach your MetaDefender Vault Web UI. Please note that this host name should be accessible inside your network in order to allow clients to access the web portal. Please also note that this is the same value that will be used when composing links in email notifications. | files.opswat.com → users will have to type https://files.opswat.com in browser in order to access the user interface and all links in the sent email notifications (if you have configured SMTP) will look like: https://files.opswat.com/file/8b822a734eea4afdaf5bcd01bfec8416 A DNS settings should be previously configured to ensure clients can resolve files.opswat.com. |
| Web UI settings: Port | The port used to reach MetaDefender Vault Web UI and REST API endpoints. You can leave this to the default value 443 in order for your users not to require writing the port in the browser address bar. | 443 → users will have to type https://files.opswat.com in browser in order to access the user interface 8010 → users will have to type https://files.opswat.com:8010 in browser in order to access the user interface For REST API calls 443 → in order to expose the API at https://localhost/vault_rest 8010 → in order to expose the API at https://localhost:8010/vault_rest |
| SSL certificate | The path to the SSL certificate to use. | Please refer to Information regarding certificates for more details |
| SSL certificate key | The path to the SSL certificate's private key. | Please refer to Information regarding certificates for more details |
| SSL Password file | The path to the text file containing the password for the protected certificate. | Please refer to Information regarding certificates for more details |
- Click Apply in order to finish this process.
The Enabling HTTPS with Metadefender Core v4 page has instructions on how to set up Metadefender Core v4 with HTTPS.
