Setup Microsoft SharePoint or OneDrive as storage
When Kiosk failed to upload files to Microsoft SharePoint or OneDrive, issues could be caused by misconfigurations. Including:
- Unable to login to Kiosk UI via SSO due to the users haven't been assigned to the Enterprise Application
- Missing redirect URI for OAuth2.0
- Missing API permissions (Sites.ReadWrite.All, Users.Read)
- Missing Office 365 license or the license does not cover SharePoint or OneDrive
- When adding or changing Office 365 license, it may take some time for the changes to take effect
- Invalid input when configuring SharePoint or OneDrive in Kiosk WebMC (e.g missing "/" for relative path)
Please verifying all potential causes above, and collect the Support Package if you still encounter issues uploading files to SharePoint or OneDrive
1. Enable Microsoft Entra ID with API Integration
Step 1. From Kiosk WebWC, select Workflows, under Employee Workflows, select Set Default Login Method. Enable SSO Microsoft Entra ID. Please refer to Microsoft Entra ID Integration for details

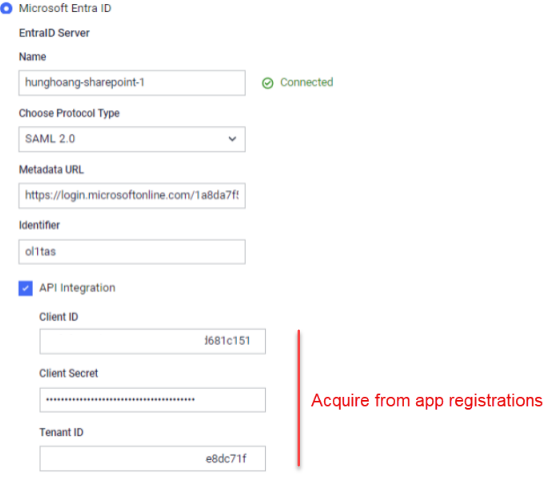

Step 2. For SharePoint and OneDrive integrations, enable API integration
Follow the instruction to acquire the following information from app registrations
- Client ID
- Client Secret
- Tenant ID
Notes: API Integration option must be enabled to configure SharePoint or OneDrive as storage

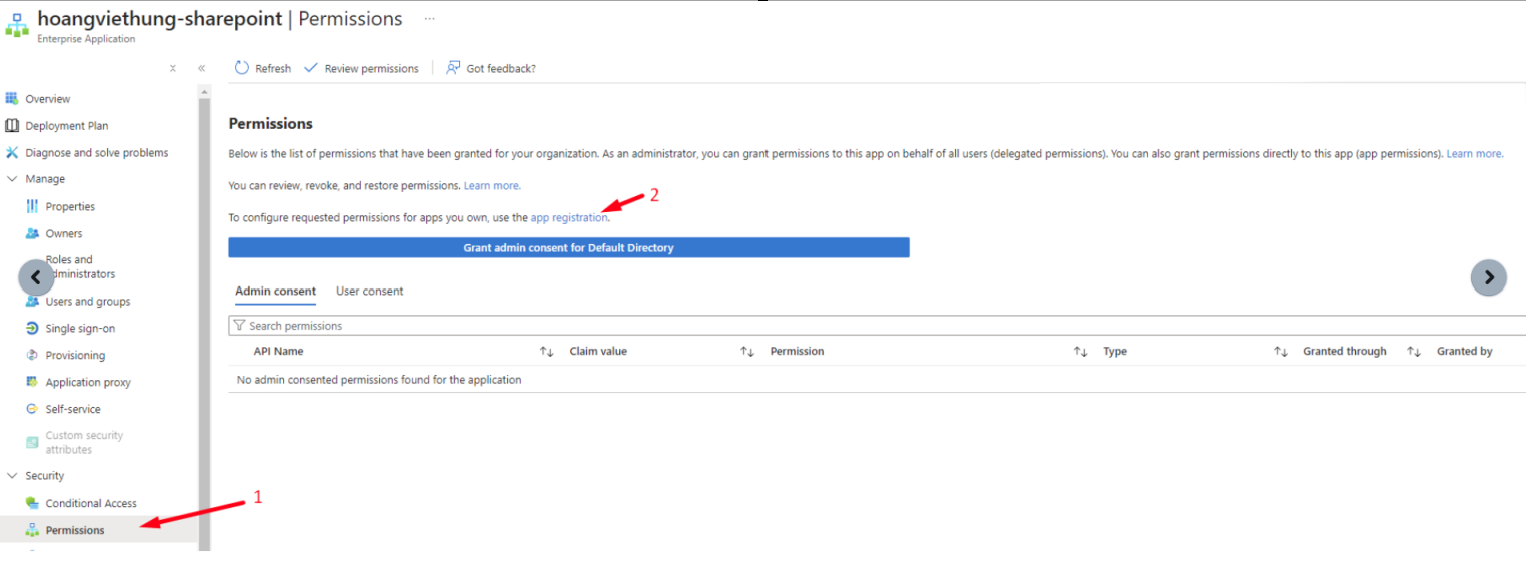

Step 3. Open the Enterprise Application created at step 1. Expand Security, select Permissions, click on app registration
Access app registration
Step 4. From app registration page, select Overview. Here you can find Client ID and Tenant ID
Acquire Client ID and Tenant ID

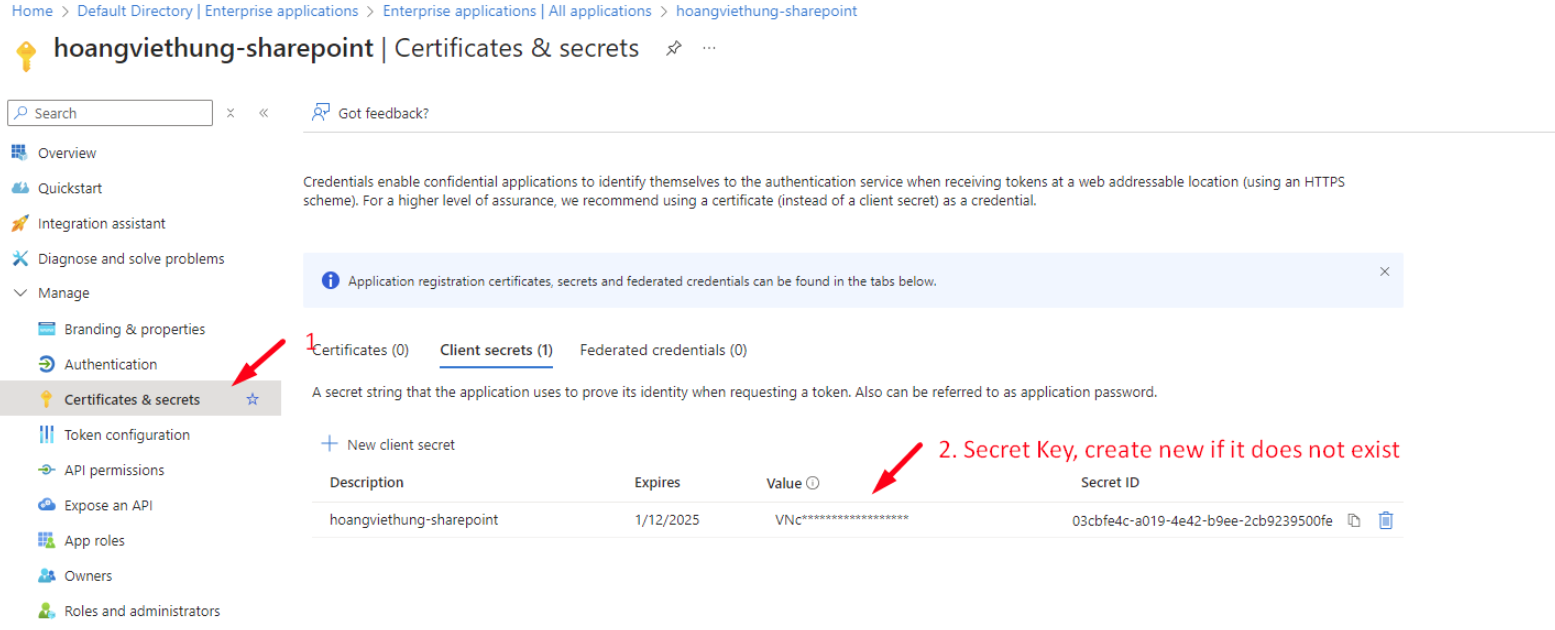

Step 5. Expand Manage, select Certificates & secrets, select Clients secrets. Here you should find Secret Key. Please create a new client secret if one does not exist.
Acquire Client Secret
Notes: You MUST assign users to the Enterprise Application to allow them to login via SSO. Please follow Enterprise Entra ID Integration for setup details
2. Verify the Office 365 license on users
Step 1. Go to https://admin.microsoft.com/ to access Microsoft 365 Admin Center

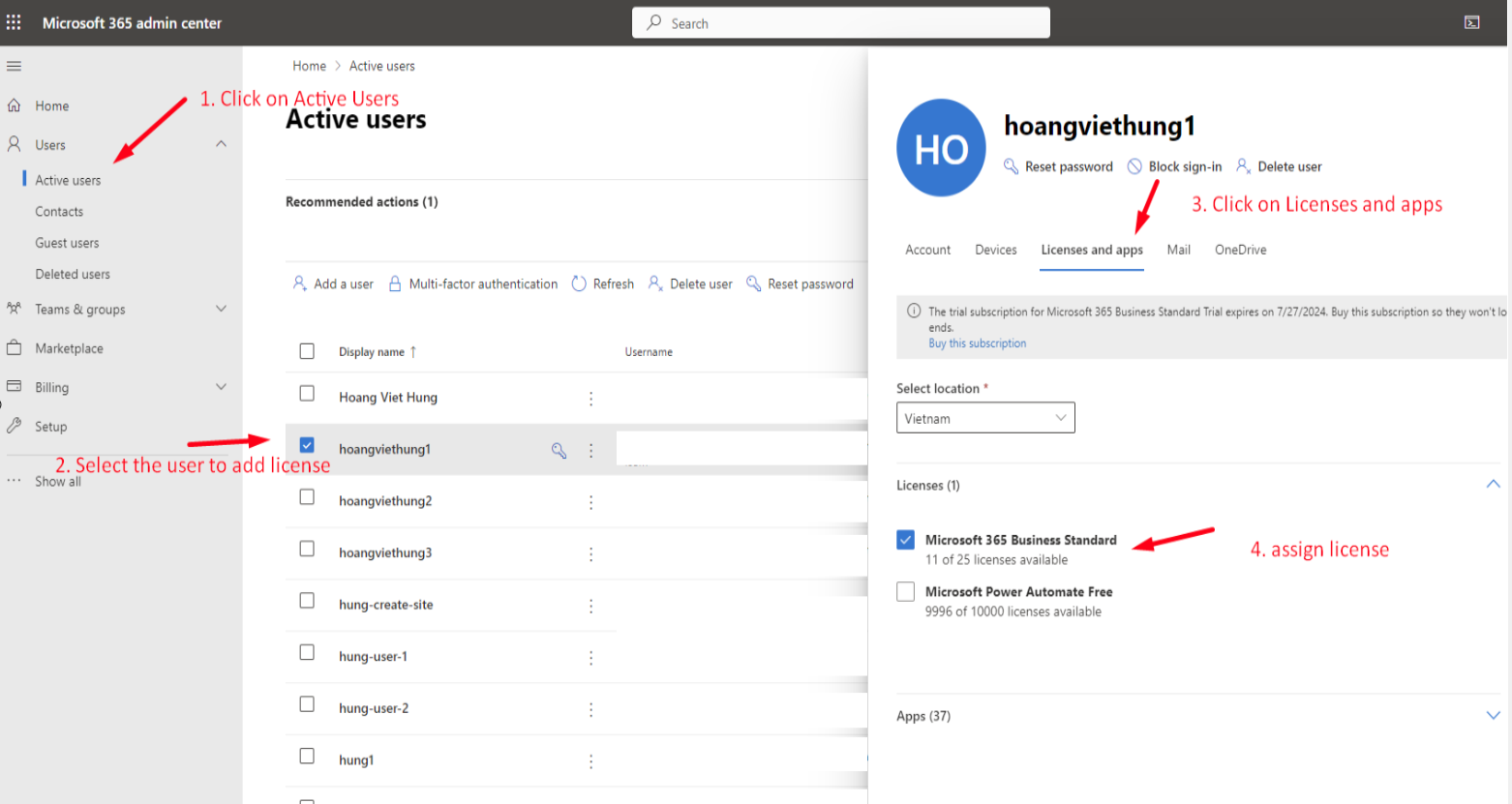

Step 2. Expand Users, select Active users, select the user(s), select License and apps, enable Microsoft 365 Business Standard. Click Save changes
Verify and add license for users
After assigning Microsoft 365 license Business Standard for user, it may take about 10 minutes for the changes to take effect.
If the user account doesn't have license, you will encountered the following error message in Kiosk service log:
"message":"You do not have access to create this personal site or you do not have a valid license"
3. Configure Redirect URI for Oauth2.0
For authorization before uploading files to SharePoint or OneDrive, you need to configure Redirect URI in app registration

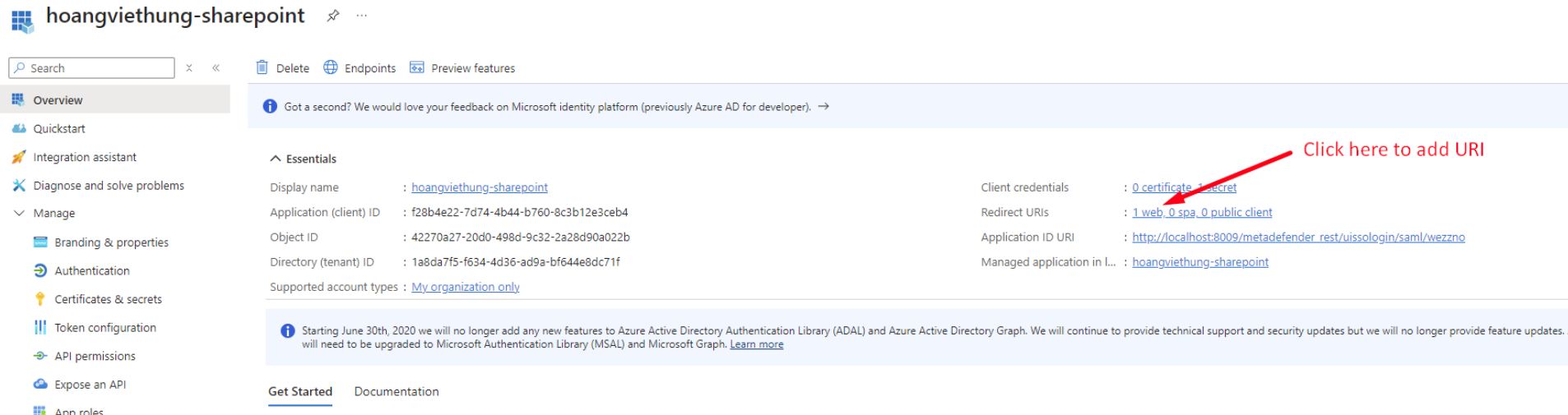

Step 1. In app registration, click on Redirect URI link to add a new URI
Add Redirect URI for Oauth2.0

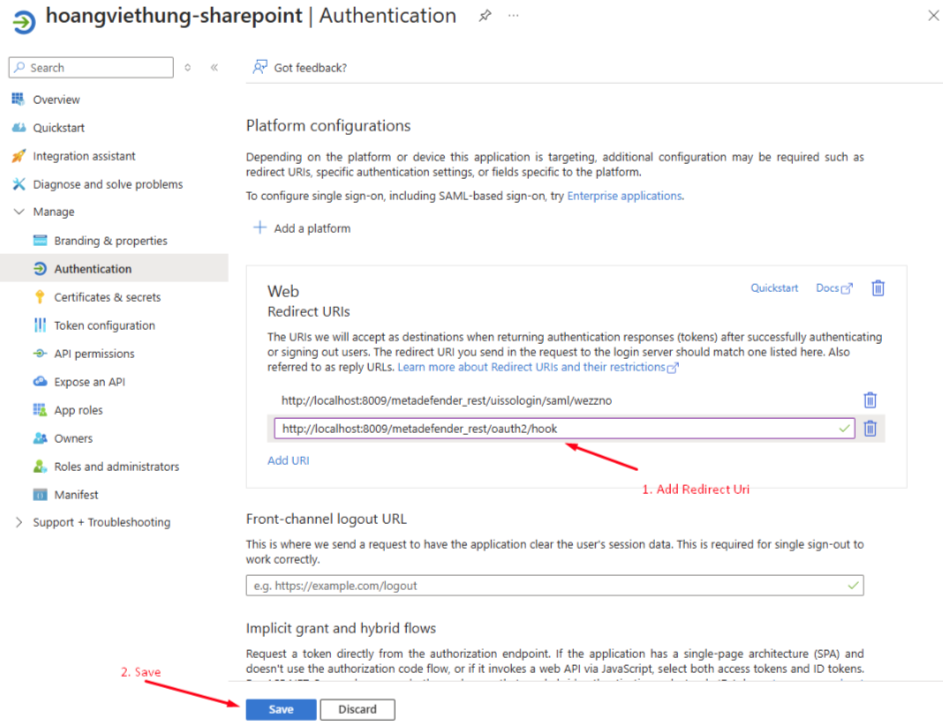

Step 2. Put in the Redirect URI. Click Save
<http/https>://localhost:<port>/metadefender_rest/oauth2/hook
4. Grant API permissions that needed to upload files to SharePoint or OneDrive

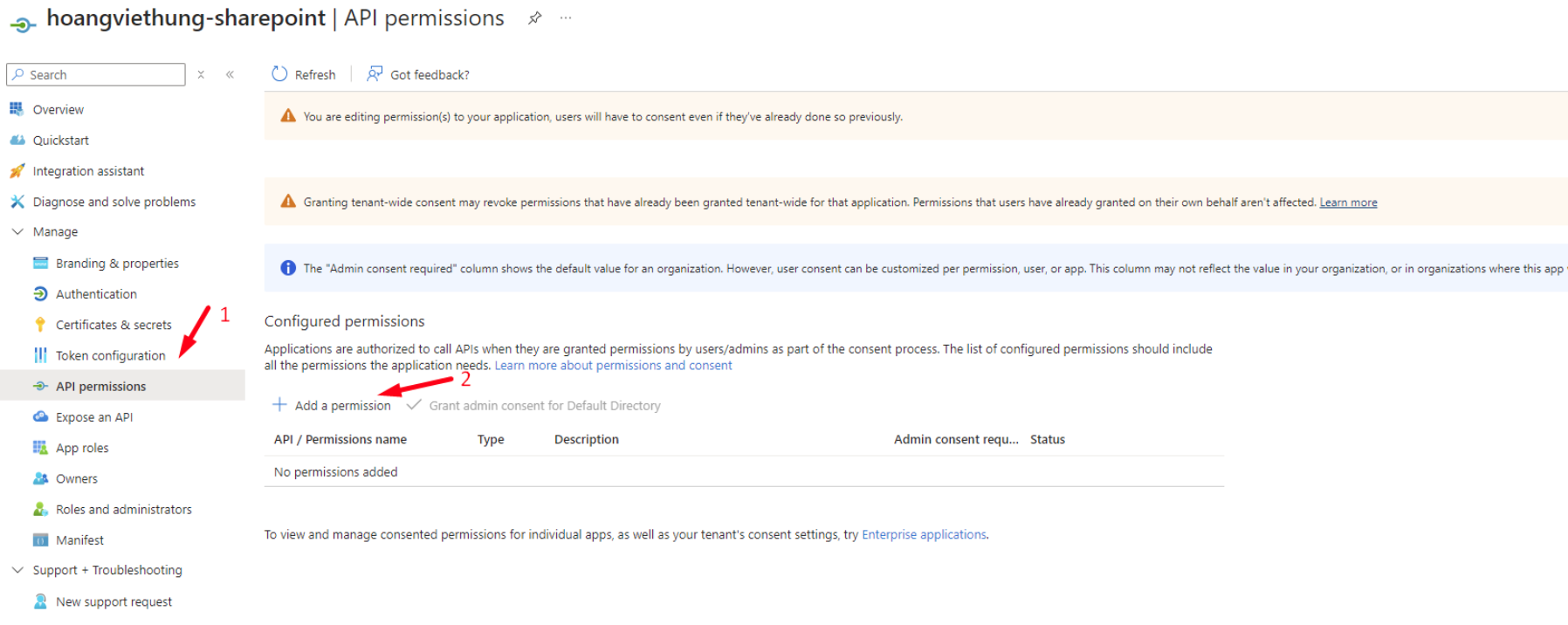

Step 1. From app permissions, expand Manage, click on API permissions. Click Add a permission
Add API Permissions for registered app

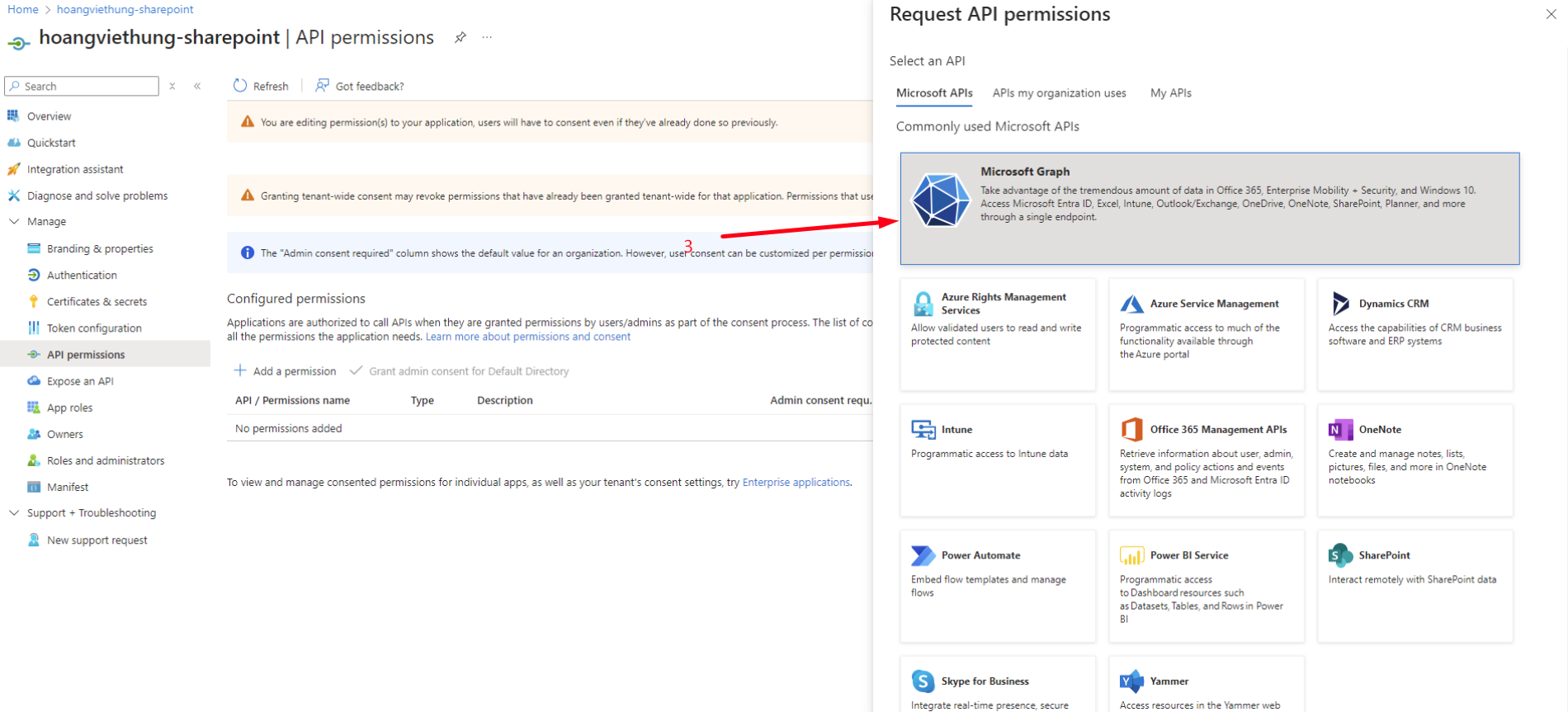

Step 2. Select Microsoft Graph
Select Microsoft Graph API

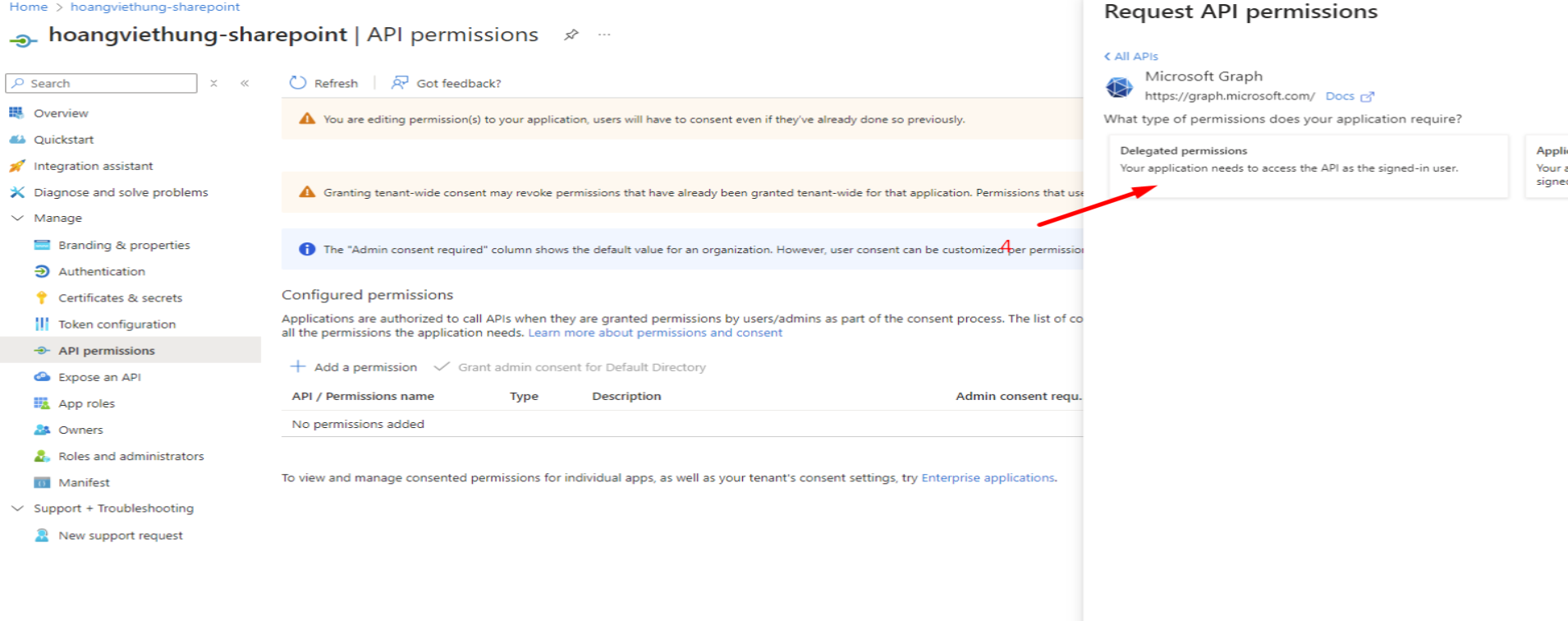

Step 3. Select Delegated permissions
Select Delegated permissions
Step 4. Expand Sites. Enable Sites.ReadWrite.All permission
Enable Sites.ReadErite.All permission

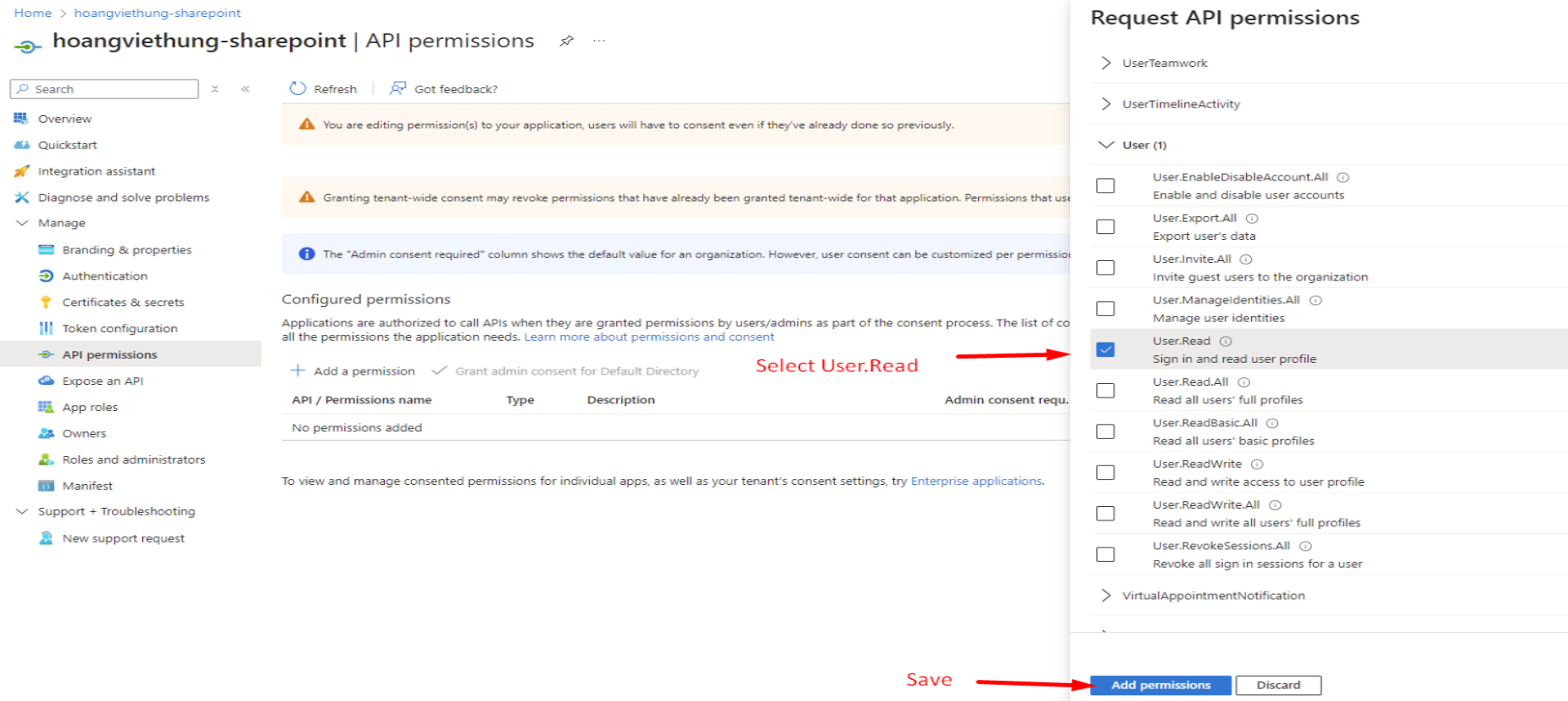

Step 5. Expand User. Enable User.Read permission
Enable User.Read permission

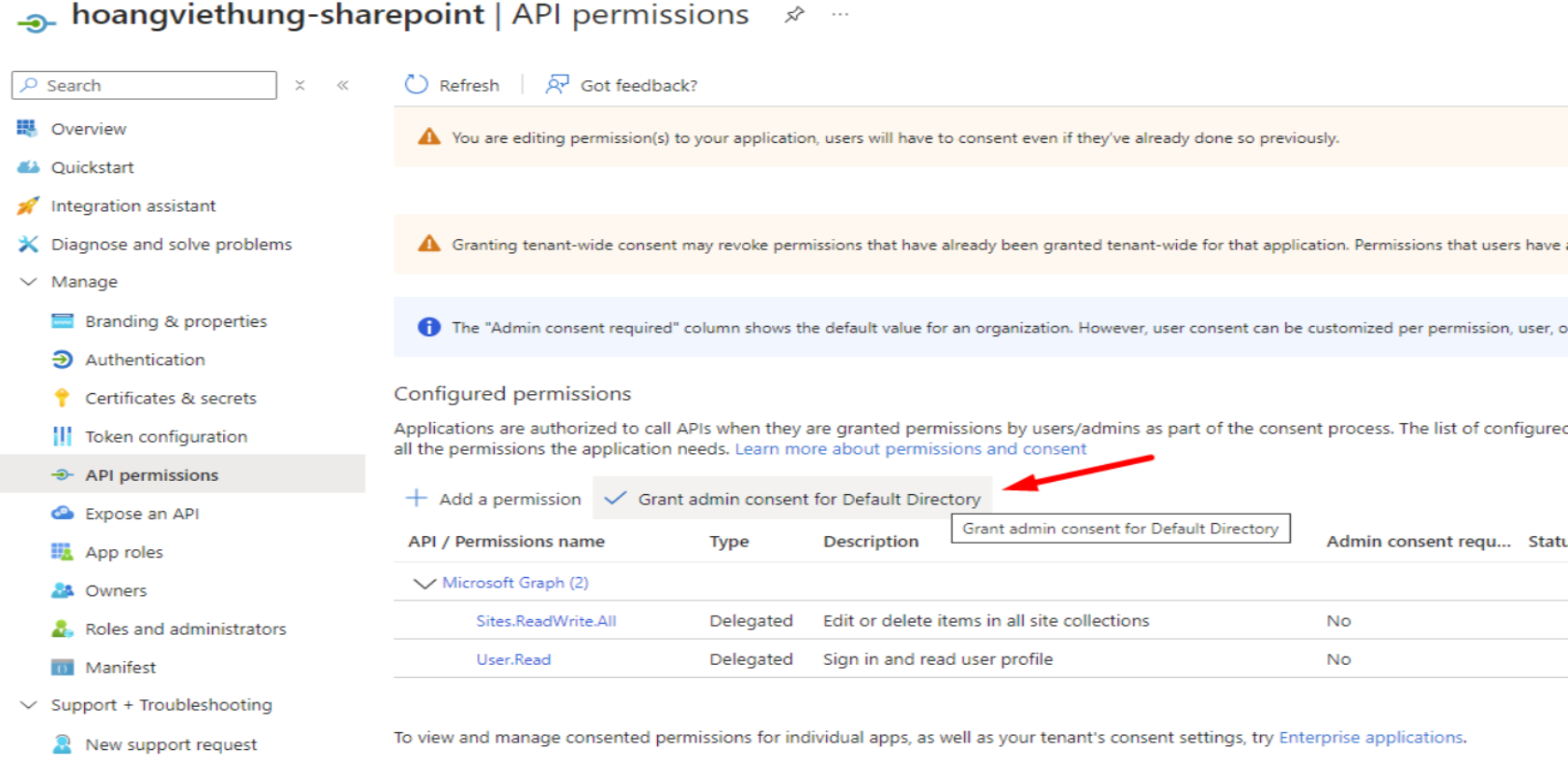

Step 6. Back to API permission page, click on Grant admin consent for Default Directory
It is important to enable Grant admin consent for Default Directory
Grant admin consent for Default Directory

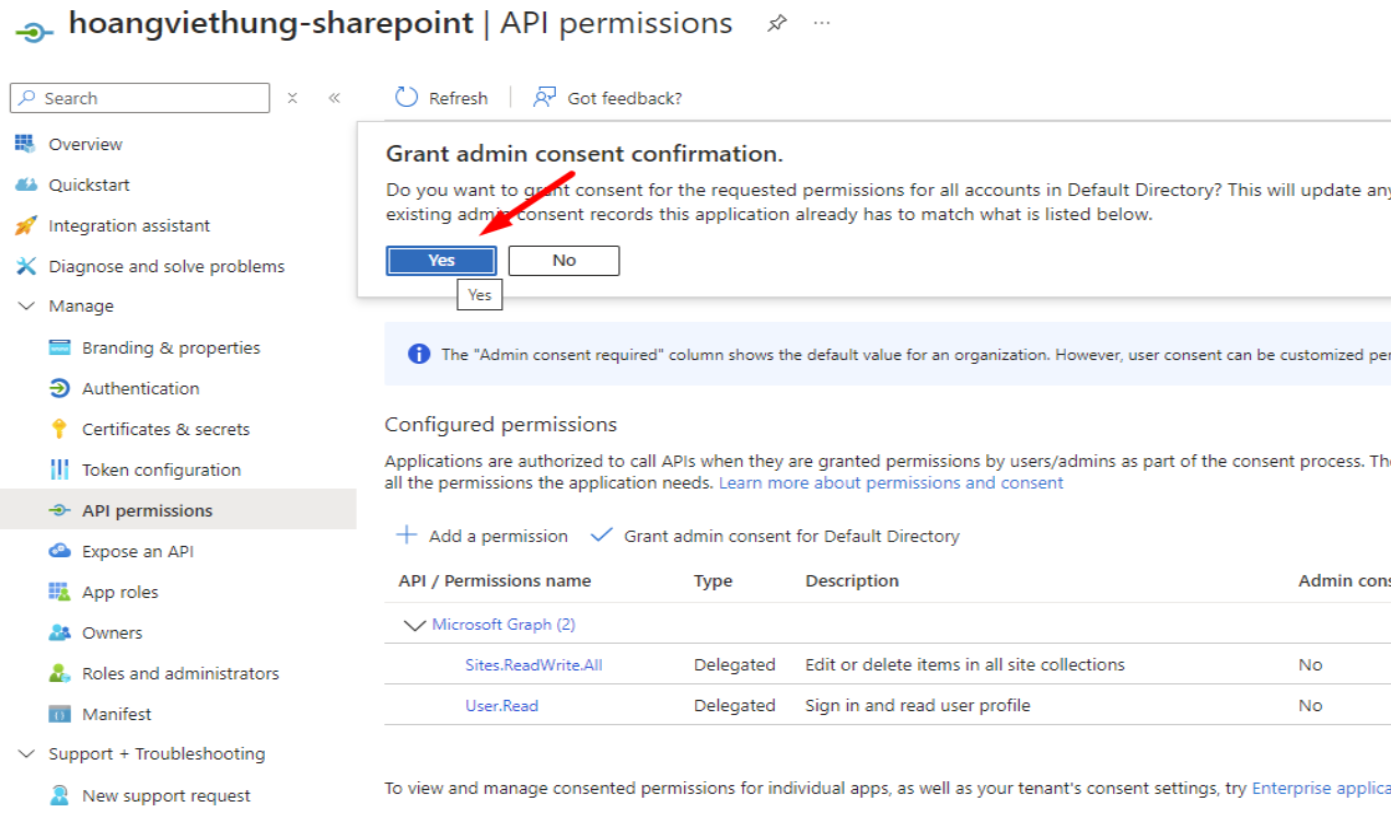

- When a popup appears, select Yes to enable the setting
Enable Grant admin consent for Default Directory

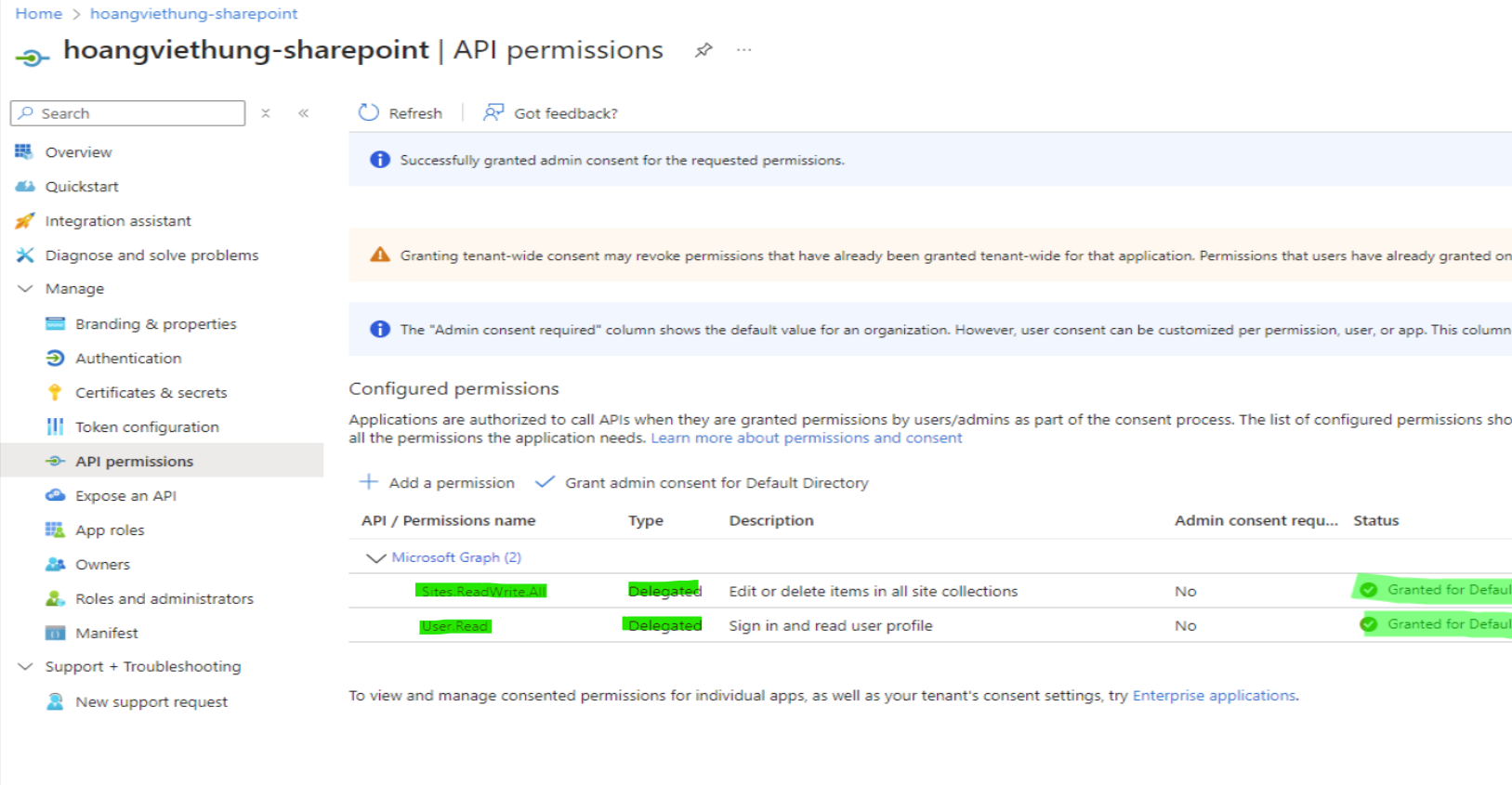

Step 7. After adding permissions and enable Grant admin consent for Default Directory. You should have a summary page similar as below
Summary of API permissions
5. Configure Kiosk WebMC to upload processed files to OneDrive
Step 1. From Kiosk WebMC, go to Workflows, select Employee Workflow, Select File Handling
- Blocked Files: to copy blocked files to OneDrive
- Allowed Files: to copy allowed files to OneDrive

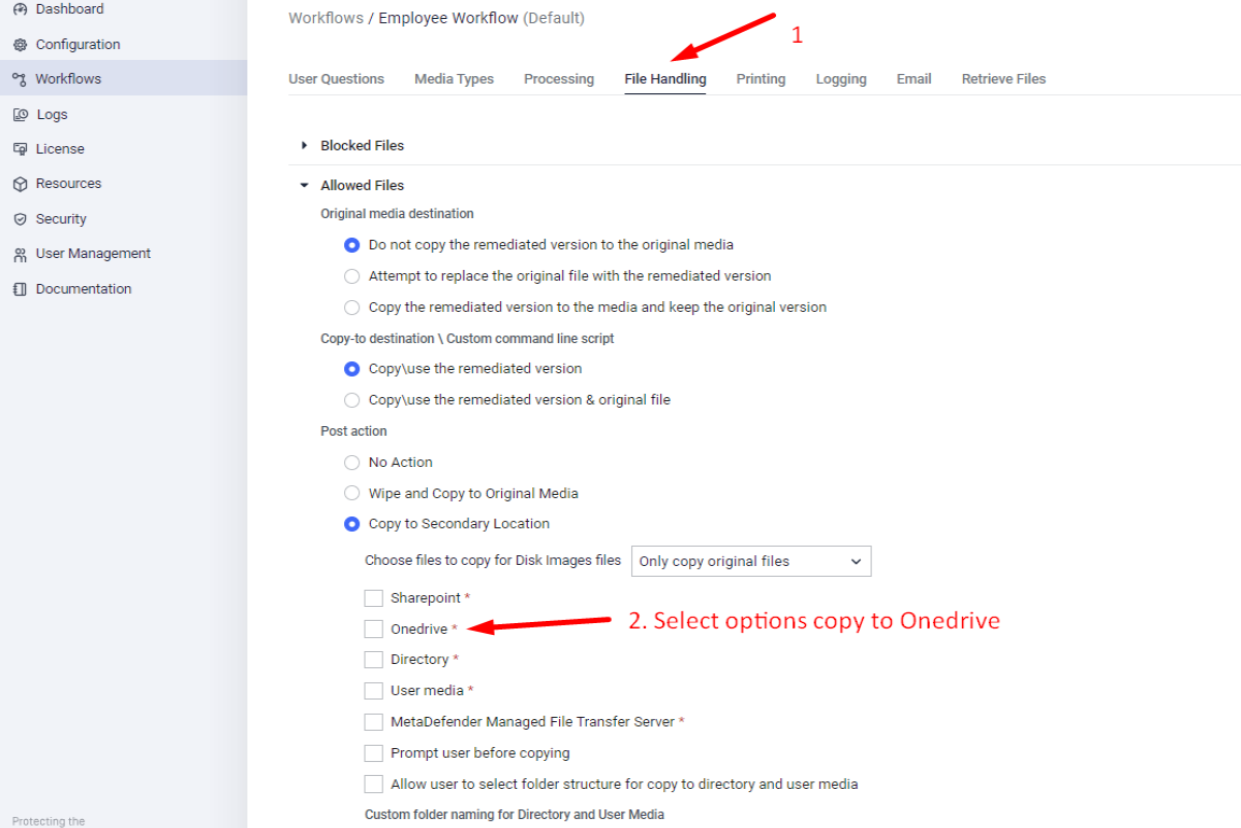

Assuming we want to copy allows files to OneDrive. Expand Allowed Files, Select Copy to Secondary Location, Select OneDrive
Enable copy allowed files to OneDrive
Step 2. Provide the information
Microsoft Entra ID: Select the profile created above.
OneDrive folder name: Provide the format of OneDrive folder name where you would like the files to be uploaded. Variables can be used for dynamic naming, for example, [username], [date], [time], etc.
Destination Path: The relative path where the uploading folder will be stored.

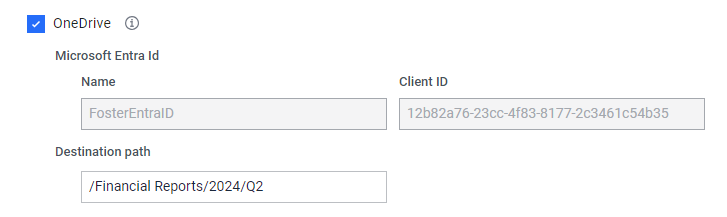

- /Financial Reports/2024/Q2 as example from the screenshot above
- Destination Path supports %%%username%%% and %%%userresponse#%%% variables, please refer to Directory Naming for more information.
- If you want to upload files into the user's personal folder. Please enter Root, or leave this field empty

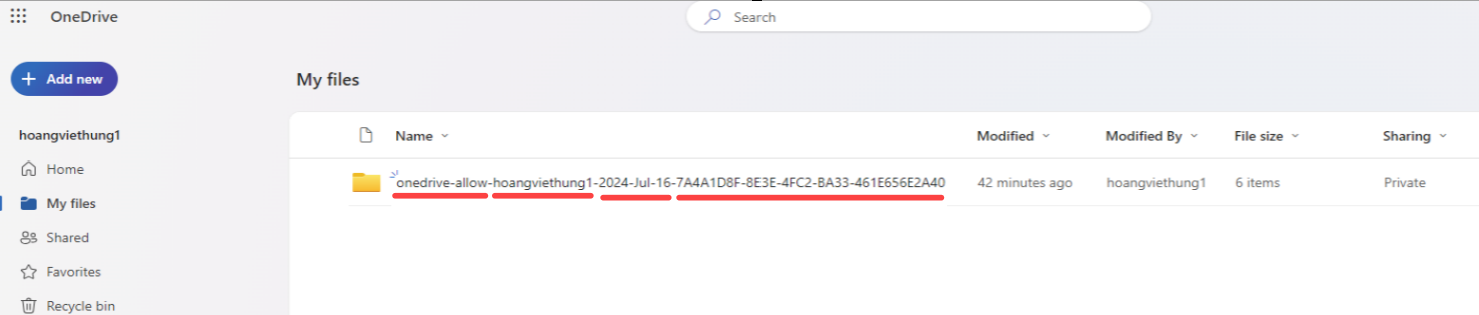

Example of OneDrive folder name format
__
Example of OneDrive folder name format
6. Configure Kiosk WebMC to upload processed files to SharePoint
When uploading files to SharePoint as a member of the site, only the file owner can see their files. However, the site owner can also see the files.

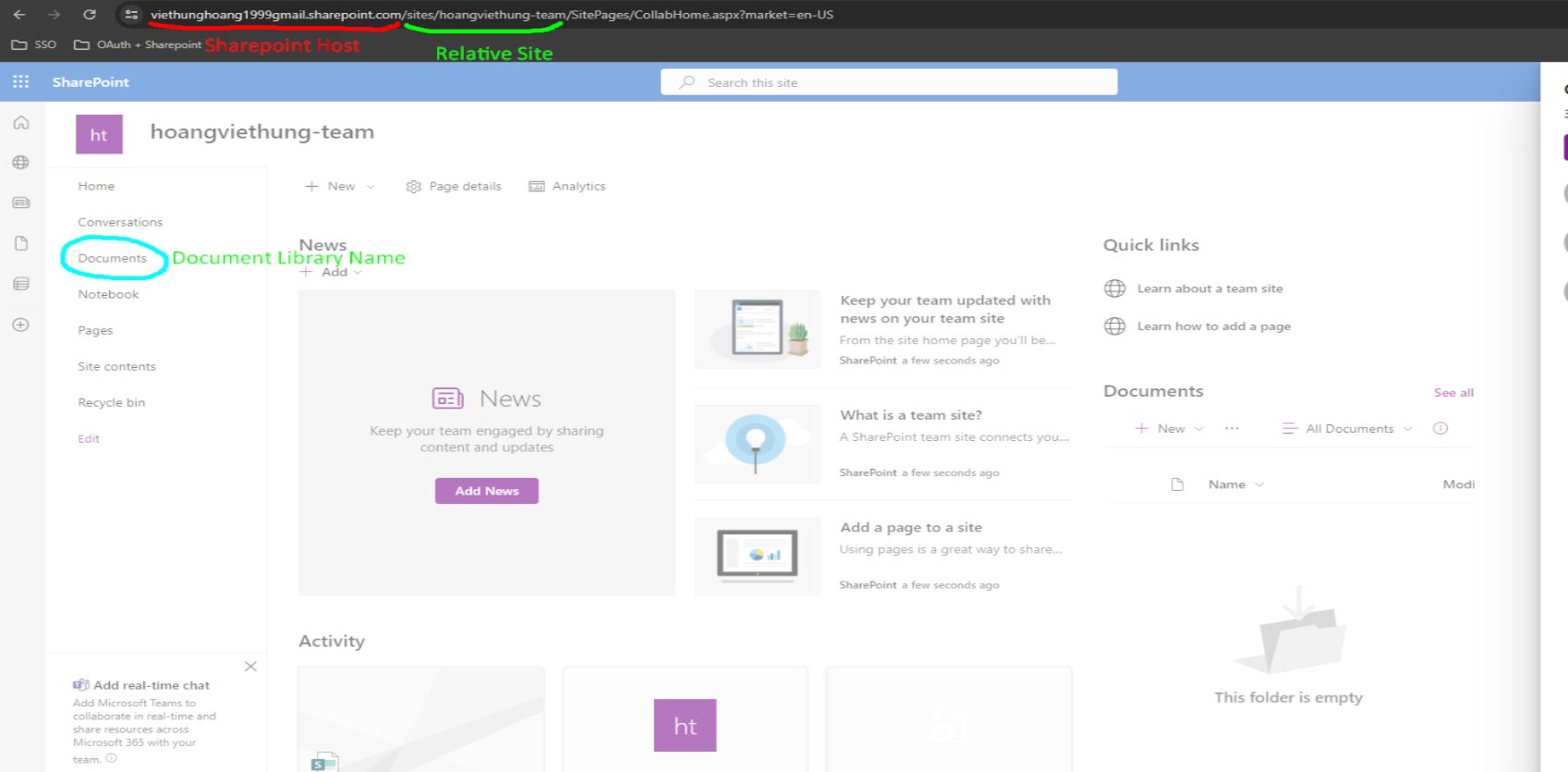

Step 1. Acquire SharePoint Site information

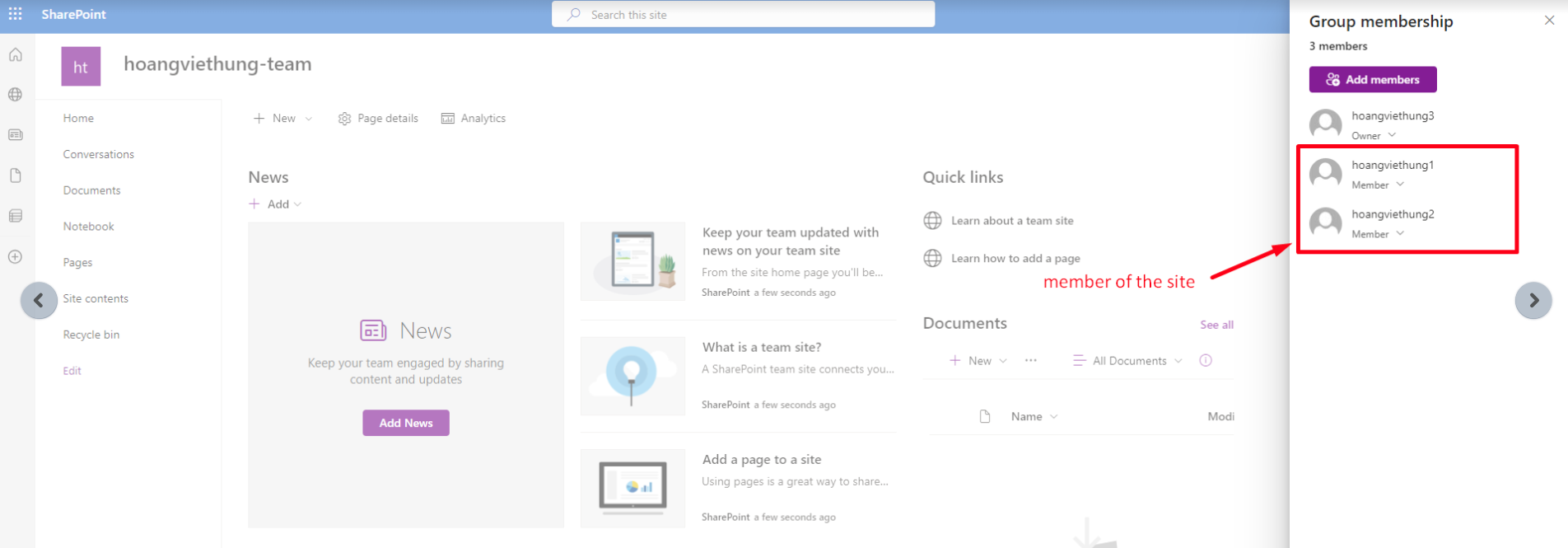

Group membership of the site
Based on the information from the screenshot:
- SharePoint Host Domain: viethunghoang1999gmail.sharepoint.com as example from the screenshot
- Current Site Relative Path: /sites/hoangviethung-team as example from the screenshot
- Document Library Name: Documents as example from the screenshot
Step 2. Configure Kiosk WebMC to upload processed file to SharePoint
From Kiosk WebMC, go to Workflows, select Employee Workflow, Select File Handling
- Blocked Files: to copy blocked files to SharePoint
- Allowed Files: to copy allowed files to SharePoint
Assuming we want to copy allows files to SharePoint. Expand Allowed Files, Select Copy to Secondary Location, Select OneDrive
Enable copy allowed files to SharePoint

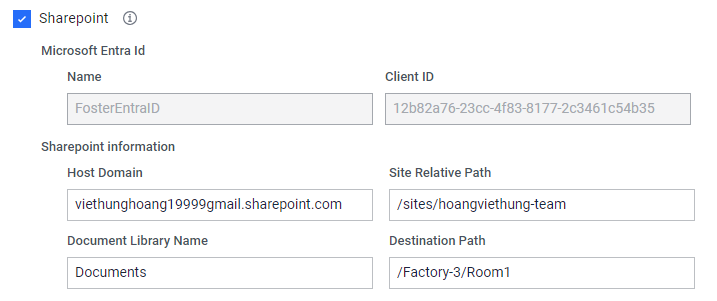

Step 2. Provide the information
Microsoft Entra ID: select the created profile
Host Domain: Provide SharePoint Domain name
- viethunghoang1999gmail.sharepoint.com as example from the screenshot above
Site Relative Path: Relative path to the site
- /sites/hoangviethung-team as example from the screenshot above
Document Library Name
- Documents as example from the screenshot above
Destination Path: The relative path from the root of the document library where the uploading folder will be stored
- /Factory-3/Room1 as example from the screenshot above
- Destination Path supports %%%username%%% and %%%userresponse#%%% variables, please refer to Directory Naming for more information.
- If you want to upload files into the root of the document library. Please enter Root, or leave this field empty

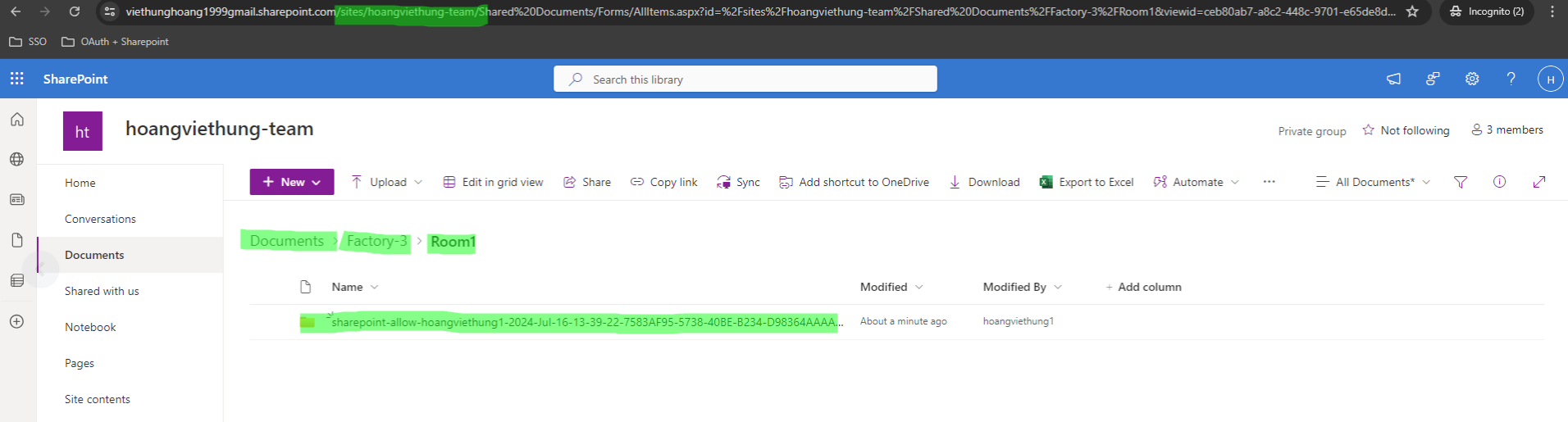

Example of successful upload to SharePoint
Example of successful upload to SharePoint and its folder structure
Comparison of Site Owner vs Site Member access levels
Group membership as example from the screenshot
- hoangviethung3 is site owner
- hoangviethung1 is site member
- hoangviethung2 is site member
When a file is uploaded to SharePoint by a site member (hoangviethung1), only the file owner (hoangviethung1) can view and access the file. Other site member (hoangviethung2) cannot see or access the files. However, the site owner (hoangviethung3) can view and access all files, including those uploaded by other site member (hoangviethung1 for example)
