Alert, notification and quarantine report emails
Alert and report emails, and certain settings of notification emails can be configured under Settings > Alerts & Reports.
Trust
Notification, alert and report messages sent by the product often resemble to phishing emails.
It is a common phishing technique to trick users into clicking on links or to provide their credentials on phishing webpages. As Email Gateway Security’s own messages also ask users to click on links and provide passwords, users with due care may get confused whether they are targets of a phishing attack in case of an Email Gateway Security notification, alert or report email.
To build trust, Email Gateway Security provides the option to digitally sign notification, alert and report messages sent by the product. This way recipients can ensure whether they are facing a real Email Gateway Security notification, or a fake one.
To configure digitally signing alert, notification and report messages, perform the following steps:

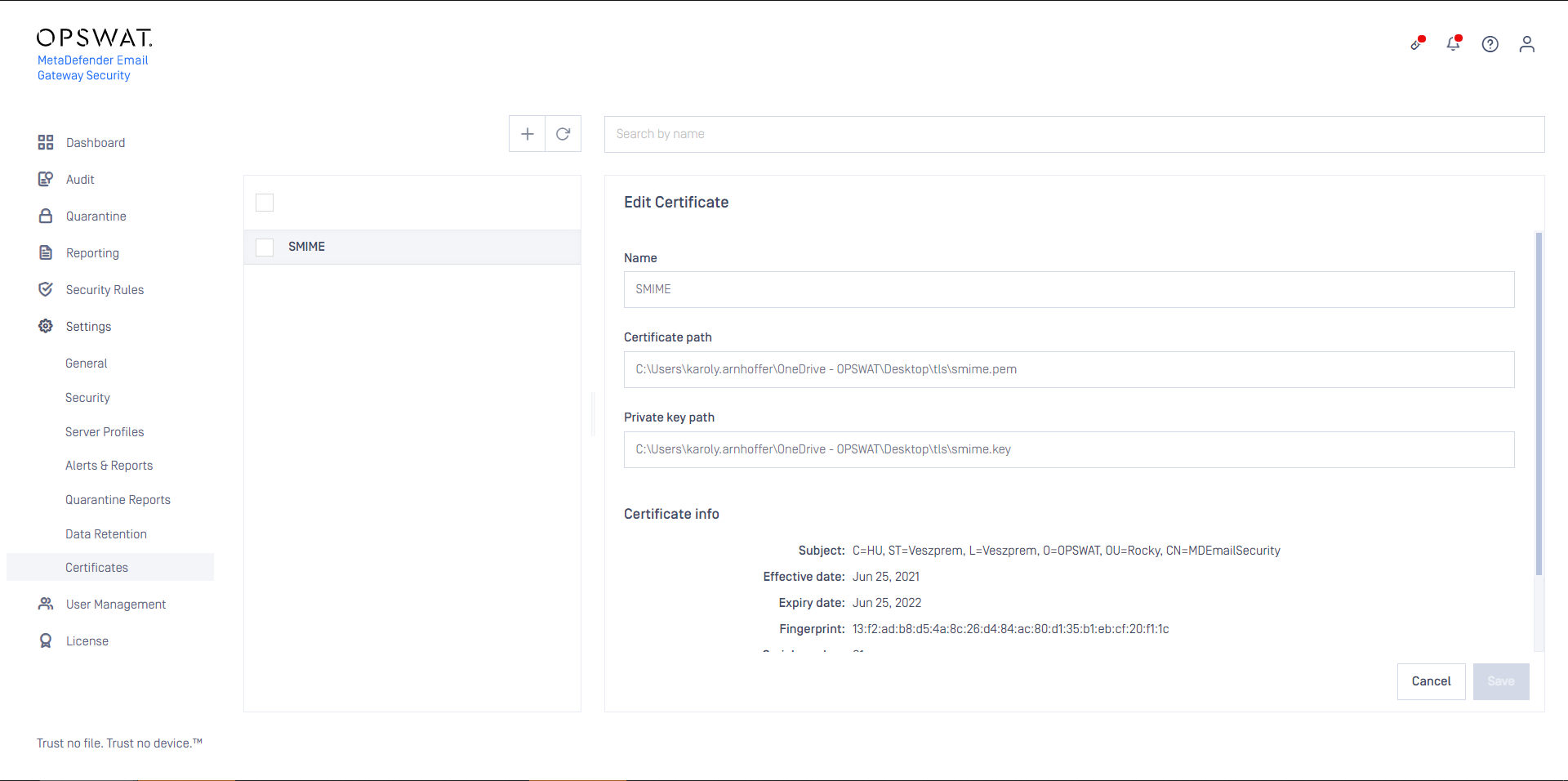

- Define a certificate and private key pair under Settings > Certificates for digitally singing emails.

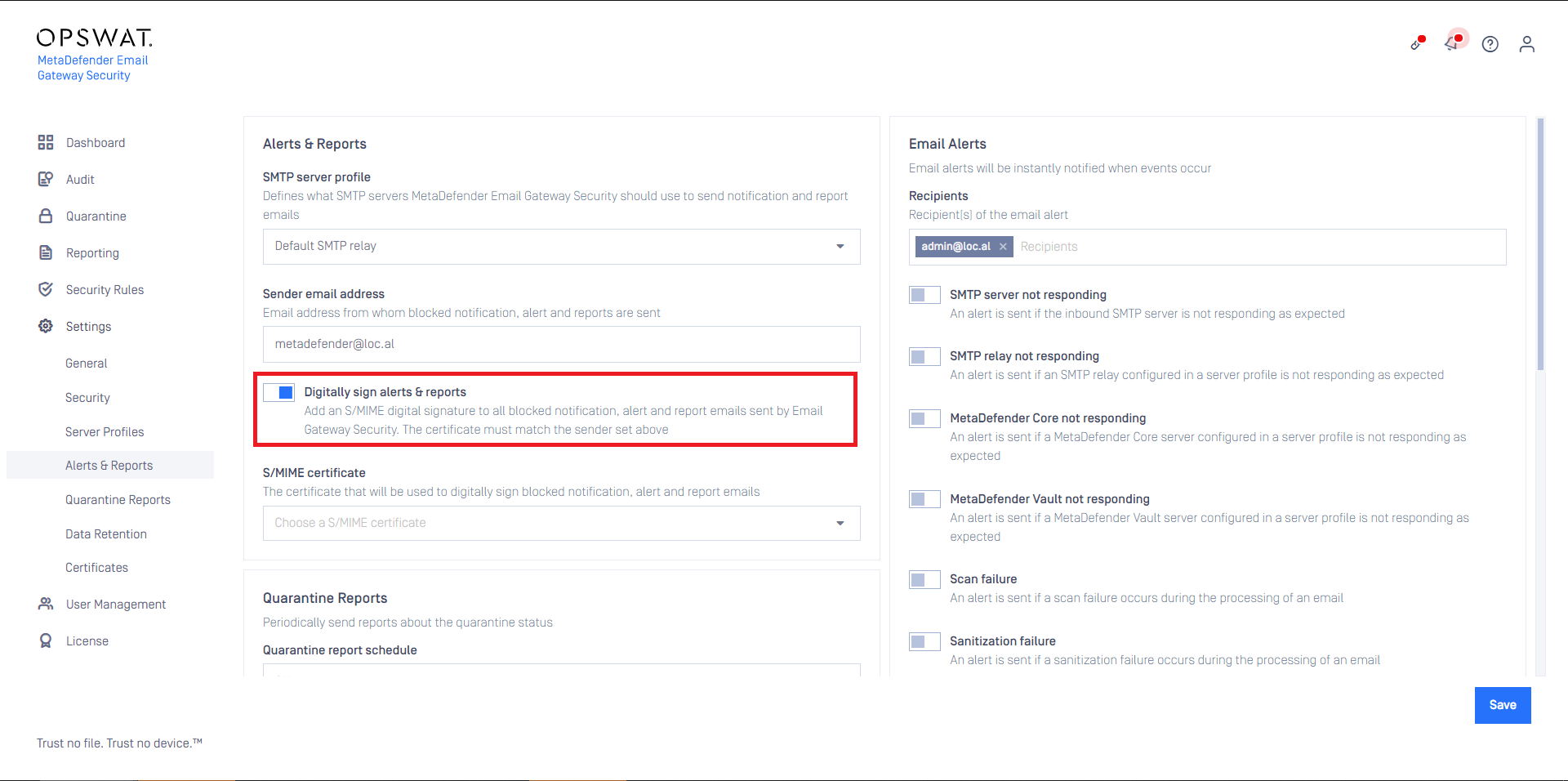

- Enable Settings >Alerts & Reports / Digitally sign alerts & reports.

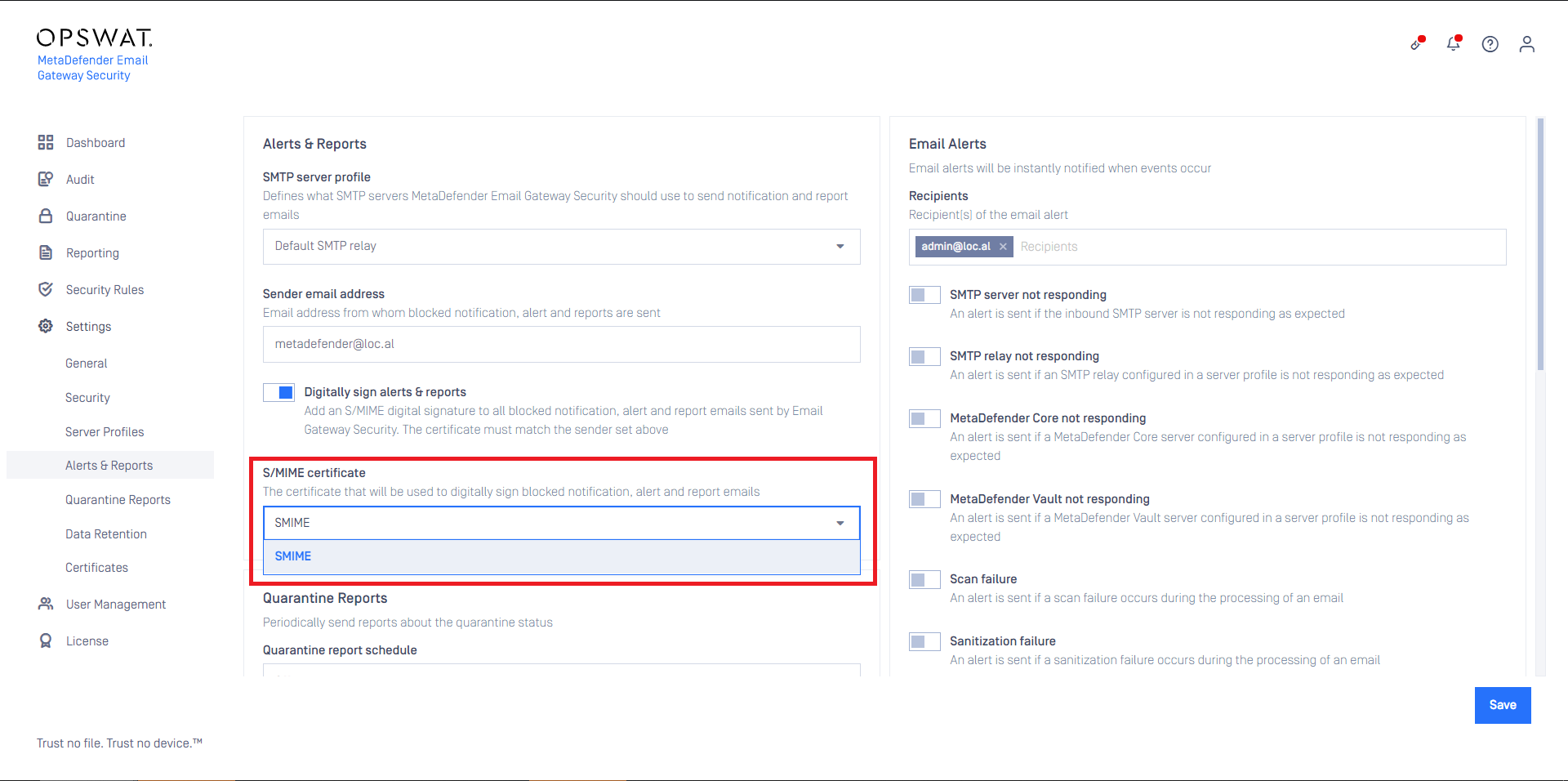

- Select the certificate created in step 1 as the S/MIME certificate

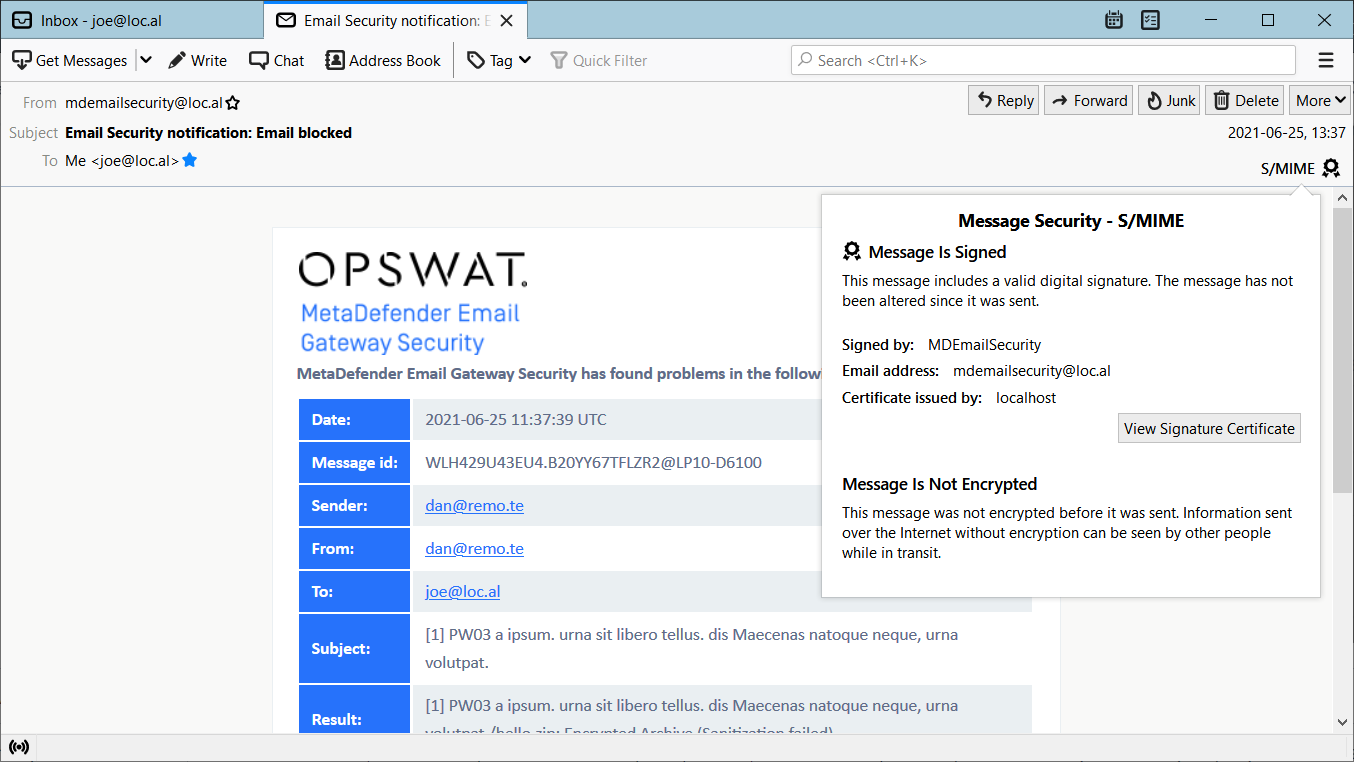

- Recipients can verify the digital signature.
The sender email address set under the Sender email address and the subject of the certificate set for S/MIME certificate must match, otherwise the digital signature on the email won’t validate.
The product verifies if the sender and the certificate subject match and displays a warning if not.
The certificate set for S/MIME certificate must support digitally signing emails.
The product verifies if the certificate is appropriate and displays a warning if not.

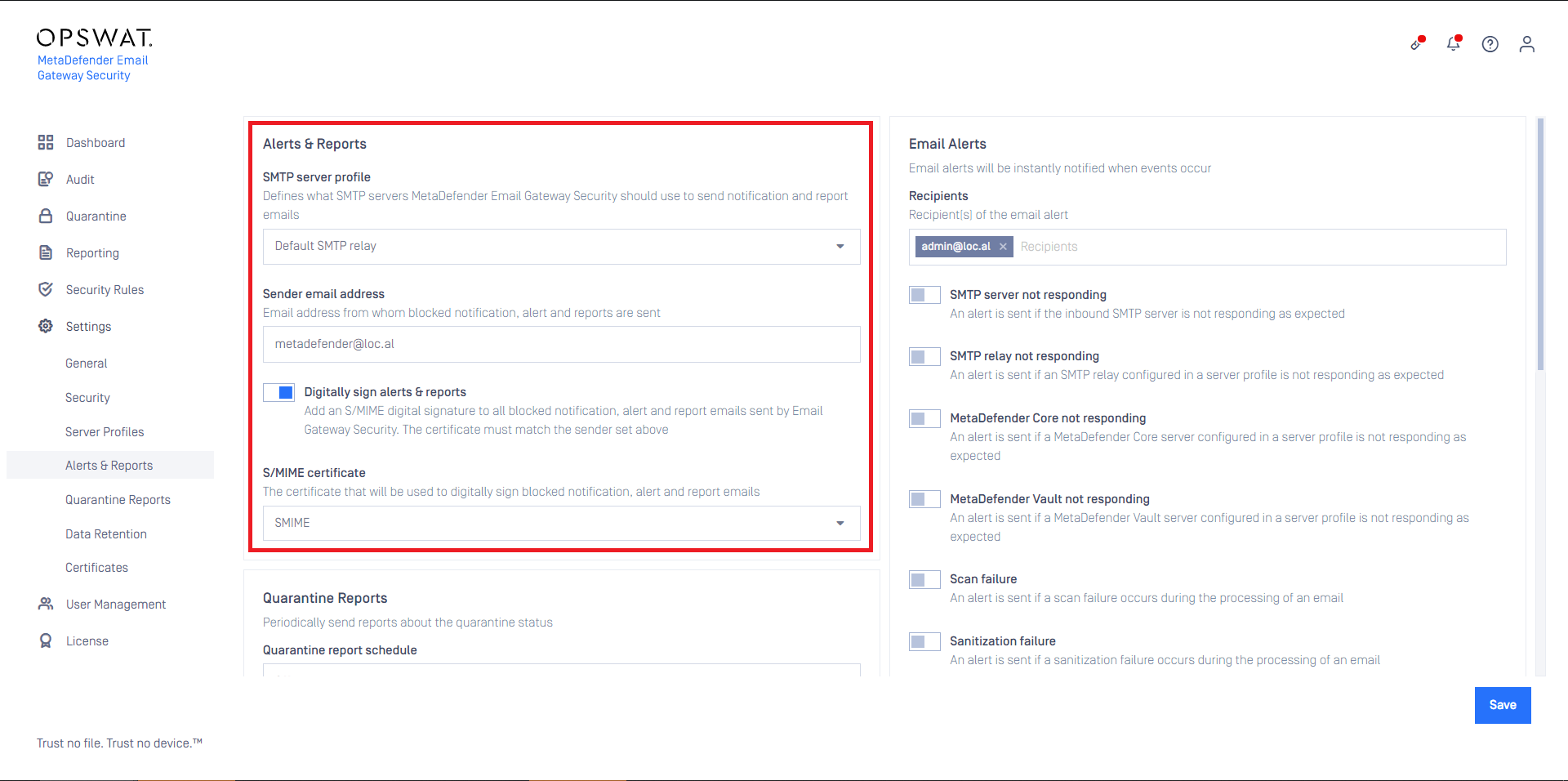

Common properties
Some properties are common among alerts, notifications and quarantine reports.
| SMTP server profile | Email Gateway Security will use a specific SMTP relay to deliver all alerts, notifications and reports. This SMTP server can be defined under Settings > Alerts & Reports / SMTP server profile. For further details see Server. |
|---|---|
| Sender email address | Email address from which the alert, notification or quarantine report emails are sent. This is used in the SMTP MAIL FROM command and the email From header. |
| Digitally sign alerts & reports | Whether or not to digitally sign report, notification and alert emails sent by the product. When enabled, an S/MIME digital signature is applied to the message using the certificate configured in the S/MIME certificate field. |
| S/MIME certificate | The certificate that is used to generate the digital signature. |
Alerts
Email alerts can be configured so that certain users can instantly be notified about the occurrence of certain system events.
| SMTP server not responding | An alert is sent if the inbound SMTP server is not responding as expected |
|---|---|
| SMTP relay not responding | An alert is sent if an SMTP relay configured in a server profile is not responding as expected |
| MetaDefender Core not responding | An alert is sent if a MetaDefender Core server configured in a server profile is not responding as expected |
| MetaDefender MFT not responding | A notification will be sent if a MetaDefender Managed File Transfer server configured in a server profile is not responding |
| MetaDefender MFT upload failure | An alert is sent if one or more attachments failed to upload to MetaDefender Managed File Transfer |
| Scan failure | An alert is sent if a scan failure occurs during the processing of an email |
| Sanitization failure | An alert is sent if a sanitization failure occurs during the processing of an email |
| Delivery of sanitized blocked email content | An alert is sent if a blocked sanitized email is delivered to recipient(s). MetaDefender Email Gateway Security will only deliver blocked sanitized content to recipient(s) when the option Security Rules > rule / ZERO-DAY MALWARE PREVENTION / Override sanitization behavior / Send sanitized version of blocked files is enabled. For further details see the Zero-Day Malware Prevention section in Configuration/Policy__. |
| Email refused | An alert is sent when an email is refused by MetaDefender Email Gateway Security. |
| Email failed | An alert is sent when an email fails processing and is moved to Failed. |
| Email bypassed | A notification will be sent if Email Gateway Security bypassed scanning an email. |
| Email refused by SMTP relay | A notification will be sent if an email is refused by a configured SMTP relay server. Example Deep CDR processing may significantly increase the email size. As a consequence the SMTP relay might refuse the email due to email size limitations (even if the recipient is valid). This notification can call the administrators' attention to cases like that. |
| Anti-Spam scan failure | An alert is sent when there is an error scanning an email with the anti-spam module |
| Anti-Spam engine not responding | An alert is sent when anti-spam engine is not responding |
| Queue size | A notification will be sent if the MetaDefender Email Gateway Security queue size exceeds the threshold configured for the QUEUE SIZE THRESHOLD value. Note A large queue does not necessarily indicate a failure, but can be due to a large influx of emails and processing of them is queued up to ensure optimal performance of MetaDefender Email Gateway Security. |
| No valid license | The product is not licensed (has never been, or the license expired). |
Example
If the queue size keeps exceeding the threshold for hours, then the alert is sent once every hour. But if the queue size is fluctuating around the threshold (sometimes exceeds, sometimes drops below) then the alert is sent every time the threshold is exceeded.
Example
If EMAIL BYPASSED option is set, then an alert is sent every time an email is bypassed by Email Gateway Security.
Alert emails are handled with priority. When the processing queue is long, alerts won't suffer a delay as alert emails are put to the head of the queue.
Notifications
Emails blocked due to malware or sensitive data
Notifications for emails that were blocked due to malware or sensitive are sent when emails are blocked by Advanced Threat Prevention (Multiscanning, OPSWAT Sandbox and Proactive DLP) and Security Rules >rule/ ADVANCED THREAT PREVENTION / Handling of the email is set to Block email.

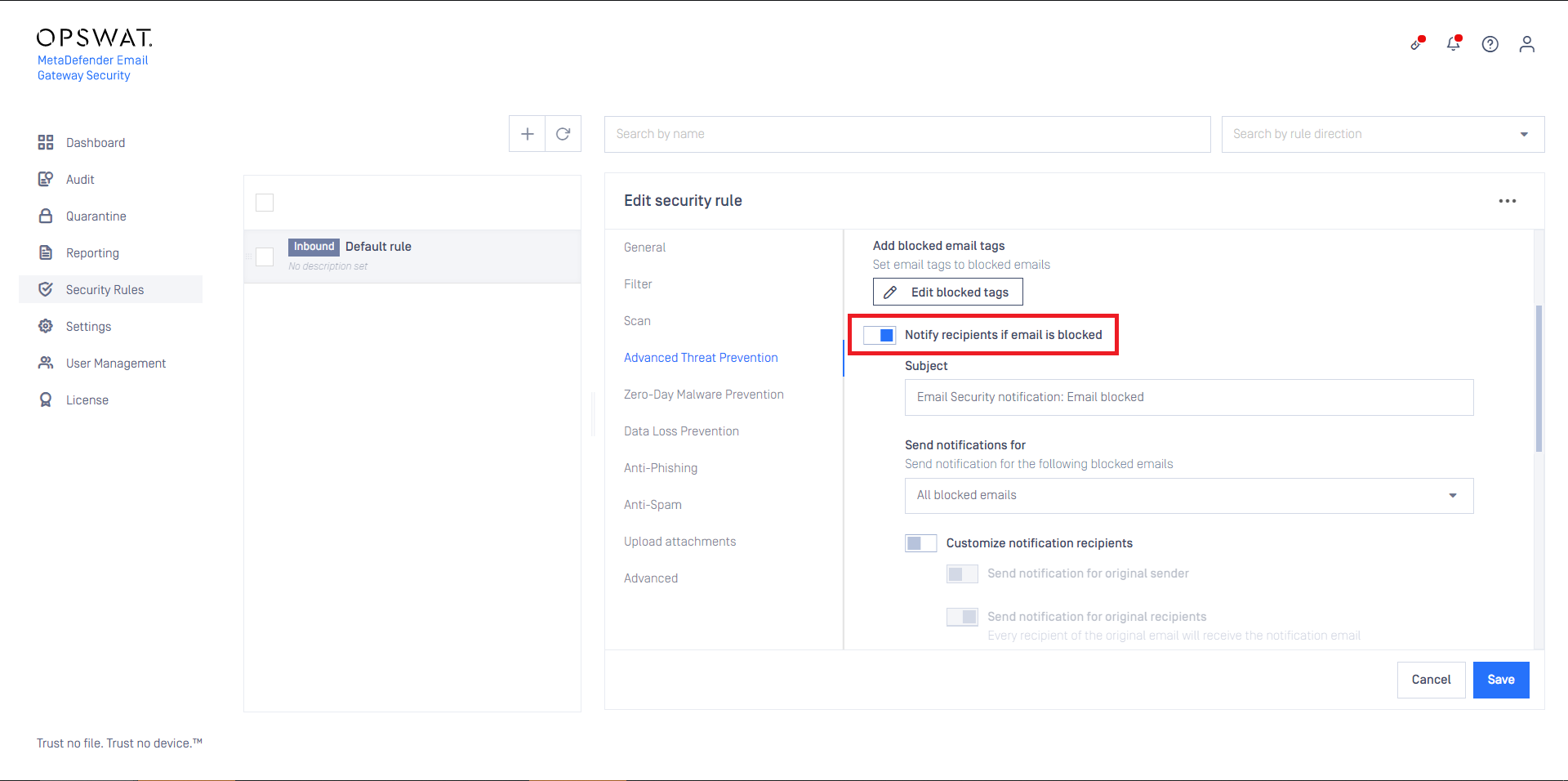

Notifying recipients about the blocked email can be enabled by Security Rules >rule/ ADVANCED THREAT PREVENTION / Notify recipients if email is blocked.
For further details see the Advanced Threat Prevention section in Configuration/Policy.

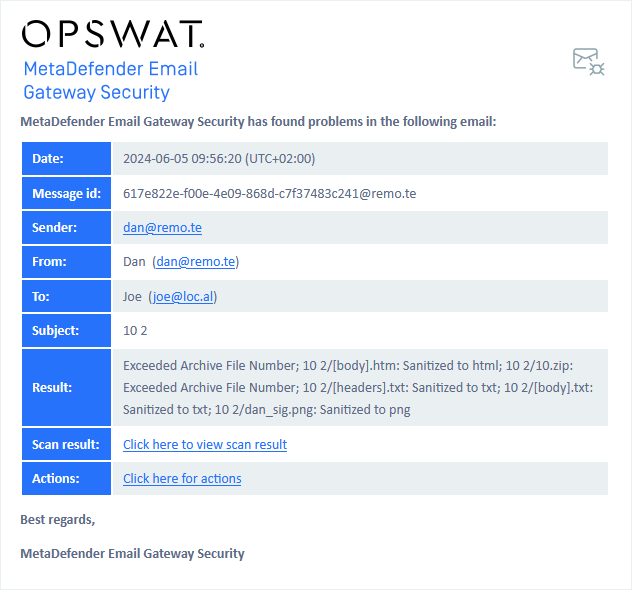

A notification email informs the recipient about the fact that the email was blocked, the blocking reason and the potential next steps.
Actions
Similarly to Quarantine reports, Email Gateway Security supports actions for the quarantined email from the notification email.
For the supported actions see Supported functions.
Quarantined spam and phishing emails

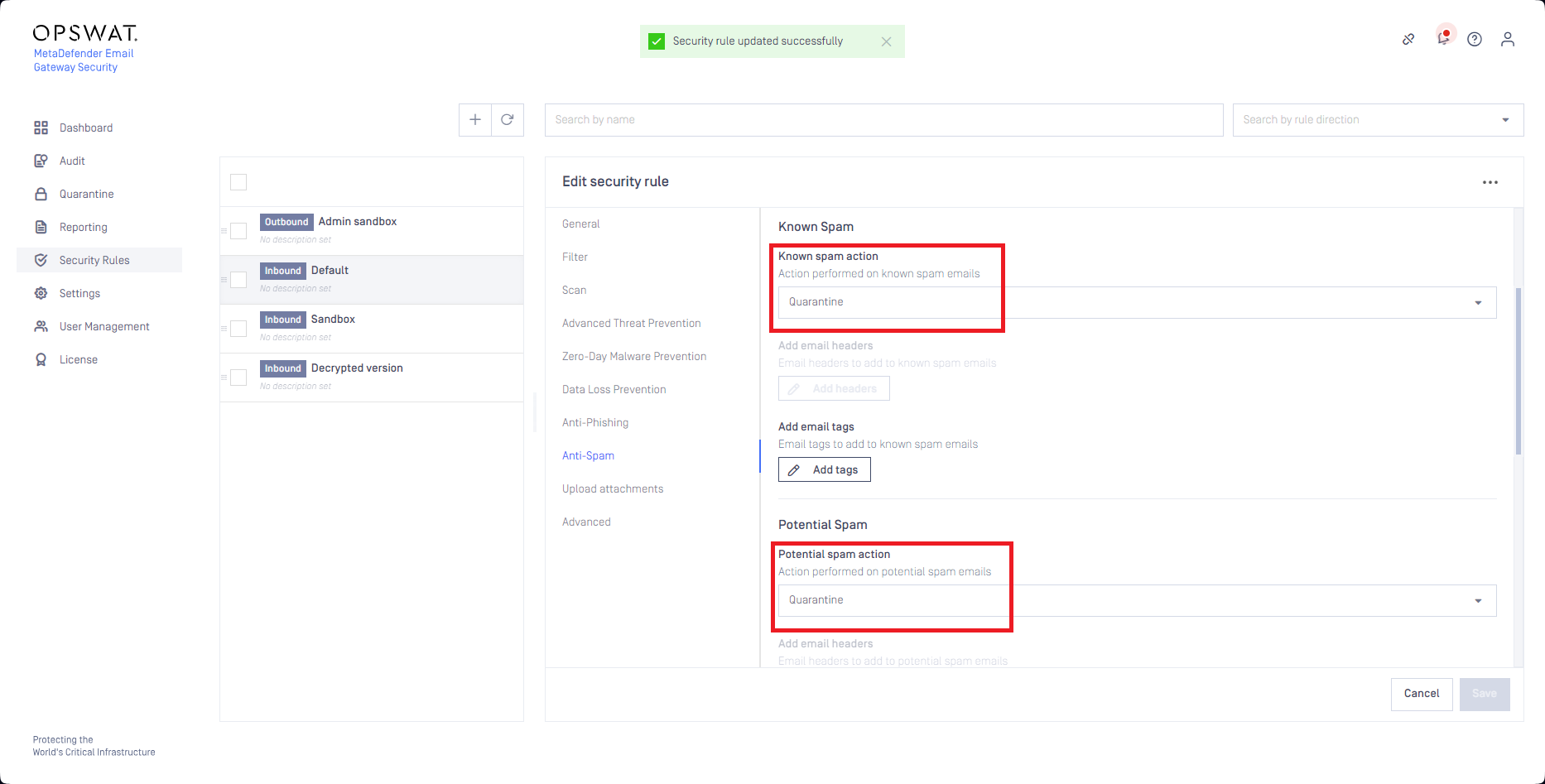

When the action on Known Spam, Potential Spam, Known Phishing or Potential Phishing emails is set to Quarantine, Email Gateway Security can be configured to send a notification about the quarantined email.

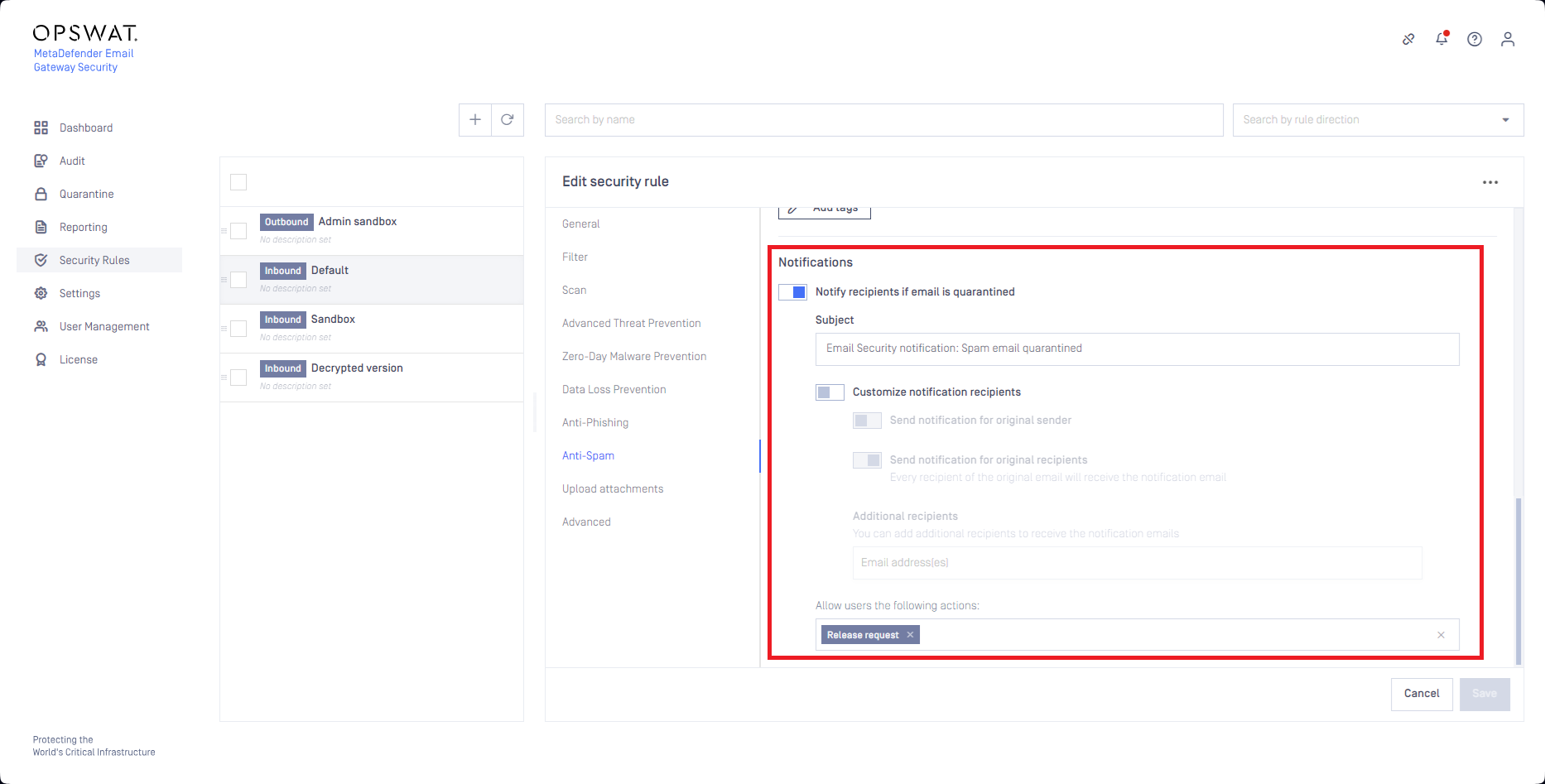

The notification settings for spam and phishing are the same as for notifications for emails blocked due to malware or sensitive data. The notification can be configured for each (Potential) Spam and (Potential) Phishing emails on the appropriate configuration tab in the security rule.
A notification email for a quarantined spam looks like the following:
Legacy quarantine reports
This function is obsolete and will be removed in a future version of Email Gateway Security.
Use the new quarantine report functionality configured under Settings > Quarantine reports instead.
For details see Configuration/Quarantine reports.
Settings > Alerts & Reports / Quarantine Reports are not available on a secondary instance of a scalable deployment. The quarantine reports must be configured on the primary instance.
For details see Operating/Scalable deployment operation.
MetaDefender Email Gateway Security can be configured to periodically send reports about the quarantine status.
Quarantine reports can be configured under Settings > Alerts & Reports / Quarantine Report.
The Quarantine report schedule can be the following in the MetaDefender Email Gateway Security server's time:
- Off: no reports are sent
- Hourly: a report is sent at every o'clock
- Daily a report is sent every day, at midday
- Weekly: a report is sent every Monday, at midday
- Monthly: a report is sent on the first day of every month, at midday
With Quarantine report rule the digest email may be restricted to inbound or outbound quarantined items only.
Both the Advanced Threat Prevention and the Zero-Day Malware Prevention (see Configuration/Policy) features can quarantine emails. With Only include quarantined emails that were blocked the quarantine report can be restricted to items quarantined by Advanced Threat Prevention only.
Quarantine report will not contain more than 1000 entries. If there were more than 1000 new quarantined entries since the last quarantine report you will have to check the actual quarantine for more information. If you set a restriction for reporting only blocked emails and/or reporting only inbound/outbound emails the numbers and entries in the quarantine report will reflect those options.
