Air-gapped

PostgreSQL version 16.9 or higher is required.

To install PostgreSQL in an air-gapped environment, download the required packages on a preparation machine and then transfer them to the air-gapped server. The preparation machine should have internet access and run the same operating system version as the target server.

Prerequisites

Before installing the PostgreSQL service, ensure the following requirements are met.

Requirement	Description
Operating System	Debian 12+, Ubuntu 22.04+, Rocky Linux 9+, or RHEL 9+.
Privileges	`root` or `sudo` privileges on both the preparation machine and the air-gapped server.
Hardware	Minimum 8 vCPU and 16 GB RAM.
Disk space	At least 1 TB of available storage on SSD or NVMe for optimal performance. Approximately 4 GB of storage is required per 1 million scanned objects for a deployment with 5 MD Core instances running 8 AV engines each.
Network access	Required port is open (default port: 5432). A minimum network bandwidth of 1 Gbps is required. A bandwidth of 5 Gbps or higher is strongly recommended for production deployments.
Offline Package Transfer	A USB drive or other secure transfer medium is required to move the packages to the air-gapped server.

Debian, Ubuntu

Prepare packages

On the preparation machine, run commands.

Bash

xxxxxxxxxx

# Set PostgreSQL version, replace "16" by the version you wantPOSTGRESQL_VERSION=16 # Install apt-rdependssudo apt install -y apt-rdepends # Automated repository configurationsudo apt install -y postgresql-commonecho "" | sudo /usr/share/postgresql-common/pgdg/apt.postgresql.org.sh # Automated get VERSION_CODENAMEsource /etc/os-releaseecho "Using VERSION_CODENAME: $VERSION_CODENAME" # Add PostgreSQL software repositorysudo tee /etc/apt/sources.list.d/pgdg.sources <<EOFTypes: deb deb-srcURIs: https://apt.postgresql.org/pub/repos/aptSuites: $(echo $VERSION_CODENAME)-pgdgArchitectures: amd64Components: mainSigned-By: /usr/share/postgresql-common/pgdg/apt.postgresql.org.ascEOF sudo apt update # Download packagemkdir -p postgresql-$POSTGRESQL_VERSION-offline && cd postgresql-$POSTGRESQL_VERSION-offlineapt-get download postgresql-$POSTGRESQL_VERSION postgresql-contrib # Download dependencies tooapt-rdepends -p postgresql-$POSTGRESQL_VERSION \  | grep -v "^ " \  | grep -v "^debconf" \  | xargs -I {} bash -c 'apt-get download "{}" || true' cd ..
Copy

Copy the postgresql-<version>-offline folder to a USB drive or secure transfer medium.
Move it to the air-gapped server.

Install PostgreSQL

On the target server, insert the USB drive or secure transfer medium.
Run the commands below in the postgresql-<version>-offline folder.

Bash

xxxxxxxxxx

# Installsudo dpkg -i ./*.deb # Configures PostgreSQL to start automatically whenever the system bootssudo systemctl enable --now postgresql # Setup login passwordsudo -u postgres psql -c "ALTER USER postgres WITH PASSWORD '<your_password>';"
Copy

Open connection

Locate the PostgreSQL data directory on your server.

Bash

xxxxxxxxxx

/etc/postgresql/<version>/main/
Copy

To allow remote connections, open the postgresql.conf file and configure the following setting:

postgresql.conf

xxxxxxxxxx

listen_addresses = '*'
Copy

To allow MetaDefender Cluster services to access the database, open the pg_hba.conf file and add the following rule.

pg_hba.conf

xxxxxxxxxx

hostssl    all             all             0.0.0.0/0            scram-sha-256
Copy

Restart the PostgreSQL service to apply the changes.

Bash

xxxxxxxxxx

sudo systemctl restart postgresql
Copy

Rocky, RHEL 9

Prepare packages

On the preparation machine, run commands.

Bash


# Set PostgreSQL version, replace "16" by the version you wantPOSTGRESQL_VERSION=16 # Install the repository RPMsudo dnf install -y https://download.postgresql.org/pub/repos/yum/reporpms/EL-9-x86_64/pgdg-redhat-repo-latest.noarch.rpm # Disable the built-in PostgreSQL modulesudo dnf -qy module disable postgresql # download packages (not install)mkdir -p postgresql-$POSTGRESQL_VERSION-offline \  && cd postgresql-$POSTGRESQL_VERSION-offline \  && sudo dnf download --resolve --alldeps --downloaddir . postgresql$POSTGRESQL_VERSION-server \  && sudo dnf download --resolve --alldeps --downloaddir . postgresql$POSTGRESQL_VERSION-contrib \  && cd ..
Copy

Copy the postgresql-<version>-offline folder to a USB drive or secure transfer medium.
Move it to the air-gapped server.

Install PostgreSQL

On the target server, insert the USB drive or secure transfer medium.
Run the commands below in the postgresql-<version>-offline folder.

Bash

xxxxxxxxxx

# Set PostgreSQL version, replace "16" by the version you wantPOSTGRESQL_VERSION=16 # Installsudo dnf install -y  ./*.rpm --disablerepo * --nobest --skip-broken # Configures PostgreSQL to start automatically whenever the system bootssudo /usr/pgsql-$POSTGRESQL_VERSION/bin/postgresql-$POSTGRESQL_VERSION-setup initdbsudo systemctl enable --now postgresql-$POSTGRESQL_VERSION # Setup login passwordsudo -u postgres psql -c "ALTER USER postgres WITH PASSWORD '<your_password>';"
Copy

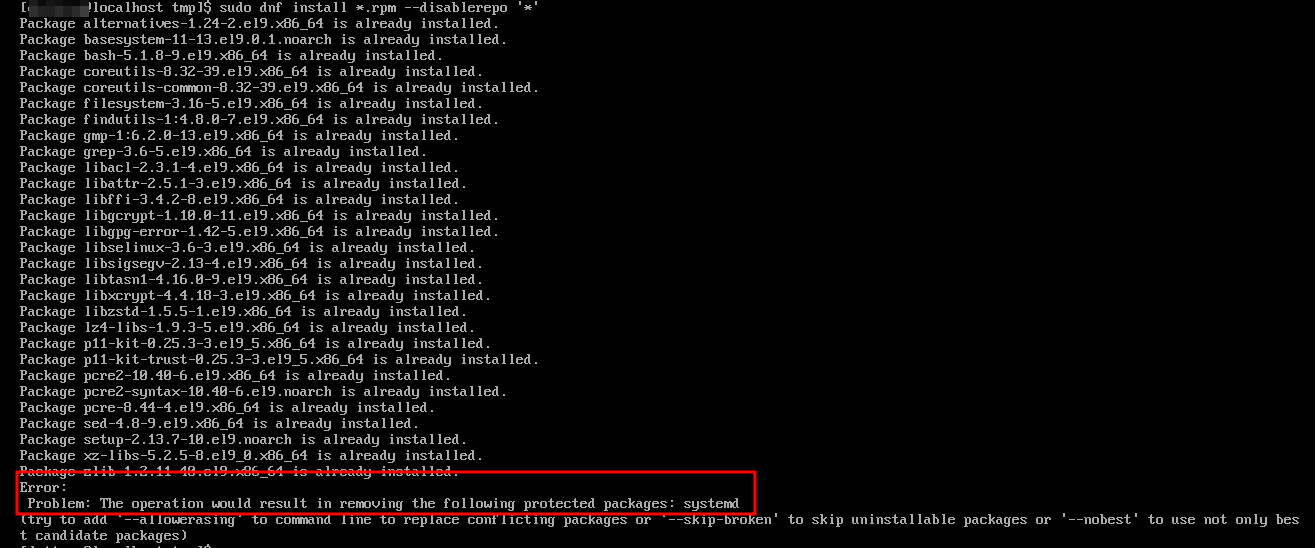

Sometimes, other dependencies require upgrading. Example:

You should manually download the dependencies using the command dnf download --resolve --alldeps --downloaddir . <package_names> . Then copy them to the postgresql-<version>-offline folder and install again.

Open connection

Locate the PostgreSQL data directory on your server.

Bash

xxxxxxxxxx

/var/lib/pgsql/16/data
Copy

To allow remote connections, open the postgresql.conf file and configure the following setting:

postgresql.conf

xxxxxxxxxx

listen_addresses = '*'
Copy

To allow MetaDefender Cluster services to access the database, open the pg_hba.conf file and add the following rule.

pg_hba.conf

xxxxxxxxxx

host    all             all             0.0.0.0/0            scram-sha-256
Copy

Restart the PostgreSQL service to apply the changes.

Bash

xxxxxxxxxx

sudo systemctl restart postgresql-16
Copy
