MetaDefender Core, ICAP User Management

MetaDefender CORE and ICAP have built-in capabilities to manage users directly within each product instance. For example, administrators can create a user by sending an API request directly to a MetaDefender CORE instance.

This is an MetaDefender Core API to get all users:

curl --get \ --url 'http://localhost:8008/admin/user' \ --header 'apikey: {apikey}'

However, this requires either local access to the instance or a network connection to it. If the administrator is on a different network, direct access may not be possible.

To overcome this limitation, administrators can enroll the MetaDefender CORE instance into My OPSWAT Central Management and perform the API through My OPSWAT Central Management as below:

curl -X POST --location 'https://product.my.us.opswat.com/fusion/console/services/connection/{{CONNECTION_ID}' \ --header 'Authorization: Bearer {{ACCESS_TOKEN}}' \ --header 'X-App-Method: GET' \ --header 'X-App-URL: /admin/user'

Here are steps

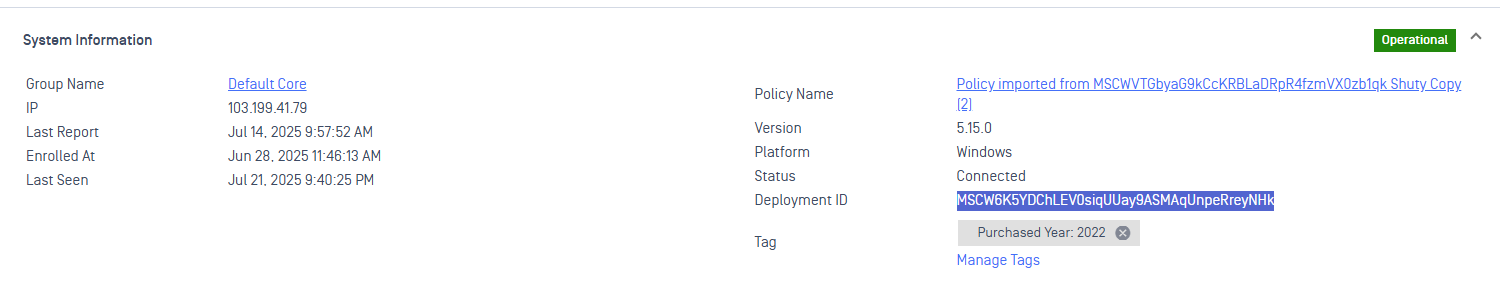

Step 1: Enroll the MetaDefender CORE instance into My OPSWAT Central Management and obtain the Deployment Id.

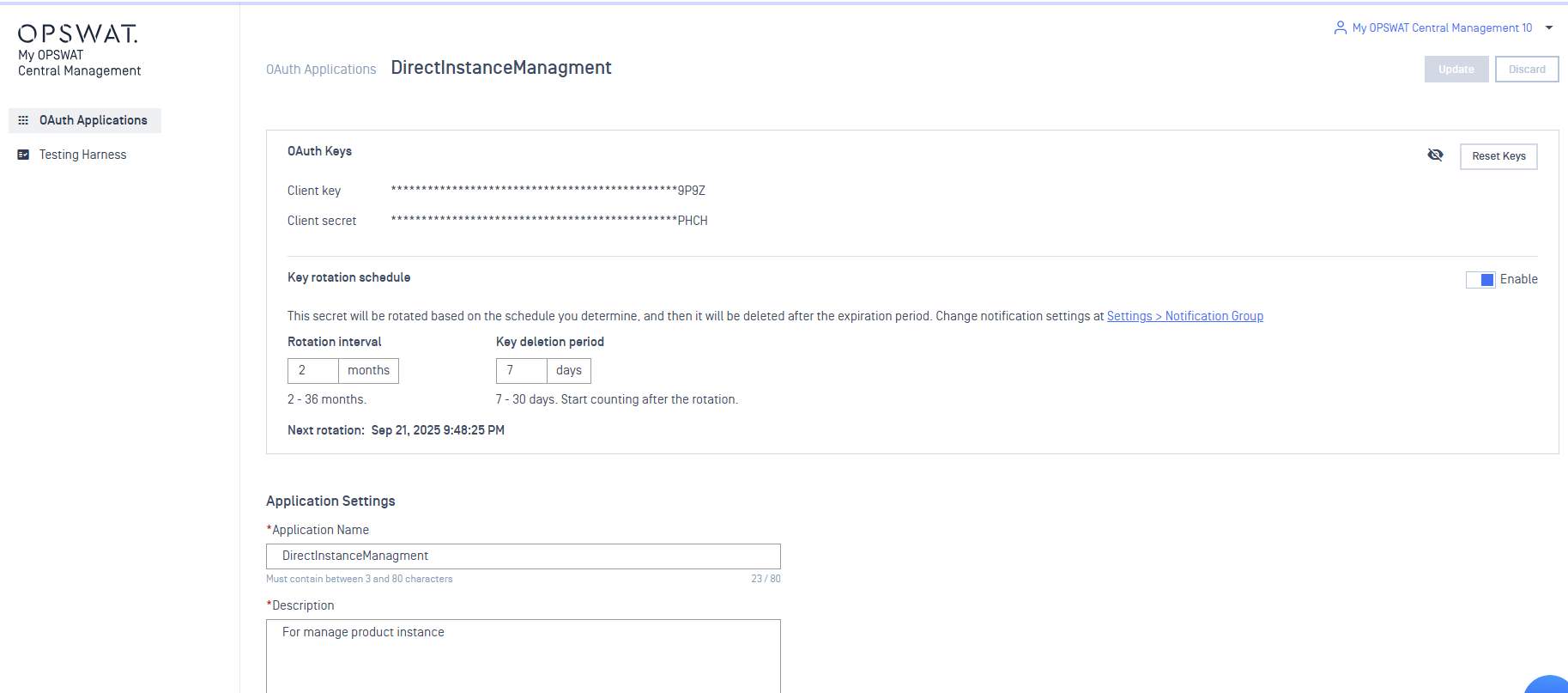

Step 2: Register an OAuth Application and retrieve the Client Key, Client Secret.

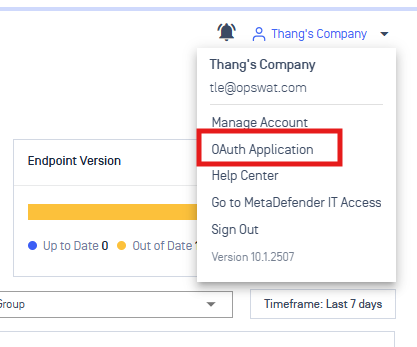

Access the My OPSWAT Central Management. On the right menu, select OAuth Application

Step 3: Retrieve the Access Token from OAuth 2 Authentication Flow

Use the Client Key and Client Secret from the registered application and call the My OPSWAT Central Management OAuth API to obtain an access token. This token will be used for authenticating subsequent API requests.

curl -X POST 'https://product.my.us.opswat.com/o/oauth2/token' -d 'client_id={{Client ID}}&client_secret={{Client Secret}}&grant_type=client_credentials'

Step 4: Retrieve the connection ID from MetaDefender Core.

Establish a Direct Instance Management connection from My OPSWAT Central Management to the MetaDefender CORE instance.

Request sample:

curl --location 'https://product.my.us.opswat.com/fusion/console/services/connection/request/mdcore' \ --header 'Content-Type: application/json' \ --header 'Authorization: Bearer {{access_token}}' \ --data '{ "deploymentId": "{{Product_Deployment_Id}", "Purpose": "Direct Instance Management" }'

Response example:

{ "connId": "63BdkJatrysSo4w4tGVjp8ShAtTFJgQfufwstdEG48k4tE6C9wDeLmCR46Ak1C73MkPsL4HAx6WoFixHXzLom5cCQnyRm56JngHK", "status": "REQUESTING" }

After creating the connection ID, the status will change from REQUESTING to CONNECTED. The API will work only if the connection status is CONNECTED. Use the below API to check if the connection is successfully established.

Request example

curl --location 'https://product.my.us.opswat.com/fusion/console/services/connection/63BdkJatrysSo4w4tGVjp8ShAtTFJgQfufwstdEG48k4tE6C9wDeLmCR46Ak1C73MkPsL4HAx6WoFixHXzLom5cCQnyRm56JngHK' \ --header 'Authorization: Bearer {{Auth_Token}}'

Response example

{ "connId": "63BdkJatrysSo4w4tGVjp8ShAtTFJgQfufwstdEG48k4tE6C9wDeLmCR46Ak1C73MkPsL4HAx6WoFixHXzLom5cCQnyRm56JngHK", "status": "CONNECTED" }

Step 5: Re-route API request from MetaDefender Core to My OPSWAT Central Management API:

URL: "https://product.my.us.opswat.com/fusion/console/services/connection/{connectionID}"
1. connnectionID: obtain from step 4
Method: POST
Add the following headers to reflect the MetaDefender Core APIs
1. ACCESS_TOKEN: obtain from step 3
2. X-App-Method: obtain from MetaDefender Core API documentation
3. X-App-URL: obtain from MetaDefender Core API documentation
4. data: obtain from MetaDefender Core API documentation

Example: How to re-route ' List all users ' from MetaDefender Core to My OPSWAT Central Management

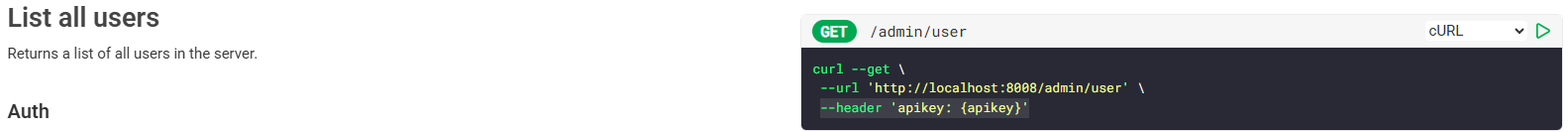

Get info from MDCore API - userlist

In this api, need to use method 'GET' and URL '/admin/user'

Convert MD Core API to Central Management API as below

API Request

API Response

[{ "api_key": "12345678901234567890123456789012", "directory_id": 1, "display_name": "Administrator", "email": "trung.dang@opswat.com", "id": 2, "last_seen_ip": "::1", "last_seen_timestamp": 1753717373374, "name": "Administrator", "rights": { "agents": [ "read", "write" ], "banner": [ "read", "write" ], "cert": [ "read", "write" ], "config_file_sync": [ "read", "write" ], "config_webhook": [ "read", "write" ], "configlog": [ "read", "write" ], "download": [ "anyone" ], "downloadfrom": [ "read", "write" ], "emailnotification": [ "read", "write" ], "engines": [ "read" ], "engines_update": [ "read", "write" ], "external": [ "read" ], "fetch": [ "anyone" ], "healthcheck": [ "read" ], "license": [ "read", "write" ], "logger": [ "read", "write" ], "maintain": [ "read", "write" ], "passwordstorage": [ "read", "write" ], "quarantine": [ "read", "write" ], "reporting": [ "read", "write" ], "requestrate": [ "read", "write" ], "retention": [ "read" ], "rule": [ "read" ], "scan": [ "read", "write" ], "scanlog": [ "read", "write" ], "skip": [ "read", "write" ], "statistics": [ "read", "write" ], "update": [ "read" ], "updatelog": [ "read", "write" ], "users": [ "read", "write" ], "webhook_auth": [ "read" ], "workflow": [ "read" ], "zone": [ "read" ] }, "roles": [ "1" ], "ui_settings": { "wf_order": [ "process_info", "archive", "compression", "filetype_analysis", "scan", "external_scanner", "ds", "dlp", "filescanio", "insightsti", "sbom", "external_action", "mddotcom", "vul", "blacklist", "whitelist", "reputation", "coo", "yara" ] } }]

Appendix

List of APIs supported by Meta Defender CORE

APIs	Document	Url	Method	From Version
Create user	https://www.opswat.com/docs/mdcore/metadefender-core#usercreate	/admin/user	POST	5.15.0
List all users	https://www.opswat.com/docs/mdcore/metadefender-core#userlist	/admin/user	GET	5.15.0
Delete a user	https://www.opswat.com/docs/mdcore/metadefender-core#userdelete	/admin/user/{user_id}	DELETE	5.15.0
Change user's API key	https://www.opswat.com/docs/mdcore/metadefender-core#changeuserapikey	/admin/user/(\d+)/apikey	PUT	5.15.0
Change Password for local user	https://www.opswat.com/docs/mdcore/metadefender-core#userchangepass	/user/changepassword	POST	5.15.0
List all roles		/admin/role	GET	5.15.0
List all user directories		/admin/userdirectory	GET	5.15.0
