Cross-domain API
Although cookie and client certificate integration methods work well under most scenarios. However, both methods heavily depend on browser applications and sometimes require end-users interaction which could introduce usability issues. My OPSWAT Central Management now offers a cross-domain API for you to integrate with your solution. This method leverages JSONP technology to overcome the cross-domain restrictions imposed by browsers' same-origin policy that limits access to resources retrieved from origins other than the one the page was served by.

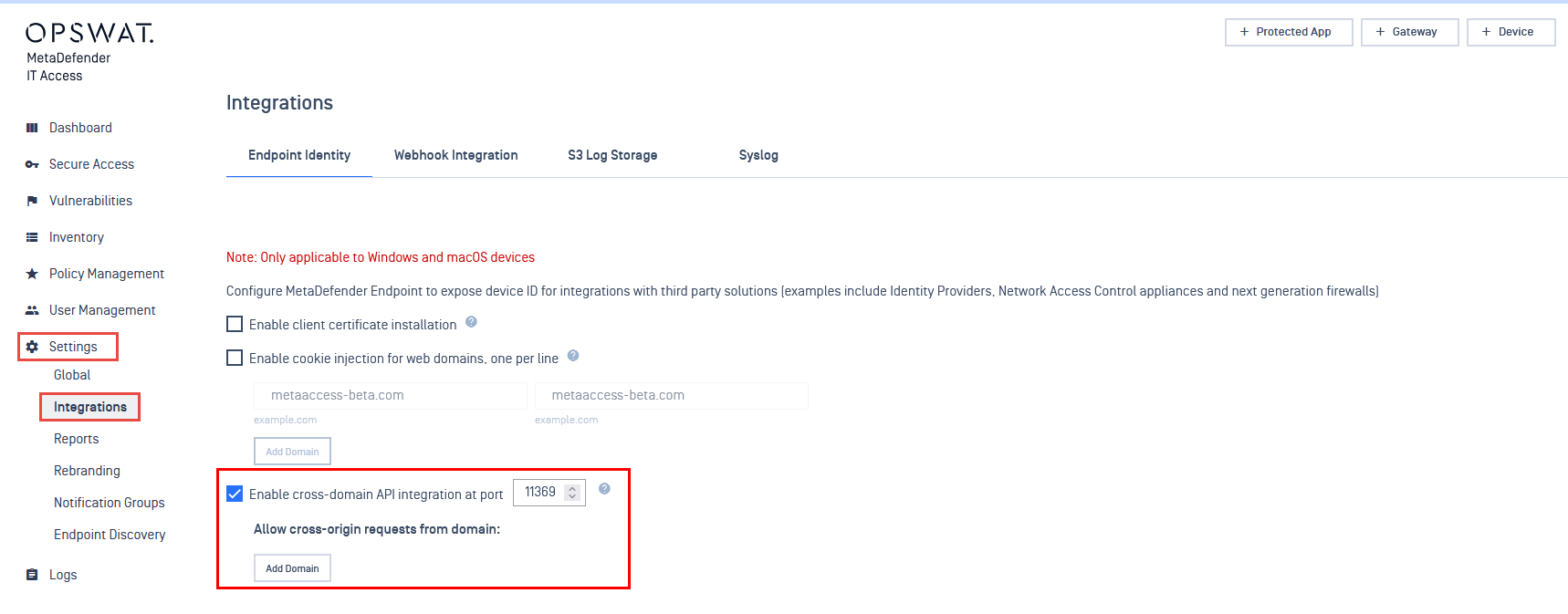

The cross-domain API can be enabled on My OPSWAT Central Management console as the screenshot below.
Once the cross-domain API setting is enabled, MetaDefender Endpoint tries to open a cross-domain API at the configured port on an endpoint. Please make sure that the configured port is valid and not used by any existing applications running on the same endpoint.
Whenever MetaDefender Endpoint is uninstalled/stopped, the cross-domain API will be closed and the configured port will be released on the endpoint.
API Description
Request
| Description | |
|---|---|
| URL path | https://eapi.opswatgears.com:[configuredport]/opswat/devinfo |
| URL path (API V3) | https://eapi.opswatgears.com:[configuredport]/opswat/3/devinfo |
| Method | GET |
In which:
- configured port: the port you configured for the cross-domain API settings on My OPSWAT Central Management account which the endpoint is reporting to.
- eapi.opswatgears.com is resolved as 127.0.0.1. If endpoints are running proxy, you need to add exception on the proxy settings to ignore queries to eapi.opswatgears.com.
For example:
Success response
The response json will be padded by the value of "callback" parameter
Error response
| Key | DataType | Definition |
|---|---|---|
| code | number | Status code. Values could be:
|
| description | string | result details |
| info | object | device information |
| info.hwid | string | device id of the device. This information is used to query device information from the cloud. |
Sample code V1 (Don't use JWT token to verify the response data - Less secure)
Client sample (you can download from here)
Note: you can find jquery-3.1.1.min.js and opswat.jsonp.js in the sample package.
Sample code V2: (Using JWT token to verify the response data - more secure)
Client sample (you can download from client_sample_code_v2.zip)
Note: you can find jquery-3.1.1.min.js, jsrsasign-all-min.js and opswat.jsonp.js in the client_sample_code_v2.zip.
Sample code V3: (Using JWT token to verify the response data and support Cross-Origin Resource Sharing - CORS)
Client sample (you can download from client_sample_code_v3.zip)
<html> <head> </head> <body> <div id="loader" style="display: none; position: fixed;left: 0px;top: 0px;width: 100%;height: 100%;z-index: 9999;background: url('page-loader.gif') 50% 50% no-repeat rgb(249,249,249);"></div> Server Port: <input type="text" id="server_port" value="11369" placeholder="11369"/><p> <div> <input type="button" value="Get Agent Info - JWT (More Secure) V3" onClick="submitGetAgentInfoJWT(true)"> <div id="error_msg" style="color: red; margin-top: 10px;"> </div> </div> <div id="hwid_field"> </div> <script type="text/javascript" src="jquery-3.1.1.min.js"></script> <!-- required, go along with opswat.casb.js --> <script type="text/javascript" src="jsrsasign-all-min.js"></script> <!-- required, go along with opswat.casb.js --> <script type="text/javascript" src="opswat.casb.js"></script> <!-- Opswat library --> <script type="text/javascript"> function myCallback( data_back ){ $('#loader').hide(); // callback function to handle response from cloud if ( data_back.code < 0 ) { $('#error_msg').html("Error: " + data_back.description ); return; } $('#hwid_field').text('Hardward ID: '+ data_back.info.hwid); } function submitGetAgentInfoJWT(isV3 = false) { // console.log(isV3); $('#hwid_field').text(''); $('#error_msg').html(''); $('#loader').show(); var sessionId = uuidv4(); // Using Opswat lib prototype to make a request to cloud var server_port = $('#server_port').val(); var casb = new OpswatCASB(); if(isV3) { casb.jsonp({ 'serverPort': server_port, 'callback' : myCallback, 'apiUrl' : '/opswat/3/devinfo', 'sessionId' : sessionId }); } else { casb.jsonp({ 'serverPort': server_port, 'callback' : myCallback, 'sessionId' : sessionId }); } } function uuidv4() { return ([1e7]+-1e3+-4e3+-8e3+-1e11).replace(/[018]/g, c => (c ^ crypto.getRandomValues(new Uint8Array(1))[0] & 15 >> c / 4).toString(16) ); } </script> </body></html>Note: you can find jquery-3.1.1.min.js, jsrsasign-all-min.js and opswat.jsonp.js in the client_sample_code_v3.zip** **
Success response:
Error response:
Support chart
As of November 10th, 2016, Cross-Domain API solution is only supported on persistent agents.
| Persistent agent | On-demand agent | |
|---|---|---|
| Windows | Yes | Yes |
| macOS | Yes | Yes |
| Linux | Yes | |
| Android | No | |
| iOS | No |
The below MetaDefender Endpoint versions support https protocol for the cross-domain API.
- Windows persistent agent version: 7.6.121.0+
- macOS persistent agent version: 10.4.147.0+
