Add A Dell EMC Isilon Storage

Product Specification RequirementsVersion
Dell EMC OneFSVersion 8.x
Service Message Block (SMB) protocolSMB 3.1.1 (or SMB3)

Integration with Dell Isilon is currently accomplished via the Service Message Block (SMB) protocol. Before you begin, you should ensure that this protocol is enabled in your Dell Isilon configuration.

In order to integrate Dell Isilon with MetaDefender Storage Security please follow these steps:

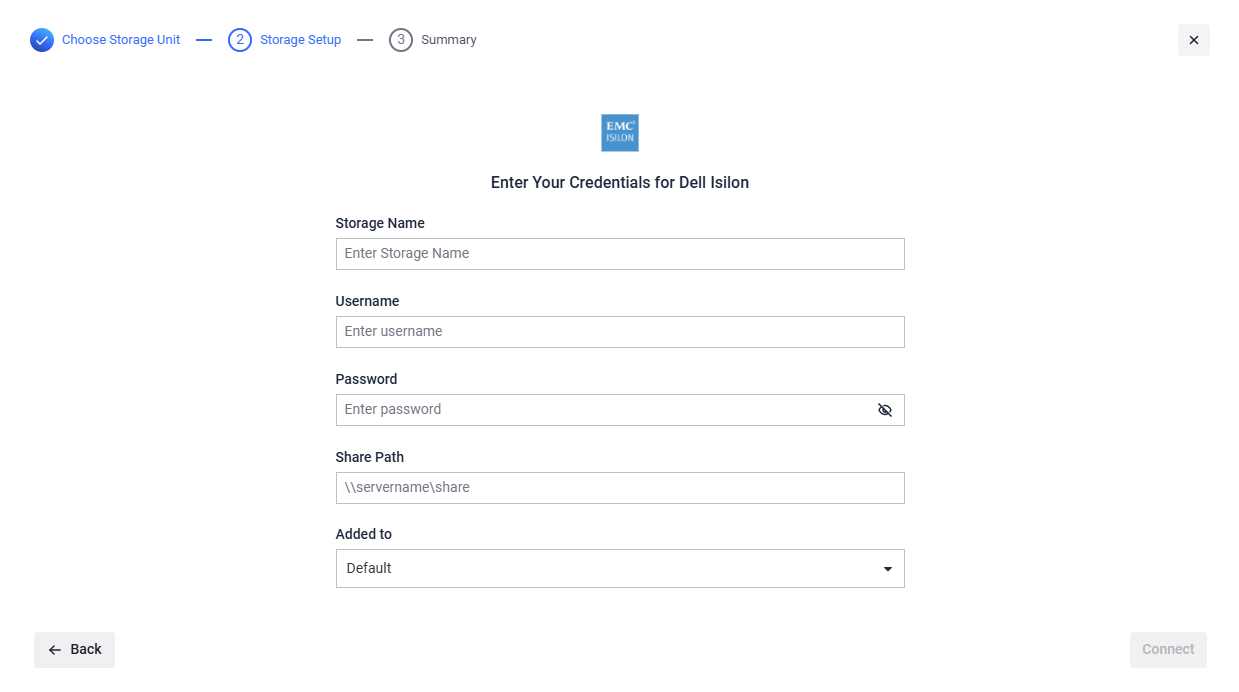

  1. From the left side menu, navigate to Storage units, click on Add storage unit and choose Dell Isilon

  1. Give your storage a name so you can easily identify it later

  2. Enter the Username that has access to the share. (The user should have at least read and write security permissions)

  3. Enter the Password.

  4. Fill in the SharePath field which represents the path to the share. The following formats are currently supported:

    1. file://servername/pathToShare
    2. \servername\pathToShare
    3. //servername/pathToShare
    4. smb://servername/pathToShare

  5. Click Add in order to finish the process.

To avoid authentication issues the Username should have one of the following formats:

  • local users should be .\username (for example: .\Administrator)
  • domain users should be username@domain or domain\username

If you use a hostname in the host portion of IPv4/v6 socket address, the program may show a non-deterministic behavior. The socket address will be resolved differently into an actual IPv4/v6 address, depending on the results from DNS resolution and/or the host configuration. For deterministic behavior use a numeric address in host portion.
