User directory

User directories

User directories organize users into separate authentication domains and allow you to manage login behavior for each directory independently.

The User directories page lets you:

• Create Local, Active Directory, or LDAP user directories

• Configure login policies for Local user directories

• Enable or disable user directories

• Edit or remove existing user directories

Default user directories

After installation, MetaDefender Cluster (MD Cluster) Control Center creates the following local user directories by default.

MD Cluster Control Center supports the following user directory types:

• Local

• Active Directory

• LDAP

Local user directories

A Local user directory stores user accounts directly in MD Cluster Control Center and MD Cluster API Gateway.

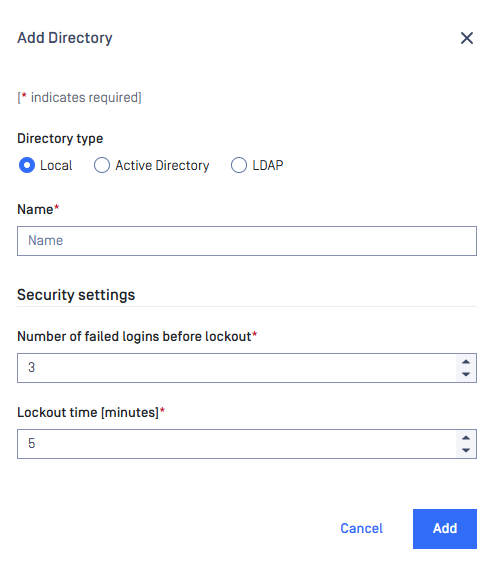

Create a Local user directory

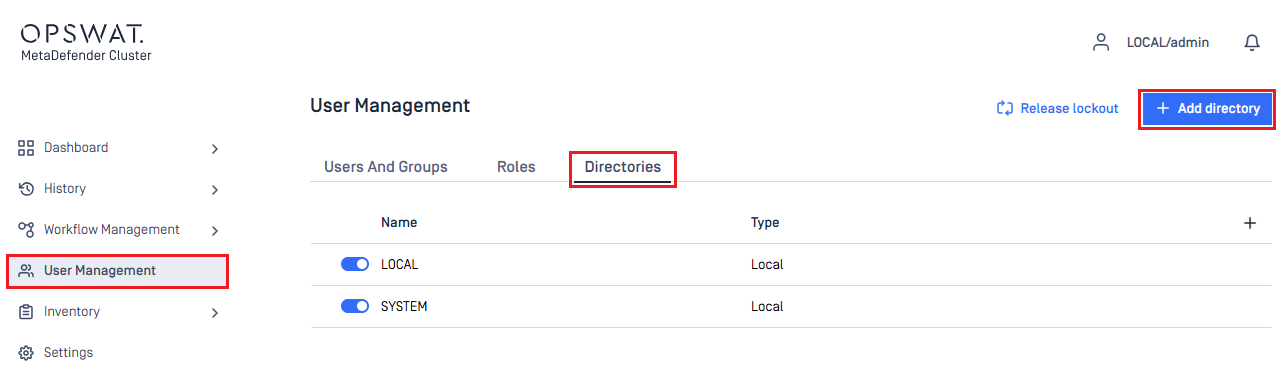

1. From the navigation pane, select User Management.

2. On the Directories tab, click Add Directory.

3. Select Local as the User Directory Type.

4. Enter a name for the new user directory.

5. Configure the security settings as needed.

6. Click Add to create the user directory.

Security settings

• Failed login attempts before lockout – The number of consecutive failed login attempts allowed before an account is locked.

• Lockout duration (minutes) – How long the account remains locked.

• The account is automatically unlocked when the lockout period expires.

• Administrators with the appropriate permissions can manually unlock an account before the timeout expires by clicking RELEASE LOCKOUT.

• Enable enhanced password policy – Enables the enhanced password policy for users in the directory. For more information, see Password Policy.

Active Directory user directories

An Active Directory user directory allows users from Microsoft Active Directory to authenticate to MD Cluster Control Center.

Authentication policies such as account lockout and password requirements are managed by Active Directory rather than MD Cluster.

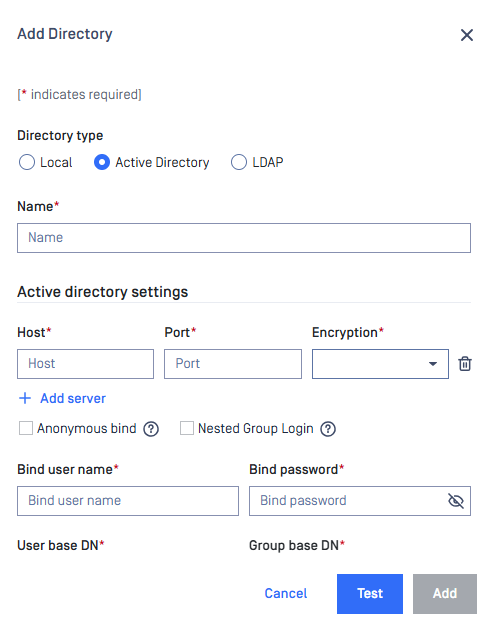

Configure an Active Directory user directory

1. From the navigation pane, select User Management.

2.


On the Directories tab, click Add Directory. 3. Select Active Directory as the User Directory Type. 4. Enter a name for the new user directory. 5. Configure the required Active Directory connection settings. 6. Click Test to verify the connection. 7. If the connection test succeeds, click Add to create the user directory.

Active directory settings

Configure one or more Active Directory servers by providing the following information:

• Host – Hostname or IP address of the Active Directory server.

• Port – Port used to connect to the Active Directory server.

• Encryption – Connection security protocol. Select one of the available options:

  • None – Connect without encryption.

  • StartTLS – Upgrade an LDAP connection to use TLS.

  • SSL – Establish an encrypted connection using LDAPS.

• Anonymous Bind – Allows MD Cluster Control Center to connect without providing bind credentials. Enable this only if your Active Directory server permits anonymous directory searches.

• Nested Group Login – Enables authentication for users who belong to nested Active Directory groups.

• Bind User Name – Distinguished Name (DN) of the account used to search the Active Directory.

• Bind Password – Password for the bind account.

• User Base DN – Distinguished Name (DN) that defines where MD Cluster Control Center begins searching for user accounts.

• Group Base DN – Distinguished Name (DN) that defines where MD Cluster Control Center begins searching for groups.

For guidance on selecting the appropriate Base DN values, see Active Directory/LDAP attributes.

LDAP user directories

An LDAP user directory allows users stored in an LDAP directory service to authenticate to MD Cluster Control Center.

Authentication policies are managed by the LDAP server rather than MD Cluster Control Center.

Configure an Active Directory user directory

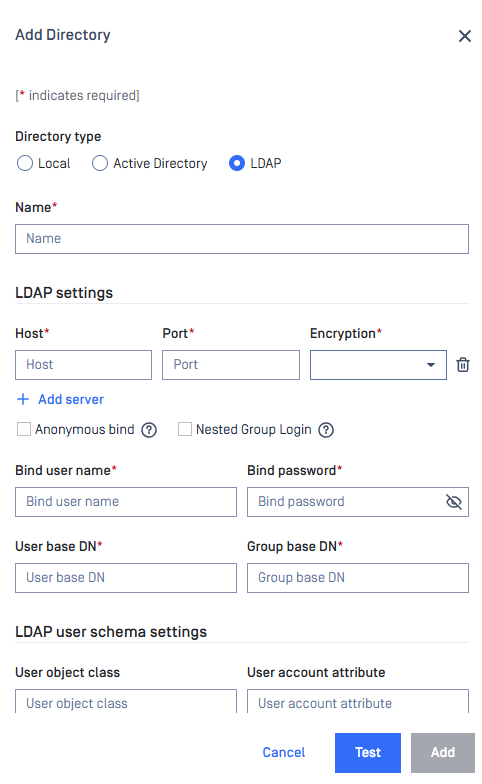

1. From the navigation pane, select User Management.

2.


On the Directories tab, click Add Directory. 3. Select LDAP as the User Directory Type. 4. Enter a name for the new user directory. 5. Configure the required Active Directory connection settings. 6. Click Test to verify the connection. 7. If the connection test succeeds, click Add to create the user directory.

LDAP directory settings

Configure one or more LDAP servers by providing the following information:

• Host – Hostname or IP address of the Active Directory server.

• Port – Port used to connect to the Active Directory server.

• Encryption – Connection security protocol. Select one of the available options:

  • None – Connect without encryption.

  • StartTLS – Upgrade an LDAP connection to use TLS.

  • SSL – Establish an encrypted connection using LDAPS.

• Anonymous Bind – Allows MD Cluster Control Center to connect without providing bind credentials. Enable this only if your Active Directory server permits anonymous directory searches.

• Nested Group Login – Enables authentication for users who belong to nested Active Directory groups.

• Bind User Name – Distinguished Name (DN) of the account used to search the Active Directory.

• Bind Password – Password for the bind account.

• User Base DN – Distinguished Name (DN) that defines where MD Cluster Control Center begins searching for user accounts.

• Group Base DN – Distinguished Name (DN) that defines where MD Cluster Control Center begins searching for groups.

Limitations

For security reasons, MetaDefender Cluster prevents administrators from performing the following actions:

• Disable the user directory that contains their own account.

• Delete their own user account.

• Delete the user directory that contains their own account.

For example, the built-in admin user cannot disable or delete the LOCAL user directory because the account belongs to that directory.
