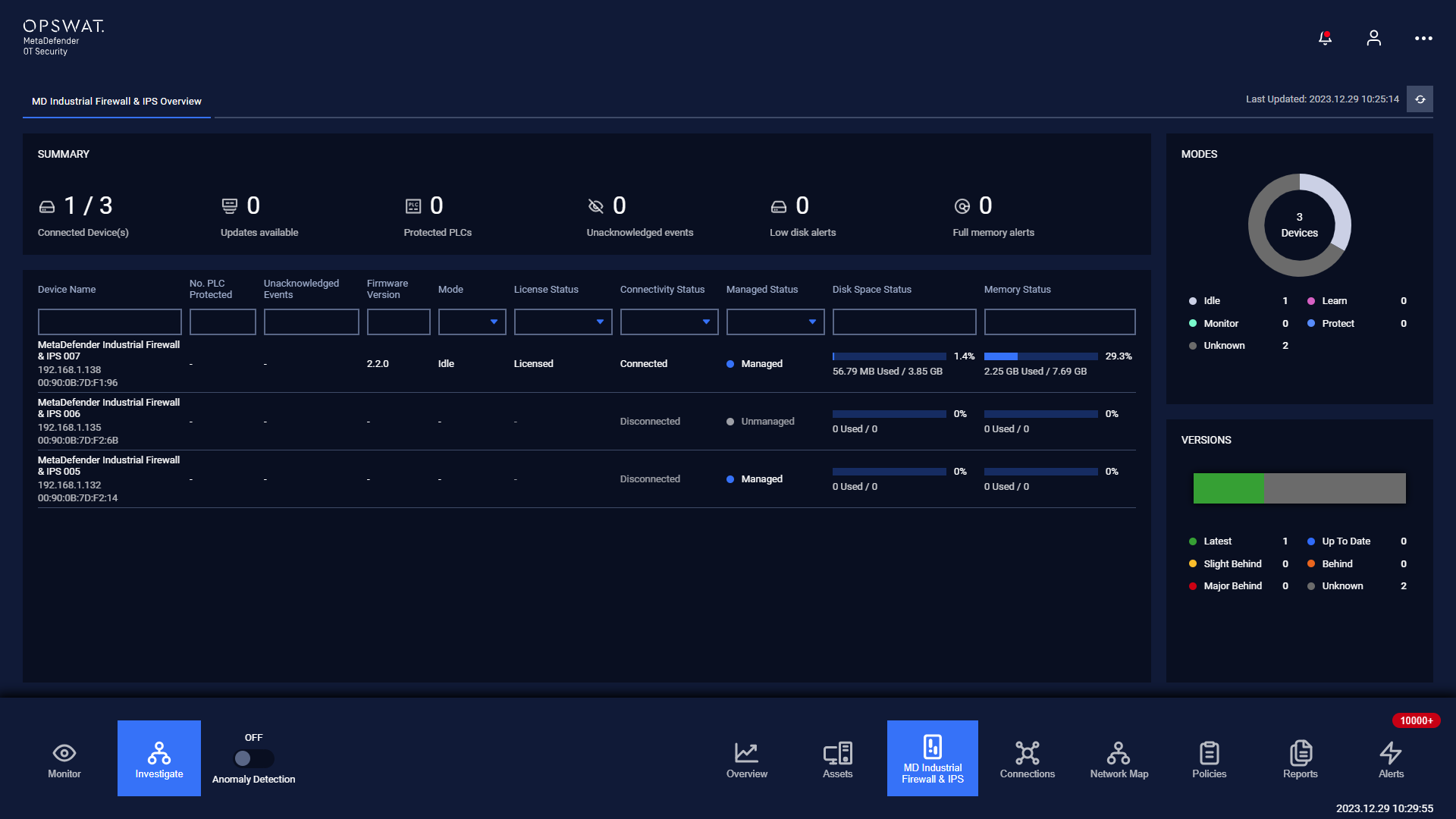

The list of MetaDefender Industrial Firewall & IPS is accessible under MetaDefender Industrial Firewall & IPS menu
The list of MetaDefender Industrial Firewall & IPS contains all the information about MetaDefender Industrial Firewall & IPS in the system.

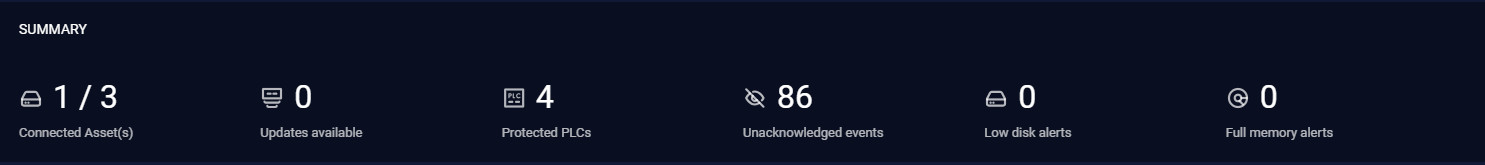

The part Summary displays statistics about:
Total connected MetaDefender Industrial Firewall & IPS: Total number of connected MetaDefender Industrial Firewall & IPS.
Updates available: Total number of MetaDefender Industrial Firewall & IPS having new versions need to be updated.
Protected PLCs: Total number of PLCs that are protected in the system.
Unacknowledged events: Total number of unacknowledged events.
Low disk alerts: Total number of alerts related to the free space of the disk.
Full memory alerts: Total number of alerts related to full memory.

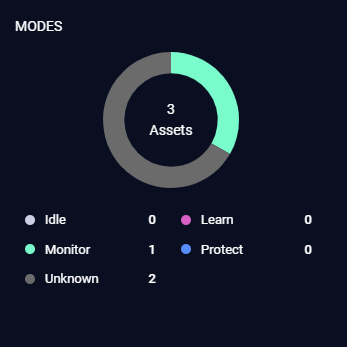

Modes
This field displays a summary of the connected MetaDefender Industrial Firewall & IPS mode.

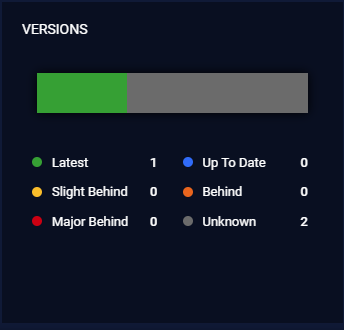

Versions
This field displays a summary of the connected MetaDefender Industrial Firewall & IPS version.
For versions of connected MetaDefender Industrial Firewall & IPS bar, there are 5 colors can be displayed:
Green: display the number of MetaDefender Industrial Firewall & IPS having Latest version.
Blue: display the number of MetaDefender Industrial Firewall & IPS having Up To Date version.
Yellow: display the number of MetaDefender Industrial Firewall & IPS having Slight Behind version.
Orange: display the number of MetaDefender Industrial Firewall & IPS having Behind version.
Red: display the number of MetaDefender Industrial Firewall & IPS having Major Behind version.
Grown: display the number of MetaDefender Industrial Firewall & IPS having Unknown version.
MetaDefender Industrial Firewall & IPS List
Each row contains the following fields:
Device Name
No. of protected PLC
Unacknowledged Events
Firmware Version
Mode
License Status: No License/Licensed
Connectivity Status: Disconnected/Connected (whether MetaDefender OT Security can connect the MetaDefender Industrial Firewall & IPS device or not)
Managed Status: Managed/Unmanaged (whether MetaDefender OT Security can manage the MetaDefender Industrial Firewall & IPS device or not)
Disk Space Status
Memory Status
Filter
We support filtering on the list of MetaDefender Industrial Firewall & IPS:
User can enter a value for one or more fields, and the result list and the number of total records will be updated according to the value(s) you entered.
