MetaDefender OT Security All-in-One Machine

Prerequisites

This table lists the operating and storage specifications of Dell OptiPlex 7400 All-in-One machine.

DescriptionOperatingStorage
Temperature10°C to 35°C (50°F to 95°F)-40°C to 65°C (-40°F to 149°F)
Humidity20% to 80% (non-condensing)5% to 95% (non-condensing)
Vibration0.26 GRMS1.37 GRMS
Shock40 G†105 G†
Altitude range0m to 3048m (0ft to 10000ft)0m to 10668m (0ft to 35000ft)

Hardware requirements

If any items you are supposed to receive are missing or damaged, please contact Support.

You will receive a package from OPSWAT containing the following:

  • MetaDefender OT Security AIO Machine.
  • 1 x Keyboard
  • 1 x Mouse
  • 2 x USB-to-Ethernet adapter.

The installation location must provide:

  • 3 x ethernet cables.
DescriptionAIO Machine
Processor12th Generation Intel Core i9-12900 (16 Cores/30MB/32T/2.4GHz to 5.1GHz/65W)
Memory32GB (1x32GB) DDR4
GraphicsAMD Radeon RX 6500M
Hard DiskM.2 2280 1TB PCIe NVMe Class 40 Solid State Drive
Monitor/Display7400 AIO 23.8" FHD 1920x1080 WVA Touch Anti-Glare, IR Camera, Discrete Graphics, Platinum 220w PSU
Operating SystemLinux Ubuntu Server 20.04 LTS (amd64)
I/o ports1 x Ethernet USB 3.2 Gen 2 ports with Smart Power On USB 3.2 Gen 2 ports HDMI-IN - HDMI 1.4 port HDMI-OUT - HDMI 2.0 port
Network Adapter
  • 1 x Onboard RJ-45 Gigabit Ethernet Network Adapter (*)
  • 1 x Intel Wi-Fi 6E (6GHz) AX211 2x2 Bluetooth 5.2 Wireless Card
  • 2 x Add-on USB 3.0 to RJ-45 Gigabit Ethernet Network Adapter (**)

Views of MetaDefender OT Security All-in-One

Front
  1. Full HD webcam
  2. Camera-status light
  3. Display
  4. Speakers
  5. Power button/power-status indicator
  6. Array microphones

Left
  1. SD 4.0 card slot
  2. USB 3.2 Gen 2x2 capable Type-C port
  3. Universal audio port
  4. USB 3.2 Gen 1 port with PowerShare

Right
  1. Hard-drive status indicator

Back
  1. Back cover
  2. Stand cover
  3. Kensington security-cable slot
  4. Bottom cover
  5. Stand

Bottom
  1. Cable cover screw hole
  2. HDMI-IN—HDMI 1.4 port
  3. HDMI-OUT—HDMI 2.0 port
  4. DP++ 1.4a/HDCP 2.3 port
  5. RJ-45 Ethernet port
  6. USB 3.2 Gen 2 ports with Smart Power On
  7. USB 3.2 Gen 2 ports
  8. Line-out audio port
  9. Power connector
  10. PSU status indicator LED

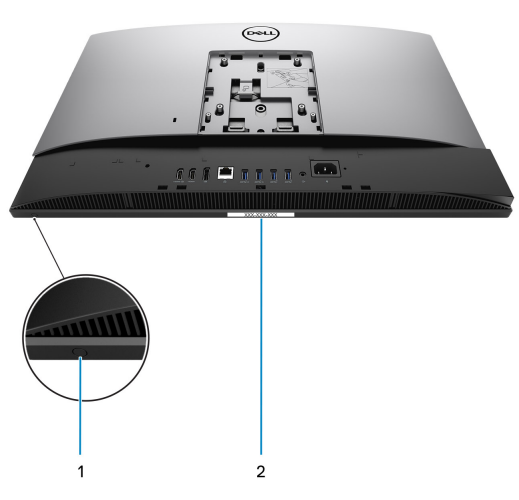

  1. Display Built-in Self Test button
  2. Service tag label

Refer to [https://dl.dell.com/content/manual17615440-optiplex-7400-all-in-one-setup-and-specifications.pdf?language=en-us&ps=true](Optiplex 7400)
