Connection Allow List

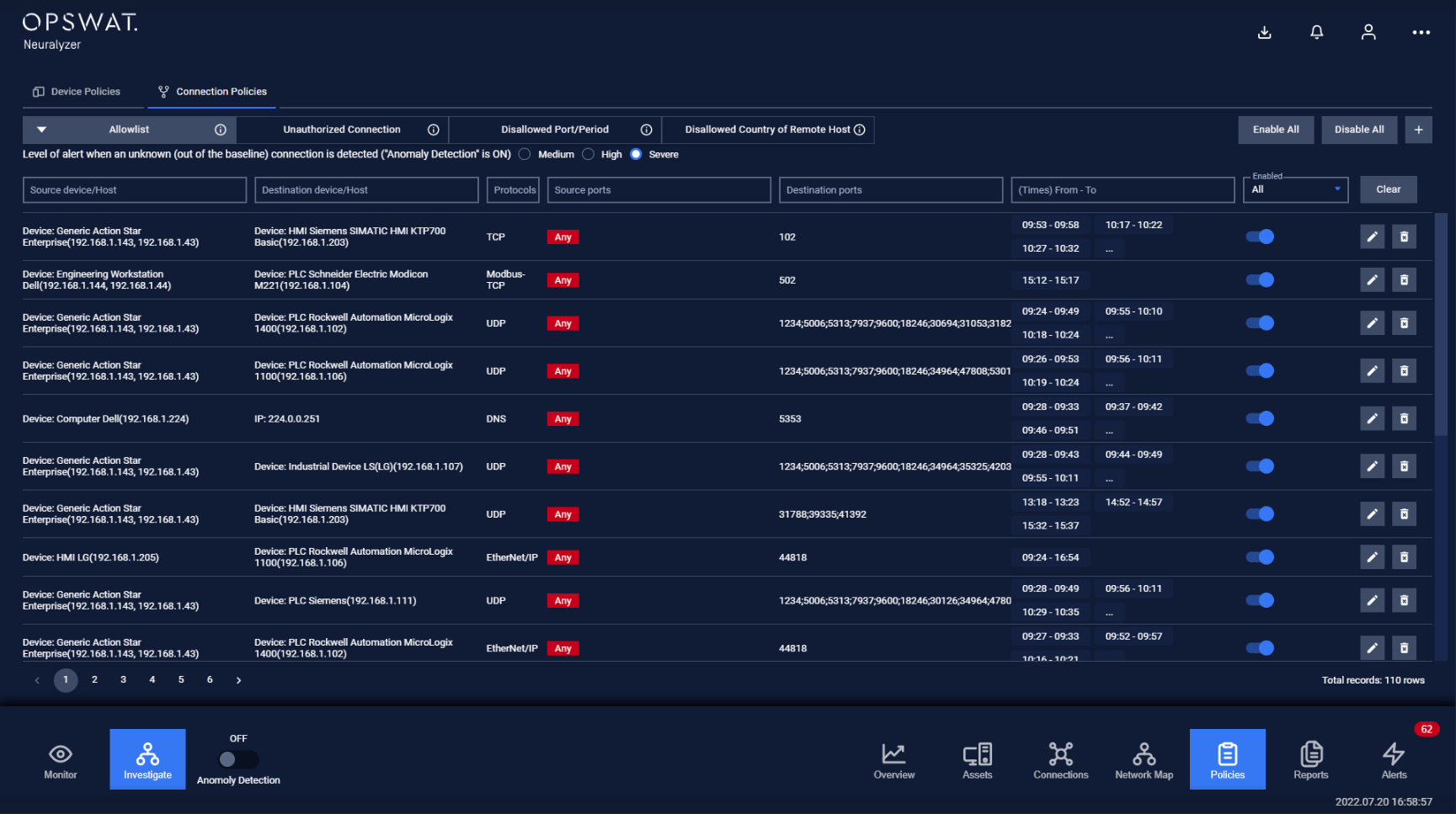

The device allowlist is accessible under Policies → Connection Policies → Allowlist.

The connection allowlist contains a list of connection policies that are allowed to communicate between devices in the system. These policies are learned during discovery phase or manual input by user. if the device violates any rules in this connection policy, an alert will be triggered.

This page show policies that is allowed when a connection is established between the source and destination devices, including:

  • Allowed protocol.
  • Allowed source port.
  • Allowed destination port.
  • The period time allowed to communicate.
  • Allowed time threshold for no connection between 2 devices. (Setting by protocol settings)

Any violation related to the policies in the allowlist will make Neuralyzer trigger alerts.

Policies in the allowlist will be created, updated or added more detail through:

  • Learning when Neuralyzer is in Discovery mode.
  • Manually added by the user.
  • Automatically added when the user resolved a connection alert (Anticipated).

Actions on Connection Allow List

1. View policy

Connection allowlist page is paginated, each page contains 20 records, the total number of policy records are displayed at the bottom of the list.

Policies are displayed in a list, each record contains the following information:

  • Source device: field source device can have these following values:

    • Device name in the system, detected by Neuralyzer.
    • Device type/subtype, which indicates that the policy will apply to all devices of that type/subtype.
    • Device vendor, detected by Neuralyzer.
    • “Any”, which indicates that the policy will apply to all devices.
  • Destination device: as same as source device.

Note: Device type will be displayed with green background, “Any” will be displayed with red background.

  • Protocol: Each record displays a single protocol that allow for the connection between 2 devices.
  • Source ports: Contains a list of ports that are allowed to establish connections from these ports.
  • Destination port: Contains a list of ports that are allowed to receive connections to these ports.
  • From: Connection must not be available before this time.
  • To: Connection must not be available after this time.
  • Enabled/Disabled: Turn on/off policy.

2. Create a new policy

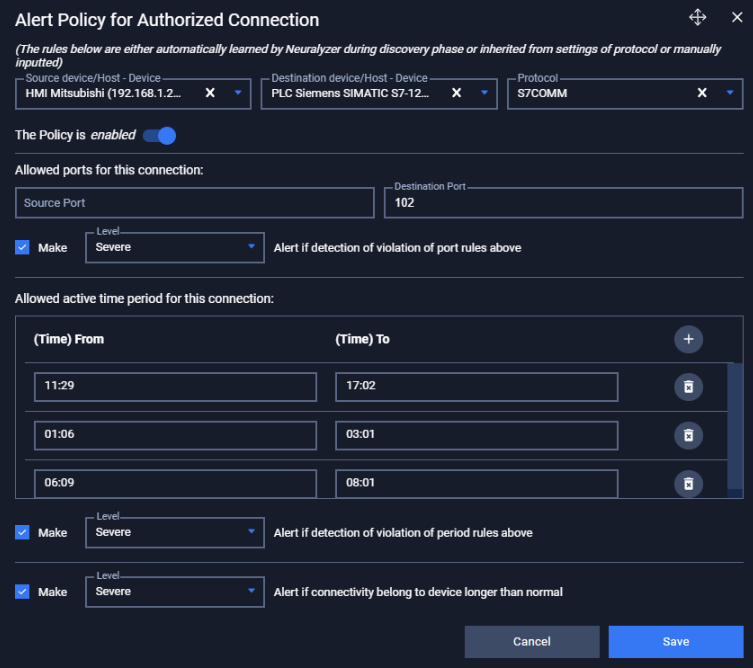

You can create a new policy by tapping on button “+” on the top right of the Policy screen, a policy creation pop-up will appear

FieldType of inputNote
Source deviceChoose from drop-down list Input device name (support searching by device’s name and IP)Choose a specific device to apply to that device only Choose a device type to apply to all devices of that type Choose a vendor to apply to all devices have that vendor Choose option “Any” to apply to all devices
Destination deviceChoose from drop-down list Input device name (support searching by device’s name and IP)Choose a specific device to apply to that device only Choose a device type to apply to all devices of that type Choose a vendor to apply to all devices have that vendor Choose option “Any” to apply to all devices
ProtocolChoose from drop-down list Input protocol name (support searching by layer and protocol’s name)Choose a specific protocol to allow only that protocol (support searching by protocol name) Left blank to allow all protocol
Enable/Disable policy optionTap to turn on/off policyOnce disabled, the policy will not be applied when turn on anomaly detection
Alert option for inactive connectionCheck on check box to enable Uncheck to disableOnce unchecked, Neuralyzer will not alert if the connection violates the inactive time threshold
Criticality for inactive connection alertChoose from drop-down list
Allowed source portInput value in number formatPort numbers range from 0 to 65535 Support multi-ports input, separated by semicolon
Allowed source destinationInput value in number formatPort numbers range from 0 to 65535 Support multi-ports input, separated by semicolon
Alert option for allowed source/destination portCheck on check box to enable Uncheck to disableOnce unchecked, Neuralyzer will not alert if the connection violates the allowed source/destination ports
Allowed time fromChoose time from the clock pop-up
Allowed time toChoose time from the clock pop-up
Alert option for allowed time periodCheck on check box to enable Uncheck to disableOnce unchecked, Neuralyzer will not alert if the connection violates the allowed time period

3. Edit policy

You can edit a policy by tapping on “Edit” button on the right of each policy record, a policy editing pop-up will appear.

In the pop-up editing, you can see the detail policy. You can edit by clicking on the field to be edited and perform input operations like when creating a policy.

When finished editing, click “Save” to save the changes or “Cancel” to discard all.

4. Filter policy

Filter for policy list is located at the top of the policy page.

You can search on one or more fields of the policy, just input value onto one or more fields on.

E.g. You want to search policy for a source device with ip 192.168.1.120 and protocol is modbus, proceed to input “192.168.1.120” into field source device and “modbus” into field protocol, the result list will display

Click the “Clear” button to clear the values in the filters.

Note: You can input device name or IP into source device or destination device field, we support searching device by both name and IP.

5. Remove policy

You can remove a policy from the list by clicking the "Delete" button on each the policy record.
