How do I send RADIUS Accounting to NAC for Aruba Mobility Controllers?

This article applies to the Aruba Mobility Controller, and the current NAC Enforcer

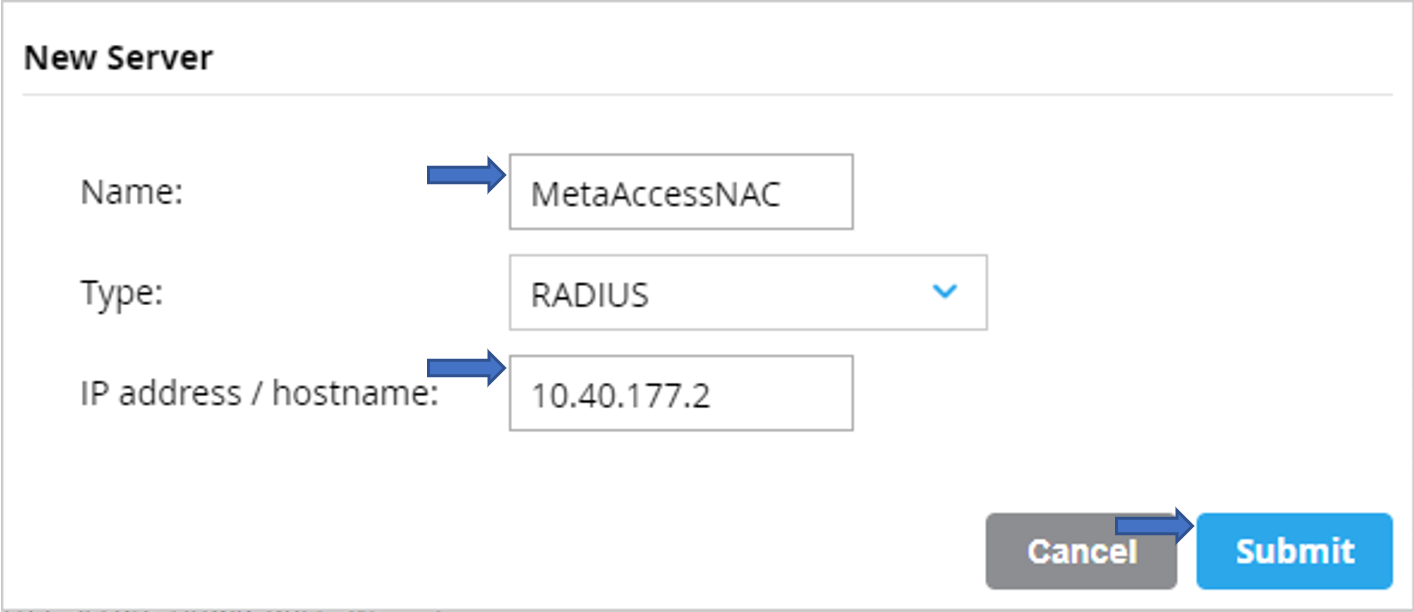

  1. Add a new RADIUS Server as follows.
  • Navigate to Configuration>Authentication>Auth Servers.
  • Under the All Servers tab, click +.
  • Enter a Name and IP for the RADIUS Server, then click Submit.

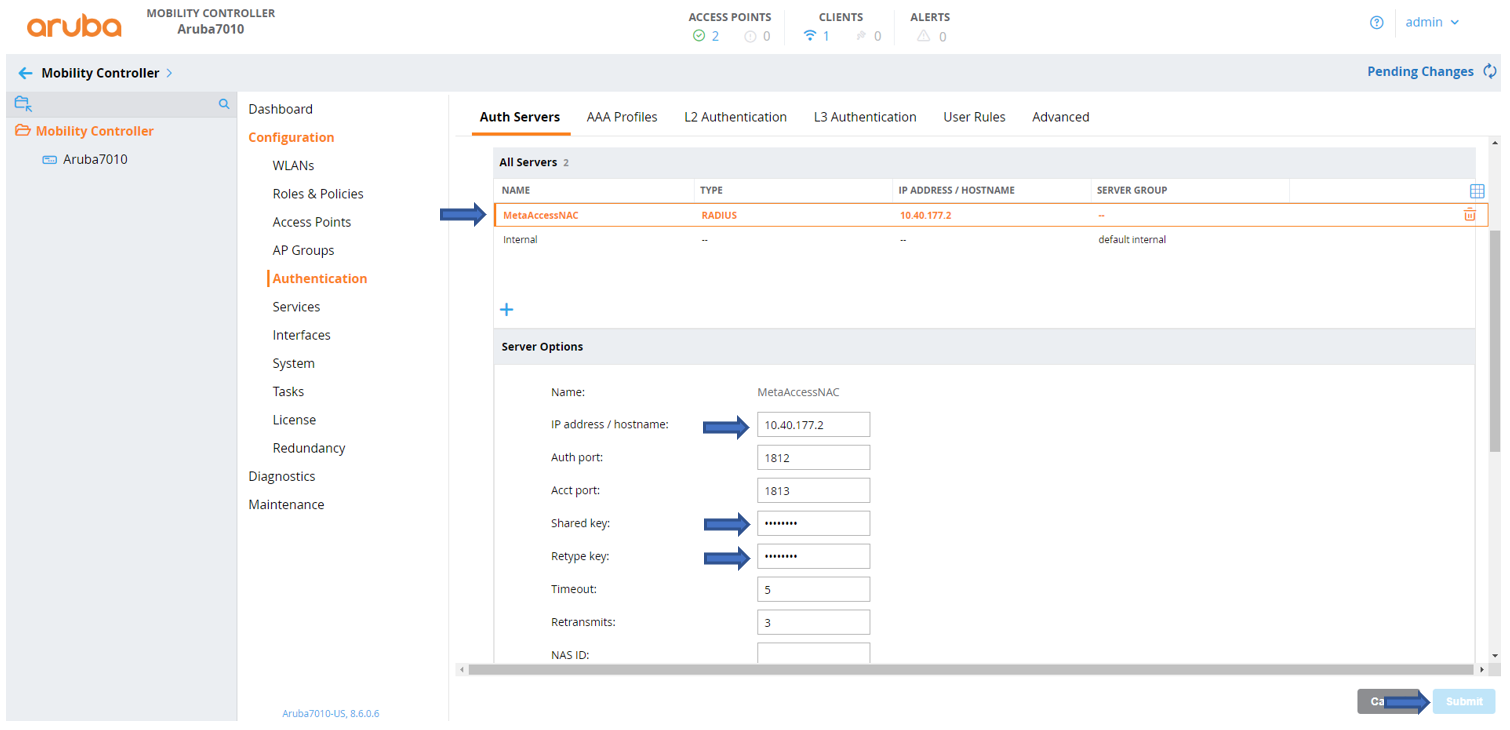

  1. To configure the RADIUS Server, do the following.
  • Click on the newly created RADIUS Server to open the Server Options.
  • On the Server Options page, enter the IP Address of your NAC Enforcer or, in a cluster, the Manager’s IP Address.
  • Enter the desired value for the Key (shared Secret).
  • Click the Submit button in the lower right-hand corner of the screen to implement your settings.

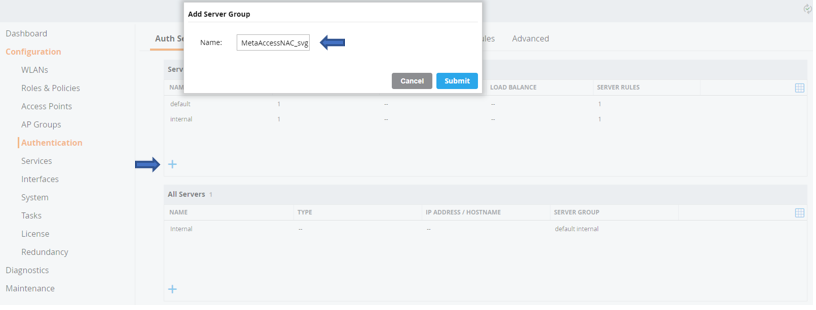

  1. Add a New Server Group as follow:
  • Navigate to Configuration>Authentication>Auth Servers, under the Servers Group tab, click +.
  • Enter a Name for the Server Group, then click Submit

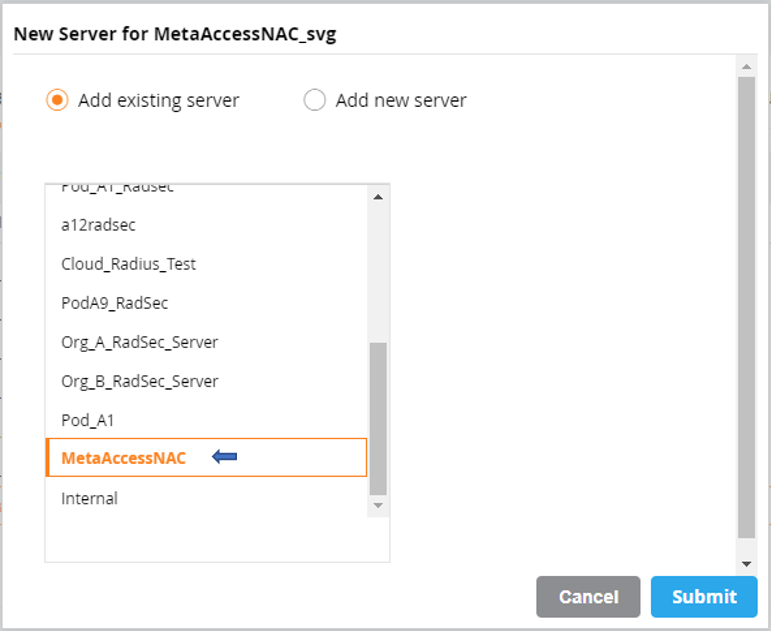

  1. Add the RADIUS Server to an existing Server Group as follows.
  • Click on the newly created Server Group open the windows.
  • Click on RADIUS Server you want to add to Server Group and Submit
  1. Associate the RaADIUS Server with the AAA Profile for the appropriate SSID as follows.
  • Navigate to Configuration>Authentication> AAA Profiles.
  • Under AAA Profiles tab, click the AAA Profile for the appropriate SSID.
  • Click to Radius Accouting Group Server, on the Server Group drop down box select your Server Group then click Submit.
  1. Gather the required information as follows.
  • To complete configuration you will need the following information:

    • The Key (Shared Secret) gathered in the step 2 above.
    • The IP Address of the RADIUS Client of the Aruba Controller.

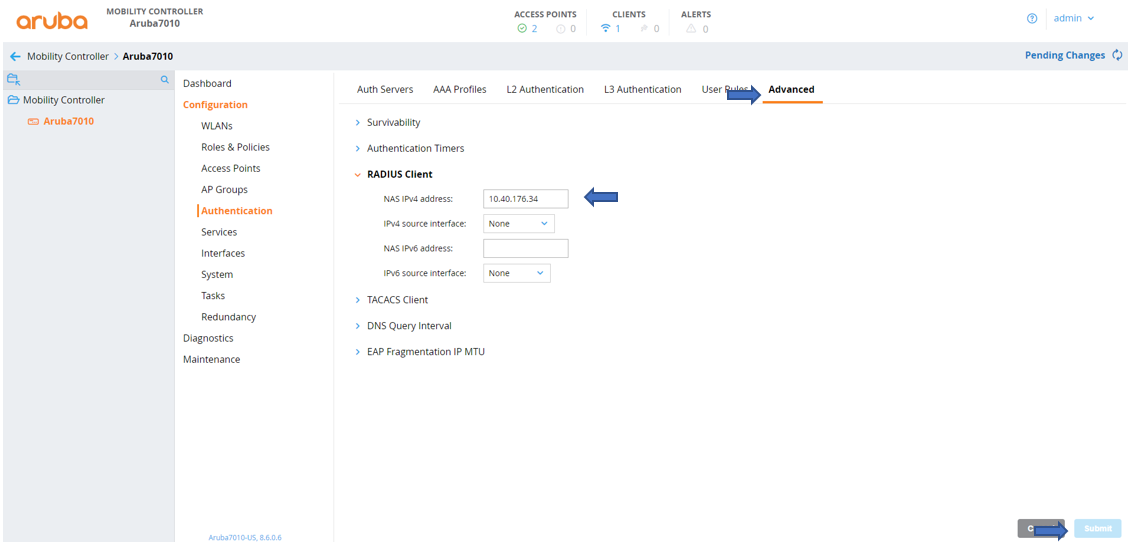

  • Navigate toConfiguration>Authentication>Advanced.

  • Copy the IP Address listed under RADIUS Client>NAS IPv4 Address.

If you have followed the instructions above but have been unable to Send RADIUS Accounting To NAC For Aruba Mobility Controllers, please open a Support Case with the OPSWAT team via phone, online chat or form, or feel free to ask the community on our OPSWAT Expert Forum.
