Deployment Management

Deployments provides a central hub for overseeing the end-to-end patching process, monitoring real-time progress, and managing results for active and historical deployment from a single interface.

Navigate to Patch Management > Deployments to begin.

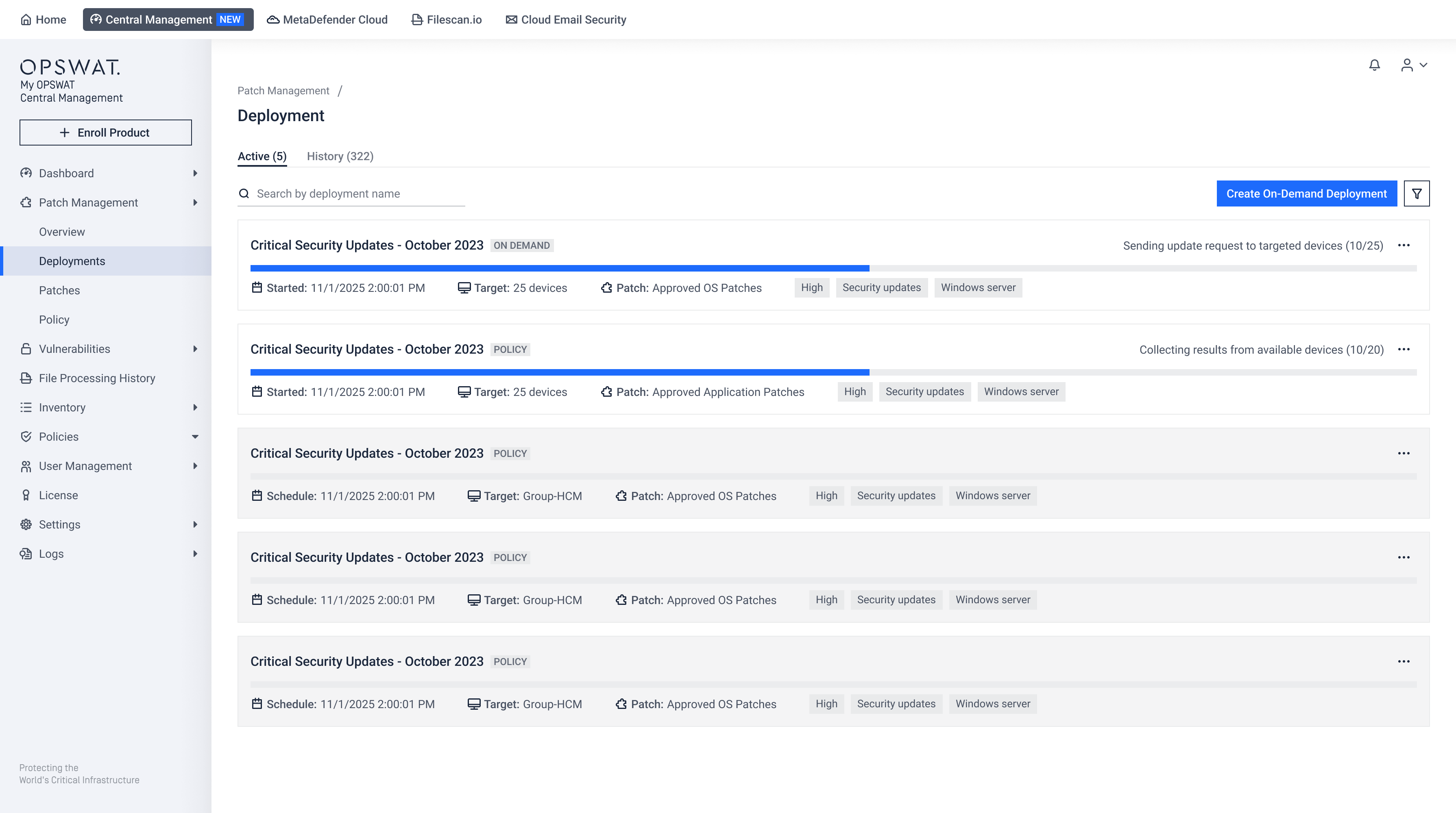

Active Deployments

Track running and scheduled deployments across organization's environment.

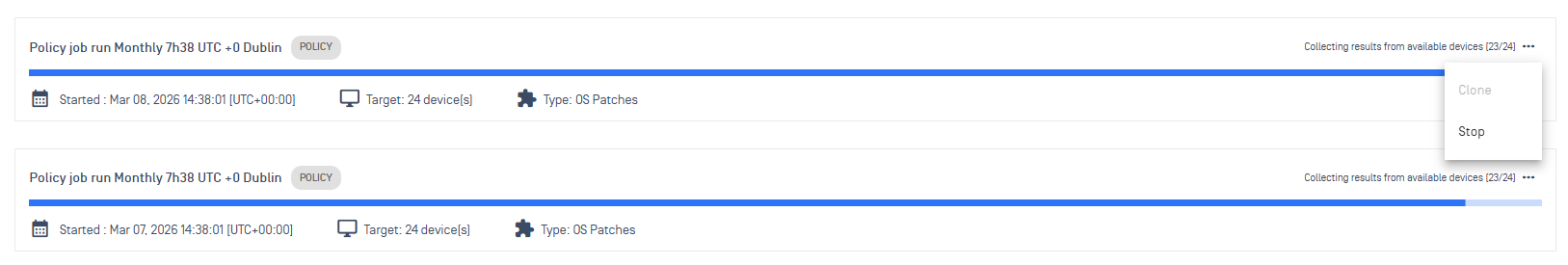

Running Deployments

Deployment currently in execution are highlighted with a white background and a real-time progress bar.

• Supported Actions: Select Stop to terminate a running deployment immediately.

Scheduled Deployments

Upcoming deployments are identified by a gray background.

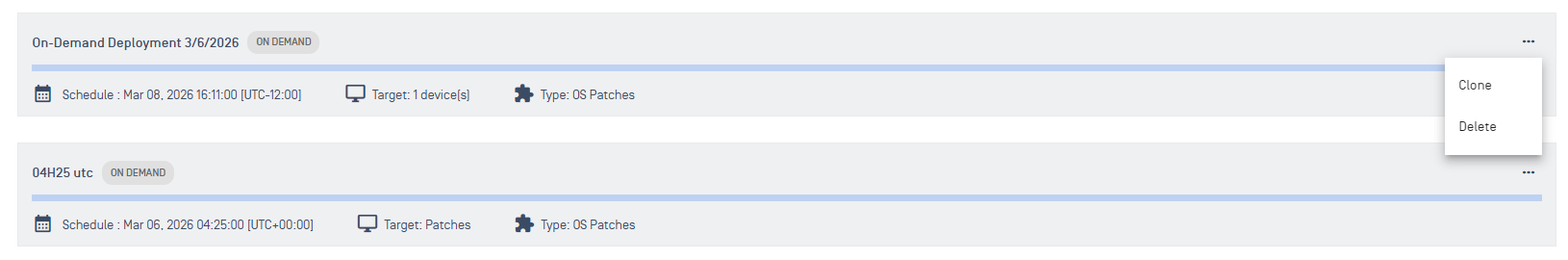

For scheduled On-Demand Deployment

• Supported Actions: Select Clone to duplicate the deployment or Delete the deployment before they start.

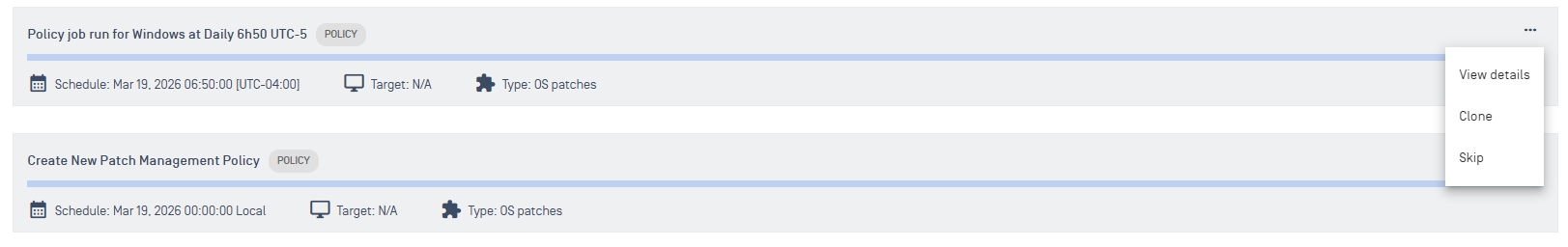

For scheduled Policy Deployment

• Supported Actions: Select View Details for full policy breakdown; Clone to duplicate the deployment; or Skip to bypass the next scheduled occurrence without affecting the overall policy schedule.

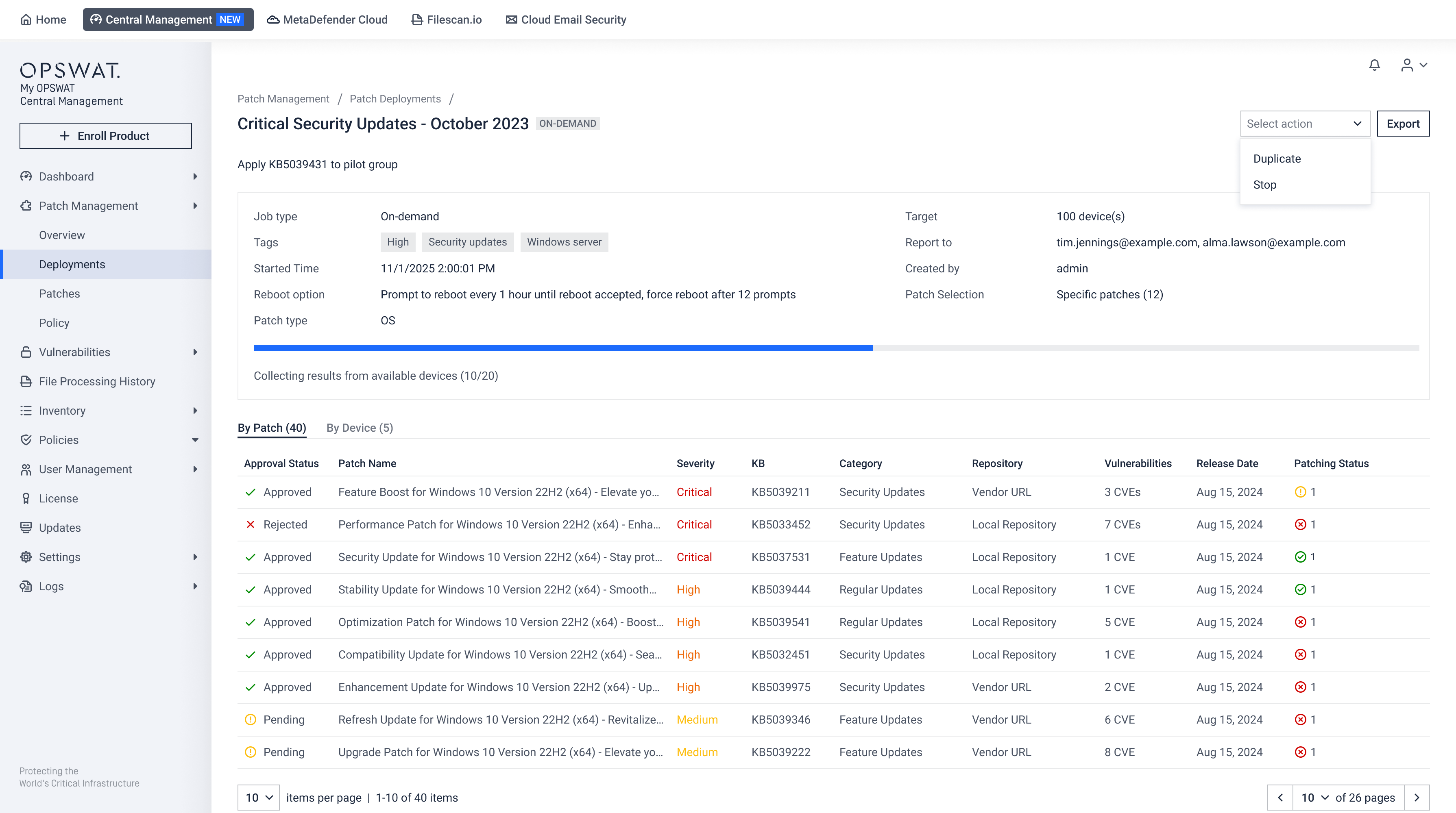

Deployment Details

Select any deployment or click View Details to access granular data and metrics.

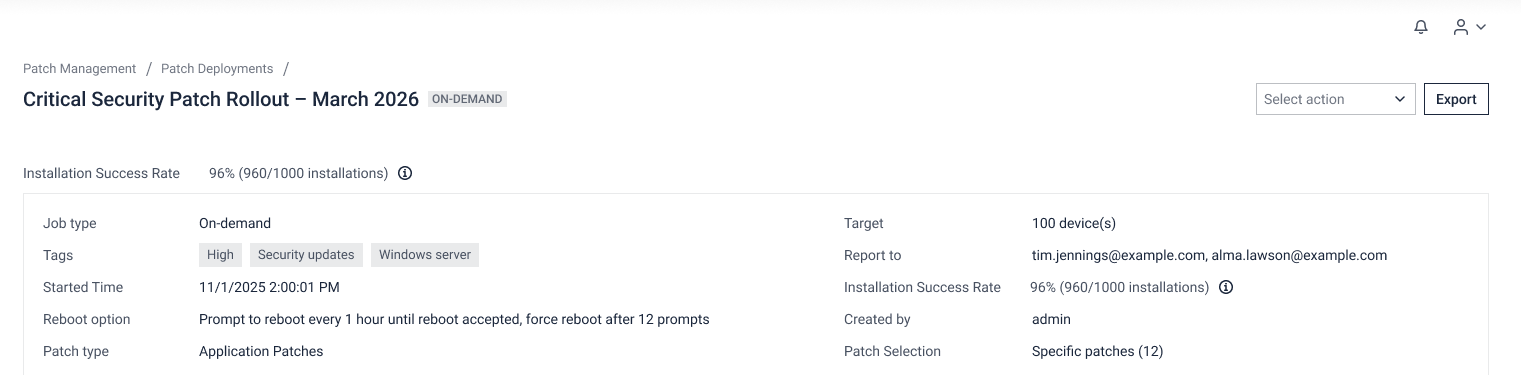

Summary Panel

The top panel provides a high-level summary of the deployment.

• Quick scan on critical information such as Job type, Tags, Start time, Reboot option, Patch type, Target, Report to, Created by, Patch selection.
• Installation Success Rate: This metric appears once a deployment is complete. It represents the ratio of Installed Patches to Total Patch Installations (which includes all patches with a status of Installed, Pending Reboot, Not Installed, or Failed.) For example: If 100 patch installations happened and 80 got Installed, your success rate is 80%.

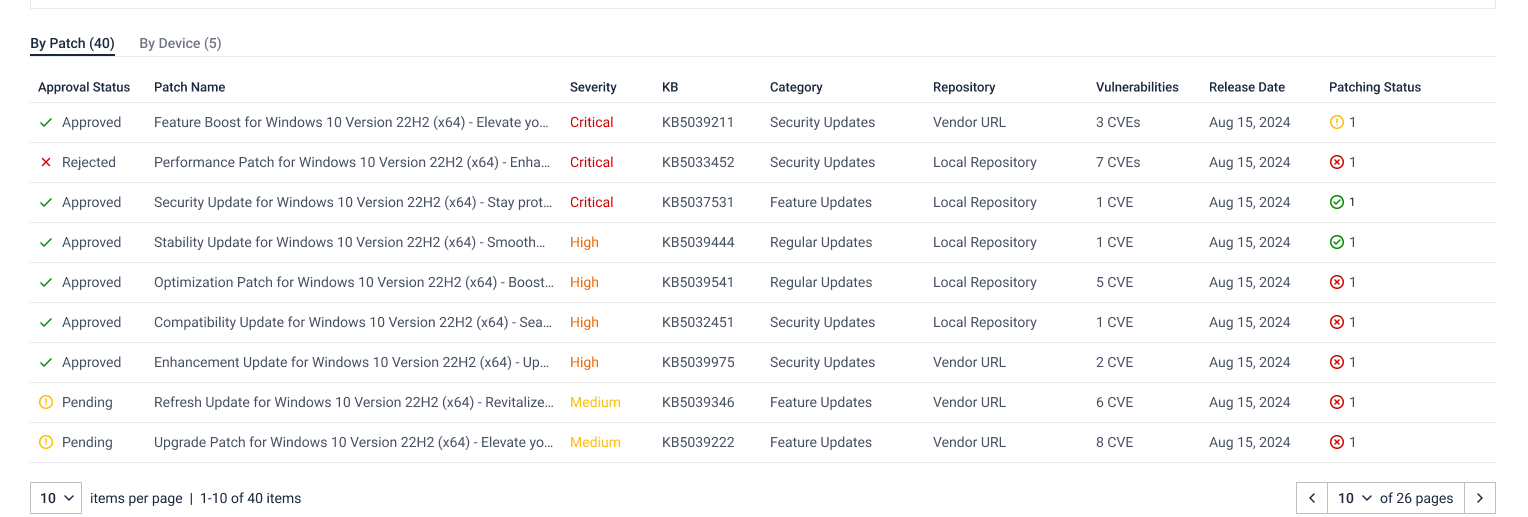

Patch Information

Click the tab By Patch to track the status of specific software updates across your environment.

• Quick scan on Approval status, Patch name, Severity, Category, KB ID, Repository, Number of vulnerabilities, and Release date.
• Patching Status
  • Installed: Patch successfully installed.
  • Not Applicable: The patch was not required by the target device.
  • Pending Reboot: Installation is staged; requires a system restart to finalize.
  • Not Installed: The patch was skipped because the deployment window closed before the device could install it.
  • Failed: Installation attempt was unsuccessful.

Note Patching statuses may change even after a deployment is complete to ensure the latest information is captured.

Device Information

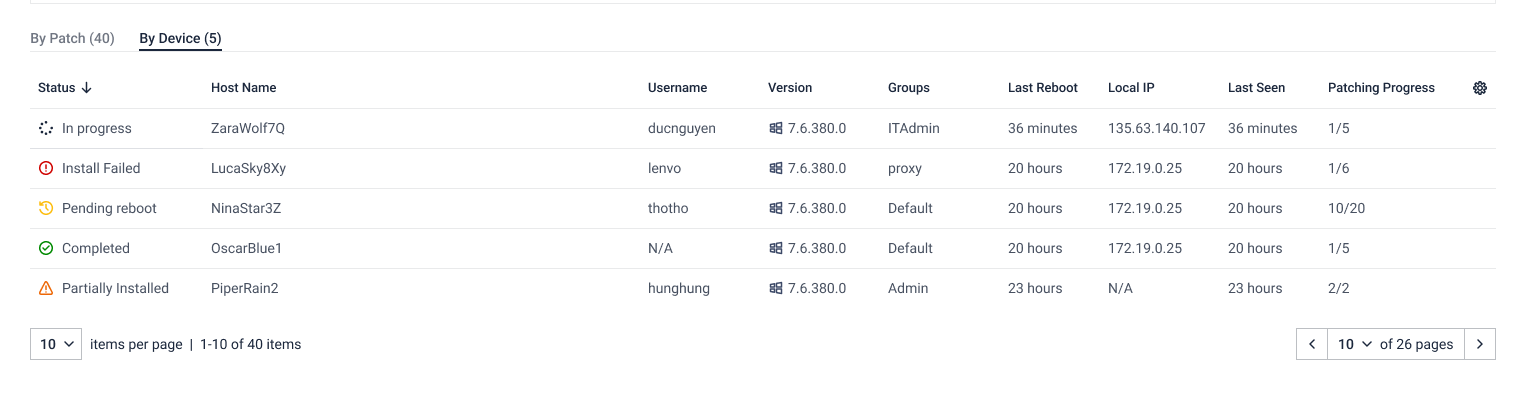

Select the By Device tab to track the status of targeted endpoints.

• Quick scan on Host name, Username, Version, Groups, Last reboot, Local IP, and Last seen.
• Status
  • In Progress: The device is executing the deployment.
  • Completed: All assigned patches are successfully installed, or were not required on the targeted device.
  • Install Failed: All attempted patch installations on targeted device failed.
  • Incompleted: Patching job has been initiated on targeted device, but the device did not report its final execution results back to My OPSWAT Central Management.
  • Partially Installed: Some patches are installed.
  • Pending Reboot: At least one patch on targeted device requires a restart.
  • Unreachable: The device was offline or unavailable during the deployment window.

Note Device statuses may change even after a deployment is complete to ensure the latest information is captured.

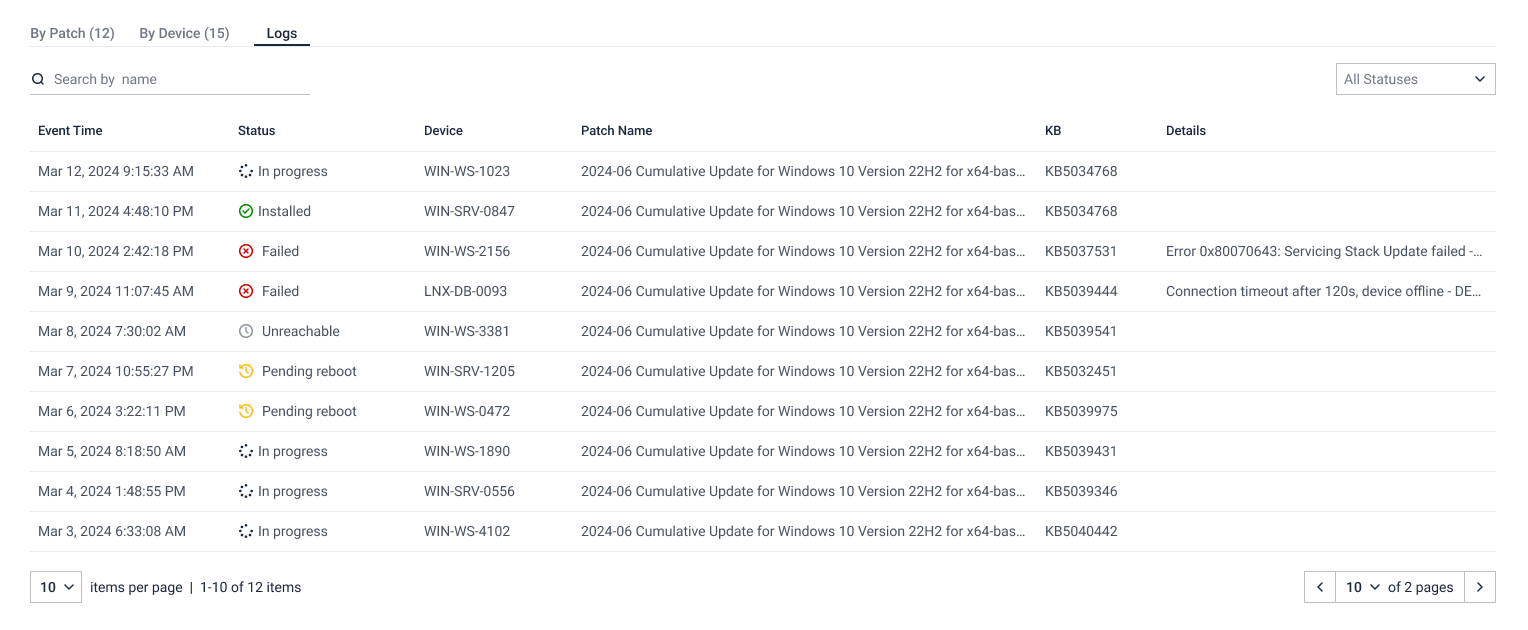

Logs Information

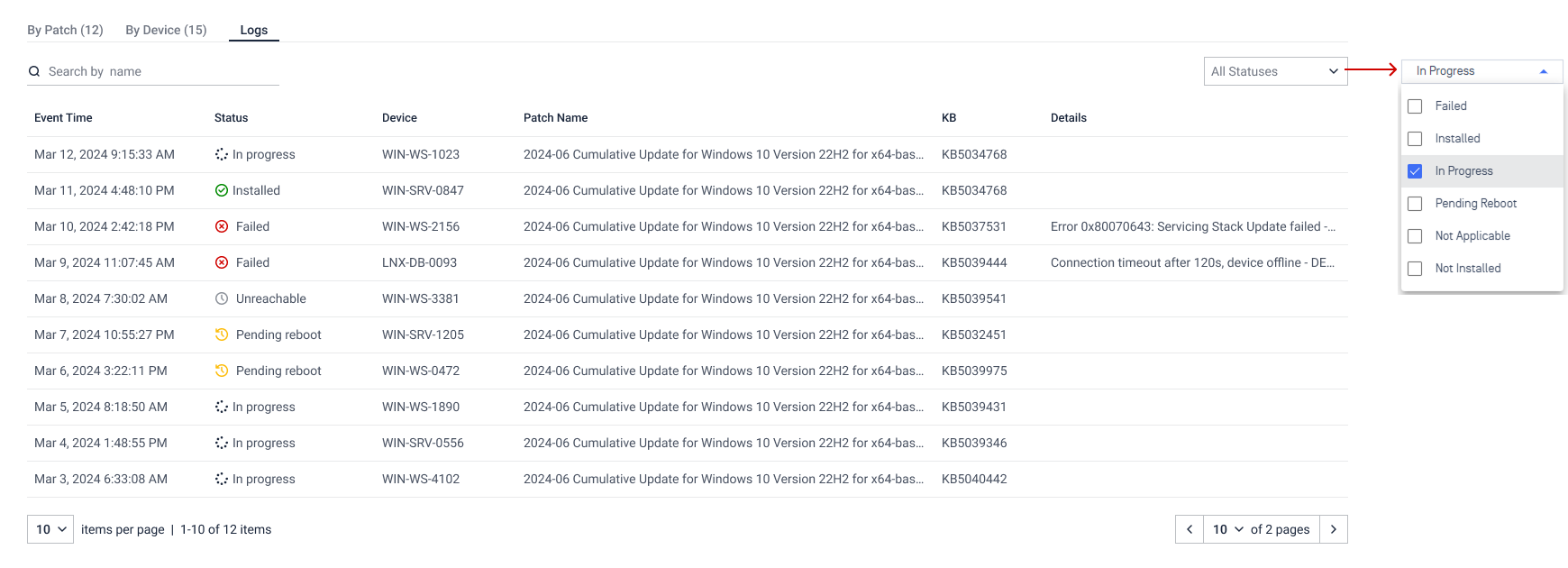

Click on the Logs tab for a granular, timestamped record of every patch installation attempt.

Note The log status may change even after a deployment is complete to ensure the latest information is captured.

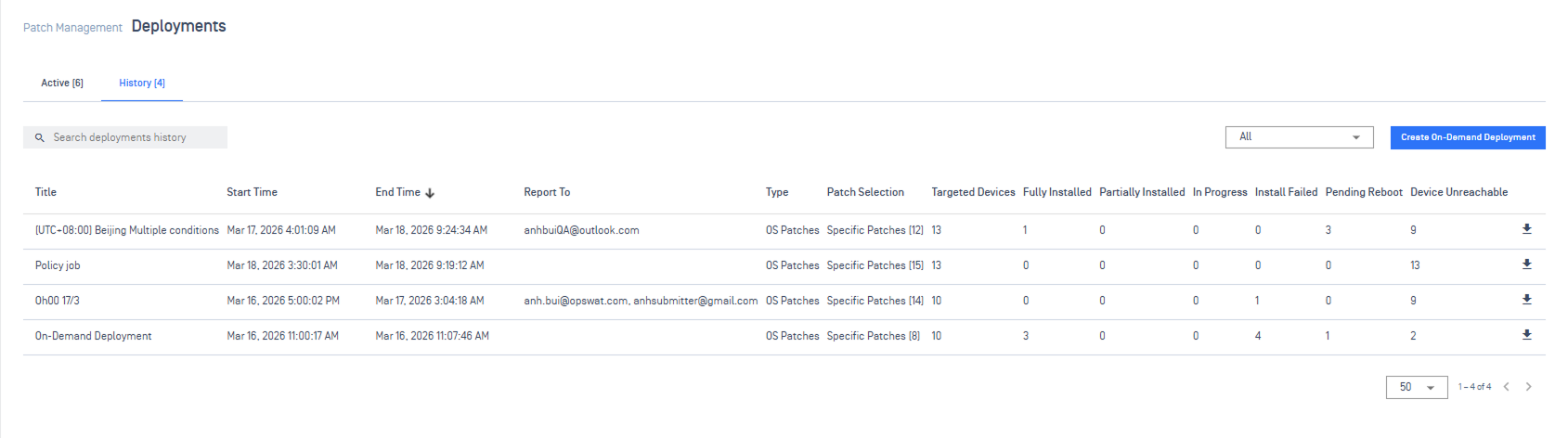

Deployments History

To track past deployments, navigate to Patch Management > Deployments > History.

• View details: Click on a history deployment to view its detailed information.
• Search: Quickly locate specific jobs by name.
• Filter: Filter by On-demand vs. Policy-based deployments.
• Download report: Download the execution report of a deployment.
