MetaDefender Optical Diode Setup
Hardware requirements
If any items you are supposed to receive are missing or damaged, contact Support.
You will receive a package from OPSWAT containing the following:
- Two 1U or Din Rail servers.
- Two power cables.
- Fiber Optic cable.
- Two security dongles.
In addition, you must have:
- Flathead screwdriver.
- Ethernet cables.
The installation location must provide:
- Access to the USB port on the MetaDefender Optical Diode BLUE node. Ports are available on the front and back of the node.
- 2 x 1U rack space.
- 250 Watts power (600W for 10Gbps systems) in the rack where the nodes will be installed.
Installation procedure
MetaDefender Optical Diode node installation includes the following steps:
- Install the servers in the rack.
- Connect the servers to your system.
- Connect the servers to each other.
- Power up each node.
Install servers in the rack
Install each server in the rack with the supplied mounting rails, following your local procedures.
The sides containing the USB ports should be toward the front of the rack. You will insert a dongle in the USB port of the MetaDefender Optical Diode BLUE node and the Windows Host computer.
Connect servers to you system
1U Form Factor
The following graphic shows the rear view of the server.
Use the following table to connect both servers to your system. You will not need all of the connections for the MetaDefender Optical Diode installation.
| Port Number | Description | MetaDefender Optical Diode connection |
|---|---|---|
| 1 | Power supply Unit | Connect MetaDefender Optical Diode BLUE and MetaDefender Optical Diode RED to their power supplies with the power cables. |
| 2 | Redundante Power supply Unit | Connect MetaDefender Optical Diode BLUE and MetaDefender Optical Diode RED to their power supplies with the power cables. |
| 3 | RJ45 LAN Port (LAN3) | N/A. |
| 4 | COM Port (COM1) | N/A. |
| 5 | COM Port (COM2) | N/A. |
| 6 | RJ45 LAN Port (LAN2) | N/A. |
| 7 | RJ45 LAN Port (LAN1) | MetaDefender Optical Diode BLUE: Connect to the trusted network with an Ethernet cable. MetaDefender Optical Diode RED: Connect to the untrusted network with an Ethernet cable. |
| 8 | Line In | N/A |
| 9 | SFP1 Slot | MetaDefender Optical Diode BLUE: Connect SFP TX here. MetaDefender Optical Diode RED: Connect SFP RX here. |
| 10 | SFP2 Slot | MetaDefender Optical Diode BLUE: Connect redundant SFP TX here. MetaDefender Optical Diode RED: Connect redundant SFP RX here. |
| 11 | USB 3.2 Gen 2 Ports | N/A. |
| 12 | HDMI Port (HDMI1) | Connect to a HDMI monitor to access the CLI. |
| 13 | DisplayPort (DP1) | N/A. |
| 14 | D-Sub Port (VGA1) | Connect to a VGA monitor to access the CLI. |
| 15 | USB 3.2 Gen 2 Port | N/A. |
| 16 | USB 3.2 Gen 2 Type-C Port | N/A. |
| 17 | USB 3.2 Gen 2 Ports | N/A. |
| 18 | Line Out | N/A. |
| 19 | Microphone | N/A. |
Din Rail form factor
OPSWAT also can provide costumers with MetaDefender Optical Diode in Din Rail format for industrial environments as mentioned before. Only one of the SFP ports (F1) will be used.

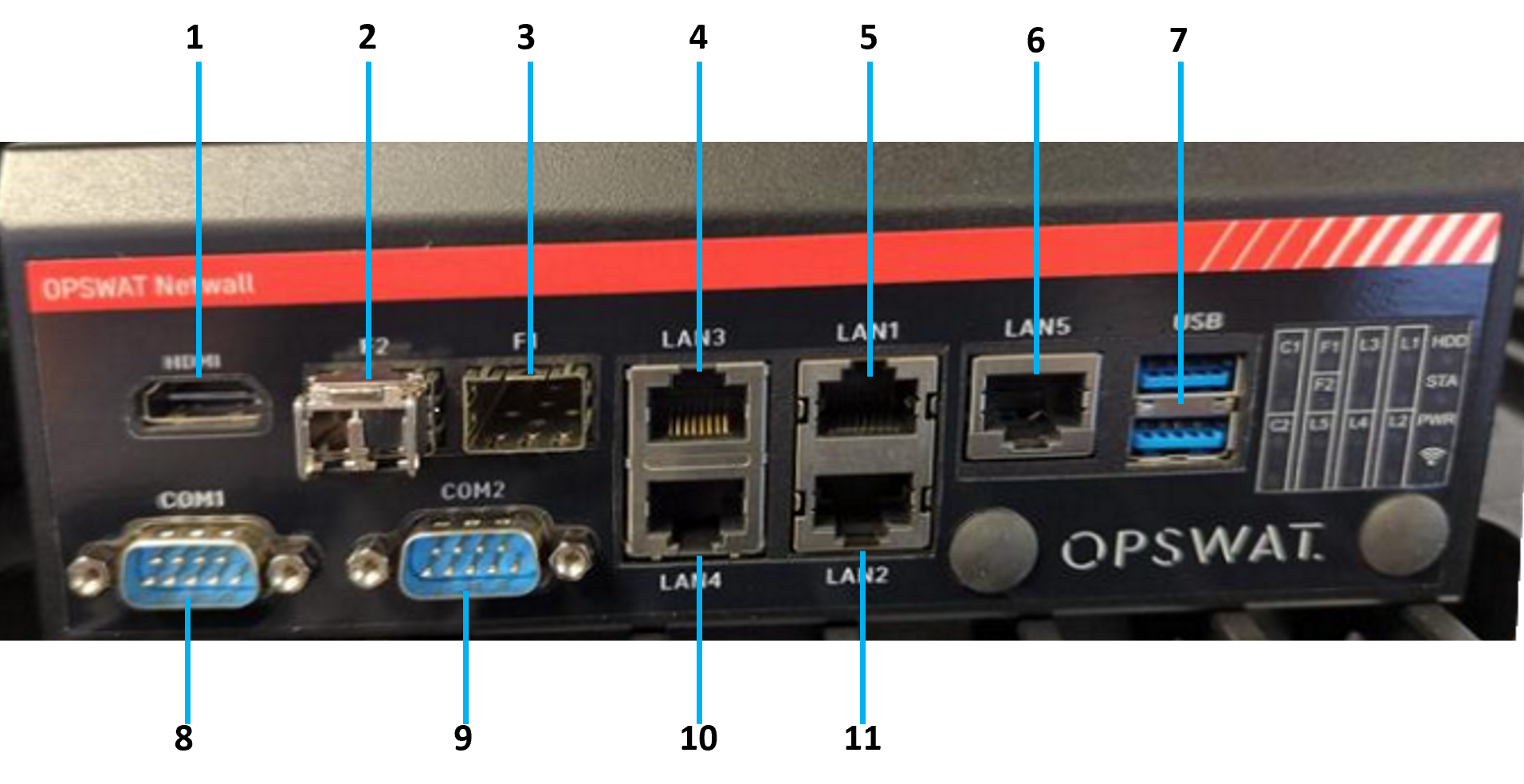

The following graphic shows the ports of the server.
Use the following table to connect both servers to your system. You will not need all of the connections for the MetaDefender Optical Diode installation.
| Port Number | Description | MetaDefender Optical Diode connection |
|---|---|---|
| 1 | HDMI Port (HDMI1) | Connect to a HDMI monitor to access the CLI. |
| 2 | SFP2 Slot | MetaDefender Optical Diode BLUE: Connect SFP TX here. MetaDefender Optical Diode RED: Connect SFP RX here. |
| 3 | SFP1 Slot | N/A. |
| 4 | RJ45 LAN Port (LAN3) | N/A. |
| 5 | RJ45 LAN Port (LAN1) | N/A. |
| 6 | RJ45 LAN Port (LAN5) | MetaDefender Optical Diode BLUE: Connect to the trusted network with an Ethernet cable. MetaDefender Optical Diode RED: Connect to the untrusted network with an Ethernet cable. |
| 7 | USB 3.0 2 Ports | N/A. |
| 8 | COM Port (COM1) | N/A. |
| 9 | COM Port (COM2) | N/A. |
| 10 | RJ45 LAN Port (LAN2) | N/A. |
| 11 | RJ45 LAN Port (LAN2) | N/A. |
10Gbps Systems and Transfer Guard
User can check how to connect MetaDefender Tranfer Guard in the picture bellow:
| Port Number | Description | MetaDefender Optical Diode connection |
|---|---|---|
| 1 | Power supply Unit | Connect NetWall BLUE and RED to their power supplies with the power cables. |
| 2 | Redundant Power supply Unit. | Connect BLUE and RED to their power supplies with the power cables. |
| 3 | SFP1 | Connect the fiber cable in the available slot. |
| 4 | SFP2 | Connect the other fiber cable in the available slot. |
| 5 | SFP3. 10Gbps optical Interface | MetaDefender Optical Diode BLUE: Connect to the trusted network with two optical cables (one for Tx and other for Rx). MetaDefender Optical Diode RED: Connect to the untrusted network with two optical cables (one for Tx and other for Rx). |
| 6 | SFP4 slot | N/A |
| 7 | RJ45 LAN Port (LAN2) | N/A. |
| 8 | RJ45 LAN Port 1 Gbps (LAN1) | MetaDefender Optical Diode BLUE: Connect to the trusted network with an Ethernet cable. MetaDefender Optical Diode RED: Connect to the untrusted network with an Ethernet cable. |
| 9 | COM Port (COM1) | N/A. |
| 10 | D-Sub Port (VGA1) | Connect to a VGA monitor to access the CLI. |
| 11 | iDRAC Port | N/A. |
| 12 | USB Port (USB1) | Plug in the security dongle in one of the USB ports to configure the appliance. |
| 13 | USB Port (USB2) | Plug in the security dongle in one of the USB ports to configure the appliance. |
Connect servers to each other
Use the fiber optic cable to connect the servers to each other. Install each end of the simplex fiber jumper into the connector indicated by Port Number 9 in the above table as appropriate based upon server color. If redundant fiber connections are being used, connect the second simplex fiber jumper likewise into the connector indicated by Port Number 10.
- Make sure both servers are powered off before connecting them.
- Computer cables should always use strain relief to protect the connected equipment from excessive force via the cable. This is especially important for cables between racks.
Power up MetaDefender Optical Diode appliances
Press the power button on each MetaDefender Optical Diode appliance to power it up. Press each power button a second time to shut down that appliance. You also can reset the appliance pressing the other button placed to the right.
