Hardware Requirements
If any items you are supposed to receive are missing or damaged, contact Support.
You will receive a package from OPSWAT containing one of four hardware form factors:
- One NetWall 1U Server
- 2 x 1U NetWall Servers
- 2 X 1U DELL Enterprise Servers
Accessories:
Power Cables.
- Two for 1U Server
- Four for 2 x 1U Servers
One Serial Cable.
Two Security Dongles.
Mounting Rail Kit
In addition, you will need:
- Flathead screwdriver.
- Ethernet cables.
The installation location must provide:
- Access to the USB port on the MetaDefender Secutity Gateway BLUE node. Ports are available on the front and back of the node.
- 1U or 2 x 1U rack space depending on model.
- 250 Watts power in the rack where the nodes will be installed.
The included power cables are intended for exclusive use with the NetWall appliance.
Installation procedure
MetaDefender Security Gateway node installation includes the following steps:
- Install the servers in the rack.
- Connect the servers to your system.
- Connect the servers to each other.
- Power up each node.
Install servers in the rack
Install each server in the rack with the supplied mounting rails, following your local procedures.
The sides containing the USB ports should be toward the front of the rack. You will insert a dongle in the USB port of the MetaDefender Security Gateway BLUE node and the Windows Host computer.
Connect servers to your system
- Make sure both servers are powered off before connecting them.
- Stand on an electrostatic mat to connect the nodes.
- Computer cables should always use strain relief to protect the connected equipment from excessive force via the cable. This is especially important for cables between racks.
1U Server for 100Mbps, 1Gbps and 10Gbps
The following graphic shows the front and rear view of the server.

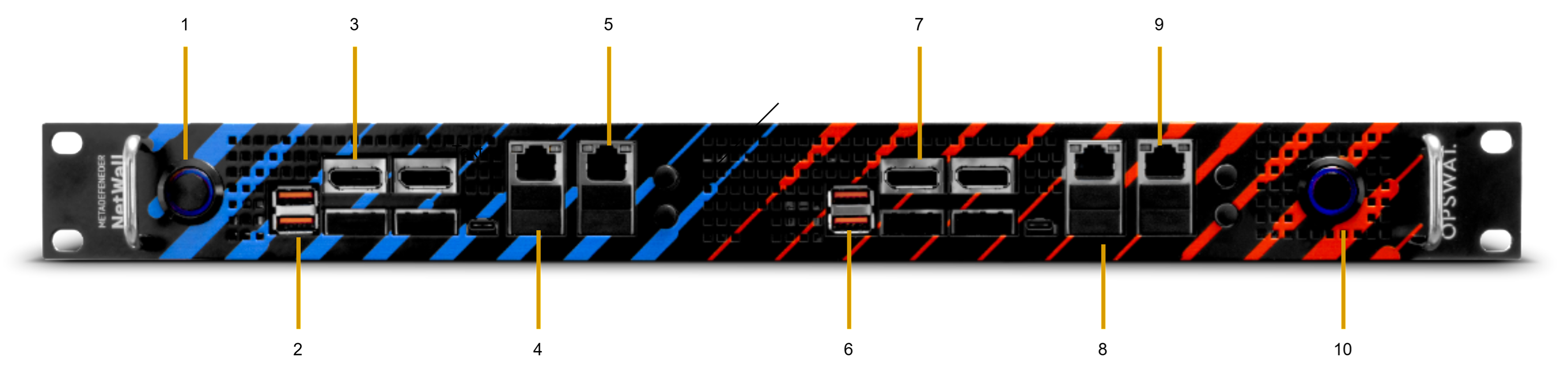

Front View

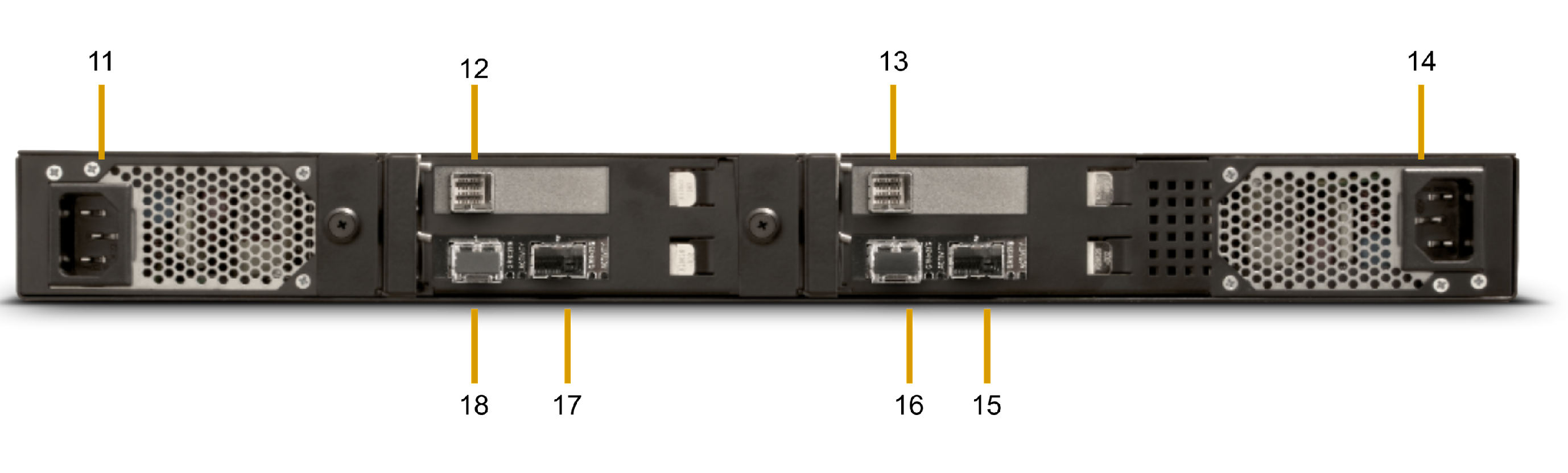

Back Panel
Use the following table to connect server to your system. You will not need all available ports for the installation.
| 1 | Power | BLUE on/off |
| 2 | Security Dongle USB | Must be inserted to perform configuration changes. |
| 3 | Display Port | Connect monitor to access BLUE UI. |
| 4 | RJ45 Port (LAN1) | Security Gateway BLUE: Connect to the trusted network with an Ethernet cable. |
| 5 | RJ45 LAN Port (LAN2) | BLUE Management Port. |
| 6 | Security Dongle USB | Must be inserted to perform configuration changes. |
| 7 | Display Port | Connect to monitor to access the RED UI. |
| 8 | RJ45 LAN Port (LAN3) | Optical Diode RED: Connect to the untrusted network with an Ethernet cable. |
| 9 | RJ45 LAN Port (LAN4) | RED Management Port |
| 10 | Power | RED on/off |
| 11 | Power Supply Unit (Red) | Connect Optical Diode RED to the power supply with power cable. |
| 12 | PCI Cable Port | Connect Serial Cable to Serial Cable Port [13] |
| 13 | PCI Cable Port | Connect Serial Cable to Serial Cable Port [12] |
| 14 | Power Supply Unit (Blue) | Connect Optical Diode BLUE to the power supply with power cable. |
| 15 | 10G SFP+ [Blue] | Connect to source network with an ethernet cable. |
| 16 | 10G SFP+ [Blue] | Connect to source network with an ethernet cable. |
| 17 | 10G SFP+ [Red] | Connect to destination network with an ethernet cable. |
| 18 | 10G SFP+ [Red] | Connect to destination network with an ethernet cable. |
2 X 1U Servers for 100Mbps and 1Gbps
The following graphic shows the front and rear view of the server.

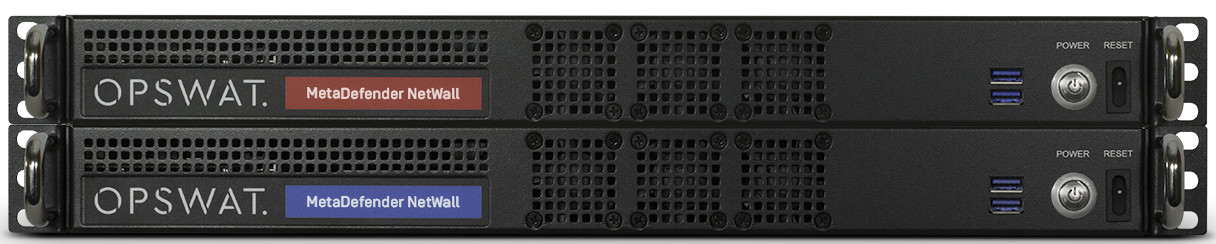

Front View
Back Panel
Use the following table to connect both servers to your system. You will not need all of the connections for the MetaDefender Security Gateway installation.
| Port Number | Description | MetaDefender Security Gateway connection |
|---|---|---|
| 1 | Power supply Unit | Connect MetaDefender Security Gateway BLUE and MetaDefender Security Gateway RED to their power supplies with the power cables. |
| 2 | Redundant Power supply Unit | Connect MetaDefender Security Gateway BLUE and MetaDefender Security Gateway RED to their power supplies with the power cables. |
| 3 | RJ45 LAN Port (LAN3) | N/A. |
| 4 | COM Port (COM1) | N/A. |
| 5 | COM Port (COM2) | N/A. |
| 6 | RJ45 LAN Port (LAN2) | N/A. |
| 7 | RJ45 LAN Port (LAN1) | MetaDefender Security Gateway BLUE: Connect to the source network with an ethernet cable. MetaDefender Security Gateway RED: Connect to the destination network with an ethernet cable. |
| 8 | Line In | N/A. |
| 9 | PCIe card slot | |
| 10 | USB 3.2 Gen 2 Ports | N/A. |
| 11 | HDMI Port (HDMI1) | Connect to a HDMI monitor to access the CLI. |
| 12 | DisplayPort (DP1) | N/A. |
| 13 | D-Sub Port (VGA1) | Connect to a VGA monitor to access the CLI. |
| 14 | USB 3.2 Gen 2 Type-C Port | N/A. |
| 15 | USB 3.2 Gen 2 Port | N/A. |
| 16 | USB 3.2 Gen 2 Ports | N/A. |
| 17 | Line Out | N/A. |
| 18 | Microphone | N/A. |
Connect servers to each other
Use the PCI cable to connect the servers to each other. Install the cable connector on each end of the PCI cable into the connector, indicated by ‘9’ on the above table, on each server.
Power up Security Gateway appliances
Press the power button (indicated in the picture below) on each MetaDefender Security Gateway appliance to power it up. Press each power button a second time to shut down that appliance. You also can reset the appliance pressing the other button placed to the right.
Basic Configuration via Configuration File
This feature enables basic configuration parameters to be uploaded via a JSON Configuration File. It is useful in instances whereby a user is configuring a fleet of security Gateways. Most users should utilize configuration instructions in the Configuration section of the manual. The feature supports configuring TCP, UDP, HTTPs and Syslog. Other connectors must be configured manually.
Config via Configuration File BLUE
This functionality only works for an initial setup when no Management IP/device has been previously configured.
- Log in and accept the EULA. You will see the following screen blow.
- Select the Config File button.
- After selecting the Config File button you will see the next screen.
- Choose the JSON file and select Upload to import the JSON Configuration File.
Press Submit and the device will reboot.
Config via Configuration File RED
- Repeat file upload on Security Gateway RED
- Proceed with configuring Connectors in the Configuration section.
JSON Configuration File Format
Basic Configuration
xxxxxxxxxx{ "version": 1, "settings": { "management_ip": "192.0.2.10", "gateway": "192.0.2.1", "net_mask": "255.255.255.0", "hostname": "optical-diode-1", "dns_server_1": "1.1.1.1", "dns_server_2": "8.8.8.8", "ntp_server_1": "time.google.com", "ntp_server_2": "203.0.113.5", "time": "2025-12-04 14:33:21", "time_zone": "US/Eastern", "dns_suffix_search": "example.com", "ssh_enabled": true, "forward_syslog_red": false }, "streams": []}TCP Configuration - BLUE
xxxxxxxxxx{ "channelnumber": 1, "name": "tcp-example", "protocol": "TCP", "enabled": true, "bilateral": false, "description": "TCP example (blue)", "port": 80, "ipaddress": "10.0.0.0/24;web.blue.local", "max_sessions": 5, "bitrate": 10000000 }TCP Configuration -RED
xxxxxxxxxx{ "channelnumber": 10, "name": "egress-tcp", "protocol": "TCP", "enabled": true, "bilateral": false, "description": "TCP example (red)", "port": 443, "ipaddress": "example.com", "max_sessions": 10, "terminate_on_fail": true, "max_buffer_items": 200 }UDP Configuration - BLUE
xxxxxxxxxx{ "channelnumber": 2, "name": "udp-example", "protocol": "UDP", "enabled": true, "bilateral": false, "description": "DNS over UDP (blue)", "port": 53, "ipaddress": "10.0.0.10", "bitrate": 10000000 }UDP Configuration - RED
xxxxxxxxxx{ "channelnumber": 11, "name": "egress-udp", "protocol": "UDP", "enabled": true, "bilateral": false, "description": "DNS over UDP (red)", "port": 53, "ipaddress": "192.168.20.20", "terminate_on_fail": true, "max_buffer_items": 200 }HTTP Configuration - BLUE
xxxxxxxxxx{ "channelnumber": 3, "name": "http-app", "protocol": "HTTP", "enabled": true, "bilateral": false, "description": "HTTP service (blue)", "port": 8080, "ipaddress": "10.0.1.0/24;192.168.10.20", "response_delay": 50, "server_crypto": "", "max_sessions": 20, "bitrate": 10000000 }HTTP Configuration - RED
xxxxxxxxxx{ "channelnumber": 12, "name": "http-service", "protocol": "HTTP", "enabled": true, "bilateral": false, "description": "HTTP service (red)", "port": 8080, "ipaddress": "service.red.local", "response_delay": 120, "client_crypto": false, "max_sessions": 20, "terminate_on_fail": true, "max_buffer_items": 200 }Syslog Configuration - BLUE
xxxxxxxxxx{ "channelnumber": 4, "name": "syslog-blue", "protocol": "SYSLOG (UDP)", "enabled": true, "bilateral": false, "description": "Syslog source on blue", "port": 514, "ipaddress": "log.blue.local", "bitrate": 10000000 }Syslog Configuration - RED
xxxxxxxxxx{ "channelnumber": 13, "name": "syslog-red", "protocol": "SYSLOG (UDP)", "enabled": true, "bilateral": false, "description": "Syslog forwarding (red)", "destination": [ { "ipaddress": "198.51.100.10", "port": 514, "protocol": "UDP" }, { "ipaddress": "198.51.100.11", "port": 514, "protocol": "TCP" } ], "terminate_on_fail": true, "max_buffer_items": 200 }##
