Managing Kiosk Settings After Enrollment

Overview

This document is based on MetaDefender Kiosk 4.8.5 and My OPSWAT Central Management 10 (CM10). It also covers the differences for Kiosk devices managed by My OPSWAT Central Management 8 (CM8).

When a Kiosk device is enrolled in Central Management, most of its configuration moves to Central Management. You make configuration changes in Central Management, and they are pushed to the device and shown in its Kiosk Console.

You can still sign in to the Kiosk Console on an enrolled device, but most settings there become read-only. You can view the current values, but you can't change them locally.

Some settings stay on the device and must be configured directly in the Kiosk Console, because Central Management doesn't manage them. For example:

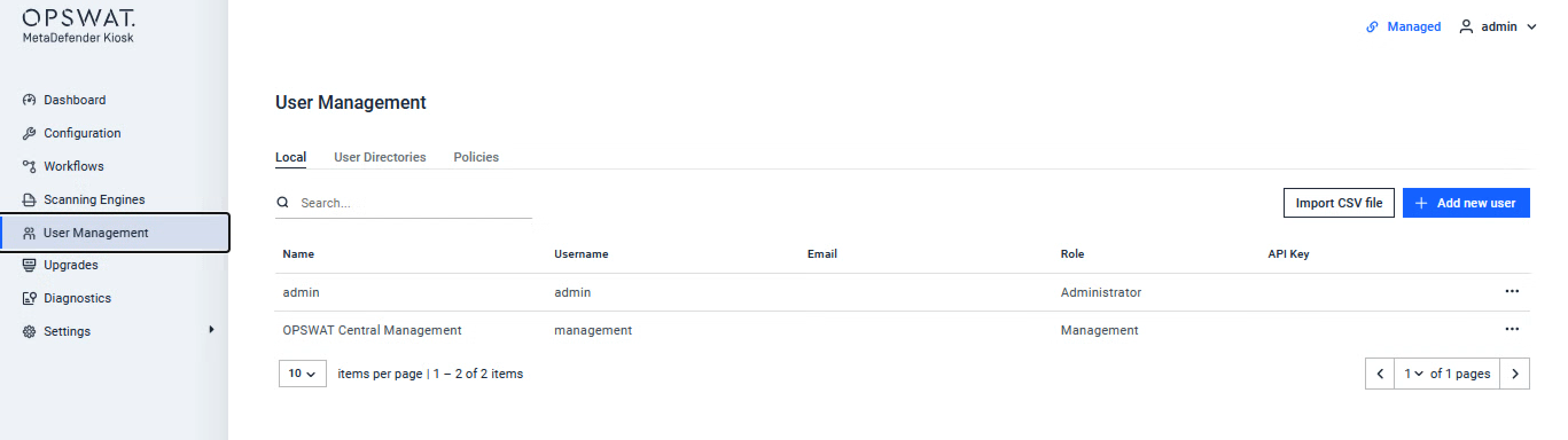

• User Management: adding or editing the administrators who sign in to the Kiosk Console.

• License activation and deactivation: activating or releasing the license on a specific device.

• Backup/Restore: backing up or restoring the device's configuration file.

• Local logs: viewing Session History, Application Log, Windows Event Log and Visitor Log while troubleshooting.

A few settings follow their own rules even though they are managed centrally. Network settings, for example, must be set on each device individually and are never applied from a policy. Some settings can also be excluded from a policy for a single device (CM10 only). Exceptions and special behavior explains these cases in detail.

Feature availability table

This table applies to a Kiosk device that is enrolled in My OPSWAT Central Management (CM8 or CM10). The Kiosk Console column shows what you can still do on the enrolled device itself.

Each row is a page and section of the Kiosk Console. A section row covers all the settings in that section. A row starting with ↳ is a specific setting that behaves differently from the rest of its section.

Legend

Exceptions and special behavior

Settings you need to configure on the Kiosk Console

Central Management doesn't manage the settings below, so you need to configure them directly in the Kiosk Console on each device. They stay editable there after enrollment.

Settings that are never applied from a policy

A policy is designed to give many devices the same configuration. Some settings are unique to each device, and pushing one value to every device in a policy would break them. Central Management therefore never applies these from a policy, even to devices assigned to that policy. You configure them for each device individually, from that device's instance in Central Management.

If a policy change needs a reboot (for example, a System Hardening change), the device reboots only once. Re-applying an unchanged policy doesn't trigger another reboot.

Settings you can exclude from a policy (CM10 only)

Policy exclusion is available only in CM10. With CM8, a device always takes every setting from its policy.

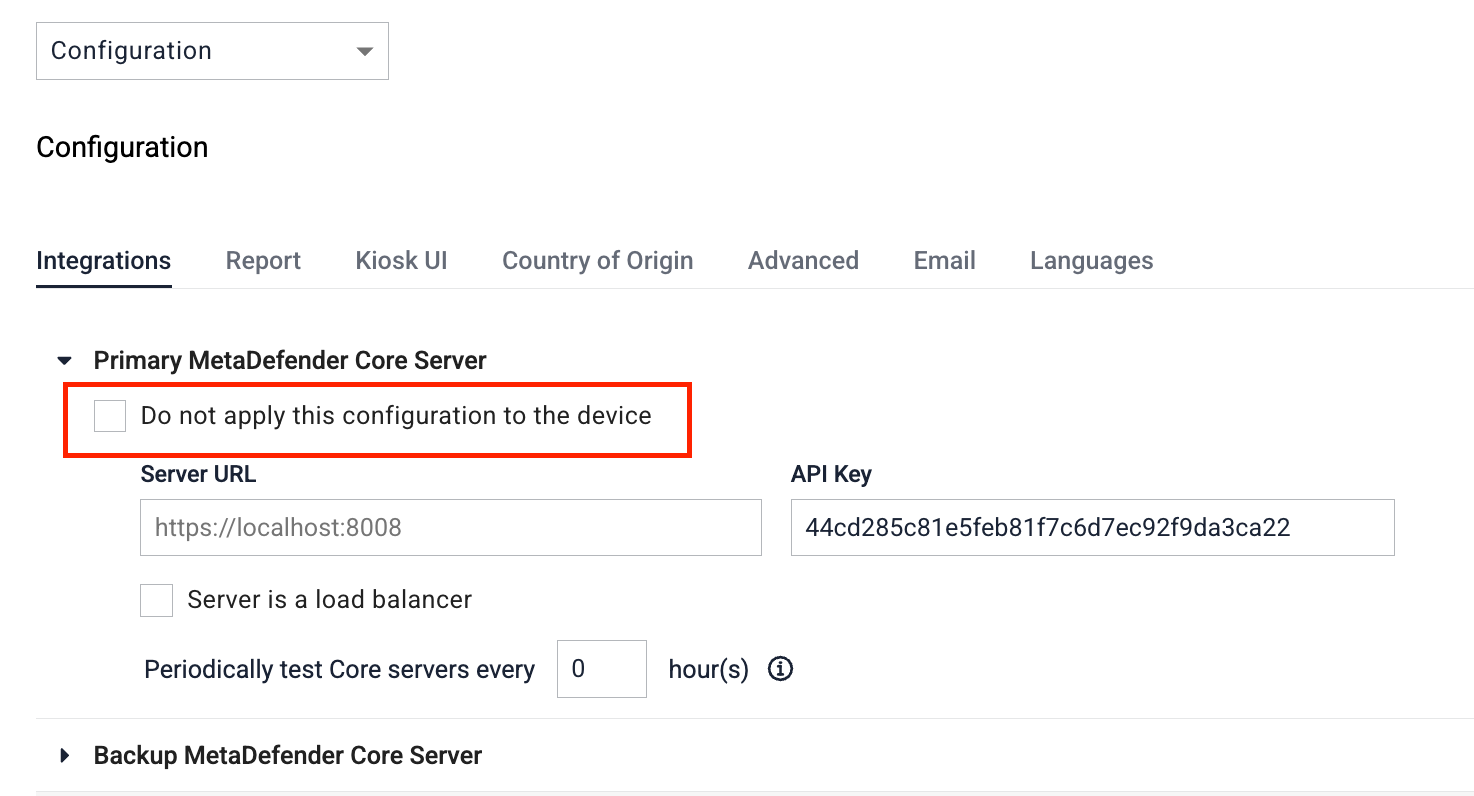

By default, a device takes every setting from its policy. For the settings below, you can select Do not apply this configuration to the device in the CM10 policy. The device then keeps its own local value for that setting and still takes everything else from the policy.

Why exclusion is useful. Devices that should share almost the same configuration often still differ in a few details, such as which local server they connect to or which language their users speak. Without exclusion, you would have to create and maintain a separate policy for every combination of those details. Excluding a setting lets you keep one policy for the whole group, which keeps the configuration consistent and easier to manage, while each device keeps the few values that are specific to its site.

When Default Language is excluded, the language list and translated texts from the policy are still applied. Only the default selection stays local.

Policy and device on different Kiosk versions

Every policy is saved together with the Kiosk version it was created on. In a real fleet, devices are rarely all on the same version. Some Kiosks are upgraded before others, and a policy is often created once and reused for years. What happens when the policy's version and the device's version don't match depends on your Central Management version.

CM10: one policy for Kiosks on different versions

CM10 supports applying a policy to Kiosks on older and newer versions than the one the policy was saved with. You don't need a separate policy for each Kiosk version, and you don't need to recreate your policy every time you upgrade your Kiosks.

When a device receives a policy saved with a different version, it matches the policy's settings to its own version before applying them:

• Settings that exist in both versions are applied from the policy.

• Settings that exist only on the device's version are left untouched. The device keeps its current values for them, because the policy doesn't contain them.

• Settings that exist only in the policy's version are skipped when the device runs an older version that doesn't have them.

Some items in a policy are actions or version-specific data rather than regular settings. These are only applied when the policy and the device are on the same Kiosk version:

• MetaDefender Core engine actions (enable, disable, pin or update engines), MetaDefender Core workflow settings and MetaDefender Core general settings

• The blocked USB devices list

• Hardened Image and Kiosk application upgrade and rollback actions

Two more rules apply:

• Proxy settings aren't applied from a policy saved with a Kiosk version earlier than 4.8.1. The device keeps its current proxy settings.

• All sections of a policy must be saved with the same Kiosk version. If one part of the policy was saved with a different version than the rest, the device doesn't apply the policy.

This requires CM10 10.2.2510 or later.

CM8: the policy and the device must be on the same version

CM8 only applies a policy to devices on the same Kiosk version the policy was saved with. A device on any other version ignores the policy. With CM8, upgrade all devices in a group together, then save the policy again with the new version.

If a policy can't be applied

When a device can't apply its policy, it doesn't change its configuration. It keeps its current settings and shows a status message explaining why. The table below lists these messages, when they appear and how to fix them.

Behavior that changes after enrollment

• Session reports. After each session, the Kiosk always sends the session report data (scan results) to My OPSWAT. Sync report to My OPSWAT only controls whether the report files (Download ZIP) are uploaded, either for every session or only for sessions with blocked files. For example, with Only sync when has blocked files enabled, you still see results for every session in My OPSWAT, but ZIP reports are available only for sessions that blocked a file.

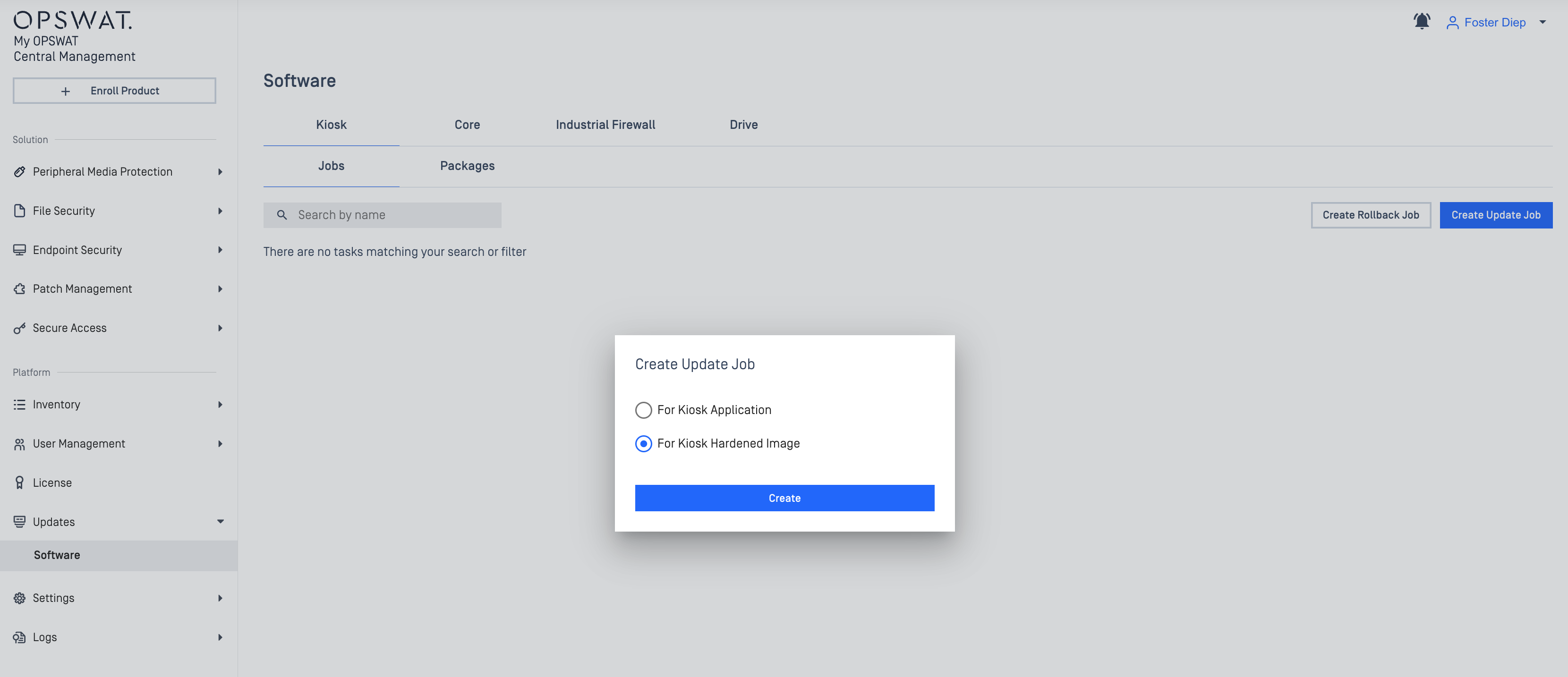

• Kiosk application upgrade (CM10). Upgrades are started from Central Management as upgrade jobs under Updates > Software, with progress and results reported for each job.

• Upgrade banner (CM10). The "Upgrading…" warning banner isn't shown in the CM10 configuration pages.

• Certificates (CM10). Certificates managed in My OPSWAT are downloaded to the device and refreshed automatically. When you unenroll, any that are still in use are converted to local certificates, so HTTPS and Media Manifest keep working.

"MyOPSWAT does not support this feature"

In the Central Management configuration pages, a setting that can only be configured on the device shows the tooltip "MyOPSWAT does not support this feature." Configure these settings in the Kiosk Console on each device. These are the rows marked ✅ Kiosk Console and ❌ CM8 / ❌ CM10 in the Feature availability table.

CM8 vs CM10 at a glance

These capabilities are available only with CM10:

• Security page (HTTPS)

• Screen saver file upload

• My OPSWAT certificates for Media Manifest

• Session report files

• Applying a policy created for a different Kiosk version

• Remote commands (application upgrade, support package, script execution)

• The Upgrades and License pages

• Policy exclusions (keeping a device's local value for selected settings)

We recommend CM10 for managing Kiosk devices.

Minimum version reference
