Initial configuration for Network Sensor on local management console application

About this task

Use this procedure for Network Sensor Configuration Login and Network Configuration for the Network Sensor on the local management console application.

Before you begin

Ensure that you have completed the installation of the Network Sensor on the local management console application.

Prepare the display screen, keyboard, and mouse physically attached to the Network Sensor server to serve during the configuration process.

Procedure

After installation, the MetaDefender OT Security Network Sensor on the local management console application starts.

Steps:

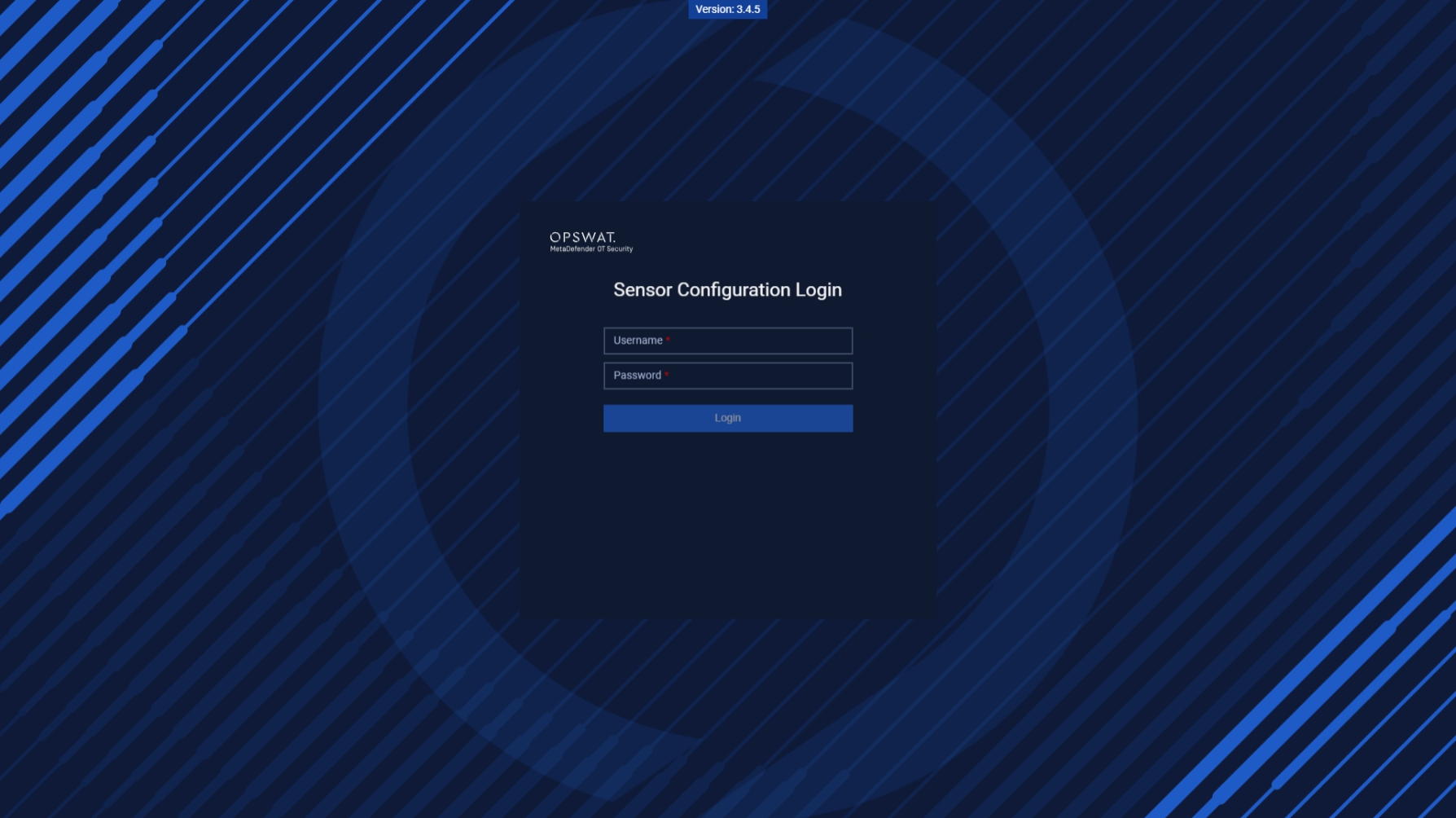

Input username and password for the admin default user
Click Login

After successfully logging in with the default username and password, it is necessary to reset the password:

Input new password
Input to confirm new password
Click Submit button

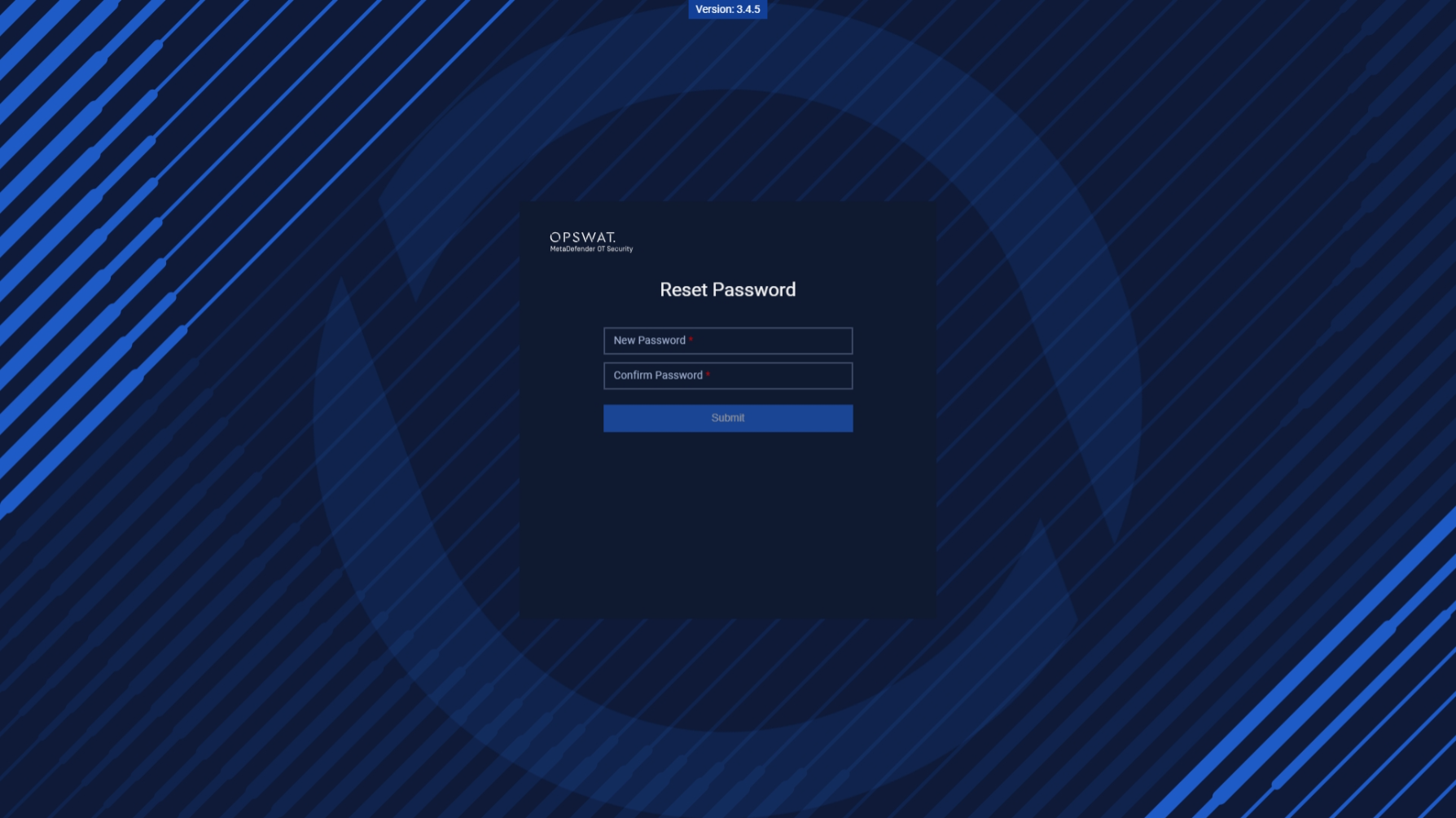

Reset password

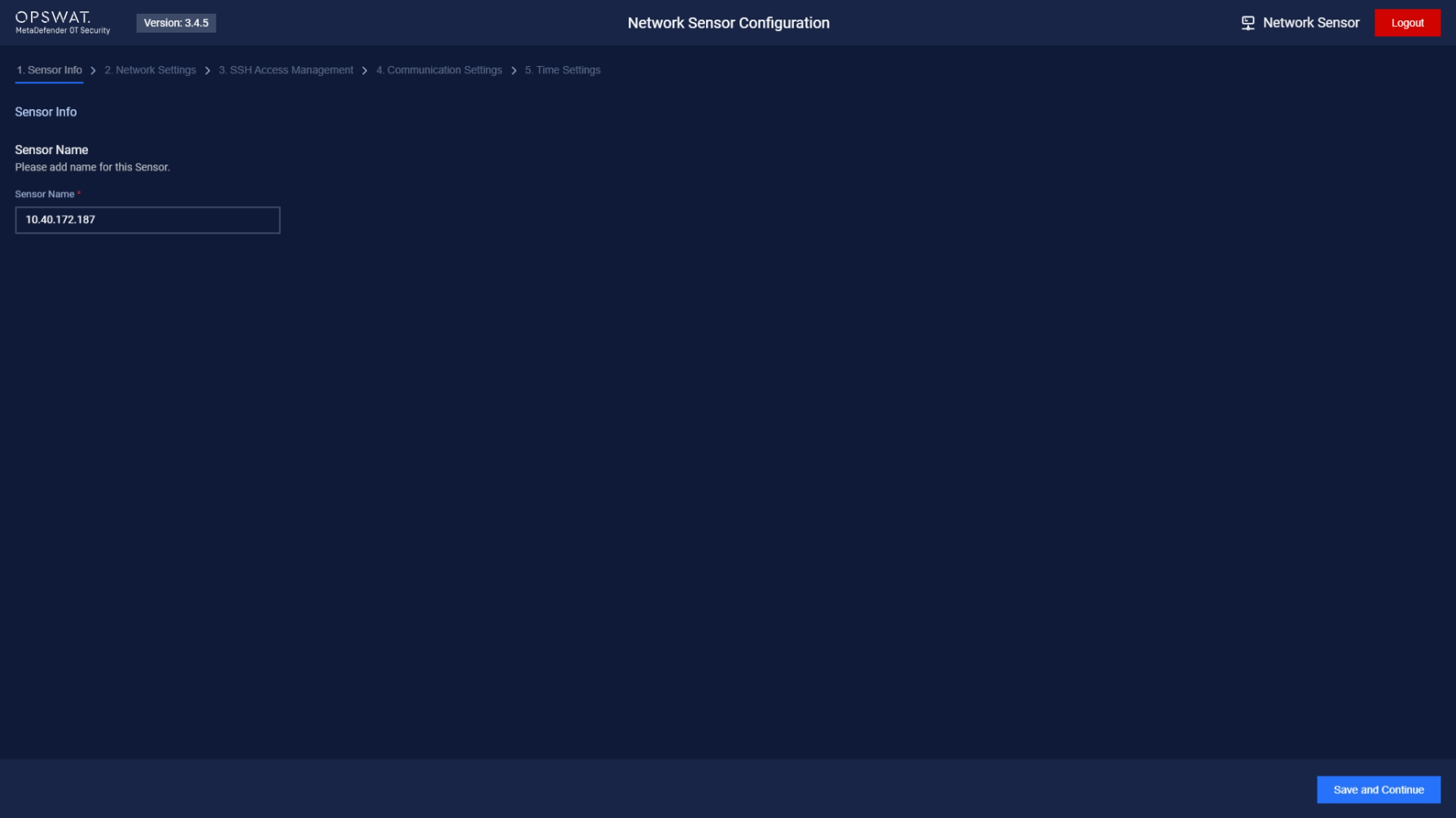

Sensor Info

In this step, the user will name the Sensor.

After inputting the name, click Save and Continue to go to the next step.

Network Sensor Network Settings

Overview Network Sensor Network Setting

During this step, our application will detect the Network Interface Cards (NICs) that are currently plugged into your computer. This allows our application to determine which NICs are available for use with our software.

If you have multiple NICs connected to your computer (such as a Built-in NIC, USB NIC 1, and USB NIC 2), our application will display all available NICs on the screen. To help you identify which port each NIC is connected to, you can unplug the cable, and the status of the NIC will be changed to Unavailable in our application.

If our application fails to detect all of your available NICs, you can click the Recheck button in the top right corner of the screen to rescan for all NICs.

Recheck button

To use an NIC with our software, toggle the button next to its name. You can disable NICs you don't want to use.

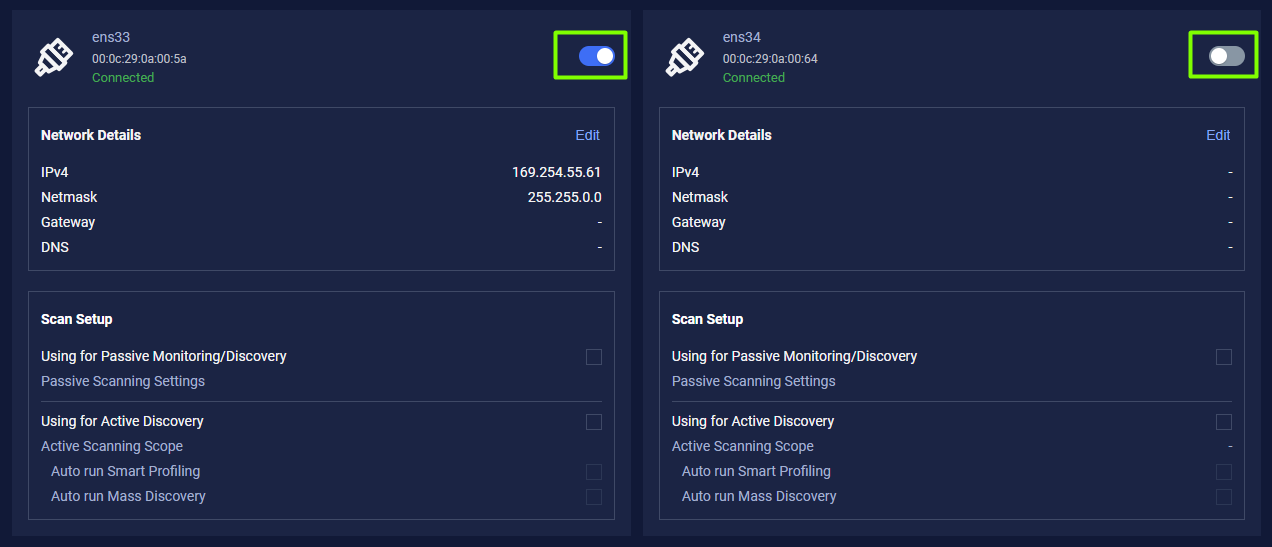

Enable/Disable Network Interface

Click on the Save button to save the changes.

2. Select NIC for Site Connectivity and Scanning

2.1. Select NIC for Site Connectivity

The purpose of this is to select a specific NIC for connecting between the Network Sensor and the Site Manager.

Select NIC for Site Connectivity

2.2. Select NIC for Scanning

You can set up discovery settings for each NIC by selecting either Passive discovery or Active Discovery. The system will do the scanning based on the network configuration for NICs that you set up (for both active and passive scanning). Particularly:

Passive Discovery: This setting allows the NIC to receive packets from Switch. This is useful for monitoring network traffic without disrupting it. Passive discovery requires the selected NIC to be connected to the SPAN (mirror) port of the switch. We recommend the users use built-in NIC for passive scanning to have better performance.

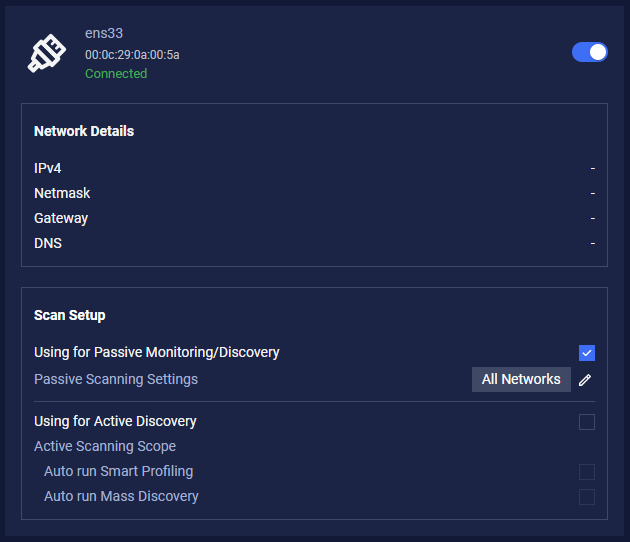

Select NIC for Passive Discovery

Active Discovery: This setting sends packets to probe the network and discover other devices. This is useful for identifying network topology and detecting potential issues. The NIC for Active Discovery is recommended NOT to be connected to the SPAN (mirror) port of the switch.

Select NIC for Active Discovery

3. Select NIC for Patch Management

This aims to select a specific NIC for Integrated patching capabilities for firmware from the Siemens vendor to streamline updates and manage vulnerabilities.

Click Select a NIC under Using for Patch Management to choose a specific NIC from the drop-down list.

This list displays all the NICs we enabled earlier, and we only need to select one.

Select NIC for Patch Management

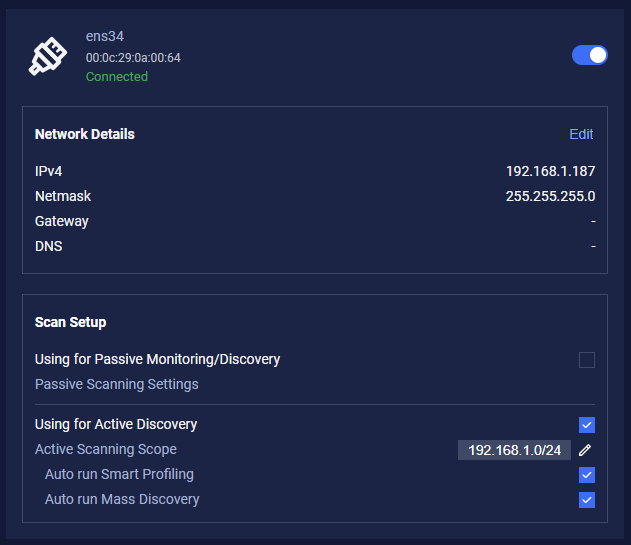

4. Configure Network Interfaces

For each NIC, you can set up the IPv4 address by selecting either Auto (DHCP) or manually inputting the address, netmask, and gateway. This allows you to customize the network settings to fit your specific needs.

It should be noted that:

You need to configure IPs only for NICs selected to use as Active Discovery
You do not need to configure the IP for the NICs used as Passive Discovery.
MetaDefender OT Security captures only traffic from NICs that are configured as Passive Discovery or Active Discovery.

In this step, you can access and configure a list of available network interfaces (NICs). To configure a NIC, click on the Edit button to access the configuration options of the NIC selected in the previous step.

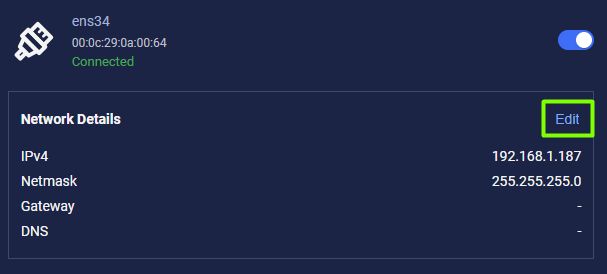

Click on the Edit button to access the configuration options

By default, the option is Auto (DHCP), In case your system has a DHCP server, just enter additional DNS.

Config Auto(DHCP) for NIC

Then click the Apply button to save the changes.

For optimal performance, it is recommended to use static IP addresses. Therefore, we should switch to Manual configuration.

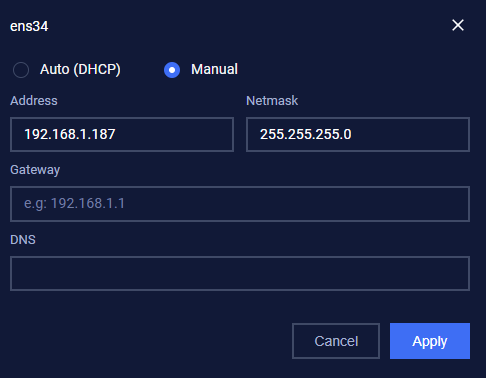

Config Manual for NIC

Please enter the required details - your address, netmask, gateway, and DNS, in the provided fields. After entering all the details, click on the Apply button to save the changes.

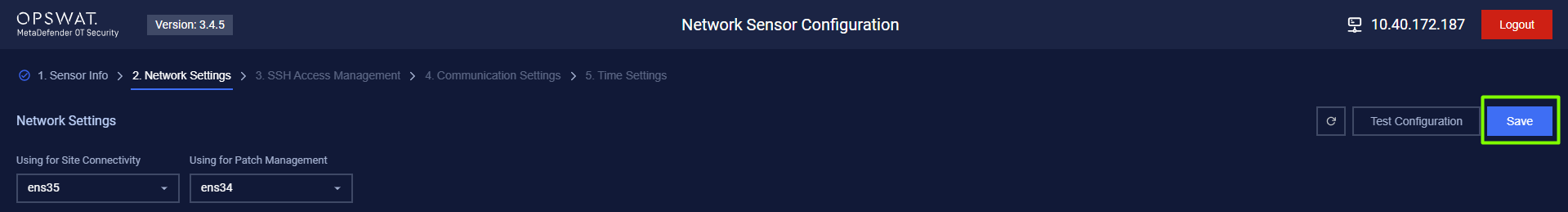

Finally, save your configuration, simply click on the Save button located at the top right corner of the screen.

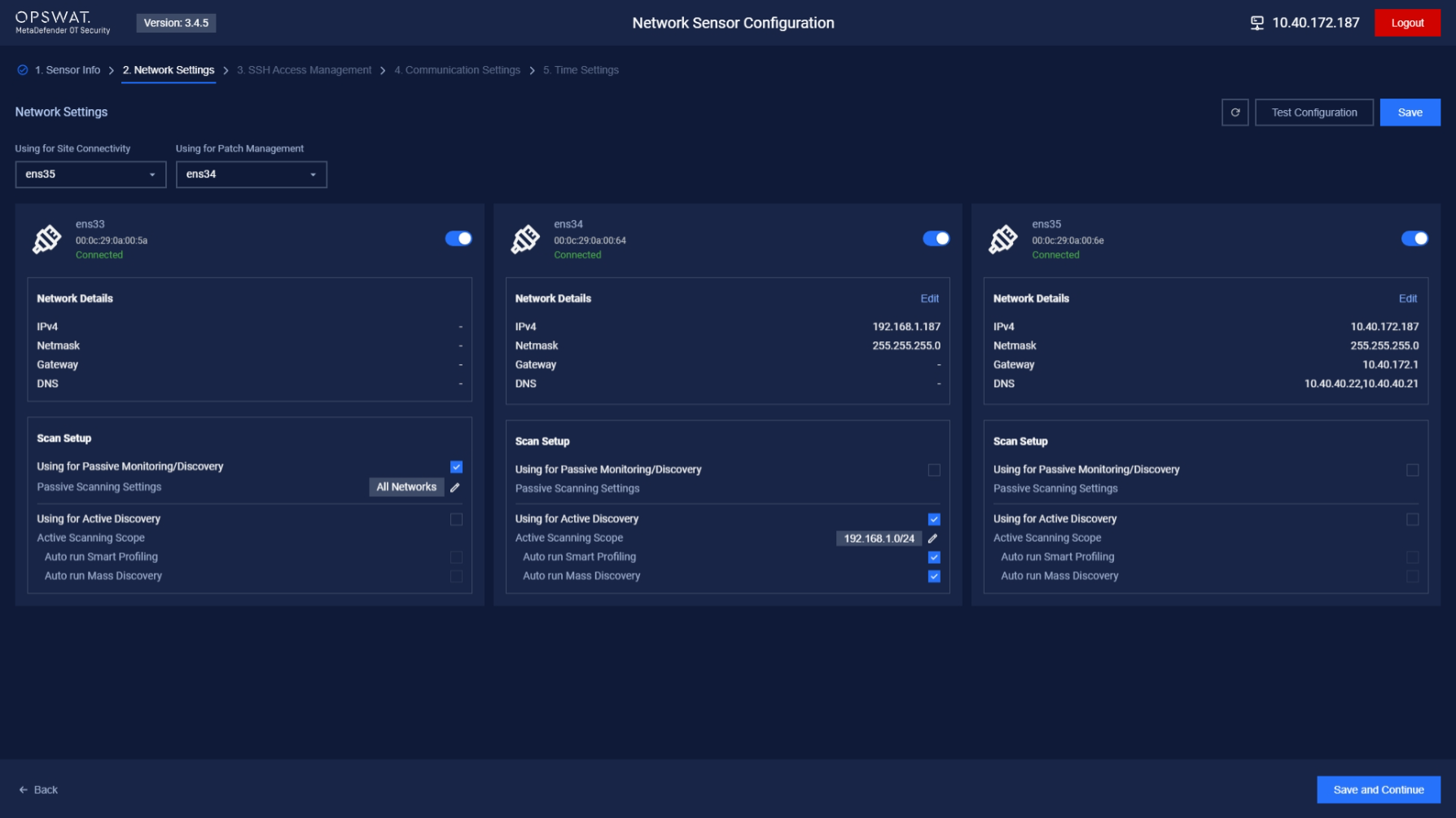

Click on the Save button to save the configuration

SSH Access Management

At this step, we can manage SSH access rights by adding IPs to the allowed list and adding a password if needed.

Network Connectivity - Network Sensor and Site Manager communication

Based on your organization's security rules, it's important to select the appropriate communication method for MetaDefender OT Security when setting up connectivity between the Network Sensor and the Site Manager.

Note: Make sure to select the matching communication model between all components involved: Site Manager, Enterprise Manager, and Network Sensors. This ensures consistent and reliable communication across the system.

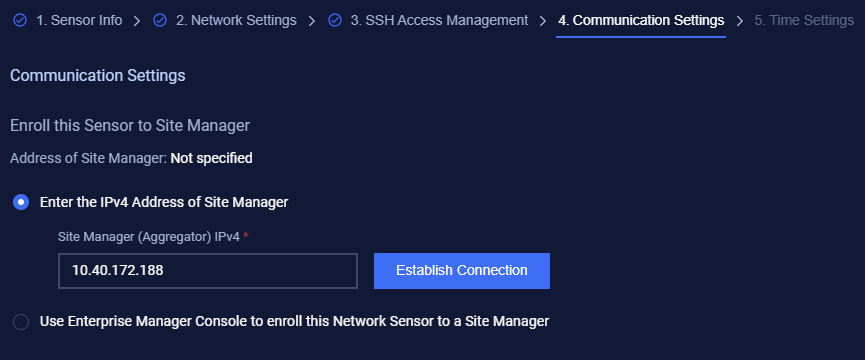

Model #1: Enter the IPv4 Address of Site Manager

When selecting this communication method, you'll need to:

Input the Site Manager IPv4 Address: Enter the IP address of the Site Manager to establish the connection.
Establish Connection: Once you've entered the required information, click on Establish Connection. This action will save the configuration and add the Network Sensor to the Site Manager system.

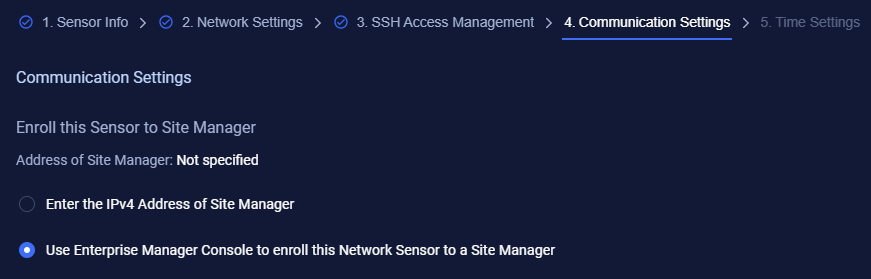

Model #2: Use Enterprise Manager Console to enroll this Network Sensor to a Site Manager

Time Settings

Configuring the system time can be done using two methods: manual time setting and synchronizing time via an NTP (Network Time Protocol) server. You can choose the most suitable option based on your system’s requirements.

1. Manual setting for Time Settings

In this method, users can manually set the system's time and select the appropriate time zone.

Steps to configure time settings manually:

Step 1 - Select option Manual

Step 2 - Click Select timezone* to open drop-down list:

Choose your desired time zone from the list of available options. For example, you can select Asia/ Ho Chi Minh, etc.
Once you’ve entered the correct time zone, click on the Apply button to store your changes.

Select time zone

Step to manually set the Date and Time if it is not correct:

Step 1 - Click the Click here button to open the change system time popup:

Step 2 - Click Add system time:

In the Date and Time fields, manually input the current date and time:

Date Format: Typically follows YYYY-MM-DD (e.g., 2024-08-29).
Time Format: The time format follows the pattern HH:MM:SS (e.g., 11:01:19) using the 24-hour clock format.

Step 4 - Save the settings:

Once you’ve entered the correct date, time, and time zone, click on the Save button to store your changes.

Step 5 - Verify the changes:

Ensure that the system reflects the correct date, time, and time zone on the interface.

2. NTP Servers

NTP (Network Time Protocol) is a protocol designed to synchronize the clocks of networked devices to a global standard time, usually via online servers. This method ensures that the system time is accurate and automatically updated.

Steps to configure NTP Servers

Step 1 - Select option NTP Servers

Step 2 - Click on NTP Servers to add NTP Server:

Step 3 - Input NTP Server Address:

You will be prompted to input an NTP server. Examples of commonly used NTP servers are:

pool.ntp.org
time.google.com
time.windows.com

Enter the preferred NTP server URL or IP address into the NTP Server field.

Step 4 - Apply the Settings:

After entering the NTP server information, click the Save button to store the settings. The system will now synchronize its time with the NTP server at regular intervals.

Step 5 - Verify NTP Synchronization:

Check the system time to ensure it matches the correct time after synchronization.
