Initial configuration for Site on local management console application

About this task

Use this procedure for Site Configuration Login and Network Configuration for the Site on the local management console application

Before you begin

Ensure that you completed the installation for the Site on the local management console application.

Prepare display screen, keyboard and mouse physically attached to the Site server to serve during the configuration process

Procedure

After installation, the MetaDefender OT Security Site on local management console application is starting

Site Configuration Login

1. Login with the default username/password

Steps:

  1. Input username and password for the admin default user
  2. Click Login
Login with the credentials default

Login with the credentials default

2. Reset the password on the first login

After successfully logging in with the default username and password, it is necessary to reset the password. Steps:

  1. Input new password
  2. Input to confirm new password
  3. Click Submit
Reset Password

Reset Password

Configuration for network setting for Site

Overview Network Settings for Site

Overview Network Settings for Site

1. Checking Network Interface

During this step, our application will detect the Network Interface Cards (NICs) that are currently plugged into your computer. This allows our application to determine which NICs are available for use with our software.

If you have multiple NICs connected to your computer (such as a Built-in NIC, USB NIC 1, and USB NIC 2), our application will display all available NICs on the screen. To help you identify which port each NIC is connected to, you can unplug the cable and the status of the NIC will be changed to "Unavailable" in our application.

If our application fails to detect all of your available NICs, you can click the "Recheck" button in the top right corner of the screen to rescan for all NICs.

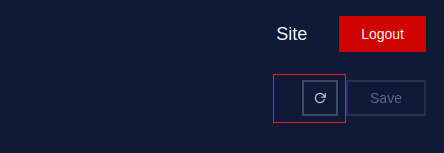

Recheck button

Recheck button

To use an NIC with our software, toggle the button next to its name. You can disable NICs you don't want to use.

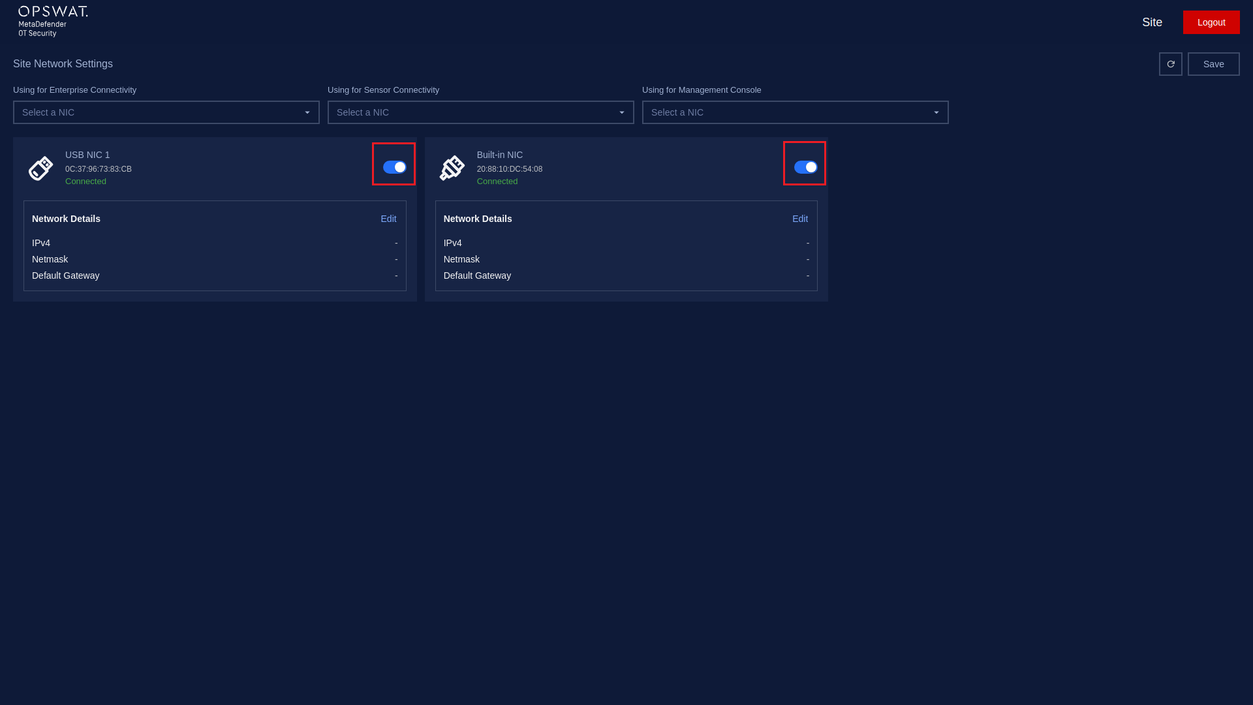

Enable/Disable Network Interface

Enable/Disable Network Interface

Click on the Save button to save the changes.

2. Select NIC using for Enterprise Connectivity

The purpose of this is to select a specific NIC for connecting between the Site and the Enterprise.

Click “Select a NIC” under “Using for Enterprise Connectivity” to choose a specific NIC from the droplist.

This list displays all the NICs we enabled earlier, and we only need to select one.

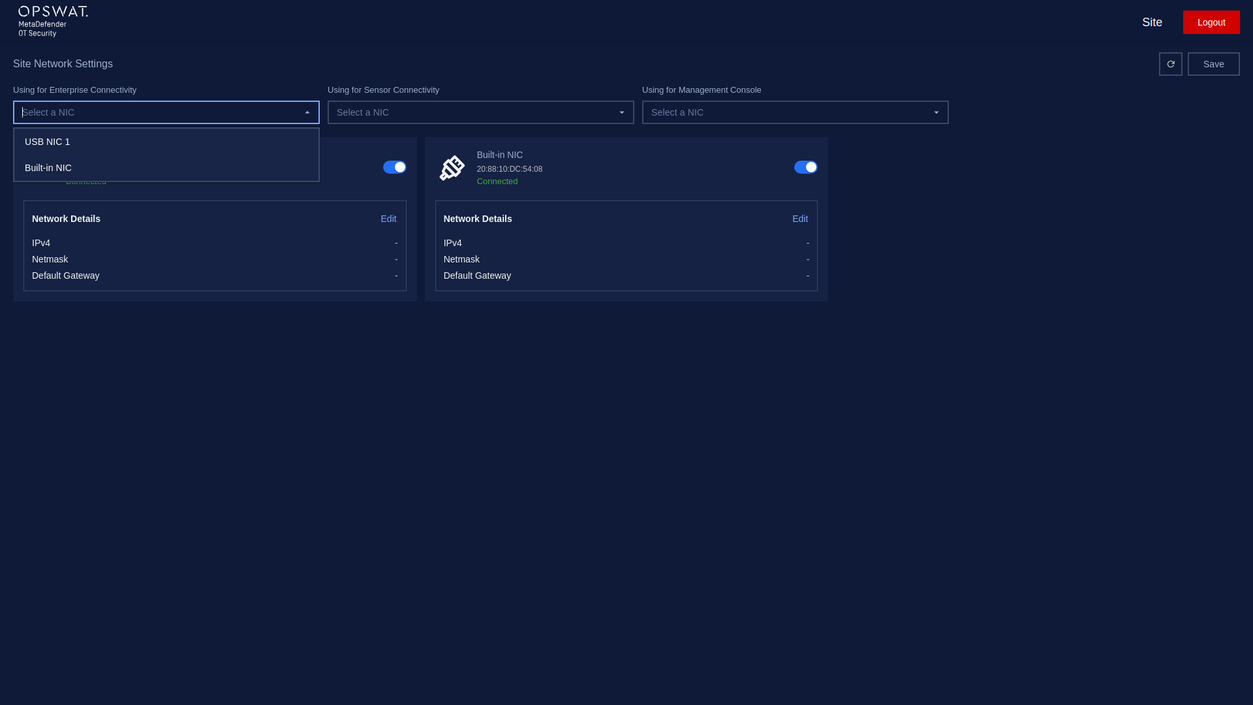

Select NIC using for Enterprise Connectivity

Select NIC using for Enterprise Connectivity

3. Select NIC using for Sensor Connectivity

The purpose of this is to select a specific NIC for connecting between the Site and the Sensor.

Click “Select a NIC” under “Using for Sensor Connectivity” to choose a specific NIC from the droplist.

This list displays all the NICs we enabled earlier, and we only need to select one.

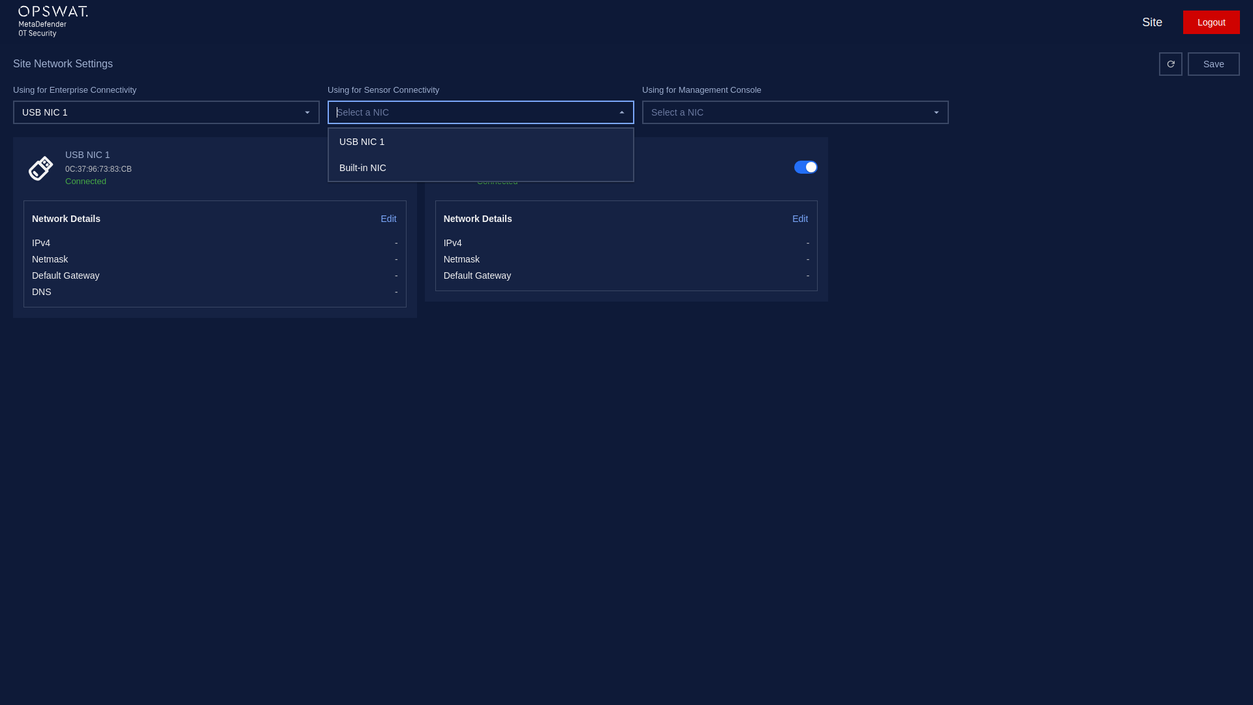

Select NIC using for Sensor Connectivity

Select NIC using for Sensor Connectivity

4. Select NIC using for Management Console (Optional)

The purpose of this is to select a specific NIC for the internet connection, manage the Site, or serve for features later.

Click “Select a NIC” under “Using for Sensor Connectivity” to choose a specific NIC from the droplist.

This list displays all the NICs we enabled earlier, and we only need to select one.

Select NIC using for Management Console

Select NIC using for Management Console

5. Configure Network Interfaces

In this step, you can access and configure a list of available network interfaces (NICs). To configure a NIC, click on the “Edit” button to access the configuration options of the NIC selected in the previous step.

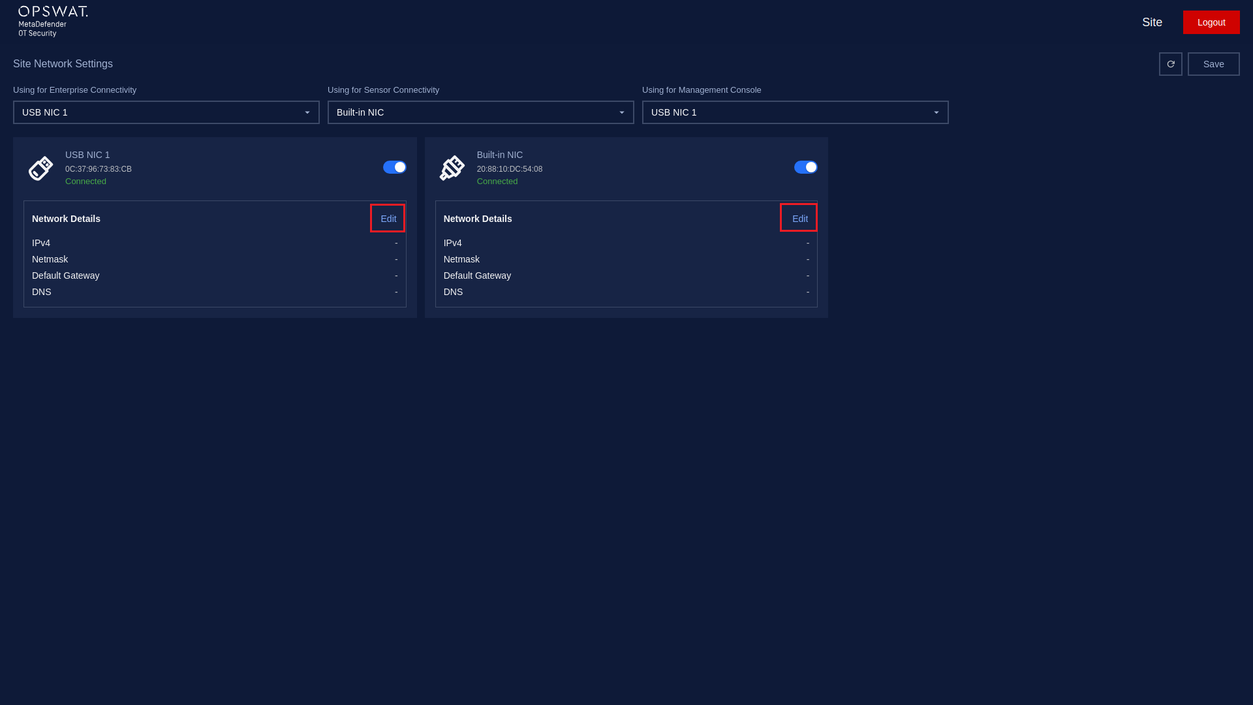

Click on the “**Edit**” button to access the configuration options.

Click on the “Edit” button to access the configuration options.

By default, the option is Auto (DHCP), In case your system has a DHCP server, just enter additional DNS.

Then click the Apply button to save the changes.

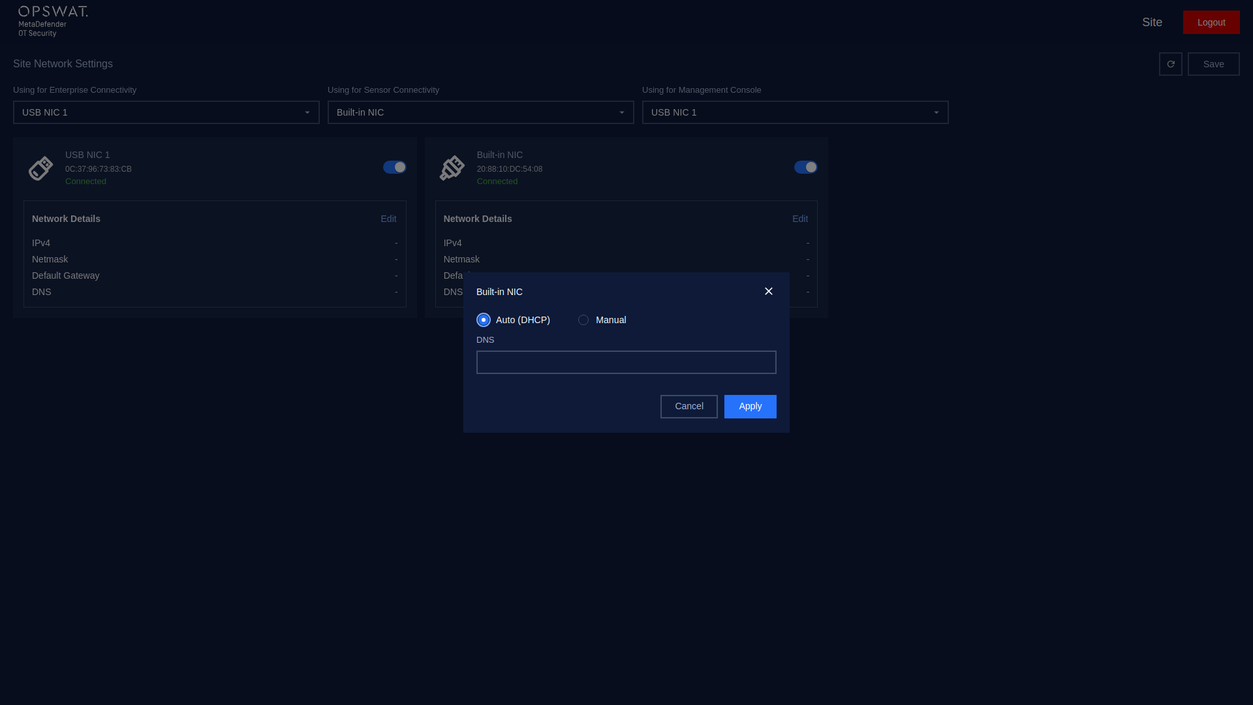

Config Auto(DHCP) for NIC

Config Auto(DHCP) for NIC

For optimal performance, it is recommended to use static IP addresses. Therefore, we should switch to Manual configuration.

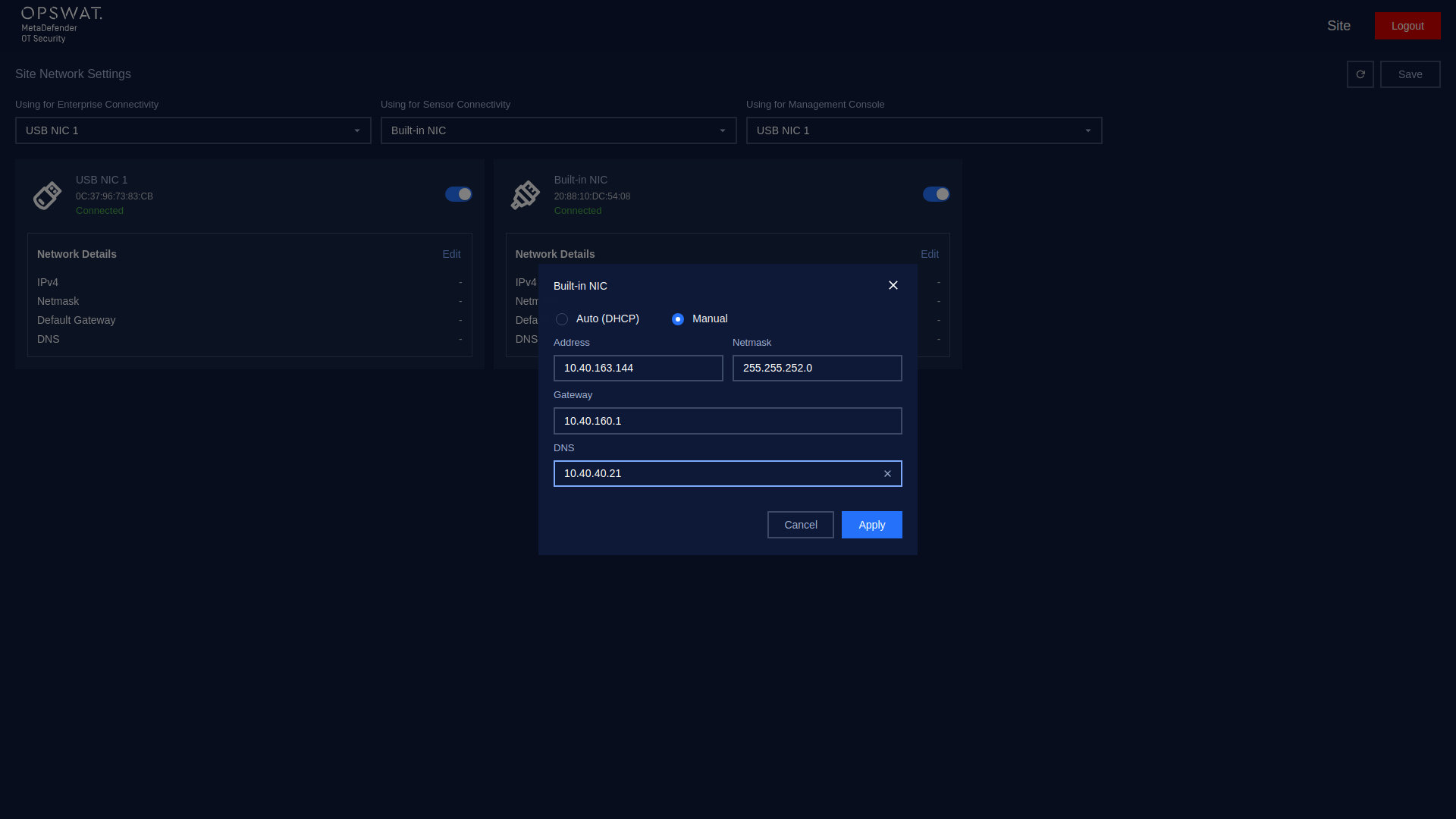

Config Manual for NIC

Config Manual for NIC

Please enter the required details - your address, netmask, gateway, and DNS, in the provided fields. After entering all the details, click on the "Apply" button to save the changes.

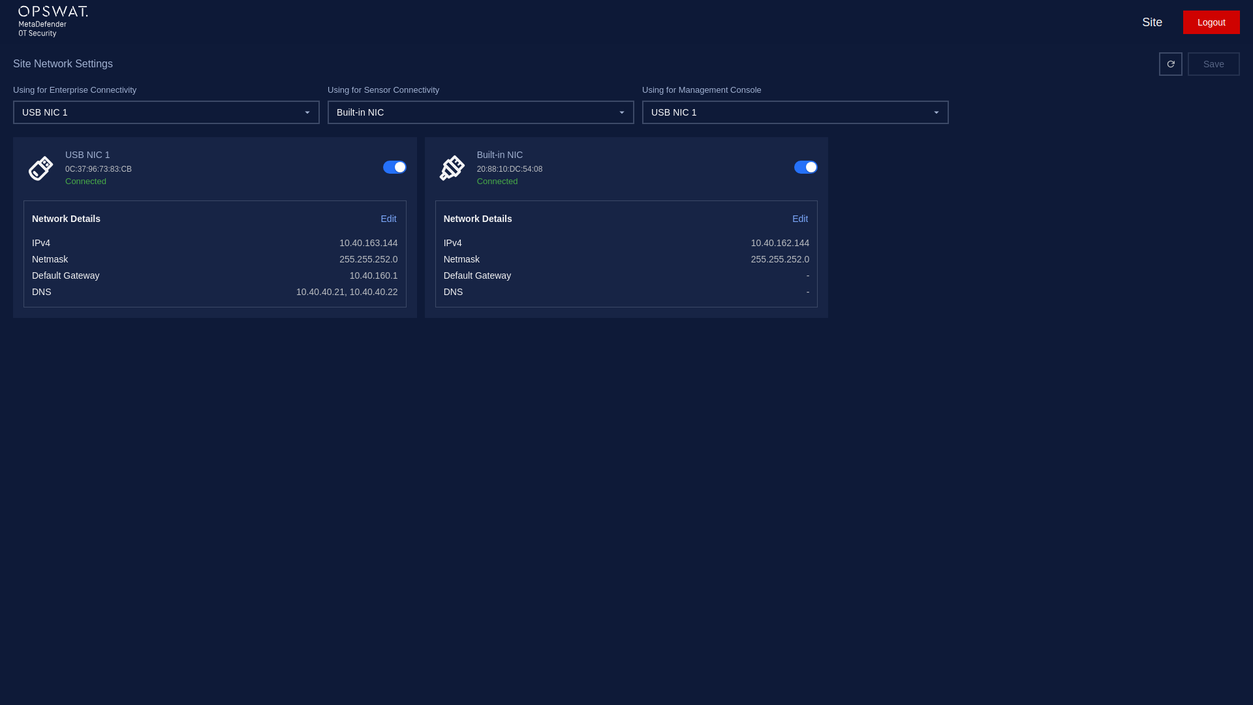

Finally, save your configuration, simply click on the Save button located at the top right corner of the screen.

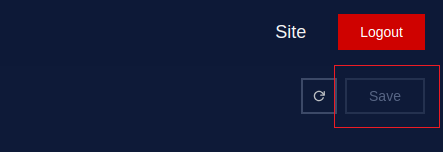

Click on the **Save** button to save the configuration

Click on the Save button to save the configuration
