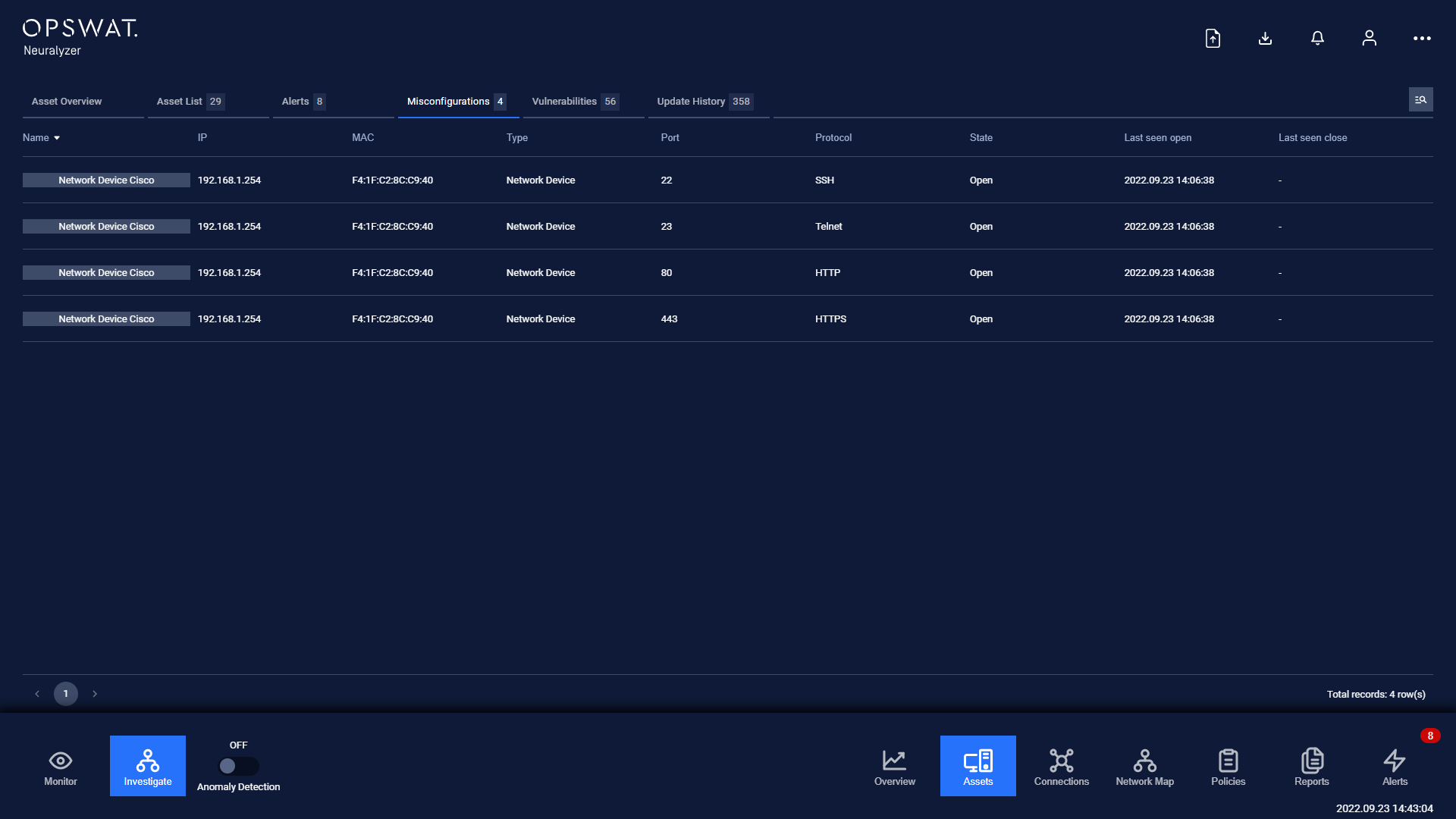

Misconfigurations

This page contains misconfiguration ports of all devices in the system.

Each record contains:

Basic information of that device such as Name, IP, MAC, Criticality, Type, Sub-type.
The port that is opening with protocol and state information, last seen open and close.

Note: you can sort a field in ascending or descending order by clicking on the its name.

Filter

We support searching and filtering on the device misconfigurations list:

You can enter value for one or more fields, and the result list and number of total records will be updated according to the value(s) you entered.

Index	Field	Data type	Type of input	Support multi-input
1	Name	Text	Input text	No
2	IP	Number	Input number in IP address format (e.g. 192.168.1.102), IP netmask format (e.g.192.168.1.0/24)	No
3	MAC	Text & Number	Input number and text in MAC address format (e.g. A1:B2:C3:D4:E5:F6),	No
4	Type	Text	Select from drop-down list	Yes
5	Sub-type	Text	Select from drop-down list	No
6	Port	Number	Input text	No
7	Protocol	Text	Input text	No
8	State	Text	Select from drop-down list	No
9	Last seen open	Date time	Select from pop-up calendar and clock	No
10	Last seen close	Date time	Select from pop-up calendar and clock	No

We support searching and filtering on the misconfigurations list:

You can enter value for 1 or more fields, and the result list and number of total records will be updated according to the value(s) you entered.
You can change the order of the fields displaying on the list by clicking "..." -> “Filter preference” then drag and drop the fields and arrange them in the desired order.
You can choose to show/hide the fields in the list by clicking "..." -> “Filter preference” and tick/untick the box on the left of field name. If you choose more than 10 fields to be displayed on the list, an horizontal scroll bar will appear, just scroll it to the right to see more fields.
You can save a custom filter for your convenience when you need to reuse them in the future. Enter values into the fields to filter then select "..." -> "Create filter", give a name for your filter. Every time you come back, click on "..." → Your saved filter to apply it.
You can update your saved custom filters by editing/adding values to the fields and selecting "..." then "Save filter”
You can delete a saved custom filter by selecting “…” → “X” button on saved filter
