Assemblyline 4

Assemblyline 4 is a scalable file triage and malware analysis system integrating some of the cyber security community's tools.

With the integration, you can send a file or URL scan request from Assemblyline 4 to MetaDefender Sandbox.

The source code of the integration is available here.

The docker image is available here.

Installation

In Assemblyline4 go to Administration -> Services and click on the green plus button (add service):


Paste the service manifest on the pup-up window:

# Name of the service name: MetaDefender_Sandbox # Version of the service version: 4.5.1.dev0 description: This Assemblyline service interfaces with the MetaDefender Sandbox -previously known as OPSWAT Filescan Sandbox-, detonating files and URLs. This integration was developed by OPSWAT. (C) OPSWAT, Inc. accepts: .* rejects: empty stage: CORE category: Dynamic Analysis file_required: true timeout: 600 # is the service enabled by default enabled: true uses_metadata: true # -1000: safe # 0 - 299: informational # 300 - 699: suspicious # 700 - 999: highly suspicious # >= 1000: malicious heuristics: - description: MetaDefender Sandbox determined that the file is benign. filetype: "*" heur_id: 1 name: MetaDefender Sandbox verdict is benign. score: -1000 - description: MetaDefender Sandbox signal group is benign. filetype: "*" heur_id: 2 name: Benign threat indicators score: -1000 - description: MetaDefender Sandbox determined that the file is informational/no threat. filetype: "*" heur_id: 3 name: MetaDefender Sandbox verdict is no threat. score: 150 - description: MetaDefender Sandbox signal group is informational/no threat. filetype: "*" heur_id: 4 name: Informational threat indicators score: 150 - description: MetaDefender Sandbox determined that the file is unknown. filetype: "*" heur_id: 5 name: MetaDefender Sandbox verdict is unknown score: 299 - description: MetaDefender Sandbox signal group is unknown. filetype: "*" heur_id: 6 name: Unknown threat indicators score: 299 - description: MetaDefender Sandbox determined that the file is suspicious. filetype: "*" heur_id: 7 name: MetaDefender Sandbox verdict is suspicious score: 500 - description: MetaDefender Sandbox signal group is suspicious. filetype: "*" heur_id: 8 name: Suspicious threat indicators score: 500 - description: MetaDefender Sandbox determined that the file is likely malicious. filetype: "*" heur_id: 9 name: MetaDefender Sandbox verdict is likely malicious score: 850 - description: MetaDefender Sandbox signal group is likely malicious. filetype: "*" heur_id: 10 name: Likely malicious threat indicators score: 850 - description: MetaDefender Sandbox determined that the file is malicious. filetype: "*" heur_id: 11 name: MetaDefender Sandbox verdict is malicious score: 1000 - description: MetaDefender Sandbox signal group is malicious. filetype: "*" heur_id: 12 name: Malicious threat indicators score: 1000 # Docker configuration block which defines: # - the name of the docker container that will be created # - CPU and ram allocation by the container docker_config: image: ${REGISTRY}opswat/assemblyline-service-metadefender-sandbox:4.5.1.dev0 cpu_cores: 1.0 ram_mb: 1024 allow_internet_access: true config: api_key: "" host: "https://www.filescan.io" poll_interval: 2 timeout: 60 submission_params: - default: "" name: api_key type: str value: "" - default: 2 name: poll_interval type: int value: 2 - default: 60 name: timeout type: int value: 60 - default: "" name: description type: str value: "" - default: "" name: password type: str value: "" - default: "" name: is_private type: bool value: ""
Note

If you use the yml file from github, please change the $SERVICE_TAG vaiable everywhere to the actual docker tag. (Now it's 4.5.1.dev0)

Click on Add button on the bottom left.

After installation, you will find the service within the loaded services. Ensure that it has been enabled:


Configuration

On the service details panel you can set the submission parameters and the service variables.

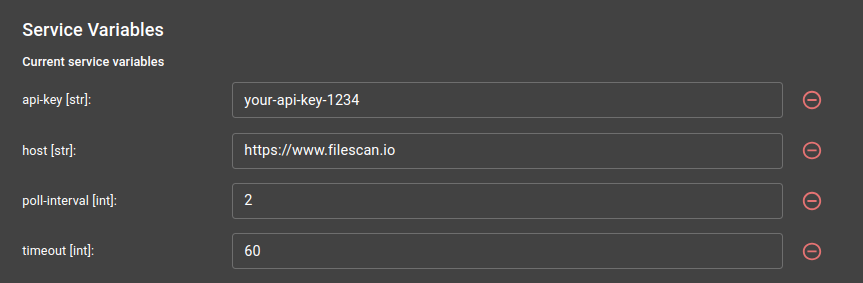

Service variables

The service variables are the follows:


Description

Default value

required

api-key

MetaDefender Sandbox api-key


yes

host

Sandbox host

https://www.filescan.io

yes

poll-interval

Submission polling interval

2


timeout

Submission polling timeout

60



Note

A MetaDefender Sandbox API key is required to use the integration.

You can use the Activation Key that you received from your OPSWAT Sales Representative, and follow the instructions on the License Activation page or you can create an API key on the Community site under API Key tab.

You need to add your API key, and if you have on-prem version of MetaDefender Sandbox, you can add your own server's URL. The default URL is Filescan.io free community.

After saving the settings you can use the service.

Submission parameters

Important

To use the service, you must select the MetaDefender_Sandbox service under the settings menu when submitting a file or a URL. You can found it under the Dynamic Analysis section:


Under the Service Specific Parameters section you can set the Filescsan Sandbox submission parameters:


These parameters are:


Description

Default value

Required

Api-Key *

MetaDefender Sandbox api-key

Uses the service variable


Poll-Interval *

Submission polling interval

2


Timeout *

Submission polling timeout

60


Description

Uploaded file/URL description



Password

Custom password, in case uploaded archive is protected



Is Private

If file should not be available for download by other users



*In case that you would like to use different value than it was set under the service variables.

Available actions

File scan

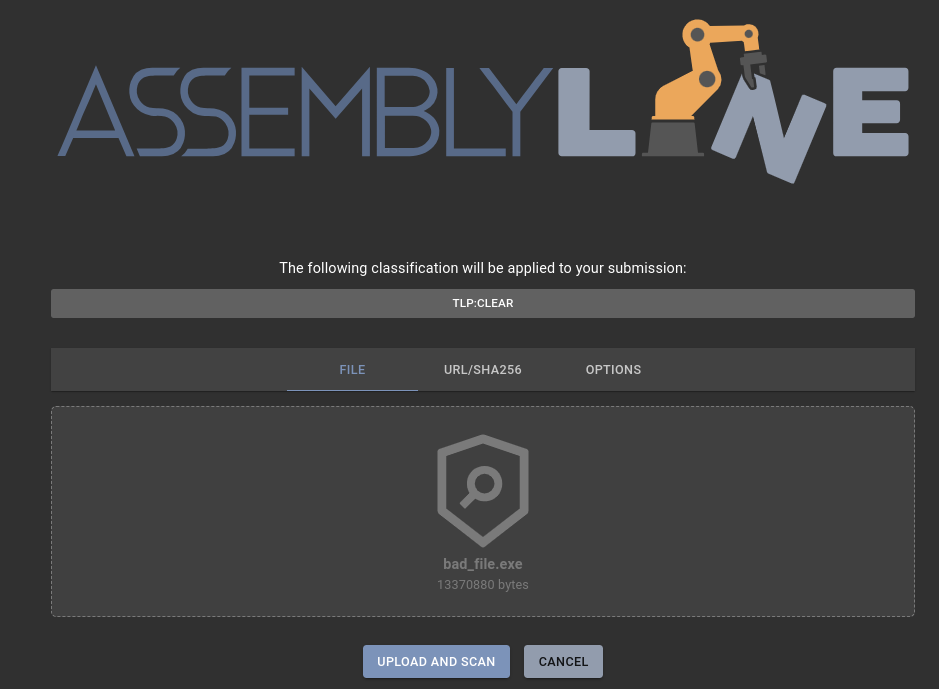

To scanning a file drag and drop the target file to the uploader area and click on 'UPLOAD AND SCAN' button:


URL/SHA256

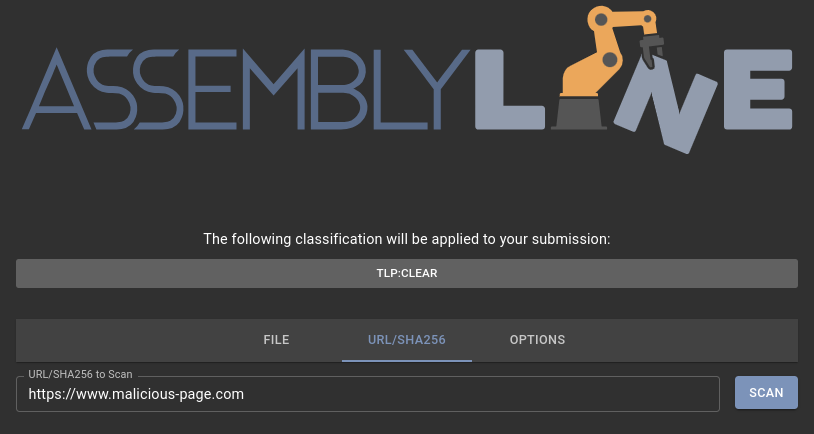

To scan an URL, write the URL address to the field and click on SCAN button


To scan a SHA256, copy the target file's SHA256 hash to the field.

Note

You can scan only that SHA256 what is exists in Assemblyline.

Result

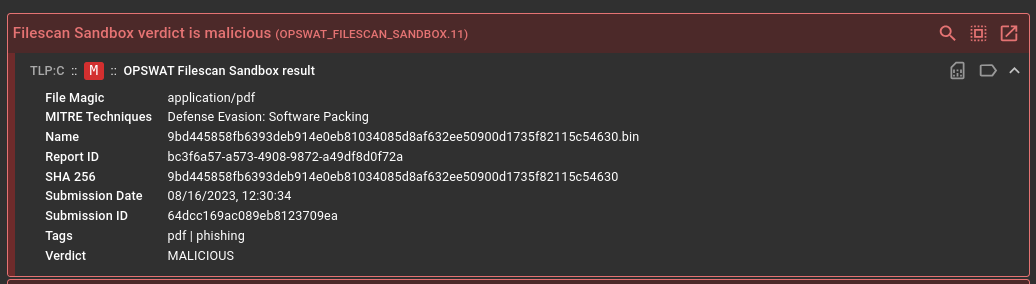

After the scan is successfully performed, the main result will be visible with the most important informations:



A summary report of the scan can be found under MetaDefender Sandbox result (heuristic):

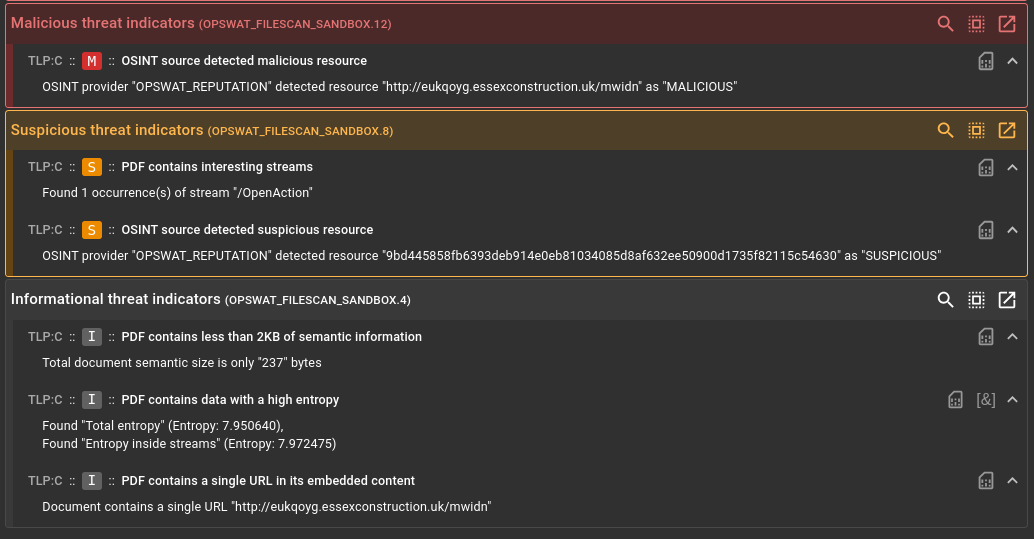

Indicators are added in a subsections for heuristics:

If any MITRE ATT&CK was identified, it can be found under the ATT&CK Matrix section:


If there were any parsable attributes in the result, they will appear under Attributions


IOCs were found under the Indicators of Compromise section:


A more detailed report on the file is available by clicking on the links in the Files section:



Here you can found the generated tags:


Furthermore, the link to the complete report is also available at your request below:


Compatibility

Tag

Sandbox 1.9.*

Sandbox 2.0.*

4.5.1.dev0

Yes

No

4.5.1.dev1

Yes

Yes
