For the configuration management feature, My OPSWAT does not have support for all OPSWAT products yet.
Please refer to Products Dashboard for a list of supported OPSWAT products. Support for the configuration management feature is indicated in the Configuration column.
Each product type has different configuration settings available. Please refer to their respective documentations on docs.opswat.com.
Update configuration for a specific Instance

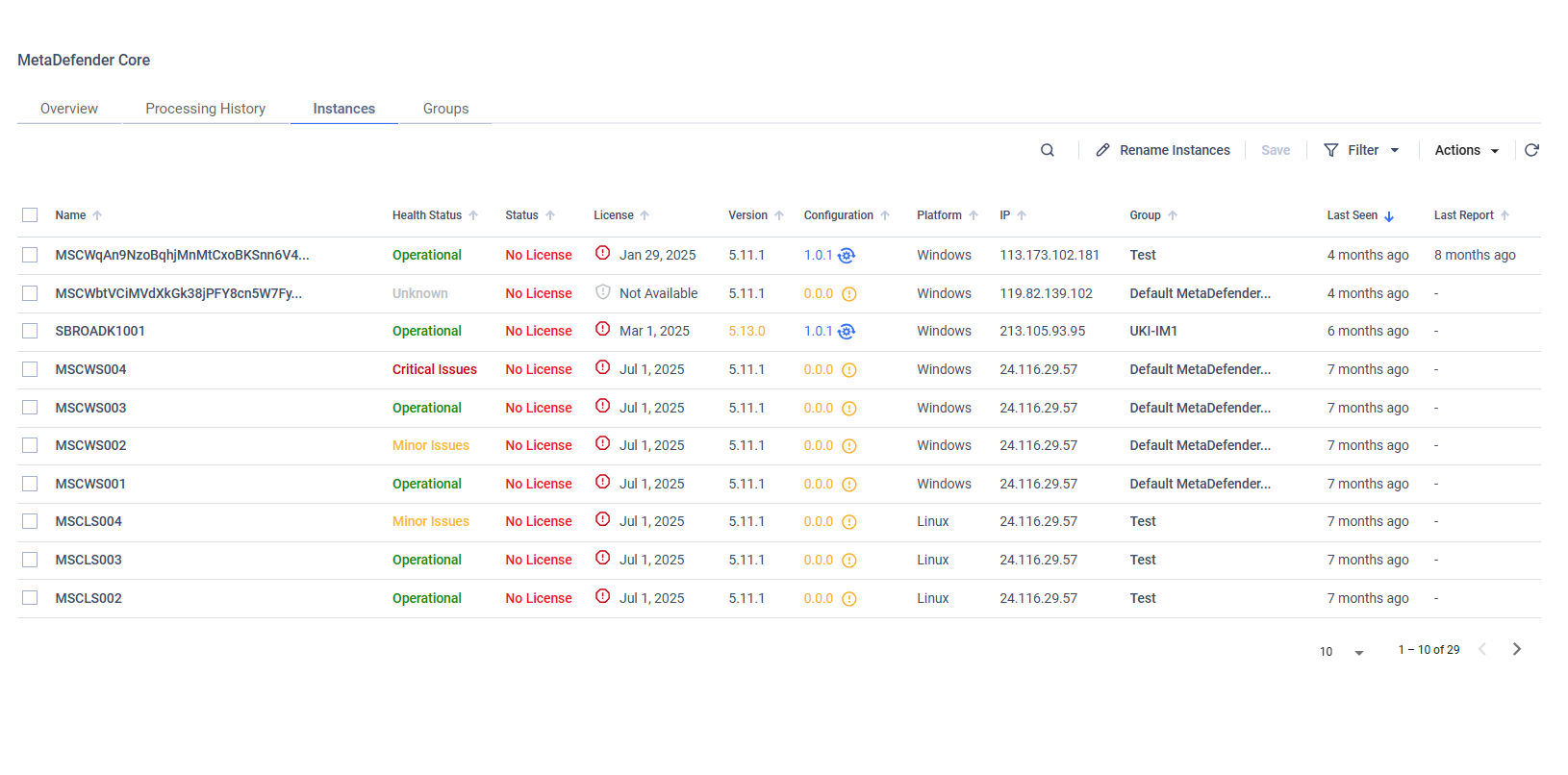

You can view and update an instance configuration by selecting a specific instance in the instance dashboard to navigate to the instance details then select the Configuration tab.
Click Edit to enable editing. After making changes, click Save to confirm changes. Please note that the changes will be applied to the instance when the instance fetches a new configuration.
Elevate an instance configuration to Group Configuration
In the instance details view, click Set As Group Configuration to set this instance's configuration as the group configuration for the product group that the instance belongs to. Please refer to Product Group for more information.
Instance configuration Version
Instance Configuration Version is used to indicate the configuration status of an instance.
Version, for example 1.0.1: indicate what group configuration version applied to the instance.
If the configuration version is 0.0.0, the instance has not been applied the group configuration from the time it was moved to the group
If there is an icon followed by the version, it means the instance configuration is customized based on that group configuration version. There are 2 possible use cases
a star icon (*): an admin updated the instance configuration directly on My OPSWAT console.
a sync icon: the instance synchronized its configuration back to My OPSWAT when its configuration was modified on the instance in one of the below situations:
the instance upgrades to a new version;
the instance updates its engines
an admin modified some settings directly on the instance console
Status:
<blank>: the instance fetched the current instance configuration.
Pending: the configuration has not applied to the instance yet. It's waiting for the instance to fetch that configuration
Out of Date: the current group configuration has not applied to the instance yet.
Below is a list of all possible configuration versions and their meanings.
Use case | Instance configuration | |
|---|---|---|
An admin applied the group configuration 1.0.3 to the instance. | 1.0.3 | |
An admin applied the group configuration 1.0.3 to the instance . However, the instance's configuration may be modified on the instance itself since the instance upgrades to a new version; OR it updates its engines; OR an admin modified some settings directly on the instance console. In this case, the instance synchronizes its configuration back to My OPSWAT | 1.0.3 | |
An admin applied the group configuration 1.0.3 to the instance . However, an administrator updated the instance configuration directly. | 1.0.3 * | |
The last version of the group configuration was applied to the instance is 1.0.2. However, the current group configuration version is 1.0.3 or above. | 1.0.2 Out of Date | |
An instance has not been applied the group configuration (such as just enrolled, moved from other group to this group). | 0.0.0 |
Note that all changes on instances' configuration can be tracked in the Event Log.
