Switching

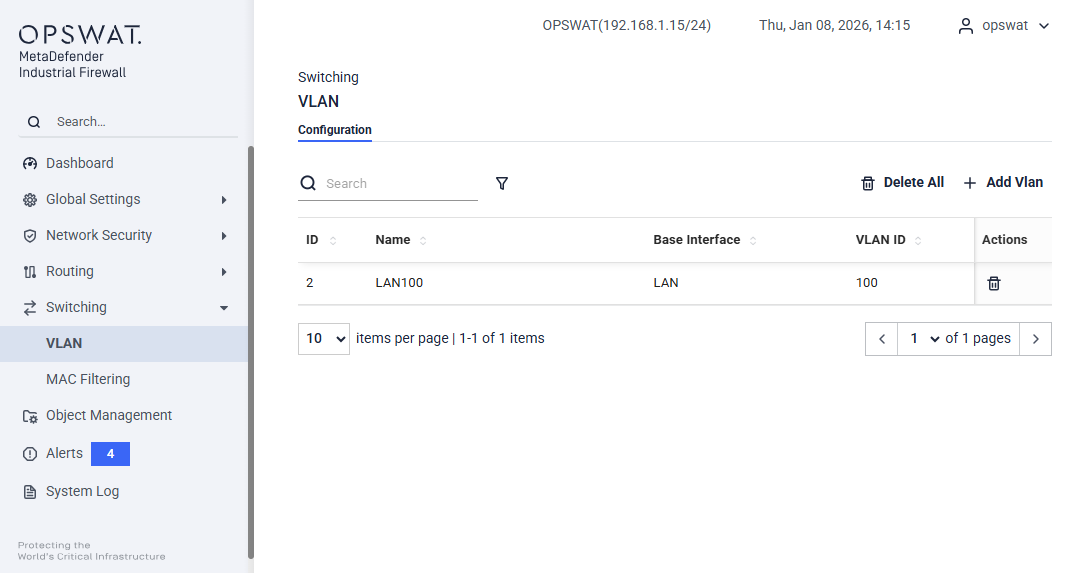

VLAN

Name: The name assigned to the VLAN.

Base Interface: The interface from which the VLAN is created.

ID: The unique identifier for the VLAN.

Action: Options to create or delete the VLAN.

MAC Filtering

A security feature that allows or denies network access based on the unique MAC addresses of devices. By creating a list of permitted or blocked MAC addresses, you can control which devices can connect to your network, enhancing security.

Setting

Log Limitation: Restrict the logging of each MAC Filtering rule based on the specified rate limit and burst limit.

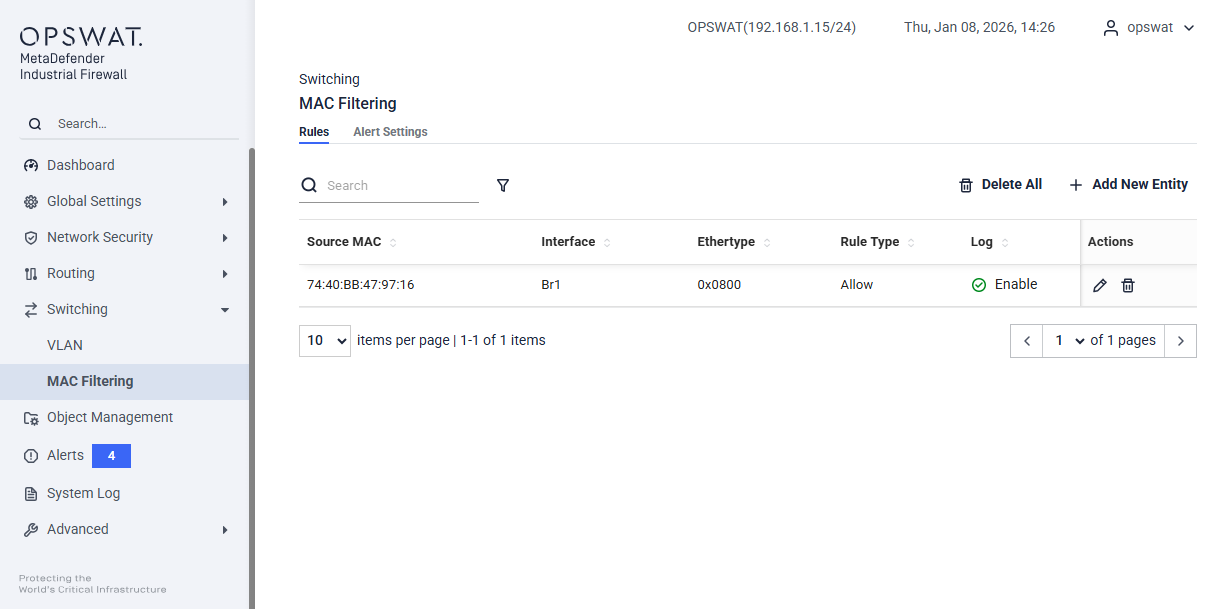

Rules

• Source MAC: The MAC address of the device initiating the traffic.
• Interface: The network interface where the rule is applied.
• Destination MAC: The MAC address of the target device.
• Ethernet Type: The type of Ethernet protocol being used.
• Status: Indicates whether the rule is enabled or disabled.
• Log: Option to log traffic that matches the rule.
• Action: Options to edit or delete the rule.

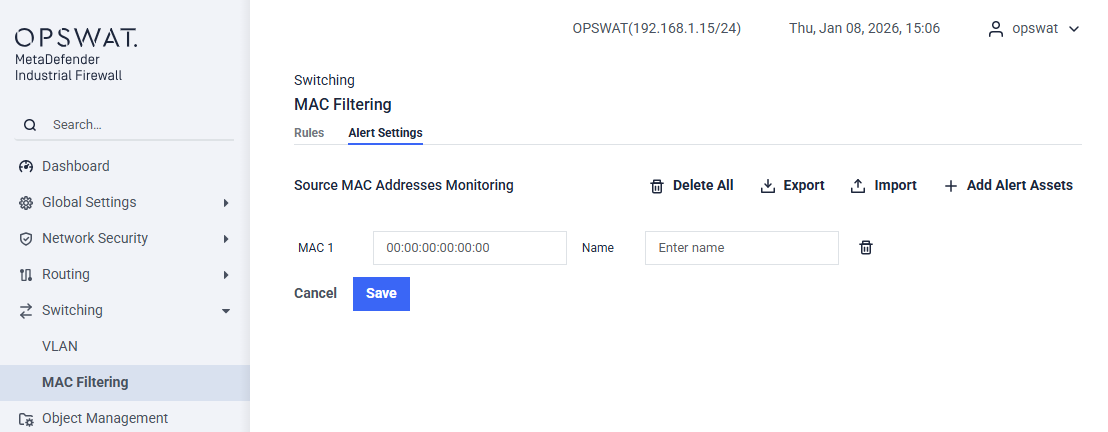

Alert

Enter the MAC address in the provided field. Optionally, you can assign a friendly name to the IP or MAC address for easier identification. If you wish to remove the MAC address you just added, click the Delete Last IP/MAC button. The appliance will generate an event for any blocked traffic directed to the MAC address specified on this page.
