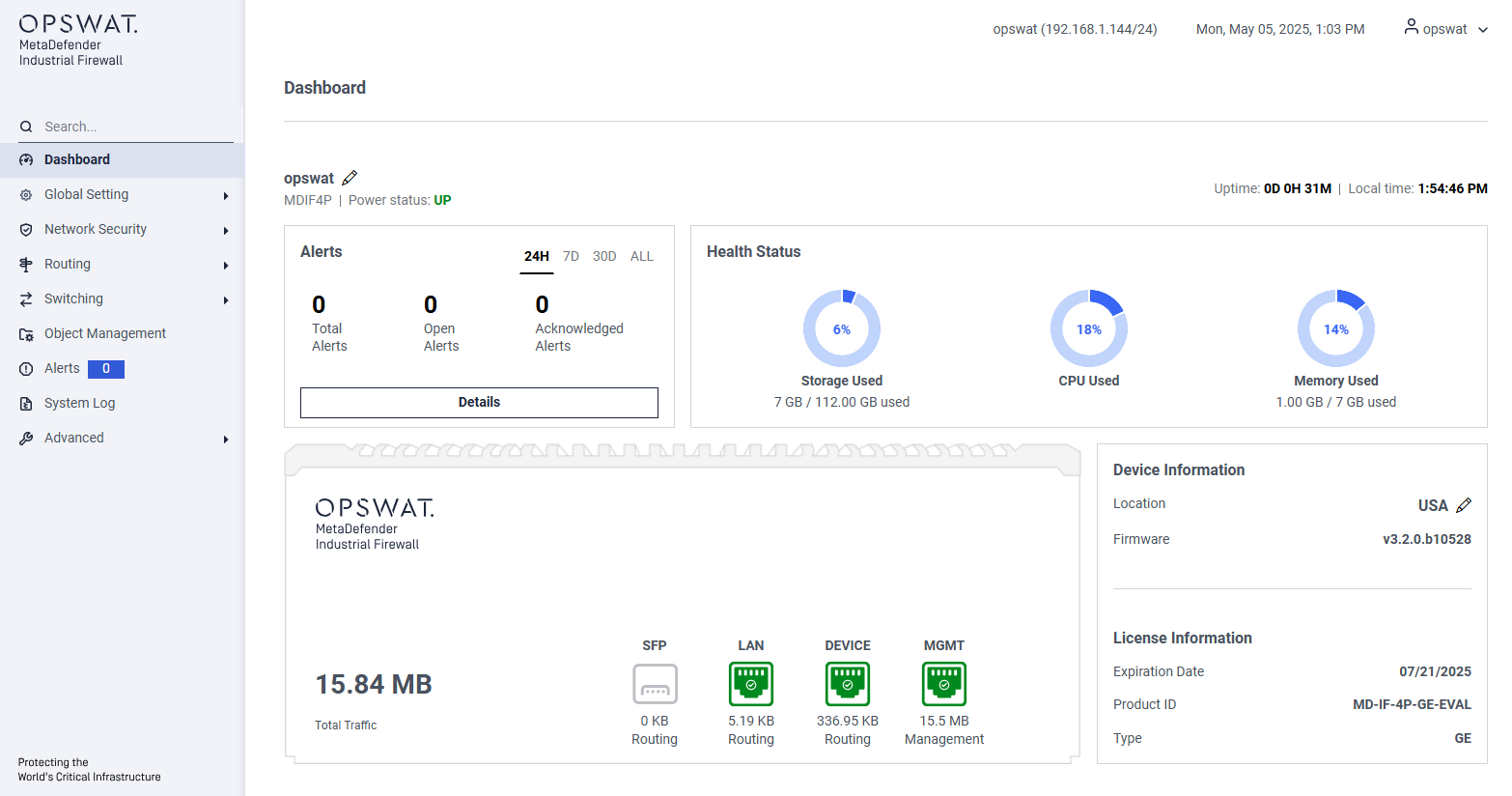

When you open the MetaDefender Industrial Firewall web interface (https://10.10.10.10), the Dashboard is displayed. The Dashboard provides real-time insights and information about the appliance's performance and status. 10.10.10.10 is the default IP address of the appliance.
Alerts: Displays events for blocked traffic with destination IP addresses defined in Section 6:
- Network Security > Packet Filtering > Routing Mode > Alert
- Network Security > Transparent Mode > FLM
Health Status: Provides usage information for storage, CPU, and memory. The status is color-coded:
- Blue: Usage is below 45%.
- Orange : Usage is between 45% and 90%.
- Red: Usage exceeds 90%.
Total traffic: Tracks and displays all incoming and outgoing traffic through the appliance.
Device Information: Shows the device’s location and firmware version. The location is editable.
License Information: Displays the license's expiration date, product ID, and type (GE or Standard license).

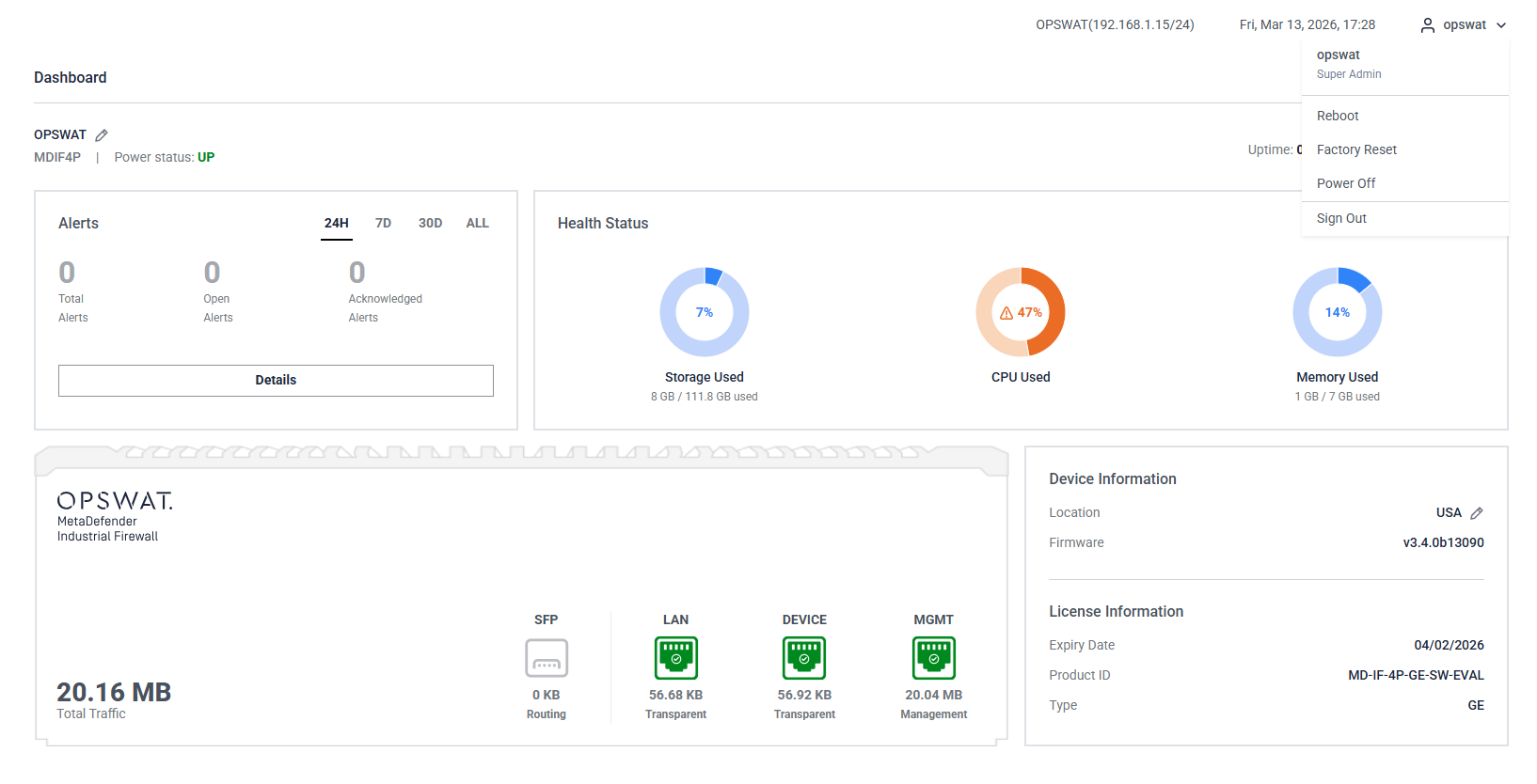

In the top‑right corner, select the user menu (dropdown under your account name). You will see the following options:
- Reboot
- Factory Reset
- Power Off
