Configure SAML SSO

Create SAML directory on MDCore

1. Login to MDCore

2. At dashboard, hit User Management in sidebar

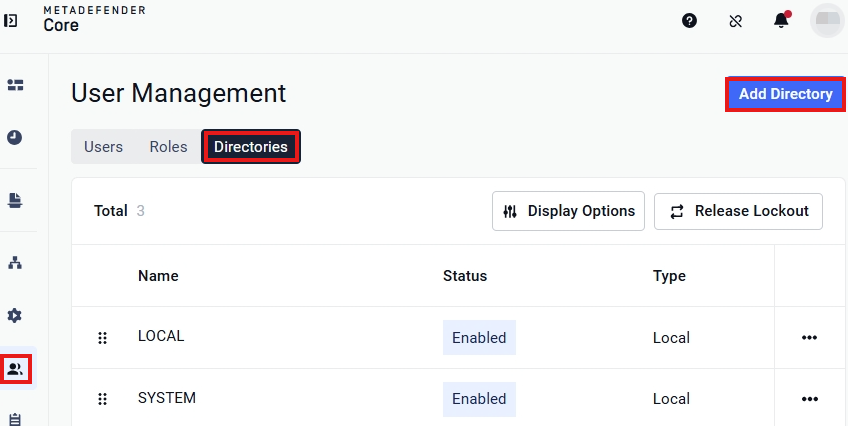

3. Under User Management page, choose Directories tab and hit Add directory on the top right

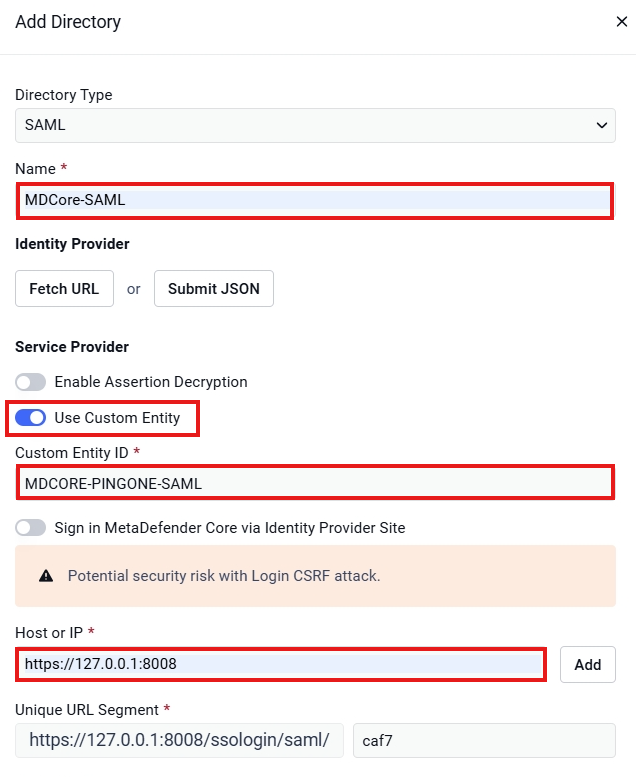

4. In Add Directory page, choose SAML in Directory Type, fill Name for the new directory, MDCore-SAML for example

5. Under Service Provider section, enable option Use custom entity ID and fill out the ID, MDCORE-PINGONE-SAML for example, then store it in entity_id

6. Fill Host or IP where MDCore is hosting, https://127.0.0.1:8008 for this example

7. Copy string generated under Login URL and store to reply_uri

Create and configure SAML application in PingOne

1. In the PingOne Overview page, navigate Applicationson sidebar

2. Hit on plus button to add new application

3. Fill application name, MDCore-SAML for an example, choose SAML Application for Application Type and hit Configure

4. Select Manually Enter for SAML Configuration, fill ACS URLs with reply_uri, and Entity ID with entity_id, and hit Save

5. Select Overview tab, navigate to IDP Metadata URL, copy the link below and store to metadata_url

__

6. Select Attribute Mappings tab and click Edit button.

7. In Edit Attribute Mappings page, hit Add to add new mapping

8. Fill attribute name, given_name in this example, select item Given Name in PingOne Mappings, enable Required option and hit Save to complete

9. Enable the new application on PingOne

Complete configuration on MDCore

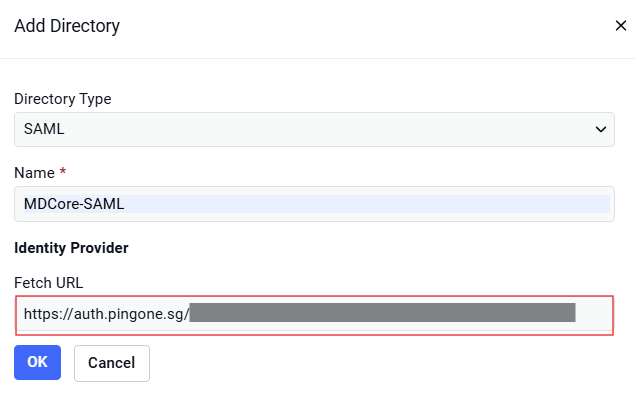

1. Switch back to MDCore, under Identity Provider, hit Fetch URL, paste metadata_url to the box under, and then hit OK, which requests MDCore to check and set PingOne as its IDP if succeed

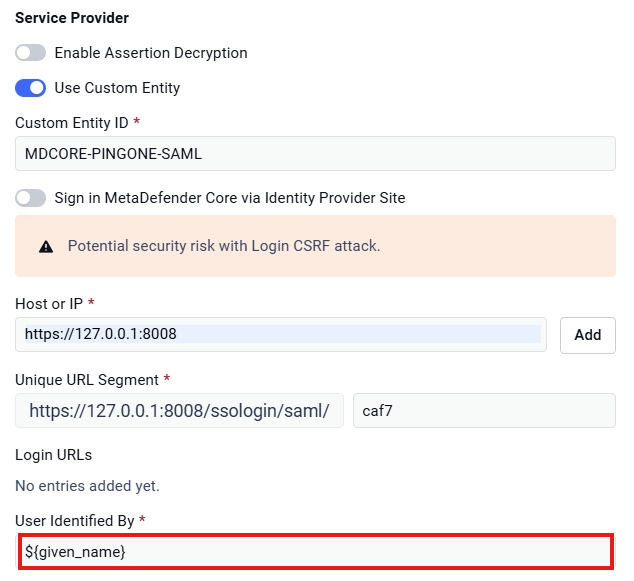

2. Under Service Provider, fill ${given_name} in the box under User identified by

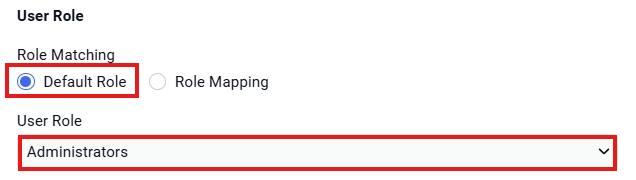

3. Select Default role option, choose the role to assign to login user under User Role and hit Add to complete setting on MDCore

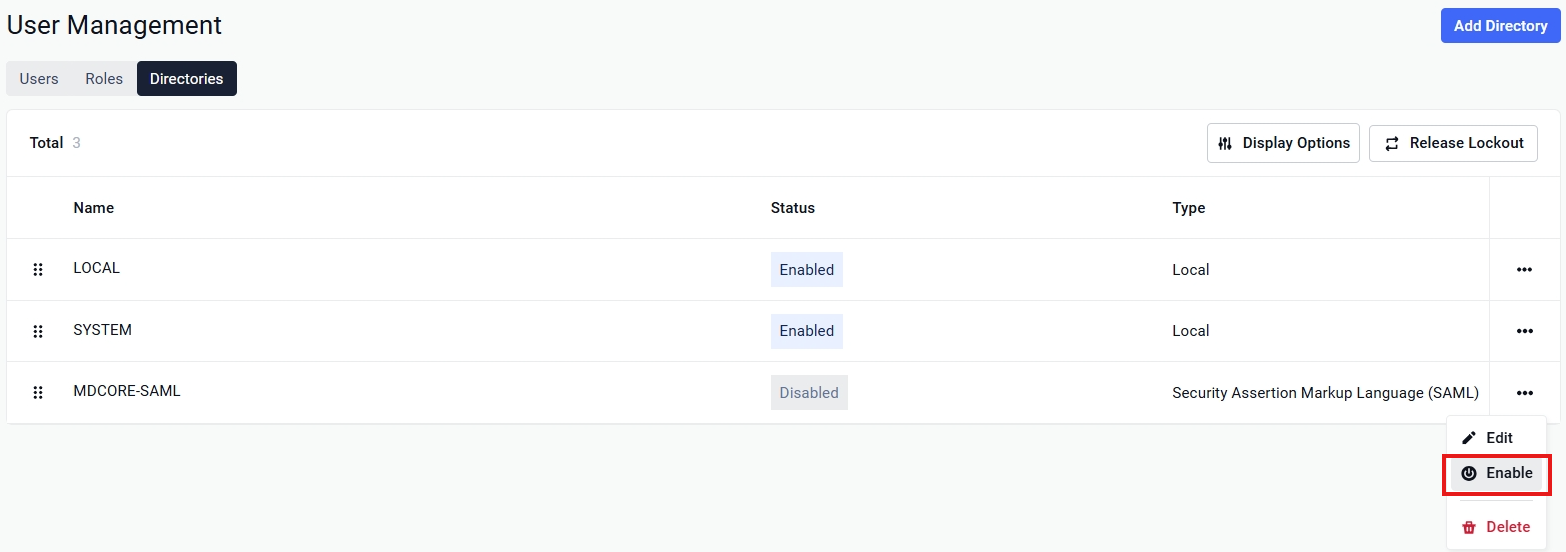

4. In User Management page, toggle the new directory, MDCORE-SAML in this example. A dialog box is shown to confirm the action. Once Enable is hit, all sessions are expired immediately

Test the integration

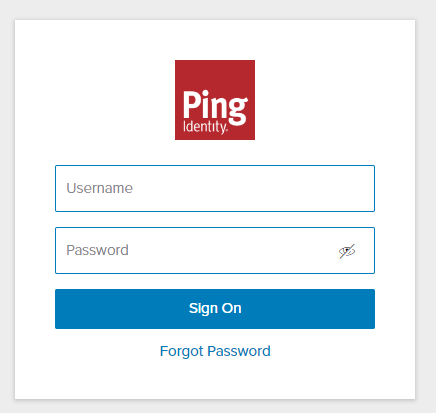

1. In home screen on MDCore, hit Login, the user is redirected to login page from PingIdentity

2. Login by the account registered to PingIdentity

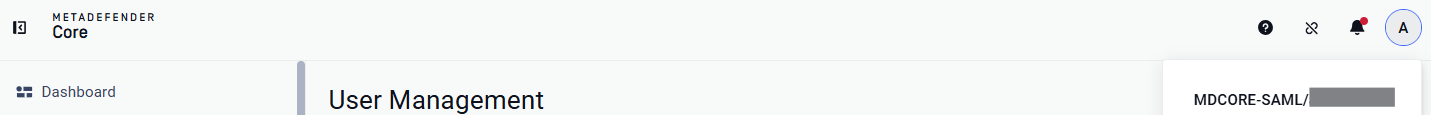

3. If everything goes right, MDCore dashboard is shown with user identity set at the top right corner

4. Otherwise, access back login page at <mdcore-host>#/public/backuplogin for trouble shooting.

Test IdP-initiated login

1. Login to PingOne management page.

2. On the left sidebar, hit Applications, then Applications.

3. Select the SSO directory from which IdP-initiated login is enabled. MDCore-SAML in this example.

4. On the right sidebar, hit tab Overview. Copy the URL under Initiate Single Sign-On URL.

5. Paste the URL into your browser and try to sign in.

6. If everything goes right, MDCore dashboard is shown with user identity set at the top right corner

7. Otherwise, access back login page at <mdcore-host>#/public/backuplogin for troubleshooting.
